inet::queueing::InProgressQueue Class Reference
#include <InProgressQueue.h>

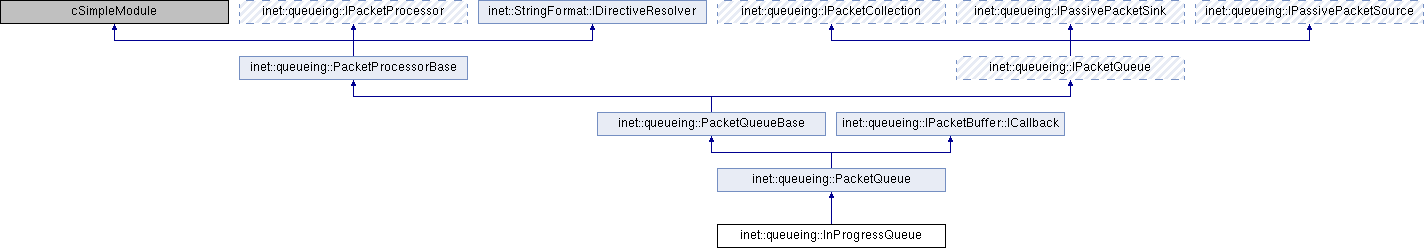

Inheritance diagram for inet::queueing::InProgressQueue:
Public Member Functions | |
| virtual bool | canPushSomePacket (cGate *gate) const override |
| Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error. More... | |
| virtual bool | canPushPacket (Packet *packet, cGate *gate) const override |
| Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error. More... | |
 Public Member Functions inherited from inet::queueing::PacketQueue | |
| virtual | ~PacketQueue () |
| virtual int | getMaxNumPackets () const override |
| Returns maximum allowed number of packets in the collection. More... | |
| virtual int | getNumPackets () const override |
| Returns the number of available packets in the collection in the range [0, inf). More... | |
| virtual b | getMaxTotalLength () const override |
| Returns maximum allowed total length of all packets in the collection. More... | |
| virtual b | getTotalLength () const override |
| Returns the total length of all packets in the collection in the range [0, inf). More... | |
| virtual bool | isEmpty () const override |
| Returns true if there are no packets available in the collection. More... | |
| virtual Packet * | getPacket (int index) const override |
| Returns the packet at the given index. More... | |
| virtual void | removePacket (Packet *packet) override |
| Removes a packet from the collection. More... | |
| virtual void | removeAllPackets () override |
| Removes all packets from the collection. More... | |
| virtual bool | supportsPacketPushing (cGate *gate) const override |
| Returns true if the processor supports pushing packets at the given gate. More... | |
| virtual void | pushPacket (Packet *packet, cGate *gate) override |
| Pushes the packet into the packet sink at the given gate. More... | |
| virtual bool | supportsPacketPulling (cGate *gate) const override |
| Returns true if the processor supports pulling packets at the given gate. More... | |
| virtual bool | canPullSomePacket (cGate *gate) const override |
| Returns false if the packet source is empty at the given gate and no more packets can be pulled from it without raising an error. More... | |
| virtual Packet * | canPullPacket (cGate *gate) const override |
| Returns the packet that can be pulled at the given gate. More... | |
| virtual Packet * | pullPacket (cGate *gate) override |
| Pulls the packet from the packet source at the given gate. More... | |
| virtual void | handlePacketRemoved (Packet *packet) override |
| Notifies the packet owner about the packet being removed from the buffer. More... | |
| Public Member Functions inherited from inet::queueing::PacketQueueBase | |
| virtual void | enqueuePacket (Packet *packet) override |
| Enqueues the packet into the packet queue. More... | |
| virtual Packet * | dequeuePacket () override |
| Dequeues the packet from the packet queue. More... | |
| virtual void | pushPacketStart (Packet *packet, cGate *gate, bps datarate) override |
| Starts pushing the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketEnd (Packet *packet, cGate *gate) override |
| Ends pushing the packet into the packet sink at the given gate. More... | |
| virtual void | pushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength=b(0)) override |
| Progresses pushing the packet into the packet sink at the given gate. More... | |
| virtual Packet * | pullPacketStart (cGate *gate, bps datarate) override |
| Starts pulling the packet from the packet source at the given gate. More... | |
| virtual Packet * | pullPacketEnd (cGate *gate) override |
| Ends pulling the packet from the packet source at the given gate. More... | |
| virtual Packet * | pullPacketProgress (cGate *gate, bps datarate, b position, b extraProcessableLength) override |
| Progresses pulling the packet from the packet source at the given gate. More... | |
| Public Member Functions inherited from inet::queueing::PacketProcessorBase | |
| virtual bool | supportsPacketSending (cGate *gate) const override |
| Returns true if the processor supports sending packets at the given gate. More... | |
| virtual bool | supportsPacketPassing (cGate *gate) const override |
| Returns true if the processor supports passing packets as a whole at the given gate. More... | |
| virtual bool | supportsPacketStreaming (cGate *gate) const override |
| Returns true if the processor supports streaming packets at the given gate. More... | |
| Public Member Functions inherited from inet::queueing::IPacketProcessor | |
| virtual | ~IPacketProcessor () |
| Public Member Functions inherited from inet::queueing::IPassivePacketSink | |
| virtual | ~IPassivePacketSink () |
| Public Member Functions inherited from inet::queueing::IPassivePacketSource | |
| virtual | ~IPassivePacketSource () |
Additional Inherited Members | |
| Protected Types inherited from inet::queueing::PacketProcessorBase | |
| enum | Action { PUSH, PULL } |
| Protected Member Functions inherited from inet::queueing::PacketQueue | |
| virtual void | initialize (int stage) override |
| virtual IPacketDropperFunction * | createDropperFunction (const char *dropperClass) const |
| virtual IPacketComparatorFunction * | createComparatorFunction (const char *comparatorClass) const |
| virtual bool | isOverloaded () const |
| Protected Member Functions inherited from inet::queueing::PacketQueueBase | |
| virtual void | handleMessage (cMessage *message) override |
| virtual void | emit (simsignal_t signal, cObject *object, cObject *details=nullptr) override |
| virtual const char * | resolveDirective (char directive) const override |
| Protected Member Functions inherited from inet::queueing::PacketProcessorBase | |
| virtual int | numInitStages () const override |
| virtual void | refreshDisplay () const override |
| virtual void | handlePacketProcessed (Packet *packet) |
| virtual void | checkPacketOperationSupport (cGate *gate) const |
| virtual void | checkPacketOperationSupport (cGate *startGate, cGate *endGate) const |
| virtual void | animate (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const |
| virtual void | animatePacket (Packet *packet, cGate *gate, Action action) const |
| virtual void | animatePacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId, Action action) const |
| virtual void | animatePacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions, Action action) const |
| virtual void | animatePacketEnd (Packet *packet, cGate *gate, long transmissionId, Action action) const |
| virtual void | animatePacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const |
| virtual void | animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const |
| virtual void | animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const |
| virtual void | pushOrSendPacket (Packet *packet, cGate *gate, IPassivePacketSink *consumer) |
| virtual void | pushOrSendPacketStart (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, int transmissionId) |
| virtual void | pushOrSendPacketEnd (Packet *packet, cGate *gate, IPassivePacketSink *consumer, int transmissionId) |
| virtual void | pushOrSendPacketProgress (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId) |
| virtual void | animatePush (Packet *packet, cGate *gate, const SendOptions &sendOptions) const |
| virtual void | animatePushPacket (Packet *packet, cGate *gate) const |
| virtual void | animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const |
| virtual void | animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const |
| virtual void | animatePushPacketEnd (Packet *packet, cGate *gate, long transmissionId) const |
| virtual void | animatePushPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const |
| virtual void | animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const |
| virtual void | animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const |
| virtual void | animatePull (Packet *packet, cGate *gate, const SendOptions &sendOptions) const |
| virtual void | animatePullPacket (Packet *packet, cGate *gate) const |
| virtual void | animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const |
| virtual void | animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const |
| virtual void | animatePullPacketEnd (Packet *packet, cGate *gate, long transmissionId) const |
| virtual void | animatePullPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const |
| virtual void | animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const |
| virtual void | animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const |
| virtual void | dropPacket (Packet *packet, PacketDropReason reason, int limit=-1) |
| virtual void | updateDisplayString () const |
| Protected Attributes inherited from inet::queueing::PacketQueue | |
| int | packetCapacity = -1 |
| b | dataCapacity = b(-1) |
| IActivePacketSource * | producer = nullptr |
| IActivePacketSink * | collector = nullptr |
| cPacketQueue | queue |
| IPacketBuffer * | buffer = nullptr |
| IPacketDropperFunction * | packetDropperFunction = nullptr |
| IPacketComparatorFunction * | packetComparatorFunction = nullptr |
| Protected Attributes inherited from inet::queueing::PacketQueueBase | |
| int | numPushedPackets = -1 |
| int | numPulledPackets = -1 |
| int | numRemovedPackets = -1 |
| int | numDroppedPackets = -1 |
| int | numCreatedPackets = -1 |
| cGate * | inputGate = nullptr |
| cGate * | outputGate = nullptr |
| Protected Attributes inherited from inet::queueing::PacketProcessorBase | |
| const char * | displayStringTextFormat = nullptr |
| int | numProcessedPackets = -1 |
| b | processedTotalLength = b(-1) |
Member Function Documentation
◆ canPushPacket()
|
overridevirtual |
Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error.
The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing packets.
Reimplemented from inet::queueing::PacketQueue.
◆ canPushSomePacket()
|
inlineoverridevirtual |
Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error.
The gate must be a valid gate of this module and it must support pushing packets.
Reimplemented from inet::queueing::PacketQueue.
The documentation for this class was generated from the following files:
