#include <PacketGateBase.h>

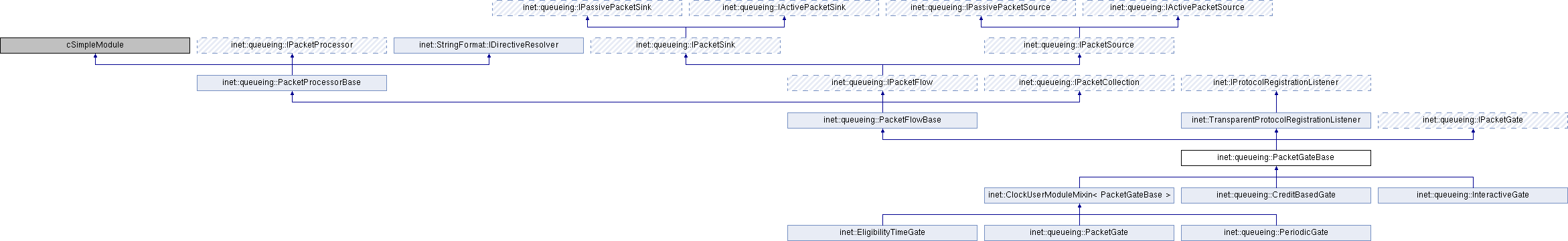

Inheritance diagram for inet::queueing::PacketGateBase:

Public Member Functions
virtual bool	isOpen () const override
	Returns true if the gate is open. More...

virtual bool	isClosed () const

virtual void	open () override
	Opens the gate and starts traffic go through. More...

virtual void	close () override
	Closes the gate and stops traffic. More...

virtual IPassivePacketSink *	getConsumer (cGate *gate) override
	Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface. More...

virtual IPassivePacketSource *	getProvider (cGate *gate) override
	Returns the passive packet source from where packets are pulled or nullptr if the connected module doesn't implement the interface. More...

virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...

virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...

virtual bool	canPushSomePacket (cGate *gate) const override
	Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error. More...

virtual bool	canPushPacket (Packet packet, cGate gate) const override
	Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error. More...

virtual bool	canPullSomePacket (cGate *gate) const override
	Returns false if the packet source is empty at the given gate and no more packets can be pulled from it without raising an error. More...

virtual Packet *	canPullPacket (cGate *gate) const override
	Returns the packet that can be pulled at the given gate. More...

virtual void	handleCanPushPacketChanged (cGate *gate) override
	Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate. More...

virtual void	handleCanPullPacketChanged (cGate *gate) override
	Notifies about a change in the possibility of pulling some packet from the passive packet source at the given gate. More...

Public Member Functions inherited from inet::queueing::PacketFlowBase
virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...

virtual void	pushPacket (Packet packet, cGate gate) override
	Pushes the packet into the packet sink at the given gate. More...

virtual void	pushPacketStart (Packet packet, cGate gate, bps datarate) override
	Starts pushing the packet into the packet sink at the given gate. More...

virtual void	pushPacketEnd (Packet packet, cGate gate) override
	Ends pushing the packet into the packet sink at the given gate. More...

virtual void	pushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength=b(0)) override
	Progresses pushing the packet into the packet sink at the given gate. More...

virtual void	handlePushPacketProcessed (Packet packet, cGate gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed. More...

virtual Packet *	pullPacket (cGate *gate) override
	Pulls the packet from the packet source at the given gate. More...

virtual Packet *	pullPacketStart (cGate *gate, bps datarate) override
	Starts pulling the packet from the packet source at the given gate. More...

virtual Packet *	pullPacketEnd (cGate *gate) override
	Ends pulling the packet from the packet source at the given gate. More...

virtual Packet *	pullPacketProgress (cGate *gate, bps datarate, b position, b extraProcessableLength) override
	Progresses pulling the packet from the packet source at the given gate. More...

virtual void	handlePullPacketProcessed (Packet packet, cGate gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pulled earlier independently whether the packet is passed or streamed. More...

virtual int	getMaxNumPackets () const override
	Returns maximum allowed number of packets in the collection. More...

virtual int	getNumPackets () const override
	Returns the number of available packets in the collection in the range [0, inf). More...

virtual b	getMaxTotalLength () const override
	Returns maximum allowed total length of all packets in the collection. More...

virtual b	getTotalLength () const override
	Returns the total length of all packets in the collection in the range [0, inf). More...

virtual Packet *	getPacket (int index) const override
	Returns the packet at the given index. More...

virtual bool	isEmpty () const override
	Returns true if there are no packets available in the collection. More...

virtual void	removePacket (Packet *packet) override
	Removes a packet from the collection. More...

virtual void	removeAllPackets () override
	Removes all packets from the collection. More...

Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...

virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...

virtual const char *	resolveDirective (char directive) const override

Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()

Public Member Functions inherited from inet::queueing::IPassivePacketSink
virtual	~IPassivePacketSink ()

Public Member Functions inherited from inet::queueing::IActivePacketSink
virtual	~IActivePacketSink ()

Public Member Functions inherited from inet::queueing::IPassivePacketSource
virtual	~IPassivePacketSource ()

Public Member Functions inherited from inet::queueing::IActivePacketSource
virtual	~IActivePacketSource ()

Public Member Functions inherited from inet::TransparentProtocolRegistrationListener
virtual void	mapRegistrationForwardingGates (cGate gate, std::function< void(cGate )> f)

virtual bool	isForwardingProtocol (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingProtocolGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingAnyProtocol (cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingProtocol (cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingService (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingServiceGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingAnyService (cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingService (cGate *gate, ServicePrimitive servicePrimitive) const

virtual void	handleRegisterService (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) override

virtual void	handleRegisterProtocol (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) override

virtual void	handleRegisterServiceGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) override

virtual void	handleRegisterProtocolGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) override

virtual void	handleRegisterAnyService (cGate *gate, ServicePrimitive servicePrimitive) override

virtual void	handleRegisterAnyProtocol (cGate *gate, ServicePrimitive servicePrimitive) override

Static Public Attributes
static simsignal_t	gateStateChangedSignal = registerSignal("gateStateChanged")

Protected Member Functions
virtual void	initialize (int stage) override

virtual cGate *	getRegistrationForwardingGate (cGate *gate) override

virtual void	processPacket (Packet *packet) override

virtual bool	canPacketFlowThrough (Packet *packet) const

virtual void	updateDisplayString () const override

Protected Member Functions inherited from inet::queueing::PacketFlowBase
virtual void	handleMessage (cMessage *message) override

virtual bool	isStreamingPacket () const

virtual void	startPacketStreaming (Packet *packet)

virtual void	endPacketStreaming (Packet *packet)

virtual void	checkPacketStreaming (Packet *packet)

Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handlePacketProcessed (Packet *packet)

virtual void	checkPacketOperationSupport (cGate *gate) const

virtual void	checkPacketOperationSupport (cGate startGate, cGate endGate) const

virtual void	animate (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacket (Packet packet, cGate gate, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, long transmissionId, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, long transmissionId, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const

virtual void	pushOrSendPacket (Packet packet, cGate gate, IPassivePacketSink *consumer)

virtual void	pushOrSendPacketStart (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)

virtual void	pushOrSendPacketEnd (Packet packet, cGate gate, IPassivePacketSink *consumer, int transmissionId)

virtual void	pushOrSendPacketProgress (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)

virtual void	animatePush (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacket (Packet packet, cGate gate) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	animatePull (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacket (Packet packet, cGate gate) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)

Protected Attributes
bps	bitrate = bps(NaN)

b	extraLength = b(-1)

simtime_t	extraDuration

bool	isOpen_ = false

Protected Attributes inherited from inet::queueing::PacketFlowBase
cGate *	inputGate = nullptr

ModuleRef< IActivePacketSource >	producer

ModuleRef< IPassivePacketSource >	provider

ModuleRef< IPacketCollection >	collection

cGate *	outputGate = nullptr

ModuleRef< IPassivePacketSink >	consumer

ModuleRef< IActivePacketSink >	collector

int	inProgressStreamId = -1

Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr

int	numProcessedPackets = -1

b	processedTotalLength = b(-1)

Additional Inherited Members
Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Member Function Documentation

◆ canPacketFlowThrough()

bool inet::queueing::PacketGateBase::canPacketFlowThrough ( Packet * packet ) const

protectedvirtual

Reimplemented in inet::queueing::PeriodicGate.

 {
     return true;
 }

Referenced by inet::queueing::PeriodicGate::canPacketFlowThrough(), canPullPacket(), canPullSomePacket(), canPushPacket(), and canPushSomePacket().

◆ canPullPacket()

Packet * inet::queueing::PacketGateBase::canPullPacket ( cGate * gate ) const

overridevirtual

Returns the packet that can be pulled at the given gate.

The returned value is nullptr if there is no such packet.

The gate must be a valid gate of this module and it must support pushing packets.

Reimplemented from inet::queueing::PacketFlowBase.

 {
     auto packet = PacketFlowBase::canPullPacket(gate);
     return isOpen_ && canPacketFlowThrough(packet) ? packet : nullptr;
 }

◆ canPullSomePacket()

bool inet::queueing::PacketGateBase::canPullSomePacket ( cGate * gate ) const

overridevirtual

Returns false if the packet source is empty at the given gate and no more packets can be pulled from it without raising an error.

The gate must be a valid gate of this module and it must support pulling packets.

Reimplemented from inet::queueing::PacketFlowBase.

 {
     auto packet = PacketFlowBase::canPullPacket(gate);
     return isOpen_ && canPacketFlowThrough(packet) && PacketFlowBase::canPullSomePacket(gate);
 }

◆ canPushPacket()

bool inet::queueing::PacketGateBase::canPushPacket	(	Packet *	packet,
		cGate *	gate
	)		const

overridevirtual

Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error.

The packet must not be nullptr. The gate must be a valid gate of this module and it must support pushing packets.

Reimplemented from inet::queueing::PacketFlowBase.

 {
     return isOpen_ && canPacketFlowThrough(packet) && PacketFlowBase::canPushPacket(packet, gate);
 }

◆ canPushSomePacket()

bool inet::queueing::PacketGateBase::canPushSomePacket ( cGate * gate ) const

overridevirtual

Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error.

The gate must be a valid gate of this module and it must support pushing packets.

Reimplemented from inet::queueing::PacketFlowBase.

 {
     return isOpen_ && canPacketFlowThrough(nullptr) && PacketFlowBase::canPushSomePacket(gate);
 }

◆ close()

void inet::queueing::PacketGateBase::close ( )

overridevirtual

Closes the gate and stops traffic.

Implements inet::queueing::IPacketGate.

 {
     ASSERT(isOpen_);
     EV_DEBUG << "Closing gate" << EV_ENDL;
     isOpen_ = false;
     if (producer != nullptr)
         producer->handleCanPushPacketChanged(inputGate->getPathStartGate());
     if (collector != nullptr)
         collector->handleCanPullPacketChanged(outputGate->getPathEndGate());
     emit(gateStateChangedSignal, isOpen_);
     updateDisplayString();
 }

Referenced by inet::queueing::InteractiveGate::handleParameterChange(), inet::queueing::PacketGate::processChangeTimer(), inet::queueing::PeriodicGate::processChangeTimer(), inet::queueing::CreditBasedGate::processChangeTimer(), and inet::EligibilityTimeGate::updateOpen().

◆ getConsumer()

virtual IPassivePacketSink* inet::queueing::PacketGateBase::getConsumer ( cGate * gate )

inlineoverridevirtual

Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface.

The gate parameter must be a valid gate of this module.

Reimplemented from inet::queueing::PacketFlowBase.

50 { return this; }

◆ getProvider()

virtual IPassivePacketSource* inet::queueing::PacketGateBase::getProvider ( cGate * gate )

inlineoverridevirtual

Returns the passive packet source from where packets are pulled or nullptr if the connected module doesn't implement the interface.

The gate parameter must be a valid gate of this module.

Reimplemented from inet::queueing::PacketFlowBase.

51 { return this; }

◆ getRegistrationForwardingGate()

cGate * inet::queueing::PacketGateBase::getRegistrationForwardingGate ( cGate * gate )

overrideprotectedvirtual

Reimplemented from inet::TransparentProtocolRegistrationListener.

 {
     if (gate == outputGate)
         return inputGate;
     else if (gate == inputGate)
         return outputGate;
     else
         throw cRuntimeError("Unknown gate");
 }

◆ handleCanPullPacketChanged()

void inet::queueing::PacketGateBase::handleCanPullPacketChanged ( cGate * gate )

overridevirtual

Notifies about a change in the possibility of pulling some packet from the passive packet source at the given gate.

This method is called, for example, when a new packet is inserted into a queue. It allows the sink to pull a new packet from the queue.

The gate parameter must be a valid gate of this module.

Reimplemented from inet::queueing::PacketFlowBase.

Reimplemented in inet::queueing::CreditBasedGate, and inet::EligibilityTimeGate.

 {
     Enter_Method("handleCanPullPacketChanged");
     if (isOpen_)
         PacketFlowBase::handleCanPullPacketChanged(gate);
 }

Referenced by inet::EligibilityTimeGate::handleCanPullPacketChanged(), and inet::queueing::CreditBasedGate::handleCanPullPacketChanged().

◆ handleCanPushPacketChanged()

void inet::queueing::PacketGateBase::handleCanPushPacketChanged ( cGate * gate )

overridevirtual

Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate.

This method is called, for example, when a new packet can be inserted into a queue. It allows the source to push a new packet into the queue.

The gate parameter must be a valid gate of this module.

Reimplemented from inet::queueing::PacketFlowBase.

 {
     Enter_Method("handleCanPushPacketChanged");
     if (isOpen_)
         PacketFlowBase::handleCanPushPacketChanged(gate);
 }

◆ initialize()

void inet::queueing::PacketGateBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::queueing::PacketFlowBase.

Reimplemented in inet::queueing::CreditBasedGate, inet::EligibilityTimeGate, inet::queueing::PeriodicGate, inet::queueing::PacketGate, and inet::queueing::InteractiveGate.

 {
     PacketFlowBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         bitrate = bps(par("bitrate"));
         extraLength = b(par("extraLength"));
         extraDuration = par("extraDuration");
         getDisplayString().setTagArg("i", 2, 20);
         WATCH(isOpen_);
     }
     else if (stage == INITSTAGE_LAST)
         emit(gateStateChangedSignal, isOpen_);
 }

Referenced by inet::queueing::InteractiveGate::initialize(), and inet::queueing::CreditBasedGate::initialize().

◆ isClosed()

virtual bool inet::queueing::PacketGateBase::isClosed ( ) const

inlinevirtual

46 { return !isOpen_; }

Referenced by inet::EligibilityTimeGate::updateOpen().

◆ isOpen()

virtual bool inet::queueing::PacketGateBase::isOpen ( ) const

inlineoverridevirtual

Returns true if the gate is open.

Implements inet::queueing::IPacketGate.

45 { return isOpen_; }

Referenced by inet::EligibilityTimeGate::updateOpen().

◆ open()

void inet::queueing::PacketGateBase::open ( )

overridevirtual

Opens the gate and starts traffic go through.

Implements inet::queueing::IPacketGate.

 {
     ASSERT(!isOpen_);
     EV_DEBUG << "Opening gate" << EV_ENDL;
     isOpen_ = true;
     if (producer != nullptr)
         producer->handleCanPushPacketChanged(inputGate->getPathStartGate());
     if (collector != nullptr)
         collector->handleCanPullPacketChanged(outputGate->getPathEndGate());
     emit(gateStateChangedSignal, isOpen_);
     updateDisplayString();
 }

Referenced by inet::queueing::InteractiveGate::handleParameterChange(), inet::queueing::PacketGate::processChangeTimer(), inet::queueing::PeriodicGate::processChangeTimer(), inet::queueing::CreditBasedGate::processChangeTimer(), and inet::EligibilityTimeGate::updateOpen().

◆ processPacket()

void inet::queueing::PacketGateBase::processPacket ( Packet * packet )

overrideprotectedvirtual

Implements inet::queueing::PacketFlowBase.

Reimplemented in inet::queueing::CreditBasedGate.

 {
     EV_INFO << "Passing through packet" << EV_FIELD(packet) << EV_ENDL;
 }

Referenced by inet::queueing::CreditBasedGate::processPacket().

◆ supportsPacketPulling()

virtual bool inet::queueing::PacketGateBase::supportsPacketPulling ( cGate * gate ) const

inlineoverridevirtual

Returns true if the processor supports pulling packets at the given gate.

Pulling a packet is a synchronous operation that is initiated by the sink module. A pulled packet can be passed as a whole using pullPacket(), or it can be streamed from the source to the sink using pullPacketStart(), pullPacketEnd(), and pullPacketProgress().

For output gates, true means that the connected module can pull packets from this module. For input gates, true means that this module can pull packets from the connected module. For example, a packet server module can pull packets from a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(pull) in the NED file.

Reimplemented from inet::queueing::PacketFlowBase.

54 { return true; }

◆ supportsPacketPushing()

virtual bool inet::queueing::PacketGateBase::supportsPacketPushing ( cGate * gate ) const

inlineoverridevirtual

Returns true if the processor supports pushing packets at the given gate.

Pushing a packet is a synchronous operation that is initiated by the source module. A pushed packet can be passed as a whole using pushPacket(), or it can be streamed from the source to the sink using pushPacketStart(), pushPacketEnd(), and pushPacketProgress().

For output gates, true means that this module can push packets into the connected module. For input gates, true means that the connected module can push packets into this module. For example, a packet generator module can push packets into a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(push) in the NED file.

Reimplemented from inet::queueing::PacketFlowBase.

53 { return true; }

◆ updateDisplayString()

void inet::queueing::PacketGateBase::updateDisplayString ( ) const

overrideprotectedvirtual

Reimplemented from inet::queueing::PacketProcessorBase.

 {
     PacketFlowBase::updateDisplayString();
     getDisplayString().setTagArg("i", 1, isOpen_ ? "green" : "red");
     getDisplayString().setTagArg("i", 2, 50);
 }

Referenced by close(), inet::queueing::CreditBasedGate::initialize(), open(), and inet::queueing::CreditBasedGate::refreshDisplay().

Member Data Documentation

◆ bitrate

bps inet::queueing::PacketGateBase::bitrate = bps(NaN)

protected

Referenced by inet::queueing::PeriodicGate::canPacketFlowThrough(), and initialize().

◆ extraDuration

simtime_t inet::queueing::PacketGateBase::extraDuration

protected

Referenced by inet::queueing::PeriodicGate::canPacketFlowThrough(), and initialize().

◆ extraLength

b inet::queueing::PacketGateBase::extraLength = b(-1)

protected

Referenced by inet::queueing::PeriodicGate::canPacketFlowThrough(), and initialize().

◆ gateStateChangedSignal

simsignal_t inet::queueing::PacketGateBase::gateStateChangedSignal = registerSignal("gateStateChanged")

static

Referenced by close(), initialize(), and open().

◆ isOpen_

bool inet::queueing::PacketGateBase::isOpen_ = false

protected

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Function Documentation

◆ canPacketFlowThrough()

◆ canPullPacket()

◆ canPullSomePacket()

◆ canPushPacket()

◆ canPushSomePacket()

◆ close()

◆ getConsumer()

◆ getProvider()

◆ getRegistrationForwardingGate()

◆ handleCanPullPacketChanged()

◆ handleCanPushPacketChanged()

◆ initialize()

◆ isClosed()

◆ isOpen()

◆ open()

◆ processPacket()

◆ supportsPacketPulling()

◆ supportsPacketPushing()

◆ updateDisplayString()

Member Data Documentation

◆ bitrate

◆ extraDuration

◆ extraLength

◆ gateStateChangedSignal

◆ isOpen_
