inet::queueing::IPacketCollection Class Referenceabstract

This class defines the interface for packet collections. More...

#include <IPacketCollection.h>

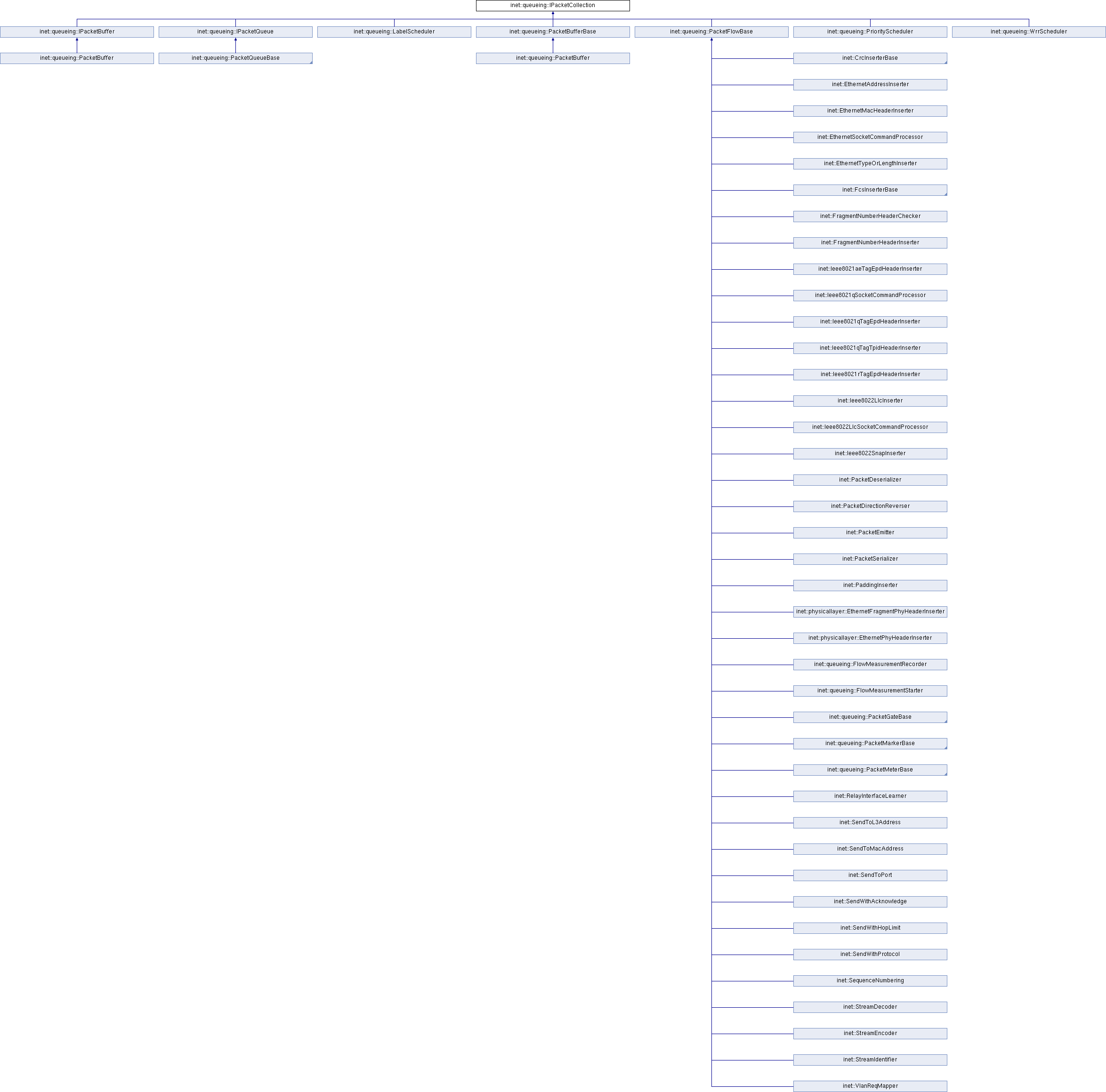

Inheritance diagram for inet::queueing::IPacketCollection:
inet::queueing::IPacketBuffer inet::queueing::IPacketQueue inet::queueing::LabelScheduler inet::queueing::PacketBufferBase inet::queueing::PacketFlowBase inet::queueing::PriorityScheduler inet::queueing::WrrScheduler inet::queueing::PacketBuffer inet::queueing::PacketQueueBase inet::queueing::PacketBuffer inet::CrcInserterBase inet::EthernetAddressInserter inet::EthernetMacHeaderInserter inet::EthernetSocketCommandProcessor inet::EthernetTypeOrLengthInserter inet::FcsInserterBase inet::FragmentNumberHeaderChecker inet::FragmentNumberHeaderInserter inet::Ieee8021aeTagEpdHeaderInserter inet::Ieee8021qSocketCommandProcessor inet::Ieee8021qTagEpdHeaderInserter inet::Ieee8021qTagTpidHeaderInserter inet::Ieee8021rTagEpdHeaderInserter inet::Ieee8022LlcInserter inet::Ieee8022LlcSocketCommandProcessor inet::Ieee8022SnapInserter inet::PacketDeserializer inet::PacketDirectionReverser inet::PacketEmitter inet::PacketSerializer inet::PaddingInserter inet::physicallayer::EthernetFragmentPhyHeaderInserter inet::physicallayer::EthernetPhyHeaderInserter inet::queueing::FlowMeasurementRecorder inet::queueing::FlowMeasurementStarter inet::queueing::PacketGateBase inet::queueing::PacketMarkerBase inet::queueing::PacketMeterBase inet::RelayInterfaceLearner inet::SendToL3Address inet::SendToMacAddress inet::SendToPort inet::SendWithAcknowledge inet::SendWithHopLimit inet::SendWithProtocol inet::SequenceNumbering inet::StreamDecoder inet::StreamEncoder inet::StreamIdentifier inet::VlanReqMapper

Public Member Functions

virtual int getMaxNumPackets () const =0
 Returns maximum allowed number of packets in the collection. More...

virtual int getNumPackets () const =0
 Returns the number of available packets in the collection in the range [0, inf). More...

virtual b getMaxTotalLength () const =0
 Returns maximum allowed total length of all packets in the collection. More...

virtual b getTotalLength () const =0
 Returns the total length of all packets in the collection in the range [0, inf). More...

virtual Packet * getPacket (int index) const =0
 Returns the packet at the given index. More...

virtual bool isEmpty () const =0
 Returns true if there are no packets available in the collection. More...

virtual void removePacket (Packet *packet)=0
 Removes a packet from the collection. More...

virtual void removeAllPackets ()=0
 Removes all packets from the collection. More...


Detailed Description

This class defines the interface for packet collections.

Member Function Documentation

◆ getMaxNumPackets()

virtual int inet::queueing::IPacketCollection::getMaxNumPackets ( ) const
pure virtual

Returns maximum allowed number of packets in the collection.

The value -1 means no such limit.

Implemented in inet::queueing::PacketFlowBase, inet::queueing::PacketQueue, inet::queueing::CompoundPacketQueueBase, inet::queueing::PacketBuffer, inet::queueing::WrrScheduler, inet::queueing::LabelScheduler, and inet::queueing::PriorityScheduler.

◆ getMaxTotalLength()

virtual b inet::queueing::IPacketCollection::getMaxTotalLength ( ) const
pure virtual

Returns maximum allowed total length of all packets in the collection.

The value -1 means no such limit.

Implemented in inet::queueing::PacketFlowBase, inet::queueing::PacketQueue, inet::queueing::CompoundPacketQueueBase, inet::queueing::PacketBuffer, inet::queueing::WrrScheduler, inet::queueing::LabelScheduler, and inet::queueing::PriorityScheduler.

◆ getNumPackets()

virtual int inet::queueing::IPacketCollection::getNumPackets ( ) const
pure virtual

Returns the number of available packets in the collection in the range [0, inf).

Implemented in inet::queueing::PacketFlowBase, inet::queueing::PacketQueue, inet::queueing::CompoundPacketQueueBase, inet::queueing::PacketBuffer, inet::queueing::WrrScheduler, inet::queueing::LabelScheduler, and inet::queueing::PriorityScheduler.

Referenced by inet::ieee80211::BasicMsduAggregationPolicy::computeAggregateFrames(), inet::queueing::CompoundPacketQueueBase::getNumPackets(), inet::queueing::PacketBufferBase::resolveDirective(), and inet::queueing::PacketQueueBase::resolveDirective().

◆ getPacket()

virtual Packet* inet::queueing::IPacketCollection::getPacket ( int  index) const
pure virtual

Returns the packet at the given index.

Throws error when the index is out of range.

Implemented in inet::queueing::PacketFlowBase, inet::queueing::PacketQueue, inet::queueing::CompoundPacketQueueBase, inet::queueing::WrrScheduler, inet::queueing::PacketBuffer, inet::queueing::LabelScheduler, and inet::queueing::PriorityScheduler.

Referenced by inet::ieee80211::BasicMsduAggregationPolicy::computeAggregateFrames(), inet::queueing::CompoundPacketQueueBase::getPacket(), and inet::queueing::PacketQueueBase::resolveDirective().

◆ getTotalLength()

virtual b inet::queueing::IPacketCollection::getTotalLength ( ) const
pure virtual

Returns the total length of all packets in the collection in the range [0, inf).

Implemented in inet::queueing::PacketFlowBase, inet::queueing::PacketQueue, inet::queueing::CompoundPacketQueueBase, inet::queueing::PacketBuffer, inet::queueing::WrrScheduler, inet::queueing::LabelScheduler, and inet::queueing::PriorityScheduler.

Referenced by inet::queueing::CompoundPacketQueueBase::getTotalLength(), inet::queueing::PacketBufferBase::resolveDirective(), and inet::queueing::PacketQueueBase::resolveDirective().

◆ isEmpty()

virtual bool inet::queueing::IPacketCollection::isEmpty ( ) const
pure virtual

Returns true if there are no packets available in the collection.

Implemented in inet::queueing::PacketFlowBase, inet::queueing::PacketQueue, inet::queueing::CompoundPacketQueueBase, inet::queueing::PacketBuffer, inet::queueing::WrrScheduler, inet::queueing::LabelScheduler, and inet::queueing::PriorityScheduler.

Referenced by inet::ieee80211::BasicMsduAggregationPolicy::computeAggregateFrames(), inet::ieee80211::OriginatorMacDataService::extractFramesToTransmit(), inet::ieee80211::OriginatorQosMacDataService::extractFramesToTransmit(), inet::queueing::CompoundPacketQueueBase::isEmpty(), and inet::queueing::PacketQueueBase::resolveDirective().

◆ removeAllPackets()

virtual void inet::queueing::IPacketCollection::removeAllPackets ( )
pure virtual

Removes all packets from the collection.

Implemented in inet::queueing::PacketFlowBase, inet::queueing::PacketQueue, inet::queueing::CompoundPacketQueueBase, inet::queueing::PacketBuffer, inet::queueing::WrrScheduler, inet::queueing::LabelScheduler, and inet::queueing::PriorityScheduler.

Referenced by inet::queueing::CompoundPacketQueueBase::removeAllPackets(), and inet::queueing::PacketQueue::removeAllPackets().

◆ removePacket()

virtual void inet::queueing::IPacketCollection::removePacket ( Packet *  packet)
pure virtual

Removes a packet from the collection.

The collection must contain the packet.

Implemented in inet::queueing::IPacketBuffer, inet::queueing::PacketFlowBase, inet::queueing::PacketQueue, inet::queueing::CompoundPacketQueueBase, inet::queueing::PacketBuffer, inet::queueing::WrrScheduler, inet::queueing::LabelScheduler, and inet::queueing::PriorityScheduler.

Referenced by inet::ieee80211::OriginatorQosMacDataService::aMsduAggregateIfNeeded(), and inet::queueing::CompoundPacketQueueBase::removePacket().

The documentation for this class was generated from the following file:
