This module implements a Weighted Round Robin Scheduler. More...

#include <WrrScheduler.h>

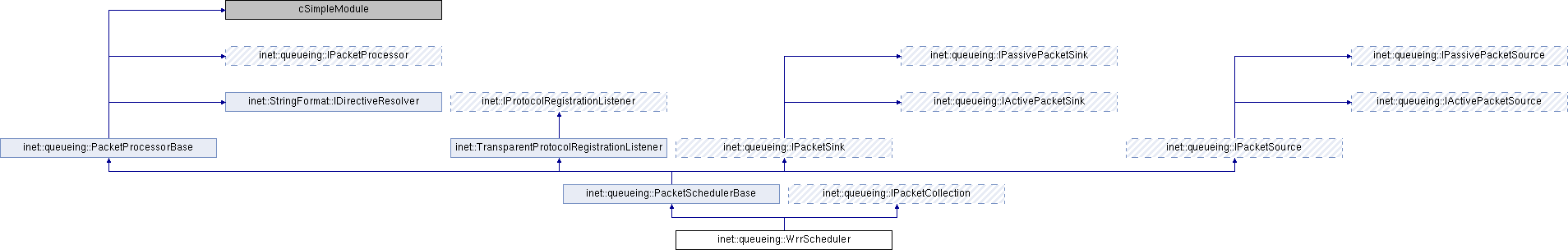

Inheritance diagram for inet::queueing::WrrScheduler:

Public Member Functions
virtual	~WrrScheduler ()

virtual int	getMaxNumPackets () const override
	Returns maximum allowed number of packets in the collection. More...

virtual int	getNumPackets () const override
	Returns the number of available packets in the collection in the range [0, inf). More...

virtual b	getMaxTotalLength () const override
	Returns maximum allowed total length of all packets in the collection. More...

virtual b	getTotalLength () const override
	Returns the total length of all packets in the collection in the range [0, inf). More...

virtual bool	isEmpty () const override
	Returns true if there are no packets available in the collection. More...

virtual Packet *	getPacket (int index) const override
	Returns the packet at the given index. More...

virtual void	removePacket (Packet *packet) override
	Removes a packet from the collection. More...

virtual void	removeAllPackets () override
	Removes all packets from the collection. More...

Public Member Functions inherited from inet::queueing::PacketSchedulerBase
virtual IPassivePacketSink *	getConsumer (cGate *gate) override
	Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface. More...

virtual IPassivePacketSource *	getProvider (cGate *gate) override
	Returns the passive packet source from where packets are pulled or nullptr if the connected module doesn't implement the interface. More...

virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...

virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...

virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...

virtual bool	canPushSomePacket (cGate *gate) const override
	Returns false if the packet sink is full at the given gate and no more packets can be pushed into it without raising an error. More...

virtual bool	canPushPacket (Packet packet, cGate gate) const override
	Returns true if the given packet can be pushed at the given gate into the packet sink without raising an error. More...

virtual void	pushPacket (Packet packet, cGate gate) override
	Pushes the packet into the packet sink at the given gate. More...

virtual void	pushPacketStart (Packet packet, cGate gate, bps datarate) override
	Starts pushing the packet into the packet sink at the given gate. More...

virtual void	pushPacketEnd (Packet packet, cGate gate) override
	Ends pushing the packet into the packet sink at the given gate. More...

virtual void	pushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength=b(0)) override
	Progresses pushing the packet into the packet sink at the given gate. More...

virtual void	handleCanPushPacketChanged (cGate *gate) override
	Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate. More...

virtual void	handlePushPacketProcessed (Packet packet, cGate gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed. More...

virtual bool	canPullSomePacket (cGate *gate) const override
	Returns false if the packet source is empty at the given gate and no more packets can be pulled from it without raising an error. More...

virtual Packet *	canPullPacket (cGate *gate) const override
	Returns the packet that can be pulled at the given gate. More...

virtual Packet *	pullPacket (cGate *gate) override
	Pulls the packet from the packet source at the given gate. More...

virtual Packet *	pullPacketStart (cGate *gate, bps datarate) override
	Starts pulling the packet from the packet source at the given gate. More...

virtual Packet *	pullPacketEnd (cGate *gate) override
	Ends pulling the packet from the packet source at the given gate. More...

virtual Packet *	pullPacketProgress (cGate *gate, bps datarate, b position, b extraProcessableLength) override
	Progresses pulling the packet from the packet source at the given gate. More...

virtual void	handleCanPullPacketChanged (cGate *gate) override
	Notifies about a change in the possibility of pulling some packet from the passive packet source at the given gate. More...

virtual void	handlePullPacketProcessed (Packet packet, cGate gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pulled earlier independently whether the packet is passed or streamed. More...

Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...

virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...

virtual const char *	resolveDirective (char directive) const override

Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()

Public Member Functions inherited from inet::TransparentProtocolRegistrationListener
virtual cGate *	getRegistrationForwardingGate (cGate *gate)

virtual bool	isForwardingProtocol (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingProtocolGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingAnyProtocol (cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingProtocol (cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingService (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingServiceGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingAnyService (cGate *gate, ServicePrimitive servicePrimitive) const

virtual bool	isForwardingService (cGate *gate, ServicePrimitive servicePrimitive) const

virtual void	handleRegisterService (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) override

virtual void	handleRegisterProtocol (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) override

virtual void	handleRegisterServiceGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) override

virtual void	handleRegisterProtocolGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) override

virtual void	handleRegisterAnyService (cGate *gate, ServicePrimitive servicePrimitive) override

virtual void	handleRegisterAnyProtocol (cGate *gate, ServicePrimitive servicePrimitive) override

Public Member Functions inherited from inet::queueing::IPassivePacketSink
virtual	~IPassivePacketSink ()

Public Member Functions inherited from inet::queueing::IActivePacketSink
virtual	~IActivePacketSink ()

Public Member Functions inherited from inet::queueing::IPassivePacketSource
virtual	~IPassivePacketSource ()

Public Member Functions inherited from inet::queueing::IActivePacketSource
virtual	~IActivePacketSource ()

Protected Member Functions
virtual void	initialize (int stage) override

virtual int	schedulePacket () override

Protected Member Functions inherited from inet::queueing::PacketSchedulerBase
virtual void	mapRegistrationForwardingGates (cGate gate, std::function< void(cGate )> f) override

virtual size_t	getInputGateIndex (size_t i) const

virtual int	callSchedulePacket () const

virtual bool	isStreamingPacket () const

virtual void	startPacketStreaming ()

virtual void	endPacketStreaming (Packet *packet)

virtual void	checkPacketStreaming (Packet *packet)

Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handlePacketProcessed (Packet *packet)

virtual void	checkPacketOperationSupport (cGate *gate) const

virtual void	checkPacketOperationSupport (cGate startGate, cGate endGate) const

virtual void	animate (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacket (Packet packet, cGate gate, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, long transmissionId, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, long transmissionId, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const

virtual void	pushOrSendPacket (Packet packet, cGate gate, IPassivePacketSink *consumer)

virtual void	pushOrSendPacketStart (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)

virtual void	pushOrSendPacketEnd (Packet packet, cGate gate, IPassivePacketSink *consumer, int transmissionId)

virtual void	pushOrSendPacketProgress (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)

virtual void	animatePush (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacket (Packet packet, cGate gate) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	animatePull (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacket (Packet packet, cGate gate) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)

virtual void	updateDisplayString () const

Protected Attributes
unsigned int *	weights = nullptr

unsigned int *	buckets = nullptr

std::vector< IPacketCollection * >	collections

Protected Attributes inherited from inet::queueing::PacketSchedulerBase
bool	reverseOrder = false

std::vector< cGate * >	inputGates

std::vector< IPassivePacketSource * >	providers

std::vector< IActivePacketSource * >	producers

cGate *	outputGate = nullptr

IActivePacketSink *	collector = nullptr

IPassivePacketSink *	consumer = nullptr

int	inProgressStreamId = -1

int	inProgressGateIndex = -1

Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr

int	numProcessedPackets = -1

b	processedTotalLength = b(-1)

Additional Inherited Members
Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Detailed Description

This module implements a Weighted Round Robin Scheduler.

Constructor & Destructor Documentation

◆ ~WrrScheduler()

inet::queueing::WrrScheduler::~WrrScheduler ( )

virtual

 {
     delete[] weights;
     delete[] buckets;
 }

Member Function Documentation

◆ getMaxNumPackets()

virtual int inet::queueing::WrrScheduler::getMaxNumPackets ( ) const

inlineoverridevirtual

Returns maximum allowed number of packets in the collection.

The value -1 means no such limit.

Implements inet::queueing::IPacketCollection.

35 { return -1; }

◆ getMaxTotalLength()

virtual b inet::queueing::WrrScheduler::getMaxTotalLength ( ) const

inlineoverridevirtual

Returns maximum allowed total length of all packets in the collection.

The value -1 means no such limit.

Implements inet::queueing::IPacketCollection.

38 { return b(-1); }

◆ getNumPackets()

int inet::queueing::WrrScheduler::getNumPackets ( ) const

overridevirtual

Returns the number of available packets in the collection in the range [0, inf).

Implements inet::queueing::IPacketCollection.

 {
     int size = 0;
     for (auto collection : collections)
         size += collection->getNumPackets();
     return size;
 }

◆ getPacket()

virtual Packet* inet::queueing::WrrScheduler::getPacket ( int index ) const

inlineoverridevirtual

Returns the packet at the given index.

Throws error when the index is out of range.

Implements inet::queueing::IPacketCollection.

42 { throw cRuntimeError("Invalid operation"); }

◆ getTotalLength()

b inet::queueing::WrrScheduler::getTotalLength ( ) const

overridevirtual

Returns the total length of all packets in the collection in the range [0, inf).

Implements inet::queueing::IPacketCollection.

 {
     b totalLength(0);
     for (auto collection : collections)
         totalLength += collection->getTotalLength();
     return totalLength;
 }

◆ initialize()

void inet::queueing::WrrScheduler::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::queueing::PacketSchedulerBase.

 {
     PacketSchedulerBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         weights = new unsigned int[providers.size()];
         buckets = new unsigned int[providers.size()];

         cStringTokenizer tokenizer(par("weights"));
         size_t i;
         for (i = 0; i < providers.size() && tokenizer.hasMoreTokens(); ++i)
             buckets[i] = weights[i] = utils::atoul(tokenizer.nextToken());

         if (i < providers.size())
             throw cRuntimeError("Too few values given in the weights parameter.");
         if (tokenizer.hasMoreTokens())
             throw cRuntimeError("Too many values given in the weights parameter.");

         for (auto provider : providers)
             collections.push_back(dynamic_cast<IPacketCollection *>(provider));
     }
 }

◆ isEmpty()

virtual bool inet::queueing::WrrScheduler::isEmpty ( ) const

inlineoverridevirtual

Returns true if there are no packets available in the collection.

Implements inet::queueing::IPacketCollection.

41 { return getNumPackets() == 0; }

◆ removeAllPackets()

void inet::queueing::WrrScheduler::removeAllPackets ( )

overridevirtual

Removes all packets from the collection.

Implements inet::queueing::IPacketCollection.

 {
     Enter_Method("removeAllPackets");
     for (auto collection : collections)
         collection->removeAllPackets();
 }

◆ removePacket()

virtual void inet::queueing::WrrScheduler::removePacket ( Packet * packet )

inlineoverridevirtual

Removes a packet from the collection.

The collection must contain the packet.

Implements inet::queueing::IPacketCollection.

43 { throw cRuntimeError("Invalid operation"); }

◆ schedulePacket()

int inet::queueing::WrrScheduler::schedulePacket ( )

overrideprotectedvirtual

Implements inet::queueing::PacketSchedulerBase.

 {
     int firstWeighted = -1;
     int firstNonWeighted = -1;
     for (size_t i = 0; i < providers.size(); ++i) {
         if (providers[i]->canPullSomePacket(inputGates[i]->getPathStartGate())) {
             if (buckets[i] > 0) {
                 buckets[i]--;
                 return (int)i;
             }
             else if (firstWeighted == -1 && weights[i] > 0)
                 firstWeighted = (int)i;
             else if (firstNonWeighted == -1 && weights[i] == 0)
                 firstNonWeighted = (int)i;
         }
     }

     if (firstWeighted != -1) {
         for (size_t i = 0; i < providers.size(); ++i)
             buckets[i] = weights[i];
         buckets[firstWeighted]--;
         return firstWeighted;
     }

     if (firstNonWeighted != -1)
         return firstNonWeighted;

     return -1;
 }

Member Data Documentation

◆ buckets

unsigned int* inet::queueing::WrrScheduler::buckets = nullptr

protected

Referenced by initialize(), schedulePacket(), and ~WrrScheduler().

◆ collections

std::vector<IPacketCollection *> inet::queueing::WrrScheduler::collections

protected

Referenced by getNumPackets(), getTotalLength(), initialize(), and removeAllPackets().

◆ weights

unsigned int* inet::queueing::WrrScheduler::weights = nullptr

protected

Referenced by initialize(), schedulePacket(), and ~WrrScheduler().
