#include <PacketBuffer.h>

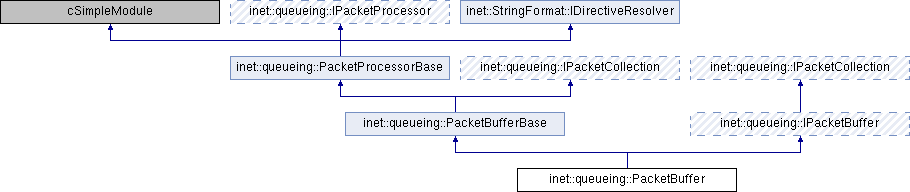

Inheritance diagram for inet::queueing::PacketBuffer:

Public Member Functions
virtual int	getMaxNumPackets () const override
	Returns maximum allowed number of packets in the collection. More...

virtual int	getNumPackets () const override
	Returns the number of available packets in the collection in the range [0, inf). More...

virtual b	getMaxTotalLength () const override
	Returns maximum allowed total length of all packets in the collection. More...

virtual b	getTotalLength () const override
	Returns the total length of all packets in the collection in the range [0, inf). More...

virtual Packet *	getPacket (int index) const override
	Returns the packet at the given index. More...

virtual bool	isEmpty () const override
	Returns true if there are no packets available in the collection. More...

virtual void	addPacket (Packet *packet) override
	Adds the packet to the buffer. More...

virtual void	removePacket (Packet *packet) override
	Removes the packet from the buffer. More...

virtual void	removeAllPackets () override
	Removes all packets from the collection. More...

virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...

virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...

Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...

virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...

virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...

Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()

Public Member Functions inherited from inet::queueing::IPacketBuffer
virtual	~IPacketBuffer ()

Protected Member Functions
virtual void	initialize (int stage) override

virtual IPacketDropperFunction *	createDropperFunction (const char *dropperClass) const

virtual bool	isOverloaded () const

Protected Member Functions inherited from inet::queueing::PacketBufferBase
virtual void	emit (simsignal_t signal, cObject object, cObject details=nullptr) override

virtual const char *	resolveDirective (char directive) const override

Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handlePacketProcessed (Packet *packet)

virtual void	checkPacketOperationSupport (cGate *gate) const

virtual void	checkPacketOperationSupport (cGate startGate, cGate endGate) const

virtual void	animate (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacket (Packet packet, cGate gate, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, long transmissionId, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, long transmissionId, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const

virtual void	pushOrSendPacket (Packet packet, cGate gate, IPassivePacketSink *consumer)

virtual void	pushOrSendPacketStart (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)

virtual void	pushOrSendPacketEnd (Packet packet, cGate gate, IPassivePacketSink *consumer, int transmissionId)

virtual void	pushOrSendPacketProgress (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)

virtual void	animatePush (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacket (Packet packet, cGate gate) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	animatePull (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacket (Packet packet, cGate gate) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)

virtual void	updateDisplayString () const

Protected Attributes
int	packetCapacity = -1

b	dataCapacity = b(-1)

std::vector< Packet * >	packets

IPacketDropperFunction *	packetDropperFunction = nullptr

Protected Attributes inherited from inet::queueing::PacketBufferBase
int	numAddedPackets = -1

int	numRemovedPackets = -1

int	numDroppedPackets = -1

Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr

int	numProcessedPackets = -1

b	processedTotalLength = b(-1)

Additional Inherited Members
Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Member Function Documentation

◆ addPacket()

void inet::queueing::PacketBuffer::addPacket ( Packet * packet )

overridevirtual

Adds the packet to the buffer.

Implements inet::queueing::IPacketBuffer.

 {
     Enter_Method("addPacket");
     EV_INFO << "Adding packet" << EV_FIELD(packet) << EV_ENDL;
     emit(packetAddedSignal, packet);
     packets.push_back(packet);
     if (isOverloaded()) {
         if (packetDropperFunction != nullptr) {
             while (!isEmpty() && isOverloaded()) {
                 auto packet = packetDropperFunction->selectPacket(this);
                 EV_INFO << "Dropping packet" << EV_FIELD(packet) << EV_ENDL;
                 packets.erase(find(packets, packet));
                 auto queue = dynamic_cast<cPacketQueue *>(packet->getOwner());
                 if (queue != nullptr) {
                     ICallback *callback = dynamic_cast<ICallback *>(queue->getOwner());
                     if (callback != nullptr)
                         callback->handlePacketRemoved(packet);
                 }
                 // TODO maybe the buffer should take ownership and queues should be aware of it
                 take(packet);
                 dropPacket(packet, QUEUE_OVERFLOW);
             }
         }
         else
             throw cRuntimeError("Buffer is overloaded but packet dropper function is not specified");
     }
     updateDisplayString();
 }

◆ createDropperFunction()

IPacketDropperFunction * inet::queueing::PacketBuffer::createDropperFunction ( const char * dropperClass ) const

protectedvirtual

 {
     if (strlen(dropperClass) == 0)
         return nullptr;
     else
         return check_and_cast<IPacketDropperFunction *>(createOne(dropperClass));
 }

Referenced by initialize().

◆ getMaxNumPackets()

virtual int inet::queueing::PacketBuffer::getMaxNumPackets ( ) const

inlineoverridevirtual

Returns maximum allowed number of packets in the collection.

The value -1 means no such limit.

Implements inet::queueing::IPacketCollection.

35 { return packetCapacity; }

◆ getMaxTotalLength()

virtual b inet::queueing::PacketBuffer::getMaxTotalLength ( ) const

inlineoverridevirtual

Returns maximum allowed total length of all packets in the collection.

The value -1 means no such limit.

Implements inet::queueing::IPacketCollection.

38 { return dataCapacity; }

◆ getNumPackets()

virtual int inet::queueing::PacketBuffer::getNumPackets ( ) const

inlineoverridevirtual

Returns the number of available packets in the collection in the range [0, inf).

Implements inet::queueing::IPacketCollection.

36 { return packets.size(); }

Referenced by isOverloaded().

◆ getPacket()

Packet * inet::queueing::PacketBuffer::getPacket ( int index ) const

overridevirtual

Returns the packet at the given index.

Throws error when the index is out of range.

Implements inet::queueing::IPacketCollection.

 {
     if (index < 0 || (size_t)index >= packets.size())
         throw cRuntimeError("index %i out of range", index);
     return packets[index];
 }

Referenced by removeAllPackets().

◆ getTotalLength()

b inet::queueing::PacketBuffer::getTotalLength ( ) const

overridevirtual

Returns the total length of all packets in the collection in the range [0, inf).

Implements inet::queueing::IPacketCollection.

 {
     b totalLength = b(0);
     for (auto packet : packets)
         totalLength += packet->getTotalLength();
     return totalLength;
 }

Referenced by isOverloaded().

◆ initialize()

void inet::queueing::PacketBuffer::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::queueing::PacketBufferBase.

 {
     PacketBufferBase::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         displayStringTextFormat = par("displayStringTextFormat");
         packetCapacity = par("packetCapacity");
         dataCapacity = b(par("dataCapacity"));
         packetDropperFunction = createDropperFunction(par("dropperClass"));
     }
     else if (stage == INITSTAGE_LAST)
         updateDisplayString();
 }

◆ isEmpty()

virtual bool inet::queueing::PacketBuffer::isEmpty ( ) const

inlineoverridevirtual

Returns true if there are no packets available in the collection.

Implements inet::queueing::IPacketCollection.

42 { return packets.size() == 0; }

Referenced by addPacket(), and removeAllPackets().

◆ isOverloaded()

bool inet::queueing::PacketBuffer::isOverloaded ( ) const

protectedvirtual

 {
     return (packetCapacity != -1 && getNumPackets() > packetCapacity) ||
            (dataCapacity != b(-1) && getTotalLength() > dataCapacity);
 }

Referenced by addPacket().

◆ removeAllPackets()

void inet::queueing::PacketBuffer::removeAllPackets ( )

overridevirtual

Removes all packets from the collection.

Implements inet::queueing::IPacketCollection.

 {
     Enter_Method("removeAllPacket");
     EV_INFO << "Removing all packets" << EV_ENDL;
     while (!isEmpty()) {
         auto packet = getPacket(0);
         emit(packetRemovedSignal, packet);
         packets.erase(packets.begin());
         auto queue = dynamic_cast<cPacketQueue *>(packet->getOwner());
         if (queue != nullptr) {
             ICallback *callback = dynamic_cast<ICallback *>(queue->getOwner());
             if (callback != nullptr)
                 callback->handlePacketRemoved(packet);
         }
     }
     updateDisplayString();
 }

◆ removePacket()

void inet::queueing::PacketBuffer::removePacket ( Packet * packet )

overridevirtual

Removes the packet from the buffer.

Implements inet::queueing::IPacketBuffer.

 {
     Enter_Method("removePacket");
     EV_INFO << "Removing packet" << EV_FIELD(packet) << EV_ENDL;
     emit(packetRemovedSignal, packet);
     packets.erase(find(packets, packet));
     updateDisplayString();
     auto queue = dynamic_cast<cPacketQueue *>(packet->getOwner());
     if (queue != nullptr) {
         ICallback *callback = dynamic_cast<ICallback *>(queue->getOwner());
         if (callback != nullptr)
             callback->handlePacketRemoved(packet);
     }
 }

◆ supportsPacketPulling()

virtual bool inet::queueing::PacketBuffer::supportsPacketPulling ( cGate * gate ) const

inlineoverridevirtual

Returns true if the processor supports pulling packets at the given gate.

Pulling a packet is a synchronous operation that is initiated by the sink module. A pulled packet can be passed as a whole using pullPacket(), or it can be streamed from the source to the sink using pullPacketStart(), pullPacketEnd(), and pullPacketProgress().

For output gates, true means that the connected module can pull packets from this module. For input gates, true means that this module can pull packets from the connected module. For example, a packet server module can pull packets from a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(pull) in the NED file.

Implements inet::queueing::IPacketProcessor.

49 { return false; }

◆ supportsPacketPushing()

virtual bool inet::queueing::PacketBuffer::supportsPacketPushing ( cGate * gate ) const

inlineoverridevirtual

Returns true if the processor supports pushing packets at the given gate.

Pushing a packet is a synchronous operation that is initiated by the source module. A pushed packet can be passed as a whole using pushPacket(), or it can be streamed from the source to the sink using pushPacketStart(), pushPacketEnd(), and pushPacketProgress().

For output gates, true means that this module can push packets into the connected module. For input gates, true means that the connected module can push packets into this module. For example, a packet generator module can push packets into a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(push) in the NED file.

Implements inet::queueing::IPacketProcessor.

48 { return false; }

Member Data Documentation

◆ dataCapacity

b inet::queueing::PacketBuffer::dataCapacity = b(-1)

protected

Referenced by initialize(), and isOverloaded().

◆ packetCapacity

int inet::queueing::PacketBuffer::packetCapacity = -1

protected

Referenced by initialize(), and isOverloaded().

◆ packetDropperFunction

IPacketDropperFunction* inet::queueing::PacketBuffer::packetDropperFunction = nullptr

protected

Referenced by addPacket(), and initialize().

◆ packets

std::vector<Packet *> inet::queueing::PacketBuffer::packets

protected

Referenced by addPacket(), getPacket(), getTotalLength(), removeAllPackets(), and removePacket().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Function Documentation

◆ addPacket()

◆ createDropperFunction()

◆ getMaxNumPackets()

◆ getMaxTotalLength()

◆ getNumPackets()

◆ getPacket()

◆ getTotalLength()

◆ initialize()

◆ isEmpty()

◆ isOverloaded()

◆ removeAllPackets()

◆ removePacket()

◆ supportsPacketPulling()

◆ supportsPacketPushing()

Member Data Documentation

◆ dataCapacity

◆ packetCapacity

◆ packetDropperFunction

◆ packets
