inet::queueing::IPacketGate Class Reference

This class defines the interface for packet gates. More...

#include <IPacketGate.h>

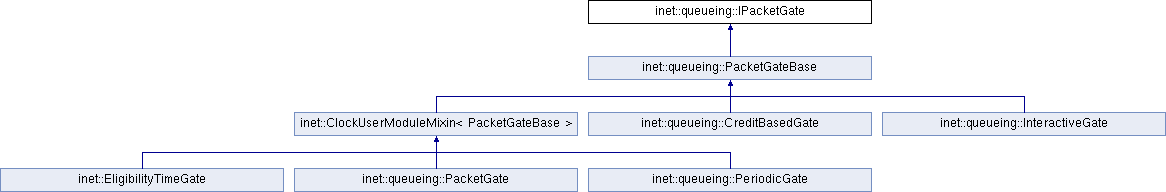

Inheritance diagram for inet::queueing::IPacketGate:

Public Member Functions
virtual bool	isOpen () const =0
	Returns true if the gate is open. More...
virtual void	open ()=0
	Opens the gate and starts traffic go through. More...
virtual void	close ()=0
	Closes the gate and stops traffic. More...

Detailed Description

This class defines the interface for packet gates.

Member Function Documentation

close()

virtual void inet::queueing::IPacketGate::close ( )

pure virtual

Closes the gate and stops traffic.

Implemented in inet::queueing::PacketGateBase.

isOpen()

virtual bool inet::queueing::IPacketGate::isOpen ( ) const

pure virtual

Returns true if the gate is open.

Implemented in inet::queueing::PacketGateBase.

open()

virtual void inet::queueing::IPacketGate::open ( )

pure virtual

Opens the gate and starts traffic go through.

Implemented in inet::queueing::PacketGateBase.

---

The documentation for this class was generated from the following file:

• IPacketGate.h
