#include <ActivePacketSink.h>

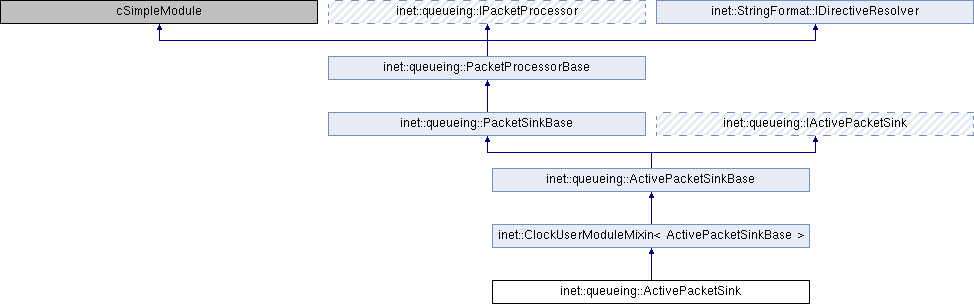

Inheritance diagram for inet::queueing::ActivePacketSink:

Public Member Functions
virtual	~ActivePacketSink ()

virtual void	handleCanPullPacketChanged (cGate *gate) override
	Notifies about a change in the possibility of pulling some packet from the passive packet source at the given gate. More...

virtual void	handlePullPacketProcessed (Packet packet, cGate gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pulled earlier independently whether the packet is passed or streamed. More...

Public Member Functions inherited from inet::ClockUserModuleMixin< ActivePacketSinkBase >
virtual void	scheduleClockEventAt (clocktime_t time, ClockEvent *msg)

virtual void	scheduleClockEventAfter (clocktime_t delay, ClockEvent *msg)

virtual cMessage *	cancelClockEvent (ClockEvent *msg)

virtual void	cancelAndDeleteClockEvent (ClockEvent *msg)

virtual void	rescheduleClockEventAt (clocktime_t time, ClockEvent *msg)

virtual void	rescheduleClockEventAfter (clocktime_t time, ClockEvent *msg)

virtual clocktime_t	computeClockTimeFromSimTime (simtime_t time) const

virtual simtime_t	computeSimTimeFromClockTime (clocktime_t time) const

virtual clocktime_t	getClockTime () const

virtual clocktime_t	getArrivalClockTime (ClockEvent *msg) const

Public Member Functions inherited from inet::queueing::ActivePacketSinkBase
virtual IPassivePacketSource *	getProvider (cGate *gate) override
	Returns the passive packet source from where packets are pulled or nullptr if the connected module doesn't implement the interface. More...

virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...

virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...

Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...

virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...

virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...

virtual const char *	resolveDirective (char directive) const override

Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()

Public Member Functions inherited from inet::queueing::IActivePacketSink
virtual	~IActivePacketSink ()

Protected Member Functions
virtual void	initialize (int stage) override

virtual void	handleMessage (cMessage *message) override

virtual void	scheduleCollectionTimer (double delay)

virtual void	collectPacket ()

Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handlePacketProcessed (Packet *packet)

virtual void	checkPacketOperationSupport (cGate *gate) const

virtual void	checkPacketOperationSupport (cGate startGate, cGate endGate) const

virtual void	animate (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacket (Packet packet, cGate gate, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, long transmissionId, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, long transmissionId, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const

virtual void	pushOrSendPacket (Packet packet, cGate gate, IPassivePacketSink *consumer)

virtual void	pushOrSendPacketStart (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)

virtual void	pushOrSendPacketEnd (Packet packet, cGate gate, IPassivePacketSink *consumer, int transmissionId)

virtual void	pushOrSendPacketProgress (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)

virtual void	animatePush (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacket (Packet packet, cGate gate) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	animatePull (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacket (Packet packet, cGate gate) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)

virtual void	updateDisplayString () const

Protected Attributes
cPar *	collectionIntervalParameter = nullptr

ClockEvent *	collectionTimer = nullptr

bool	scheduleForAbsoluteTime = false

Protected Attributes inherited from inet::queueing::ActivePacketSinkBase
cGate *	inputGate = nullptr

IPassivePacketSource *	provider = nullptr

Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr

int	numProcessedPackets = -1

b	processedTotalLength = b(-1)

Additional Inherited Members
Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Constructor & Destructor Documentation

◆ ~ActivePacketSink()

virtual inet::queueing::ActivePacketSink::~ActivePacketSink ( )

inlinevirtual

32 { cancelAndDeleteClockEvent(collectionTimer); }

Member Function Documentation

◆ collectPacket()

void inet::queueing::ActivePacketSink::collectPacket ( )

protectedvirtual

 {
     auto packet = provider->pullPacket(inputGate->getPathStartGate());
     take(packet);
     emit(packetPulledSignal, packet);
     EV_INFO << "Collecting packet" << EV_FIELD(packet) << EV_ENDL;
     numProcessedPackets++;
     processedTotalLength += packet->getDataLength();
     updateDisplayString();
     dropPacket(packet, OTHER_PACKET_DROP);
 }

Referenced by handleCanPullPacketChanged(), handleMessage(), and initialize().

◆ handleCanPullPacketChanged()

void inet::queueing::ActivePacketSink::handleCanPullPacketChanged ( cGate * gate )

overridevirtual

Notifies about a change in the possibility of pulling some packet from the passive packet source at the given gate.

This method is called, for example, when a new packet is inserted into a queue. It allows the sink to pull a new packet from the queue.

The gate parameter must be a valid gate of this module.

Implements inet::queueing::IActivePacketSink.

 {
     Enter_Method("handleCanPullPacketChanged");
     if (!collectionTimer->isScheduled() && provider->canPullSomePacket(inputGate->getPathStartGate())) {
         double offset = par("initialCollectionOffset");
         if (offset != 0)
             scheduleCollectionTimer(offset);
         else {
             scheduleCollectionTimer(collectionIntervalParameter->doubleValue());
             collectPacket();
         }
     }
 }

◆ handleMessage()

void inet::queueing::ActivePacketSink::handleMessage ( cMessage * message )

overrideprotectedvirtual

 {
     if (message == collectionTimer) {
         if (provider->canPullSomePacket(inputGate->getPathStartGate())) {
             scheduleCollectionTimer(collectionIntervalParameter->doubleValue());
             collectPacket();
         }
     }
     else
         throw cRuntimeError("Unknown message");
 }

◆ handlePullPacketProcessed()

void inet::queueing::ActivePacketSink::handlePullPacketProcessed	(	Packet *	packet,
		cGate *	gate,
		bool	successful
	)

overridevirtual

Notifies about the completion of the packet processing for a packet that was pulled earlier independently whether the packet is passed or streamed.

This method is called, for example, when a previously pulled packet is failed to be processed successfully. It allows the sink to retry the operation.

The gate parameter must be a valid gate of this module. The packet must not be nullptr.

Implements inet::queueing::IActivePacketSink.

 {
     Enter_Method("handlePullPacketProcessed");
 }

◆ initialize()

void inet::queueing::ActivePacketSink::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::queueing::ActivePacketSinkBase.

 {
     ClockUserModuleMixin::initialize(stage);
     if (stage == INITSTAGE_LOCAL) {
         collectionIntervalParameter = &par("collectionInterval");
         collectionTimer = new ClockEvent("CollectionTimer");
         scheduleForAbsoluteTime = par("scheduleForAbsoluteTime");
     }
     else if (stage == INITSTAGE_QUEUEING) {
         if (!collectionTimer->isScheduled() && provider->canPullSomePacket(inputGate->getPathStartGate())) {
             double offset = par("initialCollectionOffset");
             if (offset != 0)
                 scheduleCollectionTimer(offset);
             else {
                 scheduleCollectionTimer(collectionIntervalParameter->doubleValue());
                 collectPacket();
             }
         }
     }
 }

◆ scheduleCollectionTimer()

void inet::queueing::ActivePacketSink::scheduleCollectionTimer ( double delay )

protectedvirtual

 {
     if (scheduleForAbsoluteTime)
         scheduleClockEventAt(getClockTime() + delay, collectionTimer);
     else
         scheduleClockEventAfter(delay, collectionTimer);
 }

Referenced by handleCanPullPacketChanged(), handleMessage(), and initialize().

Member Data Documentation

◆ collectionIntervalParameter

cPar* inet::queueing::ActivePacketSink::collectionIntervalParameter = nullptr

protected

Referenced by handleCanPullPacketChanged(), handleMessage(), and initialize().

◆ collectionTimer

ClockEvent* inet::queueing::ActivePacketSink::collectionTimer = nullptr

protected

Referenced by handleCanPullPacketChanged(), handleMessage(), initialize(), and scheduleCollectionTimer().

◆ scheduleForAbsoluteTime

bool inet::queueing::ActivePacketSink::scheduleForAbsoluteTime = false

protected

Referenced by initialize(), and scheduleCollectionTimer().

The documentation for this class was generated from the following files:
