#include <PacketReceiver.h>

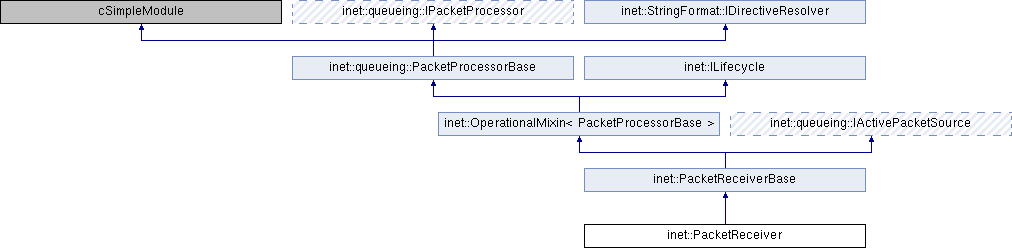

Inheritance diagram for inet::PacketReceiver:

Protected Member Functions
virtual void	handleMessageWhenUp (cMessage *message) override

virtual void	receiveSignal (Signal *signal)

Protected Member Functions inherited from inet::PacketReceiverBase
virtual void	initialize (int stage) override

virtual bool	isInitializeStage (int stage) const override

virtual bool	isModuleStartStage (int stage) const override

virtual bool	isModuleStopStage (int stage) const override

virtual void	handleMessageWhenDown (cMessage *message) override

virtual void	handleStartOperation (LifecycleOperation *operation) override

virtual void	handleStopOperation (LifecycleOperation *operation) override

virtual void	handleCrashOperation (LifecycleOperation *operation) override

virtual Packet *	decodePacket (Signal *signal) const

Protected Member Functions inherited from inet::OperationalMixin< PacketProcessorBase >
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handleMessage (cMessage *msg) override

virtual bool	handleOperationStage (LifecycleOperation operation, IDoneCallback doneCallback) override
	Perform one stage of a lifecycle operation. More...

virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...

virtual void	handleActiveOperationTimeout (cMessage *message)

virtual bool	isUp () const
	utility functions More...

virtual bool	isDown () const

virtual void	setOperationalState (State newState)

virtual void	scheduleOperationTimeout (simtime_t timeout)

virtual void	setupActiveOperation (LifecycleOperation operation, IDoneCallback doneCallback, State)

virtual void	delayActiveOperationFinish (simtime_t timeout)

virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)

virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)

virtual void	finishActiveOperation ()

Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override

virtual void	refreshDisplay () const override

virtual void	handlePacketProcessed (Packet *packet)

virtual void	checkPacketOperationSupport (cGate *gate) const

virtual void	checkPacketOperationSupport (cGate startGate, cGate endGate) const

virtual void	animate (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacket (Packet packet, cGate gate, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, long transmissionId, Action action) const

virtual void	animatePacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, long transmissionId, Action action) const

virtual void	animatePacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const

virtual void	animatePacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const

virtual void	pushOrSendPacket (Packet packet, cGate gate, IPassivePacketSink *consumer)

virtual void	pushOrSendPacketStart (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)

virtual void	pushOrSendPacketEnd (Packet packet, cGate gate, IPassivePacketSink *consumer, int transmissionId)

virtual void	pushOrSendPacketProgress (Packet packet, cGate gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)

virtual void	animatePush (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacket (Packet packet, cGate gate) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePushPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePushPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePushPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	animatePull (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacket (Packet packet, cGate gate) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, long transmissionId) const

virtual void	animatePullPacketStart (Packet packet, cGate gate, bps datarate, const SendOptions &sendOptions) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, long transmissionId) const

virtual void	animatePullPacketEnd (Packet packet, cGate gate, const SendOptions &sendOptions) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const

virtual void	animatePullPacketProgress (Packet packet, cGate gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const

virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)

virtual void	updateDisplayString () const

Additional Inherited Members
Public Member Functions inherited from inet::PacketReceiverBase
virtual	~PacketReceiverBase ()

virtual IPassivePacketSink *	getConsumer (cGate *gate) override
	Returns the passive packet sink where packets are pushed or nullptr if the connected module doesn't implement the interface. More...

virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...

virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...

virtual void	handleCanPushPacketChanged (cGate *gate) override
	Notifies about a change in the possibility of pushing some packet into the passive packet sink at the given gate. More...

virtual void	handlePushPacketProcessed (Packet packet, cGate gate, bool successful) override
	Notifies about the completion of the packet processing for a packet that was pushed earlier independently whether the packet is passed or streamed. More...

Public Member Functions inherited from inet::OperationalMixin< PacketProcessorBase >
virtual	~OperationalMixin ()
	}@ More...

Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...

virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...

virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...

virtual const char *	resolveDirective (char directive) const override

Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()

Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Public Member Functions inherited from inet::queueing::IActivePacketSource
virtual	~IActivePacketSource ()

Protected Types inherited from inet::OperationalMixin< PacketProcessorBase >
enum	State

Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Protected Attributes inherited from inet::PacketReceiverBase
const NetworkInterface *	networkInterface = nullptr

bps	rxDatarate = bps(NaN)

cGate *	inputGate = nullptr

cGate *	outputGate = nullptr

IPassivePacketSink *	consumer = nullptr

Signal *	rxSignal = nullptr

Protected Attributes inherited from inet::OperationalMixin< PacketProcessorBase >
State	operationalState

simtime_t	lastChange

Operation	activeOperation

cMessage *	activeOperationTimeout

cMessage *	activeOperationExtraTimer

Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr

int	numProcessedPackets = -1

b	processedTotalLength = b(-1)

Member Function Documentation

◆ handleMessageWhenUp()

void inet::PacketReceiver::handleMessageWhenUp ( cMessage * message )

overrideprotectedvirtual

Reimplemented from inet::PacketReceiverBase.

 {
     if (message->isPacket())
         receiveSignal(check_and_cast<Signal *>(message));
     else
         PacketReceiverBase::handleMessageWhenUp(message);
     updateDisplayString();
 }

◆ receiveSignal()

void inet::PacketReceiver::receiveSignal ( Signal * signal )

protectedvirtual

 {
     EV_INFO << "Receiving signal from channel" << EV_FIELD(signal) << EV_ENDL;
     emit(receptionEndedSignal, signal);
     auto packet = decodePacket(signal);
     handlePacketProcessed(packet);
     pushOrSendPacket(packet, outputGate, consumer);
     delete signal;
 }

Referenced by handleMessageWhenUp().
