inet::queueing::TimeBasedTokenGenerator Class Reference

#include <TimeBasedTokenGenerator.h>

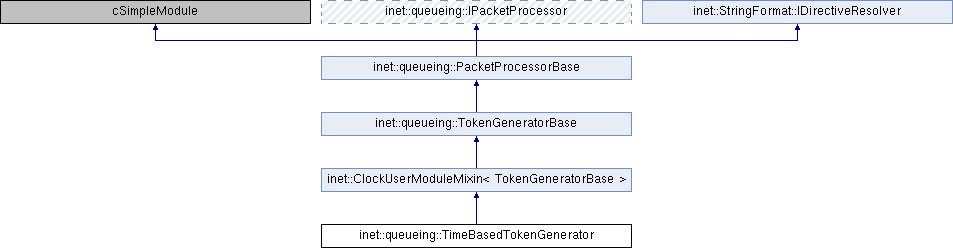

Inheritance diagram for inet::queueing::TimeBasedTokenGenerator:

Public Member Functions
virtual	~TimeBasedTokenGenerator ()
virtual bool	supportsPacketPushing (cGate *gate) const override
	Returns true if the processor supports pushing packets at the given gate. More...
virtual bool	supportsPacketPulling (cGate *gate) const override
	Returns true if the processor supports pulling packets at the given gate. More...
Public Member Functions inherited from inet::ClockUserModuleMixin< TokenGeneratorBase >
virtual void	scheduleClockEventAt (clocktime_t time, ClockEvent *msg)
virtual void	scheduleClockEventAfter (clocktime_t delay, ClockEvent *msg)
virtual cMessage *	cancelClockEvent (ClockEvent *msg)
virtual void	cancelAndDeleteClockEvent (ClockEvent *msg)
virtual void	rescheduleClockEventAt (clocktime_t time, ClockEvent *msg)
virtual void	rescheduleClockEventAfter (clocktime_t time, ClockEvent *msg)
virtual clocktime_t	computeClockTimeFromSimTime (simtime_t time) const
virtual simtime_t	computeSimTimeFromClockTime (clocktime_t time) const
virtual clocktime_t	getClockTime () const
virtual clocktime_t	getArrivalClockTime (ClockEvent *msg) const
Public Member Functions inherited from inet::queueing::TokenGeneratorBase
virtual const char *	resolveDirective (char directive) const override
Public Member Functions inherited from inet::queueing::PacketProcessorBase
virtual bool	supportsPacketSending (cGate *gate) const override
	Returns true if the processor supports sending packets at the given gate. More...
virtual bool	supportsPacketPassing (cGate *gate) const override
	Returns true if the processor supports passing packets as a whole at the given gate. More...
virtual bool	supportsPacketStreaming (cGate *gate) const override
	Returns true if the processor supports streaming packets at the given gate. More...
Public Member Functions inherited from inet::queueing::IPacketProcessor
virtual	~IPacketProcessor ()

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	handleMessage (cMessage *message) override
virtual void	scheduleGenerationTimer ()
Protected Member Functions inherited from inet::queueing::PacketProcessorBase
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handlePacketProcessed (Packet *packet)
virtual void	checkPacketOperationSupport (cGate *gate) const
virtual void	checkPacketOperationSupport (cGate *startGate, cGate *endGate) const
virtual void	animate (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacket (Packet *packet, cGate *gate, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId, Action action) const
virtual void	animatePacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, long transmissionId, Action action) const
virtual void	animatePacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId, Action action) const
virtual void	animatePacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions, Action action) const
virtual void	pushOrSendPacket (Packet *packet, cGate *gate, IPassivePacketSink *consumer)
virtual void	pushOrSendPacketStart (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, int transmissionId)
virtual void	pushOrSendPacketEnd (Packet *packet, cGate *gate, IPassivePacketSink *consumer, int transmissionId)
virtual void	pushOrSendPacketProgress (Packet *packet, cGate *gate, IPassivePacketSink *consumer, bps datarate, b position, b extraProcessableLength, int transmissionId)
virtual void	animatePush (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacket (Packet *packet, cGate *gate) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePushPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePushPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePushPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	animatePull (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacket (Packet *packet, cGate *gate) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, long transmissionId) const
virtual void	animatePullPacketStart (Packet *packet, cGate *gate, bps datarate, const SendOptions &sendOptions) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, long transmissionId) const
virtual void	animatePullPacketEnd (Packet *packet, cGate *gate, const SendOptions &sendOptions) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, long transmissionId) const
virtual void	animatePullPacketProgress (Packet *packet, cGate *gate, bps datarate, b position, b extraProcessableLength, const SendOptions &sendOptions) const
virtual void	dropPacket (Packet *packet, PacketDropReason reason, int limit=-1)
virtual void	updateDisplayString () const

Protected Attributes
cPar *	generationIntervalParameter = nullptr
cPar *	numTokensParameter = nullptr
ClockEvent *	generationTimer = nullptr
Protected Attributes inherited from inet::queueing::TokenGeneratorBase
ModuleRefByPar< ITokenStorage >	storage
int	numTokensGenerated = -1
Protected Attributes inherited from inet::queueing::PacketProcessorBase
const char *	displayStringTextFormat = nullptr
int	numProcessedPackets = -1
b	processedTotalLength = b(-1)

Additional Inherited Members
Static Public Attributes inherited from inet::queueing::TokenGeneratorBase
static simsignal_t	tokensCreatedSignal = cComponent::registerSignal("tokensCreated")
Protected Types inherited from inet::queueing::PacketProcessorBase
enum	Action { PUSH, PULL }

Constructor & Destructor Documentation

~TimeBasedTokenGenerator()

virtual inet::queueing::TimeBasedTokenGenerator::~TimeBasedTokenGenerator ( )

inlinevirtual

{ cancelAndDeleteClockEvent(generationTimer); }

Member Function Documentation

handleMessage()

void inet::queueing::TimeBasedTokenGenerator::handleMessage ( cMessage *  message )

overrideprotectedvirtual

{
    if (message == generationTimer) {
        auto numTokens = numTokensParameter->doubleValue();
        numTokensGenerated += numTokens;
        emit(tokensCreatedSignal, numTokens);
        storage->addTokens(numTokens);
        scheduleGenerationTimer();
        updateDisplayString();
    }
    else
        throw cRuntimeError("Unknown message");
}

initialize()

void inet::queueing::TimeBasedTokenGenerator::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::queueing::TokenGeneratorBase.

{
    ClockUserModuleMixin::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        generationIntervalParameter = &par("generationInterval");
        numTokensParameter = &par("numTokens");
        generationTimer = new ClockEvent("GenerationTimer");
    }
    else if (stage == INITSTAGE_QUEUEING)
        scheduleGenerationTimer();
}

scheduleGenerationTimer()

void inet::queueing::TimeBasedTokenGenerator::scheduleGenerationTimer ( )

protectedvirtual

{
    scheduleClockEventAfter(generationIntervalParameter->doubleValue(), generationTimer);
}

Referenced by handleMessage(), and initialize().

supportsPacketPulling()

virtual bool inet::queueing::TimeBasedTokenGenerator::supportsPacketPulling ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports pulling packets at the given gate.

Pulling a packet is a synchronous operation that is initiated by the sink module. A pulled packet can be passed as a whole using pullPacket(), or it can be streamed from the source to the sink using pullPacketStart(), pullPacketEnd(), and pullPacketProgress().

For output gates, true means that the connected module can pull packets from this module. For input gates, true means that this module can pull packets from the connected module. For example, a packet server module can pull packets from a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(pull) in the NED file.

Reimplemented from inet::queueing::TokenGeneratorBase.

{ return false; }

supportsPacketPushing()

virtual bool inet::queueing::TimeBasedTokenGenerator::supportsPacketPushing ( cGate *  gate ) const

inlineoverridevirtual

Returns true if the processor supports pushing packets at the given gate.

Pushing a packet is a synchronous operation that is initiated by the source module. A pushed packet can be passed as a whole using pushPacket(), or it can be streamed from the source to the sink using pushPacketStart(), pushPacketEnd(), and pushPacketProgress().

For output gates, true means that this module can push packets into the connected module. For input gates, true means that the connected module can push packets into this module. For example, a packet generator module can push packets into a queue module.

Connecting incompatible gates raises an error during initialize. The gate parameter must be a valid gate of this module. The gate should be marked with @labels(push) in the NED file.

Reimplemented from inet::queueing::TokenGeneratorBase.

{ return false; }

Member Data Documentation

generationIntervalParameter

cPar* inet::queueing::TimeBasedTokenGenerator::generationIntervalParameter = nullptr

protected

Referenced by initialize(), and scheduleGenerationTimer().

generationTimer

ClockEvent* inet::queueing::TimeBasedTokenGenerator::generationTimer = nullptr

protected

Referenced by handleMessage(), initialize(), and scheduleGenerationTimer().

numTokensParameter

cPar* inet::queueing::TimeBasedTokenGenerator::numTokensParameter = nullptr

protected

Referenced by handleMessage(), and initialize().

---

The documentation for this class was generated from the following files:

• TimeBasedTokenGenerator.h
• TimeBasedTokenGenerator.cc
