#include <DimensionalAnalogModel.h>

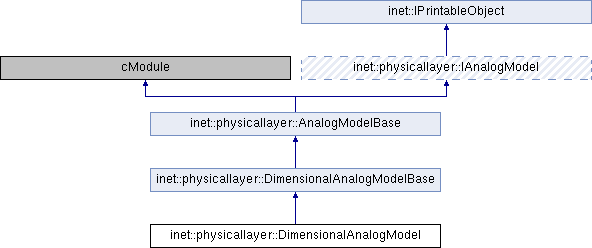

Inheritance diagram for inet::physicallayer::DimensionalAnalogModel:

Public Member Functions
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const IReception *	computeReception (const IRadio radio, const ITransmission transmission, const IArrival *arrival) const override
	Returns the reception for the provided transmission at the receiver. More...

Public Member Functions inherited from inet::physicallayer::DimensionalAnalogModelBase
virtual const Ptr< const IFunction< WpHz, Domain< simsec, Hz > > >	computeReceptionPower (const IRadio radio, const ITransmission transmission, const IArrival *arrival) const

virtual const INoise *	computeNoise (const IListening listening, const IInterference interference) const override
	Returns the total noise summing up all the interfering receptions and noises. More...

virtual const INoise *	computeNoise (const IReception reception, const INoise noise) const override
	Returns the total noise summing up all the reception and the noise. More...

virtual const ISnir *	computeSNIR (const IReception reception, const INoise noise) const override
	Returns the signal to noise and interference ratio. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Protected Member Functions inherited from inet::physicallayer::DimensionalAnalogModelBase
virtual void	initialize (int stage) override

Protected Member Functions inherited from inet::physicallayer::AnalogModelBase
virtual double	computeAntennaGain (const IAntennaGain *antenna, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation) const

Protected Attributes inherited from inet::physicallayer::DimensionalAnalogModelBase
bool	attenuateWithCenterFrequency

Member Function Documentation

◆ computeReception()

const IReception * inet::physicallayer::DimensionalAnalogModel::computeReception	(	const IRadio *	receiver,
		const ITransmission *	transmission,
		const IArrival *	arrival
	)		const

overridevirtual

Returns the reception for the provided transmission at the receiver.

The result incorporates all modeled attenuation. This function never returns nullptr.

Implements inet::physicallayer::IAnalogModel.

 {
     const DimensionalTransmission *dimensionalTransmission = check_and_cast<const DimensionalTransmission *>(transmission);
     const simtime_t receptionStartTime = arrival->getStartTime();
     const simtime_t receptionEndTime = arrival->getEndTime();
     const Coord& receptionStartPosition = arrival->getStartPosition();
     const Coord& receptionEndPosition = arrival->getEndPosition();
     const Quaternion& receptionStartOrientation = arrival->getStartOrientation();
     const Quaternion& receptionEndOrientation = arrival->getEndOrientation();
     const Ptr<const IFunction<WpHz, Domain<simsec, Hz>>>& receptionPower = computeReceptionPower(receiverRadio, transmission, arrival);
     return new DimensionalReception(receiverRadio, transmission, receptionStartTime, receptionEndTime, receptionStartPosition, receptionEndPosition, receptionStartOrientation, receptionEndOrientation, dimensionalTransmission->getCenterFrequency(), dimensionalTransmission->getBandwidth(), receptionPower);
 }

◆ printToStream()

std::ostream & inet::physicallayer::DimensionalAnalogModel::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

 {
     stream << "DimensionalAnalogModel";
     return DimensionalAnalogModelBase::printToStream(stream, level);
 }

The documentation for this class was generated from the following files:
