Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:114 by opp_msgtool. More...

#include <SctpCommand_m.h>

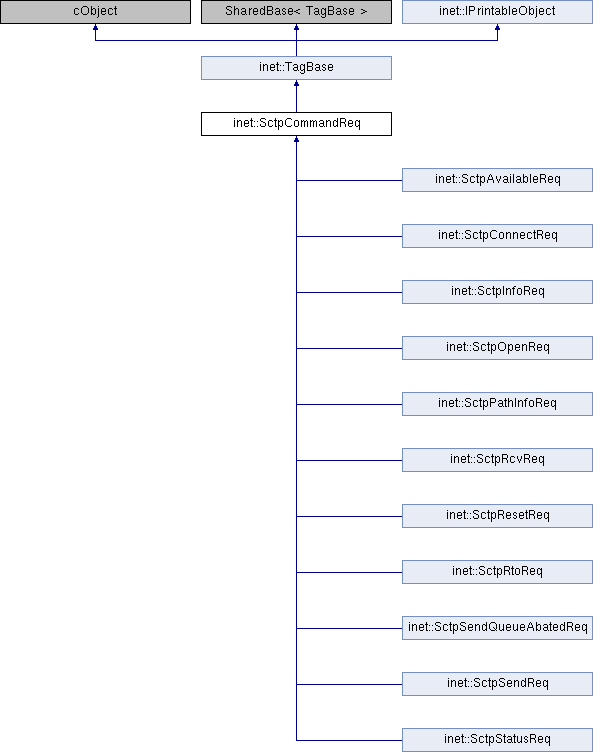

Inheritance diagram for inet::SctpCommandReq:

Public Member Functions
	SctpCommandReq ()

	SctpCommandReq (const SctpCommandReq &other)

virtual	~SctpCommandReq ()

SctpCommandReq &	operator= (const SctpCommandReq &other)

virtual SctpCommandReq *	dup () const override

virtual void	parsimPack (omnetpp::cCommBuffer *b) const override

virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override

virtual int	getSocketId () const

virtual void	setSocketId (int socketId)

virtual int	getSid () const

virtual void	setSid (int sid)

virtual int	getNumMsgs () const

virtual void	setNumMsgs (int numMsgs)

virtual int	getSsn () const

virtual void	setSsn (int ssn)

virtual unsigned short	getSendUnordered () const

virtual void	setSendUnordered (unsigned short sendUnordered)

virtual double	getPrValue () const

virtual void	setPrValue (double prValue)

virtual const L3Address &	getLocalAddr () const

virtual L3Address &	getLocalAddrForUpdate ()

virtual void	setLocalAddr (const L3Address &localAddr)

virtual const L3Address &	getRemoteAddr () const

virtual L3Address &	getRemoteAddrForUpdate ()

virtual void	setRemoteAddr (const L3Address &remoteAddr)

virtual int	getLocalPort () const

virtual void	setLocalPort (int localPort)

virtual int	getRemotePort () const

virtual void	setRemotePort (int remotePort)

virtual int	getGate () const

virtual void	setGate (int gate)

virtual int	getFd () const

virtual void	setFd (int fd)

Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const

virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const

virtual void	parsimPack (cCommBuffer *buffer) const override

virtual void	parsimUnpack (cCommBuffer *buffer) override

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...

virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const

virtual std::string	str () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SctpCommandReq &)=delete

Protected Attributes
int	socketId = -1

int	sid = -1

int	numMsgs = 1

int	ssn = -1

unsigned short	sendUnordered = false

double	prValue = 0

L3Address	localAddr

L3Address	remoteAddr

int	localPort = -1

int	remotePort = -1

int	gate = -1

int	fd = -1

Private Member Functions
void	copy (const SctpCommandReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:114 by opp_msgtool.

class SctpCommandReq extends TagBase
{
    int socketId = -1;   // identifies the socket within the application
    int sid = -1;
    int numMsgs = 1;
    int ssn = -1;
    unsigned short sendUnordered = false;
    double prValue = 0;
    L3Address localAddr;
    L3Address remoteAddr;
    int localPort = -1;
    int remotePort = -1;
    int gate = -1;
    int fd = -1;
}

Constructor & Destructor Documentation

◆ SctpCommandReq() [1/2]

inet::SctpCommandReq::SctpCommandReq ( )

◆ SctpCommandReq() [2/2]

inet::SctpCommandReq::SctpCommandReq ( const SctpCommandReq & other )

◆ ~SctpCommandReq()

virtual inet::SctpCommandReq::~SctpCommandReq ( )

virtual

Member Function Documentation

◆ copy()

void inet::SctpCommandReq::copy ( const SctpCommandReq & other )

private

◆ dup()

virtual SctpCommandReq* inet::SctpCommandReq::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::SctpSendQueueAbatedReq, inet::SctpRtoReq, inet::SctpPathInfoReq, inet::SctpInfoReq, inet::SctpResetReq, inet::SctpStatusReq, inet::SctpRcvReq, inet::SctpConnectReq, inet::SctpAvailableReq, inet::SctpOpenReq, and inet::SctpSendReq.

347 {return new SctpCommandReq(*this);}

◆ getFd()

virtual int inet::SctpCommandReq::getFd ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_ASSOCIATE(), inet::sctp::SctpAssociation::process_OPEN_PASSIVE(), and inet::sctp::SctpAssociation::processAppCommand().

◆ getGate()

virtual int inet::SctpCommandReq::getGate ( ) const

virtual

Referenced by inet::sctp::Sctp::handleMessage().

◆ getLocalAddr()

virtual const L3Address& inet::SctpCommandReq::getLocalAddr ( ) const

virtual

◆ getLocalAddrForUpdate()

virtual L3Address& inet::SctpCommandReq::getLocalAddrForUpdate ( )

inlinevirtual

370 { return const_cast<L3Address&>(const_cast<SctpCommandReq*>(this)->getLocalAddr());}

◆ getLocalPort()

virtual int inet::SctpCommandReq::getLocalPort ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_ASSOCIATE(), and inet::sctp::SctpAssociation::process_OPEN_PASSIVE().

◆ getNumMsgs()

virtual int inet::SctpCommandReq::getNumMsgs ( ) const

virtual

Referenced by inet::SctpServer::makeAbortNotification(), and inet::sctp::SctpAssociation::process_RECEIVE_REQUEST().

◆ getPrValue()

virtual double inet::SctpCommandReq::getPrValue ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_SEND().

◆ getRemoteAddr()

virtual const L3Address& inet::SctpCommandReq::getRemoteAddr ( ) const

virtual

Referenced by inet::sctp::Sctp::handleMessage(), inet::sctp::SctpAssociation::process_ASSOCIATE(), and inet::sctp::SctpAssociation::process_SEND().

◆ getRemoteAddrForUpdate()

virtual L3Address& inet::SctpCommandReq::getRemoteAddrForUpdate ( )

inlinevirtual

374 { return const_cast<L3Address&>(const_cast<SctpCommandReq*>(this)->getRemoteAddr());}

◆ getRemotePort()

virtual int inet::SctpCommandReq::getRemotePort ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_ASSOCIATE().

◆ getSendUnordered()

virtual unsigned short inet::SctpCommandReq::getSendUnordered ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_SEND().

◆ getSid()

virtual int inet::SctpCommandReq::getSid ( ) const

virtual

Referenced by inet::SctpServer::makeAbortNotification(), inet::sctp::SctpAssociation::process_RECEIVE_REQUEST(), inet::sctp::SctpAssociation::process_SEND(), and inet::NetPerfMeter::receiveMessage().

◆ getSocketId()

virtual int inet::SctpCommandReq::getSocketId ( ) const

virtual

Referenced by inet::SctpNatServer::handleMessage(), inet::SctpServer::handleMessage(), inet::SctpPeer::handleMessage(), inet::SctpNatPeer::handleMessage(), and inet::SctpServer::makeAbortNotification().

◆ getSsn()

virtual int inet::SctpCommandReq::getSsn ( ) const

virtual

◆ operator=()

SctpCommandReq& inet::SctpCommandReq::operator= ( const SctpCommandReq & other )

◆ operator==()

bool inet::SctpCommandReq::operator== ( const SctpCommandReq & )

protecteddelete

◆ parsimPack()

virtual void inet::SctpCommandReq::parsimPack ( omnetpp::cCommBuffer * b ) const

overridevirtual

Reimplemented in inet::SctpSendQueueAbatedReq, inet::SctpRtoReq, inet::SctpPathInfoReq, inet::SctpInfoReq, inet::SctpResetReq, inet::SctpStatusReq, inet::SctpRcvReq, inet::SctpConnectReq, inet::SctpAvailableReq, inet::SctpOpenReq, and inet::SctpSendReq.

Referenced by inet::doParsimPacking().

◆ parsimUnpack()

virtual void inet::SctpCommandReq::parsimUnpack ( omnetpp::cCommBuffer * b )

overridevirtual

Reimplemented in inet::SctpSendQueueAbatedReq, inet::SctpRtoReq, inet::SctpPathInfoReq, inet::SctpInfoReq, inet::SctpResetReq, inet::SctpStatusReq, inet::SctpRcvReq, inet::SctpConnectReq, inet::SctpAvailableReq, inet::SctpOpenReq, and inet::SctpSendReq.

Referenced by inet::doParsimUnpacking().

◆ setFd()

virtual void inet::SctpCommandReq::setFd ( int fd )

virtual

◆ setGate()

virtual void inet::SctpCommandReq::setGate ( int gate )

virtual

◆ setLocalAddr()

virtual void inet::SctpCommandReq::setLocalAddr ( const L3Address & localAddr )

virtual

◆ setLocalPort()

virtual void inet::SctpCommandReq::setLocalPort ( int localPort )

virtual

Referenced by inet::SctpSocket::accept().

◆ setNumMsgs()

virtual void inet::SctpCommandReq::setNumMsgs ( int numMsgs )

virtual

◆ setPrValue()

virtual void inet::SctpCommandReq::setPrValue ( double prValue )

virtual

◆ setRemoteAddr()

virtual void inet::SctpCommandReq::setRemoteAddr ( const L3Address & remoteAddr )

virtual

◆ setRemotePort()

virtual void inet::SctpCommandReq::setRemotePort ( int remotePort )

virtual

◆ setSendUnordered()

virtual void inet::SctpCommandReq::setSendUnordered ( unsigned short sendUnordered )

virtual

Referenced by inet::SctpNatPeer::handleMessage().

◆ setSid()

virtual void inet::SctpCommandReq::setSid ( int sid )

virtual

◆ setSocketId()

virtual void inet::SctpCommandReq::setSocketId ( int socketId )

virtual

Referenced by inet::SctpSocket::abort(), inet::SctpSocket::close(), inet::SctpSocket::connect(), inet::SctpSocket::destroy(), inet::SctpNatServer::generateAndSend(), inet::sctp::SctpAssociation::generateSendQueueAbatedIndication(), inet::SctpSocket::getSocketOptions(), inet::NetPerfMeter::handleMessage(), inet::SctpNatServer::handleMessage(), inet::SctpServer::handleMessage(), inet::SctpPeer::handleMessage(), inet::SctpNatPeer::handleMessage(), inet::sctp::Sctp::handleMessage(), inet::SctpServer::makeDefaultReceive(), inet::SctpServer::makeReceiveRequest(), inet::SctpSocket::requestStatus(), inet::SctpSocket::send(), inet::sctp::SctpAssociation::sendAvailableIndicationToApp(), inet::sctp::SctpAssociation::sendDataArrivedNotification(), inet::sctp::SctpAssociation::sendEstabIndicationToApp(), inet::sctp::SctpAssociation::sendIndicationToApp(), inet::SctpNatServer::sendInfo(), inet::SctpClient::sendStreamResetNotification(), inet::SctpSocket::setRtoInfo(), inet::SctpSocket::setStreamPriority(), inet::SctpSocket::shutdown(), inet::SctpClient::shutdownReceivedArrived(), inet::SctpPeer::shutdownReceivedArrived(), inet::SctpNatPeer::shutdownReceivedArrived(), inet::SctpClient::socketDataNotificationArrived(), inet::SctpPeer::socketDataNotificationArrived(), inet::SctpNatPeer::socketDataNotificationArrived(), inet::SctpNatPeer::socketEstablished(), and inet::NetPerfMeter::transmitFrame().

◆ setSsn()

virtual void inet::SctpCommandReq::setSsn ( int ssn )

virtual

Member Data Documentation

◆ fd

int inet::SctpCommandReq::fd = -1

protected

◆ gate

int inet::SctpCommandReq::gate = -1

protected

◆ localAddr

L3Address inet::SctpCommandReq::localAddr

protected

◆ localPort

int inet::SctpCommandReq::localPort = -1

protected

◆ numMsgs

int inet::SctpCommandReq::numMsgs = 1

protected

◆ prValue

double inet::SctpCommandReq::prValue = 0

protected

◆ remoteAddr

L3Address inet::SctpCommandReq::remoteAddr

protected

◆ remotePort

int inet::SctpCommandReq::remotePort = -1

protected

◆ sendUnordered

unsigned short inet::SctpCommandReq::sendUnordered = false

protected

◆ sid

int inet::SctpCommandReq::sid = -1

protected

◆ socketId

int inet::SctpCommandReq::socketId = -1

protected

◆ ssn

int inet::SctpCommandReq::ssn = -1

protected

The documentation for this class was generated from the following file:

SctpCommand_m.h
