inet::SctpPathInfoReq Class Reference

Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:196 by opp_msgtool. More...

#include <SctpCommand_m.h>

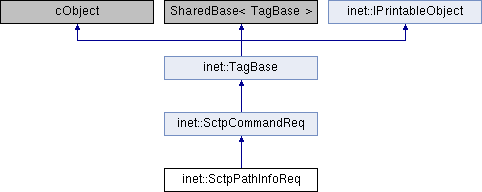

Inheritance diagram for inet::SctpPathInfoReq:

Public Member Functions
	SctpPathInfoReq ()
	SctpPathInfoReq (const SctpPathInfoReq &other)
virtual	~SctpPathInfoReq ()
SctpPathInfoReq &	operator= (const SctpPathInfoReq &other)
virtual SctpPathInfoReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual const L3Address &	getRemoteAddress () const
virtual L3Address &	getRemoteAddressForUpdate ()
virtual void	setRemoteAddress (const L3Address &remoteAddress)
Public Member Functions inherited from inet::SctpCommandReq
	SctpCommandReq ()
	SctpCommandReq (const SctpCommandReq &other)
virtual	~SctpCommandReq ()
SctpCommandReq &	operator= (const SctpCommandReq &other)
virtual int	getSocketId () const
virtual void	setSocketId (int socketId)
virtual int	getSid () const
virtual void	setSid (int sid)
virtual int	getNumMsgs () const
virtual void	setNumMsgs (int numMsgs)
virtual int	getSsn () const
virtual void	setSsn (int ssn)
virtual unsigned short	getSendUnordered () const
virtual void	setSendUnordered (unsigned short sendUnordered)
virtual double	getPrValue () const
virtual void	setPrValue (double prValue)
virtual const L3Address &	getLocalAddr () const
virtual L3Address &	getLocalAddrForUpdate ()
virtual void	setLocalAddr (const L3Address &localAddr)
virtual const L3Address &	getRemoteAddr () const
virtual L3Address &	getRemoteAddrForUpdate ()
virtual void	setRemoteAddr (const L3Address &remoteAddr)
virtual int	getLocalPort () const
virtual void	setLocalPort (int localPort)
virtual int	getRemotePort () const
virtual void	setRemotePort (int remotePort)
virtual int	getGate () const
virtual void	setGate (int gate)
virtual int	getFd () const
virtual void	setFd (int fd)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SctpPathInfoReq &)=delete
Protected Member Functions inherited from inet::SctpCommandReq
bool	operator== (const SctpCommandReq &)=delete

Protected Attributes
L3Address	remoteAddress
Protected Attributes inherited from inet::SctpCommandReq
int	socketId = -1
int	sid = -1
int	numMsgs = 1
int	ssn = -1
unsigned short	sendUnordered = false
double	prValue = 0
L3Address	localAddr
L3Address	remoteAddr
int	localPort = -1
int	remotePort = -1
int	gate = -1
int	fd = -1

Private Member Functions
void	copy (const SctpPathInfoReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:196 by opp_msgtool.

class SctpPathInfoReq extends SctpCommandReq
{
    L3Address remoteAddress;
}

Constructor & Destructor Documentation

SctpPathInfoReq() [1/2]

inet::SctpPathInfoReq::SctpPathInfoReq

(

)

SctpPathInfoReq() [2/2]

inet::SctpPathInfoReq::SctpPathInfoReq

(

const SctpPathInfoReq &

other

)

~SctpPathInfoReq()

virtual inet::SctpPathInfoReq::~SctpPathInfoReq ( )

virtual

Member Function Documentation

copy()

void inet::SctpPathInfoReq::copy ( const SctpPathInfoReq &  other )

private

dup()

virtual SctpPathInfoReq* inet::SctpPathInfoReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::SctpCommandReq.

{return new SctpPathInfoReq(*this);}

getRemoteAddress()

virtual const L3Address& inet::SctpPathInfoReq::getRemoteAddress ( ) const

virtual

getRemoteAddressForUpdate()

virtual L3Address& inet::SctpPathInfoReq::getRemoteAddressForUpdate ( )

inlinevirtual

{ return const_cast<L3Address&>(const_cast<SctpPathInfoReq*>(this)->getRemoteAddress());}

operator=()

SctpPathInfoReq& inet::SctpPathInfoReq::operator=

(

const SctpPathInfoReq &

other

)

operator==()

bool inet::SctpPathInfoReq::operator== ( const SctpPathInfoReq &  )

protecteddelete

parsimPack()

virtual void inet::SctpPathInfoReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::SctpPathInfoReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimUnpacking().

setRemoteAddress()

virtual void inet::SctpPathInfoReq::setRemoteAddress ( const L3Address &  remoteAddress )

virtual

Referenced by inet::SctpClient::setPrimaryPath().

Member Data Documentation

remoteAddress

L3Address inet::SctpPathInfoReq::remoteAddress

protected

---

The documentation for this class was generated from the following file:

• SctpCommand_m.h
