inet::SctpPeer Class Reference

Implements the SctpPeer simple module. More...

#include <SctpPeer.h>

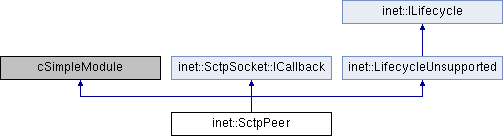

Inheritance diagram for inet::SctpPeer:

Classes
struct	PathStatus

Public Member Functions
	SctpPeer ()
	~SctpPeer ()
Public Member Functions inherited from inet::SctpSocket::ICallback
virtual	~ICallback ()
virtual void	socketOptionsArrived (SctpSocket *socket, Indication *indication)
virtual void	socketDeleted (SctpSocket *socket)
virtual void	sendqueueAbatedArrived (SctpSocket *socket, unsigned long int buffer)
virtual void	addressAddedArrived (SctpSocket *socket, L3Address localAddr, L3Address remoteAddr)
Public Member Functions inherited from inet::LifecycleUnsupported
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Protected Types
typedef std::map< int, long >	RcvdPacketsPerAssoc
typedef std::map< int, long >	SentPacketsPerAssoc
typedef std::map< int, long >	RcvdBytesPerAssoc
typedef std::map< int, cOutVector * >	BytesPerAssoc
typedef std::map< int, cHistogram * >	HistEndToEndDelay
typedef std::map< int, cOutVector * >	EndToEndDelay
typedef std::map< L3Address, PathStatus >	SctpPathStatus

Protected Member Functions
virtual void	initialize (int stage) override
virtual int	numInitStages () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	finish () override
void	handleTimer (cMessage *msg)
void	connect ()
virtual void	socketAvailable (SctpSocket *socket, Indication *indication) override
void	socketEstablished (SctpSocket *socket, unsigned long int buffer) override
void	socketDataArrived (SctpSocket *socket, Packet *msg, bool urgent) override
void	socketDataNotificationArrived (SctpSocket *socket, Message *msg) override
void	socketPeerClosed (SctpSocket *socket) override
void	socketClosed (SctpSocket *socket) override
void	socketFailure (SctpSocket *socket, int code) override
void	socketStatusArrived (SctpSocket *socket, SctpStatusReq *status) override
void	sendRequest (bool last=true)
void	sendOrSchedule (cMessage *msg)
void	generateAndSend ()
void	sendRequestArrived (SctpSocket *socket) override
void	sendQueueRequest ()
void	shutdownReceivedArrived (SctpSocket *socket) override
void	sendqueueFullArrived (SctpSocket *socket) override
void	msgAbandonedArrived (SctpSocket *socket) override
void	setStatusString (const char *s)

Protected Attributes
double	delay
bool	echo
bool	ordered
bool	schedule
int	queueSize
int	outboundStreams
int	inboundStreams
SctpPathStatus	sctpPathStatus
SctpSocket	clientSocket
SctpSocket	listeningSocket
cMessage *	timeoutMsg
cMessage *	timeMsg
cMessage *	connectTimer
bool	shutdownReceived
bool	sendAllowed
int	serverAssocId
int	numRequestsToSend
int	lastStream
int	numPacketsToReceive
RcvdPacketsPerAssoc	rcvdPacketsPerAssoc
SentPacketsPerAssoc	sentPacketsPerAssoc
RcvdBytesPerAssoc	rcvdBytesPerAssoc
BytesPerAssoc	bytesPerAssoc
HistEndToEndDelay	histEndToEndDelay
EndToEndDelay	endToEndDelay
long	bytesSent
int	echoedBytesSent
int	packetsSent
int	bytesRcvd
int	packetsRcvd
int	notificationsReceived
int	numSessions
int	chunksAbandoned

Static Protected Attributes
static simsignal_t	echoedPkSignal = registerSignal("echoedPk")

Detailed Description

Implements the SctpPeer simple module.

See the NED file for more info.

Member Typedef Documentation

BytesPerAssoc

typedef std::map<int, cOutVector *> inet::SctpPeer::BytesPerAssoc

protected

EndToEndDelay

typedef std::map<int, cOutVector *> inet::SctpPeer::EndToEndDelay

protected

HistEndToEndDelay

typedef std::map<int, cHistogram *> inet::SctpPeer::HistEndToEndDelay

protected

RcvdBytesPerAssoc

typedef std::map<int, long> inet::SctpPeer::RcvdBytesPerAssoc

protected

RcvdPacketsPerAssoc

typedef std::map<int, long> inet::SctpPeer::RcvdPacketsPerAssoc

protected

SctpPathStatus

typedef std::map<L3Address, PathStatus> inet::SctpPeer::SctpPathStatus

protected

SentPacketsPerAssoc

typedef std::map<int, long> inet::SctpPeer::SentPacketsPerAssoc

protected

Constructor & Destructor Documentation

SctpPeer()

inet::SctpPeer::SctpPeer

(

)

{
    timeoutMsg = nullptr;
    timeMsg = nullptr;
    connectTimer = nullptr;
    delay = 0;
    echo = false;
    ordered = true;
    schedule = false;
    queueSize = 0;
    outboundStreams = 1;
    inboundStreams = 17;
    shutdownReceived = false;
    sendAllowed = true;
    serverAssocId = 0;
    numRequestsToSend = 0;
    lastStream = 0;
    numPacketsToReceive = 0;
    bytesSent = 0;
    echoedBytesSent = 0;
    packetsSent = 0;
    bytesRcvd = 0;
    packetsRcvd = 0;
    notificationsReceived = 0;
    numSessions = 0;
    chunksAbandoned = 0;
}

~SctpPeer()

inet::SctpPeer::~SctpPeer

(

)

{
    cancelAndDelete(timeMsg);
    cancelAndDelete(timeoutMsg);
    cancelAndDelete(connectTimer);
    for (auto& elem : bytesPerAssoc)
        delete elem.second;
    bytesPerAssoc.clear();

    for (auto& elem : endToEndDelay)
        delete elem.second;
    endToEndDelay.clear();

    for (auto& elem : histEndToEndDelay)
        delete elem.second;
    histEndToEndDelay.clear();

    rcvdPacketsPerAssoc.clear();
    sentPacketsPerAssoc.clear();
    rcvdBytesPerAssoc.clear();
}

Member Function Documentation

connect()

void inet::SctpPeer::connect ( )

protected

{
    const char *connectAddress = par("connectAddress");
    int connectPort = par("connectPort");
    int outStreams = par("outboundStreams");
    clientSocket.setOutboundStreams(outStreams);

    EV_INFO << "issuing OPEN command\n";
    EV_INFO << "Assoc " << clientSocket.getSocketId() << "::connect to address " << connectAddress << ", port " << connectPort << "\n";
    numSessions++;
    bool streamReset = par("streamReset");
    L3Address destination;
    L3AddressResolver().tryResolve(connectAddress, destination);
    if (destination.isUnspecified())
        EV << "cannot resolve destination address: " << connectAddress << endl;
    else {
        clientSocket.connect(destination, connectPort, streamReset, par("prMethod"), par("numRequestsPerSession"));
    }

    if (streamReset) {
        cMessage *cmsg = new cMessage("StreamReset", MSGKIND_RESET);
        EV_INFO << "StreamReset Timer scheduled at " << simTime() << "\n";
        scheduleAfter(par("streamRequestTime"), cmsg);
    }

    unsigned int streamNum = 0;
    cStringTokenizer tokenizer(par("streamPriorities"));
    while (tokenizer.hasMoreTokens()) {
        const char *token = tokenizer.nextToken();
        clientSocket.setStreamPriority(streamNum, (unsigned int)atoi(token));

        streamNum++;
    }
}

Referenced by handleTimer().

finish()

void inet::SctpPeer::finish ( )

overrideprotectedvirtual

{
    EV_INFO << getFullPath() << ": opened " << numSessions << " sessions\n";
    EV_INFO << getFullPath() << ": sent " << bytesSent << " bytes in " << packetsSent << " packets\n";

    for (auto& elem : rcvdBytesPerAssoc)
        EV_DETAIL << getFullPath() << ": received " << elem.second << " bytes in assoc " << elem.first << "\n";

    EV_INFO << getFullPath() << "Over all " << packetsRcvd << " packets received\n ";
    EV_INFO << getFullPath() << "Over all " << notificationsReceived << " notifications received\n ";
}

generateAndSend()

void inet::SctpPeer::generateAndSend ( )

protected

{
    auto applicationPacket = new Packet("ApplicationPacket");
    auto applicationData = makeShared<BytesChunk>();
    int numBytes = par("requestLength");
    std::vector<uint8_t> vec;
    vec.resize(numBytes);
    for (int i = 0; i < numBytes; i++)
        vec[i] = (bytesSent + i) & 0xFF;
    applicationData->setBytes(vec);
    applicationData->addTag<CreationTimeTag>()->setCreationTime(simTime());
    applicationPacket->insertAtBack(applicationData);
    auto sctpSendReq = applicationPacket->addTag<SctpSendReq>();
    sctpSendReq->setLast(true);
    sctpSendReq->setPrMethod(par("prMethod"));
    sctpSendReq->setPrValue(par("prValue"));
    lastStream = (lastStream + 1) % outboundStreams;
    sctpSendReq->setSid(lastStream);
    sctpSendReq->setSocketId(serverAssocId);
    applicationPacket->setKind(ordered ? SCTP_C_SEND_ORDERED : SCTP_C_SEND_UNORDERED);
    applicationPacket->addTag<SocketReq>()->setSocketId(serverAssocId);
    applicationPacket->addTag<DispatchProtocolReq>()->setProtocol(&Protocol::sctp);
    bytesSent += numBytes;
    packetsSent++;
    sendOrSchedule(applicationPacket);
}

Referenced by handleMessage(), and handleTimer().

handleMessage()

void inet::SctpPeer::handleMessage ( cMessage *  msg )

overrideprotectedvirtual

{
    int id = -1;

    if (msg->isSelfMessage())
        handleTimer(msg);

    switch (msg->getKind()) {
        case SCTP_I_PEER_CLOSED:
        case SCTP_I_ABORT: {
            Message *message = check_and_cast<Message *>(msg);
            auto& intags = message->getTags();
            const auto& ind = intags.findTag<SctpCommandReq>();
            Request *cmsg = new Request("SCTP_C_ABORT", SCTP_C_ABORT);
            auto& cmd = cmsg->addTag<SctpSendReq>();
            id = ind->getSocketId();
            cmd->setSocketId(id);
            cmd->setSid(ind->getSid());
            cmd->setNumMsgs(ind->getNumMsgs());
            delete msg;
            sendOrSchedule(cmsg);
            break;
        }

        case SCTP_I_ESTABLISHED: {
            if (clientSocket.getState() == SctpSocket::CONNECTING)
                clientSocket.processMessage(PK(msg));
            else {
                Message *message = check_and_cast<Message *>(msg);
                auto& tags = message->getTags();
                const auto& connectInfo = tags.findTag<SctpConnectReq>();
                numSessions++;
                serverAssocId = connectInfo->getSocketId();
                id = serverAssocId;
                outboundStreams = connectInfo->getOutboundStreams();
                rcvdPacketsPerAssoc[serverAssocId] = par("numPacketsToReceivePerClient");
                sentPacketsPerAssoc[serverAssocId] = par("numPacketsToSendPerClient");
                char text[50];
                sprintf(text, "App: Received Bytes of assoc %d", serverAssocId);
                bytesPerAssoc[serverAssocId] = new cOutVector(text);
                rcvdBytesPerAssoc[serverAssocId] = 0;
                sprintf(text, "App: EndToEndDelay of assoc %d", serverAssocId);
                endToEndDelay[serverAssocId] = new cOutVector(text);
                sprintf(text, "Hist: EndToEndDelay of assoc %d", serverAssocId);
                histEndToEndDelay[serverAssocId] = new cHistogram(text);

//                delete connectInfo;
                delete msg;

                if (par("numPacketsToSendPerClient").intValue() > 0) {
                    auto i = sentPacketsPerAssoc.find(serverAssocId);
                    numRequestsToSend = i->second;
                    if (par("thinkTime").doubleValue() > 0) {
                        generateAndSend();
                        timeoutMsg->setKind(SCTP_C_SEND);
                        scheduleAfter(par("thinkTime"), timeoutMsg);
                        numRequestsToSend--;
                        i->second = numRequestsToSend;
                    }
                    else {
                        if (queueSize == 0) {
                            while (numRequestsToSend > 0) {
                                generateAndSend();
                                numRequestsToSend--;
                                i->second = numRequestsToSend;
                            }
                        }
                        else if (queueSize > 0) {
                            int count = 0;
                            while (numRequestsToSend > 0 && count++ < queueSize * 2) {
                                generateAndSend();
                                numRequestsToSend--;
                                i->second = numRequestsToSend;
                            }

                            Request *cmsg = new Request("SCTP_C_QUEUE_MSGS_LIMIT", SCTP_C_QUEUE_MSGS_LIMIT);
                            auto& qinfo = cmsg->addTag<SctpInfoReq>();
                            qinfo->setText(queueSize);
                            qinfo->setSocketId(id);
                            sendOrSchedule(cmsg);
                        }

                        EV_INFO << "!!!!!!!!!!!!!!!All data sent from Server !!!!!!!!!!\n";

                        auto j = rcvdPacketsPerAssoc.find(serverAssocId);
                        if (j->second == 0 && par("waitToClose").doubleValue() > 0) {
                            char as[5];
                            sprintf(as, "%d", serverAssocId);
                            cMessage *abortMsg = new cMessage(as, SCTP_I_ABORT);
                            scheduleAfter(par("waitToClose"), abortMsg);
                        }
                        else {
                            EV_INFO << "no more packets to send, call shutdown for assoc " << serverAssocId << "\n";
                            Request *cmsg = new Request("ShutdownRequest", SCTP_C_SHUTDOWN);
                            auto& cmd = cmsg->addTag<SctpCommandReq>();
                            cmd->setSocketId(serverAssocId);
                            sendOrSchedule(cmsg);
                        }
                    }
                }
            }
            break;
        }

        case SCTP_I_DATA_NOTIFICATION: {
            notificationsReceived++;
            Message *message = check_and_cast<Message *>(msg);
            auto& intags = message->getTags();
            const auto& ind = intags.findTag<SctpCommandReq>();
            id = ind->getSocketId();
            Request *cmsg = new Request("ReceiveRequest", SCTP_C_RECEIVE);
            auto cmd = cmsg->addTag<SctpSendReq>();
            cmsg->addTag<SocketReq>()->setSocketId(id);
            cmsg->addTag<DispatchProtocolReq>()->setProtocol(&Protocol::sctp);
            cmd->setSocketId(id);
            cmd->setSid(ind->getSid());
            cmd->setNumMsgs(ind->getNumMsgs());
            delete msg;
            if (!cmsg->isScheduled() && schedule == false) {
                scheduleAfter(par("delayFirstRead"), cmsg);
            }
            else if (schedule == true)
                sendOrSchedule(cmsg);
            break;
        }

        case SCTP_I_DATA: {
            Packet *message = check_and_cast<Packet *>(msg);
            auto& tags = message->getTags();
            const auto& ind = tags.findTag<SctpRcvReq>();
            id = ind->getSocketId();
            auto j = rcvdBytesPerAssoc.find(id);
            if (j == rcvdBytesPerAssoc.end() && (clientSocket.getState() == SctpSocket::CONNECTED))
                clientSocket.processMessage(msg);
            else if (j != rcvdBytesPerAssoc.end()) {
                j->second += PK(msg)->getByteLength();
                auto k = bytesPerAssoc.find(id);
                k->second->record(j->second);
                packetsRcvd++;

                if (!echo) {
                    if (par("numPacketsToReceivePerClient").intValue() > 0) {
                        auto i = rcvdPacketsPerAssoc.find(id);
                        i->second--;
                        SctpSimpleMessage *smsg = check_and_cast<SctpSimpleMessage *>(msg);
                        auto j = endToEndDelay.find(id);
                        j->second->record(simTime() - smsg->getCreationTime());
                        auto k = histEndToEndDelay.find(id);
                        k->second->collect(simTime() - smsg->getCreationTime());

                        if (i->second == 0) {
                            Request *cmsg = new Request("SCTP_C_NO_OUTSTANDING", SCTP_C_NO_OUTSTANDING);
                            auto& qinfo = cmsg->addTag<SctpCommandReq>();
                            qinfo->setSocketId(id);
                            sendOrSchedule(cmsg);
                        }
                    }
                    delete msg;
                }
                else {
                    auto m = endToEndDelay.find(id);
                    auto k = histEndToEndDelay.find(id);
                    const auto& smsg = message->peekData();

                    for (auto& region : smsg->getAllTags<CreationTimeTag>()) {
                        m->second->record(simTime() - region.getTag()->getCreationTime());
                        k->second->collect(simTime() - region.getTag()->getCreationTime());
                    }

                    auto cmsg = new Packet("ApplicationPacket");
                    cmsg->insertAtBack(smsg);
                    auto cmd = cmsg->addTag<SctpSendReq>();
                    lastStream = (lastStream + 1) % outboundStreams;
                    cmd->setLast(true);
                    cmd->setSocketId(id);
                    cmd->setPrValue(0);
                    cmd->setSid(lastStream);
                    cmsg->setKind(cmd->getSendUnordered() ? SCTP_C_SEND_UNORDERED : SCTP_C_SEND_ORDERED);
                    bytesSent += B(smsg->getChunkLength()).get();
                    packetsSent++;
                    sendOrSchedule(cmsg);
                }
            }
            else {
                delete msg;
            }
            break;
        }

        case SCTP_I_SHUTDOWN_RECEIVED: {
            Message *message = check_and_cast<Message *>(msg);
            id = message->getTag<SocketInd>()->getSocketId();
            EV_INFO << "server: SCTP_I_SHUTDOWN_RECEIVED for assoc " << id << "\n";
            auto i = rcvdPacketsPerAssoc.find(id);

            if (i == rcvdPacketsPerAssoc.end() && (clientSocket.getState() == SctpSocket::CONNECTED))
                clientSocket.processMessage(PK(msg));
            else if (i != rcvdPacketsPerAssoc.end()) {
                if (i->second == 0) {
                    Request *cmsg = new Request("SCTP_C_NO_OUTSTANDING", SCTP_C_NO_OUTSTANDING);
                    auto& qinfo = cmsg->addTag<SctpCommandReq>();
                    qinfo->setSocketId(id);
                    sendOrSchedule(cmsg);
                }

                shutdownReceived = true;
            }
            delete msg;
            break;
        }

        case SCTP_I_SEND_STREAMS_RESETTED:
        case SCTP_I_RCV_STREAMS_RESETTED: {
            EV_INFO << "Streams have been resetted\n";
            break;
        }

        case SCTP_I_CLOSED:
            delete msg;
            break;
    }

    if (hasGUI()) {
        char buf[32];
        auto l = rcvdBytesPerAssoc.find(id);
        sprintf(buf, "rcvd: %ld bytes\nsent: %ld bytes", l->second, bytesSent);
        getDisplayString().setTagArg("t", 0, buf);
    }
}

handleTimer()

void inet::SctpPeer::handleTimer ( cMessage *  msg )

protected

{
    EV_TRACE << "SctpPeer::handleTimer\n";

    switch (msg->getKind()) {
        case MSGKIND_CONNECT:
            EV_INFO << "starting session call connect\n";
            connect();
            break;

        case SCTP_C_SEND:
            if (numRequestsToSend > 0) {
                generateAndSend();
                if (par("thinkTime").doubleValue() > 0)
                    scheduleAfter(par("thinkTime"), timeoutMsg);
                numRequestsToSend--;
            }
            break;

        case SCTP_I_ABORT: {
            Request *cmsg = new Request("SCTP_C_CLOSE", SCTP_C_CLOSE);
            auto& cmd = cmsg->addTag<SctpCommandReq>();
            int id = atoi(msg->getName());
            cmd->setSocketId(id);
            sendOrSchedule(cmsg);
        }
        break;

        case SCTP_C_RECEIVE:
            schedule = true;
            sendOrSchedule(PK(msg));
            break;

        default:
            break;
    }
}

Referenced by handleMessage().

initialize()

void inet::SctpPeer::initialize ( int  stage )

overrideprotectedvirtual

{
    cSimpleModule::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        WATCH(numSessions);
        WATCH(packetsSent);
        WATCH(packetsRcvd);
        WATCH(bytesSent);
        WATCH(numRequestsToSend);
    }
    else if (stage == INITSTAGE_APPLICATION_LAYER) {
        // parameters
        const char *addressesString = par("localAddress");
        AddressVector addresses = L3AddressResolver().resolve(cStringTokenizer(addressesString).asVector());
        int port = par("localPort");
        echo = par("echo");
        delay = par("echoDelay");
        outboundStreams = par("outboundStreams");
        inboundStreams = par("inboundStreams");
        ordered = par("ordered");
        queueSize = par("queueSize");
        timeoutMsg = new cMessage("SrvAppTimer");
        listeningSocket.setOutputGate(gate("socketOut"));
        listeningSocket.setOutboundStreams(outboundStreams);
        listeningSocket.setInboundStreams(inboundStreams);

        if (addresses.size() == 0) {
            listeningSocket.bind(port);
            clientSocket.bind(port);
        }
        else {
            listeningSocket.bindx(addresses, port);
            clientSocket.bindx(addresses, port);
        }
        listeningSocket.listen(true, par("streamReset"), par("numPacketsToSendPerClient"));
        EV_DEBUG << "SctpPeer::initialized listen port=" << port << "\n";
        clientSocket.setCallback(this);
        clientSocket.setOutputGate(gate("socketOut"));

        if (simtime_t(par("startTime")) > SIMTIME_ZERO) { // FIXME is invalid the startTime == 0 ????
            connectTimer = new cMessage("ConnectTimer", MSGKIND_CONNECT);
            scheduleAt(par("startTime"), connectTimer);
        }

        cModule *node = findContainingNode(this);
        NodeStatus *nodeStatus = node ? check_and_cast_nullable<NodeStatus *>(node->getSubmodule("status")) : nullptr;
        bool isOperational = (!nodeStatus) || nodeStatus->getState() == NodeStatus::UP;
        if (!isOperational)
            throw cRuntimeError("This module doesn't support starting in node DOWN state");
    }
}

msgAbandonedArrived()

void inet::SctpPeer::msgAbandonedArrived ( SctpSocket *  socket )

overrideprotectedvirtual

Reimplemented from inet::SctpSocket::ICallback.

{
    chunksAbandoned++;
}

numInitStages()

virtual int inet::SctpPeer::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

sendOrSchedule()

void inet::SctpPeer::sendOrSchedule ( cMessage *  msg )

protected

{
    if (delay == 0) {
        send(msg, "socketOut");
    }
    else {
        scheduleAfter(delay, msg);
    }
}

Referenced by generateAndSend(), handleMessage(), and handleTimer().

sendqueueFullArrived()

void inet::SctpPeer::sendqueueFullArrived ( SctpSocket *  socket )

overrideprotectedvirtual

Reimplemented from inet::SctpSocket::ICallback.

{
    sendAllowed = false;
}

sendQueueRequest()

void inet::SctpPeer::sendQueueRequest ( )

protected

{
    Request *cmsg = new Request("SCTP_C_QUEUE_MSGS_LIMIT", SCTP_C_QUEUE_MSGS_LIMIT);
    auto& qinfo = cmsg->addTag<SctpInfoReq>();
    qinfo->setText(queueSize);
    qinfo->setSocketId(clientSocket.getSocketId());
    clientSocket.sendRequest(cmsg);
}

Referenced by socketEstablished().

sendRequest()

void inet::SctpPeer::sendRequest ( bool  last = true )

protected

{
    EV_INFO << "sending request, " << numRequestsToSend - 1 << " more to go\n";
    long numBytes = par("requestLength");

    if (numBytes < 1)
        numBytes = 1;

    EV_INFO << "SctpClient: sending " << numBytes << " data bytes\n";

    auto cmsg = new Packet("ApplicationPacket");
    auto msg = makeShared<BytesChunk>();
    std::vector<uint8_t> vec;
    vec.resize(numBytes);
    for (int i = 0; i < numBytes; i++)
        vec[i] = (bytesSent + i) & 0xFF;
    msg->setBytes(vec);
    msg->addTag<CreationTimeTag>()->setCreationTime(simTime());
    cmsg->insertAtBack(msg);
    cmsg->setKind(ordered ? SCTP_C_SEND_ORDERED : SCTP_C_SEND_UNORDERED);
    auto sendCommand = cmsg->addTag<SctpSendReq>();
    sendCommand->setLast(true);
    // send SctpMessage with SctpSimpleMessage enclosed
    clientSocket.send(cmsg);
    bytesSent += numBytes;
}

Referenced by sendRequestArrived(), and socketEstablished().

sendRequestArrived()

void inet::SctpPeer::sendRequestArrived ( SctpSocket *  socket )

overrideprotectedvirtual

Reimplemented from inet::SctpSocket::ICallback.

{
    ASSERT(socket == &clientSocket);
    int count = 0;

    EV_INFO << "sendRequestArrived numRequestsToSend=" << numRequestsToSend << "\n";

    while (numRequestsToSend > 0 && count++ < queueSize && sendAllowed) {
        numRequestsToSend--;
        sendRequest(count == queueSize || numRequestsToSend == 0);
        if (numRequestsToSend == 0) {
            EV_INFO << "no more packets to send, call shutdown\n";
            clientSocket.shutdown();
        }
    }
}

setStatusString()

void inet::SctpPeer::setStatusString ( const char *  s )

protected

{
    if (hasGUI())
        getDisplayString().setTagArg("t", 0, s);
}

Referenced by socketClosed(), socketDataArrived(), socketEstablished(), socketFailure(), and socketPeerClosed().

shutdownReceivedArrived()

void inet::SctpPeer::shutdownReceivedArrived ( SctpSocket *  socket )

overrideprotectedvirtual

Reimplemented from inet::SctpSocket::ICallback.

{
    if (numRequestsToSend == 0) {
        Message *cmsg = new Message("SCTP_C_NO_OUTSTANDING", SCTP_C_NO_OUTSTANDING);
        auto& qinfo = cmsg->addTag<SctpCommandReq>();
        qinfo->setSocketId(socket->getSocketId());
        clientSocket.sendNotification(cmsg);
    }
}

socketAvailable()

virtual void inet::SctpPeer::socketAvailable ( SctpSocket *  socket, Indication *  indication  )

inlineoverrideprotectedvirtual

Implements inet::SctpSocket::ICallback.

{ throw cRuntimeError("Model error, this module doesn't use any listener SCTP sockets"); }

socketClosed()

void inet::SctpPeer::socketClosed ( SctpSocket *  socket )

overrideprotectedvirtual

Reimplemented from inet::SctpSocket::ICallback.

{
    // *redefine* to start another session etc.
    EV_INFO << "connection closed\n";
    setStatusString("closed");
}

socketDataArrived()

void inet::SctpPeer::socketDataArrived ( SctpSocket *  socket, Packet *  msg, bool  urgent  )

overrideprotectedvirtual

Implements inet::SctpSocket::ICallback.

{
    // *redefine* to perform or schedule next sending
    packetsRcvd++;

    EV_INFO << "Client received packet Nr " << packetsRcvd << " from SCTP\n";

    auto& tags = msg->getTags();
    const auto& ind = tags.findTag<SctpRcvReq>();

    emit(packetReceivedSignal, msg);
    bytesRcvd += msg->getByteLength();

    if (echo) {
        const auto& smsg = msg->peekData();
        auto cmsg = new Packet("ApplicationPacket");
        cmsg->setKind(ind->getSendUnordered() ? SCTP_C_SEND_UNORDERED : SCTP_C_SEND_ORDERED);
        cmsg->insertAtBack(smsg);
        auto cmd = cmsg->addTag<SctpSendReq>();
        cmd->setLast(true);
        cmd->setSocketId(ind->getSocketId());
        cmd->setPrValue(0);
        cmd->setSid(ind->getSid());
        packetsSent++;
        clientSocket.send(cmsg);
    }

    if (par("numPacketsToReceive").intValue() > 0) {
        numPacketsToReceive--;
        if (numPacketsToReceive == 0) {
            setStatusString("closing");
            clientSocket.close();
        }
    }
}

socketDataNotificationArrived()

void inet::SctpPeer::socketDataNotificationArrived ( SctpSocket *  socket, Message *  msg  )

overrideprotectedvirtual

Implements inet::SctpSocket::ICallback.

{
    Message *message = check_and_cast<Message *>(msg);
    auto& intags = message->getTags();
    const auto& ind = intags.findTag<SctpCommandReq>();
    Request *cmesg = new Request("SCTP_C_RECEIVE", SCTP_C_RECEIVE);
    auto& cmd = cmesg->addTag<SctpSendReq>();
    cmd->setSocketId(ind->getSocketId());
    cmd->setSid(ind->getSid());
    cmd->setNumMsgs(ind->getNumMsgs());
    clientSocket.sendNotification(cmesg);
}

socketEstablished()

void inet::SctpPeer::socketEstablished ( SctpSocket *  socket, unsigned long int  buffer  )

overrideprotectedvirtual

Reimplemented from inet::SctpSocket::ICallback.

{
    ASSERT(socket == &clientSocket);
    int count = 0;
    // *redefine* to perform or schedule first sending
    EV_INFO << "SctpClient: connected\n";
    setStatusString("connected");
    // determine number of requests in this session
    numRequestsToSend = par("numRequestsPerSession");
    numPacketsToReceive = par("numPacketsToReceive");

    if (numRequestsToSend < 1)
        numRequestsToSend = 0;

    // perform first request (next one will be sent when reply arrives)
    if (numRequestsToSend > 0) {
        if (par("thinkTime").doubleValue() > 0) {
            if (sendAllowed) {
                sendRequest();
                numRequestsToSend--;
            }

            timeMsg->setKind(MSGKIND_SEND);
            scheduleAfter(par("thinkTime"), timeMsg);
        }
        else {
            if (queueSize > 0) {
                while (numRequestsToSend > 0 && count++ < queueSize * 2 && sendAllowed) {
                    sendRequest(count == queueSize * 2);
                    numRequestsToSend--;
                }

                if (numRequestsToSend > 0 && sendAllowed)
                    sendQueueRequest();
            }
            else {
                while (numRequestsToSend > 0 && sendAllowed) {
                    sendRequest();
                    numRequestsToSend--;
                }
            }

            if (numPacketsToReceive == 0 && par("waitToClose").doubleValue() > 0) {
                timeMsg->setKind(MSGKIND_ABORT);
                scheduleAfter(par("waitToClose"), timeMsg);
            }

            if (numRequestsToSend == 0 && par("waitToClose").doubleValue() == 0) {
                EV_INFO << "socketEstablished:no more packets to send, call shutdown\n";
                clientSocket.shutdown();
            }
        }
    }
}

socketFailure()

void inet::SctpPeer::socketFailure ( SctpSocket *  socket, int  code  )

overrideprotectedvirtual

Reimplemented from inet::SctpSocket::ICallback.

{
    // subclasses may override this function, and add code try to reconnect after a delay.
    EV_WARN << "connection broken\n";
    setStatusString("broken");
    // reconnect after a delay
    timeMsg->setKind(MSGKIND_CONNECT);
    scheduleAfter(par("reconnectInterval"), timeMsg);
}

socketPeerClosed()

void inet::SctpPeer::socketPeerClosed ( SctpSocket *  socket )

overrideprotectedvirtual

Reimplemented from inet::SctpSocket::ICallback.

{
    // close the connection (if not already closed)
    if (clientSocket.getState() == SctpSocket::PEER_CLOSED) {
        EV_INFO << "remote SCTP closed, closing here as well\n";
        setStatusString("closing");
        clientSocket.close();
    }
}

socketStatusArrived()

void inet::SctpPeer::socketStatusArrived ( SctpSocket *  socket, SctpStatusReq *  status  )

overrideprotectedvirtual

Reimplemented from inet::SctpSocket::ICallback.

{
    struct PathStatus ps;
    auto i = sctpPathStatus.find(status->getPathId());

    if (i != sctpPathStatus.end()) {
        ps = i->second;
        ps.active = status->getActive();
    }
    else {
        ps.active = status->getActive();
        ps.primaryPath = false;
        sctpPathStatus[ps.pid] = ps;
    }
}

Member Data Documentation

bytesPerAssoc

BytesPerAssoc inet::SctpPeer::bytesPerAssoc

protected

Referenced by handleMessage(), and ~SctpPeer().

bytesRcvd

int inet::SctpPeer::bytesRcvd

protected

Referenced by SctpPeer(), and socketDataArrived().

bytesSent

long inet::SctpPeer::bytesSent

protected

Referenced by finish(), generateAndSend(), handleMessage(), initialize(), SctpPeer(), and sendRequest().

chunksAbandoned

int inet::SctpPeer::chunksAbandoned

protected

Referenced by msgAbandonedArrived(), and SctpPeer().

clientSocket

SctpSocket inet::SctpPeer::clientSocket

protected

Referenced by connect(), handleMessage(), initialize(), sendQueueRequest(), sendRequest(), sendRequestArrived(), shutdownReceivedArrived(), socketDataArrived(), socketDataNotificationArrived(), socketEstablished(), and socketPeerClosed().

connectTimer

cMessage* inet::SctpPeer::connectTimer

protected

Referenced by initialize(), SctpPeer(), and ~SctpPeer().

delay

double inet::SctpPeer::delay

protected

Referenced by initialize(), SctpPeer(), and sendOrSchedule().

echo

bool inet::SctpPeer::echo

protected

Referenced by handleMessage(), initialize(), SctpPeer(), and socketDataArrived().

echoedBytesSent

int inet::SctpPeer::echoedBytesSent

protected

Referenced by SctpPeer().

echoedPkSignal

simsignal_t inet::SctpPeer::echoedPkSignal = registerSignal("echoedPk")

staticprotected

endToEndDelay

EndToEndDelay inet::SctpPeer::endToEndDelay

protected

Referenced by handleMessage(), and ~SctpPeer().

histEndToEndDelay

HistEndToEndDelay inet::SctpPeer::histEndToEndDelay

protected

Referenced by handleMessage(), and ~SctpPeer().

inboundStreams

int inet::SctpPeer::inboundStreams

protected

Referenced by initialize(), and SctpPeer().

lastStream

int inet::SctpPeer::lastStream

protected

Referenced by generateAndSend(), handleMessage(), and SctpPeer().

listeningSocket

SctpSocket inet::SctpPeer::listeningSocket

protected

Referenced by initialize().

notificationsReceived

int inet::SctpPeer::notificationsReceived

protected

Referenced by finish(), handleMessage(), and SctpPeer().

numPacketsToReceive

int inet::SctpPeer::numPacketsToReceive

protected

Referenced by SctpPeer(), socketDataArrived(), and socketEstablished().

numRequestsToSend

int inet::SctpPeer::numRequestsToSend

protected

Referenced by handleMessage(), handleTimer(), initialize(), SctpPeer(), sendRequest(), sendRequestArrived(), shutdownReceivedArrived(), and socketEstablished().

numSessions

int inet::SctpPeer::numSessions

protected

Referenced by connect(), finish(), handleMessage(), initialize(), and SctpPeer().

ordered

bool inet::SctpPeer::ordered

protected

Referenced by generateAndSend(), initialize(), SctpPeer(), and sendRequest().

outboundStreams

int inet::SctpPeer::outboundStreams

protected

Referenced by generateAndSend(), handleMessage(), initialize(), and SctpPeer().

packetsRcvd

int inet::SctpPeer::packetsRcvd

protected

Referenced by finish(), handleMessage(), initialize(), SctpPeer(), and socketDataArrived().

packetsSent

int inet::SctpPeer::packetsSent

protected

Referenced by finish(), generateAndSend(), handleMessage(), initialize(), SctpPeer(), and socketDataArrived().

queueSize

int inet::SctpPeer::queueSize

protected

Referenced by handleMessage(), initialize(), SctpPeer(), sendQueueRequest(), sendRequestArrived(), and socketEstablished().

rcvdBytesPerAssoc

RcvdBytesPerAssoc inet::SctpPeer::rcvdBytesPerAssoc

protected

Referenced by finish(), handleMessage(), and ~SctpPeer().

rcvdPacketsPerAssoc

RcvdPacketsPerAssoc inet::SctpPeer::rcvdPacketsPerAssoc

protected

Referenced by handleMessage(), and ~SctpPeer().

schedule

bool inet::SctpPeer::schedule

protected

Referenced by handleMessage(), handleTimer(), and SctpPeer().

sctpPathStatus

SctpPathStatus inet::SctpPeer::sctpPathStatus

protected

Referenced by socketStatusArrived().

sendAllowed

bool inet::SctpPeer::sendAllowed

protected

Referenced by SctpPeer(), sendqueueFullArrived(), sendRequestArrived(), and socketEstablished().

sentPacketsPerAssoc

SentPacketsPerAssoc inet::SctpPeer::sentPacketsPerAssoc

protected

Referenced by handleMessage(), and ~SctpPeer().

serverAssocId

int inet::SctpPeer::serverAssocId

protected

Referenced by generateAndSend(), handleMessage(), and SctpPeer().

shutdownReceived

bool inet::SctpPeer::shutdownReceived

protected

Referenced by handleMessage(), and SctpPeer().

timeMsg

cMessage* inet::SctpPeer::timeMsg

protected

Referenced by SctpPeer(), socketEstablished(), socketFailure(), and ~SctpPeer().

timeoutMsg

cMessage* inet::SctpPeer::timeoutMsg

protected

Referenced by handleMessage(), handleTimer(), initialize(), SctpPeer(), and ~SctpPeer().

---

The documentation for this class was generated from the following files:

• SctpPeer.h
• SctpPeer.cc
