Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:175 by opp_msgtool. More...

#include <SctpCommand_m.h>

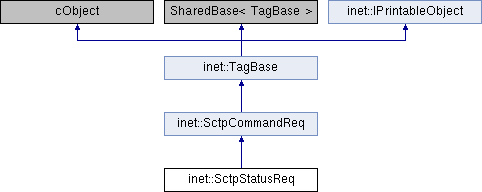

Inheritance diagram for inet::SctpStatusReq:

Public Member Functions
	SctpStatusReq ()

	SctpStatusReq (const SctpStatusReq &other)

virtual	~SctpStatusReq ()

SctpStatusReq &	operator= (const SctpStatusReq &other)

virtual SctpStatusReq *	dup () const override

virtual void	parsimPack (omnetpp::cCommBuffer *b) const override

virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override

virtual int	getState () const

virtual void	setState (int state)

virtual const char *	getStateName () const

virtual void	setStateName (const char *stateName)

virtual const L3Address &	getPathId () const

virtual L3Address &	getPathIdForUpdate ()

virtual void	setPathId (const L3Address &pathId)

virtual bool	getActive () const

virtual void	setActive (bool active)

Public Member Functions inherited from inet::SctpCommandReq
	SctpCommandReq ()

	SctpCommandReq (const SctpCommandReq &other)

virtual	~SctpCommandReq ()

SctpCommandReq &	operator= (const SctpCommandReq &other)

virtual int	getSocketId () const

virtual void	setSocketId (int socketId)

virtual int	getSid () const

virtual void	setSid (int sid)

virtual int	getNumMsgs () const

virtual void	setNumMsgs (int numMsgs)

virtual int	getSsn () const

virtual void	setSsn (int ssn)

virtual unsigned short	getSendUnordered () const

virtual void	setSendUnordered (unsigned short sendUnordered)

virtual double	getPrValue () const

virtual void	setPrValue (double prValue)

virtual const L3Address &	getLocalAddr () const

virtual L3Address &	getLocalAddrForUpdate ()

virtual void	setLocalAddr (const L3Address &localAddr)

virtual const L3Address &	getRemoteAddr () const

virtual L3Address &	getRemoteAddrForUpdate ()

virtual void	setRemoteAddr (const L3Address &remoteAddr)

virtual int	getLocalPort () const

virtual void	setLocalPort (int localPort)

virtual int	getRemotePort () const

virtual void	setRemotePort (int remotePort)

virtual int	getGate () const

virtual void	setGate (int gate)

virtual int	getFd () const

virtual void	setFd (int fd)

Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const

virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const

virtual void	parsimPack (cCommBuffer *buffer) const override

virtual void	parsimUnpack (cCommBuffer *buffer) override

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...

virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const

virtual std::string	str () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SctpStatusReq &)=delete

Protected Member Functions inherited from inet::SctpCommandReq
bool	operator== (const SctpCommandReq &)=delete

Protected Attributes
int	state = 0

::omnetpp::opp_string	stateName

L3Address	pathId

bool	active = false

Protected Attributes inherited from inet::SctpCommandReq
int	socketId = -1

int	sid = -1

int	numMsgs = 1

int	ssn = -1

unsigned short	sendUnordered = false

double	prValue = 0

L3Address	localAddr

L3Address	remoteAddr

int	localPort = -1

int	remotePort = -1

int	gate = -1

int	fd = -1

Private Member Functions
void	copy (const SctpStatusReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:175 by opp_msgtool.

class SctpStatusReq extends SctpCommandReq
{
    int state;
    string stateName;
    L3Address pathId;
    bool active;
}

Constructor & Destructor Documentation

◆ SctpStatusReq() [1/2]

inet::SctpStatusReq::SctpStatusReq ( )

◆ SctpStatusReq() [2/2]

inet::SctpStatusReq::SctpStatusReq ( const SctpStatusReq & other )

◆ ~SctpStatusReq()

virtual inet::SctpStatusReq::~SctpStatusReq ( )

virtual

Member Function Documentation

◆ copy()

void inet::SctpStatusReq::copy ( const SctpStatusReq & other )

private

◆ dup()

virtual SctpStatusReq* inet::SctpStatusReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::SctpCommandReq.

707 {return new SctpStatusReq(*this);}

◆ getActive()

virtual bool inet::SctpStatusReq::getActive ( ) const

virtual

Referenced by inet::SctpClient::socketStatusArrived(), inet::SctpPeer::socketStatusArrived(), and inet::SctpNatPeer::socketStatusArrived().

◆ getPathId()

virtual const L3Address& inet::SctpStatusReq::getPathId ( ) const

virtual

Referenced by inet::SctpClient::socketStatusArrived(), inet::SctpPeer::socketStatusArrived(), and inet::SctpNatPeer::socketStatusArrived().

◆ getPathIdForUpdate()

virtual L3Address& inet::SctpStatusReq::getPathIdForUpdate ( )

inlinevirtual

718 { return const_cast<L3Address&>(const_cast<SctpStatusReq*>(this)->getPathId());}

◆ getState()

virtual int inet::SctpStatusReq::getState ( ) const

virtual

◆ getStateName()

virtual const char* inet::SctpStatusReq::getStateName ( ) const

virtual

◆ operator=()

SctpStatusReq& inet::SctpStatusReq::operator= ( const SctpStatusReq & other )

◆ operator==()

bool inet::SctpStatusReq::operator== ( const SctpStatusReq & )

protecteddelete

◆ parsimPack()

virtual void inet::SctpStatusReq::parsimPack ( omnetpp::cCommBuffer * b ) const

overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimPacking().

◆ parsimUnpack()

virtual void inet::SctpStatusReq::parsimUnpack ( omnetpp::cCommBuffer * b )

overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimUnpacking().

◆ setActive()

virtual void inet::SctpStatusReq::setActive ( bool active )

virtual

◆ setPathId()

virtual void inet::SctpStatusReq::setPathId ( const L3Address & pathId )

virtual

Referenced by inet::sctp::SctpAssociation::pathStatusIndication().

◆ setState()

virtual void inet::SctpStatusReq::setState ( int state )

virtual

Referenced by inet::sctp::SctpAssociation::process_STATUS().

◆ setStateName()

virtual void inet::SctpStatusReq::setStateName ( const char * stateName )

virtual

Member Data Documentation

◆ active

bool inet::SctpStatusReq::active = false

protected

◆ pathId

L3Address inet::SctpStatusReq::pathId

protected

◆ state

int inet::SctpStatusReq::state = 0

protected

◆ stateName

::omnetpp::opp_string inet::SctpStatusReq::stateName

protected

The documentation for this class was generated from the following file:

SctpCommand_m.h
