inet::Message Class Reference

#include <Message.h>

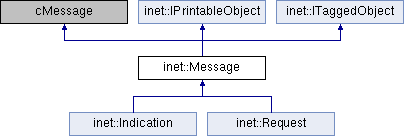

Inheritance diagram for inet::Message:

Public Member Functions
Tag related functions
virtual SharingTagSet &	getTags () override
	Returns all tags. More...
int	getNumTags () const
	Returns the number of message tags. More...
const Ptr< const TagBase >	getTag (int index) const
	Returns the message tag at the given index. More...
void	clearTags ()
	Clears the set of message tags. More...
void	copyTags (const Message &source)
	Copies the set of message tags from the other message. More...
template<typename T >
const Ptr< const T >	findTag () const
	Returns the message tag for the provided type or returns nullptr if no such message tag is found. More...
template<typename T >
const Ptr< T >	findTagForUpdate ()
	Returns the message tag for the provided type or returns nullptr if no such message tag is found. More...
template<typename T >
const Ptr< const T >	getTag () const
	Returns the message tag for the provided type or throws an exception if no such message tag is found. More...
template<typename T >
const Ptr< T >	getTagForUpdate ()
	Returns the message tag for the provided type or throws an exception if no such message tag is found. More...
template<typename T >
const Ptr< T >	addTag ()
	Returns a newly added message tag for the provided type, or throws an exception if such a message tag is already present. More...
template<typename T >
const Ptr< T >	addTagIfAbsent ()
	Returns a newly added message tag for the provided type if absent, or returns the message tag that is already present. More...
template<typename T >
const Ptr< T >	removeTag ()
	Removes the message tag for the provided type, or throws an exception if no such message tag is found. More...
template<typename T >
const Ptr< T >	removeTagIfPresent ()
	Removes the message tag for the provided type if present, or returns nullptr if no such message tag is found. More...
Utility functions
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
SharingTagSet	tags

Friends
class	MessageDescriptor

Class descriptor functions
const TagBase *	_getTag (int index)
	Message (const char *name=nullptr, short kind=0)
	Message (const Message &other)
virtual Message *	dup () const override

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Message() [1/2]

inet::Message::Message ( const char *  name = nullptr, short  kind = 0  )

explicit

                                             :
    cMessage(name, kind)
{
}

Message() [2/2]

inet::Message::Message

(

const Message &

other

)

                                     :
    cMessage(other),
    tags(other.tags)
{
}

Member Function Documentation

_getTag()

const TagBase* inet::Message::_getTag ( int  index )

inlineprotected

{ return tags.getTag(index).get(); }

addTag()

template<typename T >

const Ptr<T> inet::Message::addTag ( )

inline

Returns a newly added message tag for the provided type, or throws an exception if such a message tag is already present.

                                               {
        return tags.addTag<T>();
    }

Referenced by inet::SctpSocket::abort(), inet::SctpSocket::accept(), inet::SctpSocket::acceptSocket(), inet::SctpSocket::close(), inet::SctpSocket::connect(), inet::SctpSocket::destroy(), inet::sctp::SctpAssociation::generateSendQueueAbatedIndication(), inet::SctpSocket::getSocketOptions(), inet::NetPerfMeter::handleMessage(), inet::SctpNatServer::handleMessage(), inet::SctpServer::handleMessage(), inet::SctpPeer::handleMessage(), inet::SctpNatPeer::handleMessage(), inet::SctpNatServer::handleTimer(), inet::SctpServer::handleTimer(), inet::SctpPeer::handleTimer(), inet::SctpNatPeer::handleTimer(), inet::SctpSocket::listen(), inet::SctpServer::makeAbortNotification(), inet::SctpServer::makeDefaultReceive(), inet::sctp::SctpAssociation::pathStatusIndication(), inet::SctpSocket::requestStatus(), inet::sctp::SctpAssociation::sendAvailableIndicationToApp(), inet::sctp::SctpAssociation::sendDataArrivedNotification(), inet::sctp::SctpAssociation::sendEstabIndicationToApp(), inet::sctp::SctpAssociation::sendIndicationToApp(), inet::SctpNatServer::sendInfo(), inet::SctpClient::sendQueueRequest(), inet::SctpPeer::sendQueueRequest(), inet::SctpNatPeer::sendQueueRequest(), inet::NetPerfMeter::sendSCTPQueueRequest(), inet::SctpClient::sendStreamResetNotification(), inet::SctpClient::setPrimaryPath(), inet::SctpSocket::setRtoInfo(), inet::SctpSocket::setStreamPriority(), inet::SctpSocket::shutdown(), inet::SctpClient::shutdownReceivedArrived(), inet::SctpPeer::shutdownReceivedArrived(), inet::SctpNatPeer::shutdownReceivedArrived(), and inet::SctpNatPeer::socketEstablished().

addTagIfAbsent()

template<typename T >

const Ptr<T> inet::Message::addTagIfAbsent ( )

inline

Returns a newly added message tag for the provided type if absent, or returns the message tag that is already present.

                                                       {
        return tags.addTagIfAbsent<T>();
    }

Referenced by inet::SctpServer::sendOrSchedule().

clearTags()

void inet::Message::clearTags ( )

inline

Clears the set of message tags.

                     {
        tags.clearTags();
    }

copyTags()

void inet::Message::copyTags ( const Message &  source )

inline

Copies the set of message tags from the other message.

                                         {
        tags.copyTags(source.tags);
    }

dup()

virtual Message* inet::Message::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::Indication, and inet::Request.

{ return new Message(*this); }

findTag()

template<typename T >

const Ptr<const T> inet::Message::findTag ( ) const

inline

Returns the message tag for the provided type or returns nullptr if no such message tag is found.

                                                            {
        return tags.findTag<T>();
    }

Referenced by inet::MessageDispatcher::handleMessage(), inet::SctpServer::handleMessage(), and inet::SctpClient::socketDataNotificationArrived().

findTagForUpdate()

template<typename T >

const Ptr<T> inet::Message::findTagForUpdate ( )

inline

Returns the message tag for the provided type or returns nullptr if no such message tag is found.

                                                         {
        return tags.findTagForUpdate<T>();
    }

getNumTags()

int inet::Message::getNumTags ( ) const

inline

Returns the number of message tags.

                           {
        return tags.getNumTags();
    }

getTag() [1/2]

template<typename T >

const Ptr<const T> inet::Message::getTag ( ) const

inline

Returns the message tag for the provided type or throws an exception if no such message tag is found.

                                                           {
        return tags.getTag<T>();
    }

getTag() [2/2]

const Ptr<const TagBase> inet::Message::getTag ( int  index ) const

inline

Returns the message tag at the given index.

                                                     {
        return tags.getTag(index);
    }

Referenced by inet::EthernetSocketCommandProcessor::handleCommand(), inet::Ieee8022LlcSocketCommandProcessor::handleCommand(), inet::Ieee8021qSocketCommandProcessor::handleCommand(), inet::NextHopForwarding::handleCommand(), inet::NetPerfMeter::handleMessage(), inet::SctpNatServer::handleMessage(), inet::SctpServer::handleMessage(), inet::SctpPeer::handleMessage(), inet::SctpNatPeer::handleMessage(), inet::Ipv4Encap::handleRequest(), inet::Ipv6::handleRequest(), inet::Ipv4::handleRequest(), inet::NetworkProtocolBase::handleUpperCommand(), inet::Ieee8022Llc::processCommandFromHigherLayer(), and inet::EthernetEncapsulation::processCommandFromHigherLayer().

getTagForUpdate()

template<typename T >

const Ptr<T> inet::Message::getTagForUpdate ( )

inline

Returns the message tag for the provided type or throws an exception if no such message tag is found.

                                                        {
        return tags.getTagForUpdate<T>();
    }

getTags()

virtual SharingTagSet& inet::Message::getTags ( )

inlineoverridevirtual

Returns all tags.

Implements inet::ITaggedObject.

{ return tags; }

Referenced by inet::NetPerfMeter::handleMessage(), inet::SctpNatServer::handleMessage(), inet::SctpPeer::handleMessage(), inet::SctpNatPeer::handleMessage(), inet::SctpServer::makeReceiveRequest(), inet::SctpPeer::socketDataNotificationArrived(), and inet::SctpNatPeer::socketDataNotificationArrived().

printToStream()

std::ostream & inet::Message::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    std::string className = getClassName();
    auto index = className.rfind("::");
    if (index != std::string::npos)
        className = className.substr(index + 2);
    if (level <= PRINT_LEVEL_DETAIL)
        stream << EV_FAINT << "(" << className << ")" << EV_NORMAL;
    stream << EV_ITALIC << getName() << EV_NORMAL;
    return stream;
}

removeTag()

template<typename T >

const Ptr<T> inet::Message::removeTag ( )

inline

Removes the message tag for the provided type, or throws an exception if no such message tag is found.

                                                  {
        return tags.removeTag<T>();
    }

removeTagIfPresent()

template<typename T >

const Ptr<T> inet::Message::removeTagIfPresent ( )

inline

Removes the message tag for the provided type if present, or returns nullptr if no such message tag is found.

                                                           {
        return tags.removeTagIfPresent<T>();
    }

Referenced by inet::EthernetEncapsulation::processCommandFromHigherLayer().

Friends And Related Function Documentation

MessageDescriptor

friend class MessageDescriptor

friend

Member Data Documentation

tags

SharingTagSet inet::Message::tags

protected

Referenced by copyTags().

---

The documentation for this class was generated from the following files:

• Message.h
• Message.cc
