inet::Ipv6 Class Reference

Ipv6 implementation. More...

#include <Ipv6.h>

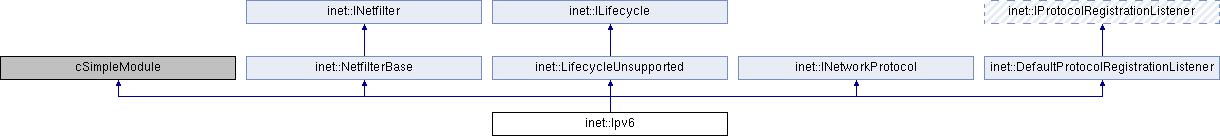

Inheritance diagram for inet::Ipv6:

Classes
class	QueuedDatagramForHook
	Represents an Ipv4Header, queued by a Hook. More...
struct	SocketDescriptor

Public Member Functions
	Ipv6 ()
	~Ipv6 ()
virtual void	handleRegisterService (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) override
virtual void	handleRegisterProtocol (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) override
virtual void	registerHook (int priority, IHook *hook) override
	Adds the provided hook to the list of registered hooks that will be called by the network layer when it processes datagrams. More...
virtual void	unregisterHook (IHook *hook) override
	Removes the provided hook from the list of registered hooks. More...
virtual void	dropQueuedDatagram (const Packet *packet) override
	Requests the network layer to drop the datagram, because it's no longer needed. More...
virtual void	reinjectQueuedDatagram (const Packet *packet) override
	Requests the network layer to restart the processing of the datagram. More...
Public Member Functions inherited from inet::NetfilterBase
virtual	~NetfilterBase ()
Public Member Functions inherited from inet::INetfilter
virtual	~INetfilter ()
Public Member Functions inherited from inet::LifecycleUnsupported
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Public Member Functions inherited from inet::INetworkProtocol
virtual	~INetworkProtocol ()
Public Member Functions inherited from inet::DefaultProtocolRegistrationListener
virtual void	handleRegisterServiceGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) override
virtual void	handleRegisterProtocolGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) override
virtual void	handleRegisterAnyService (cGate *gate, ServicePrimitive servicePrimitive) override
virtual void	handleRegisterAnyProtocol (cGate *gate, ServicePrimitive servicePrimitive) override

Protected Types
typedef std::list< QueuedDatagramForHook >	DatagramQueueForHooks

Protected Member Functions
virtual NetworkInterface *	getSourceInterfaceFrom (Packet *msg)
virtual void	refreshDisplay () const override
virtual void	encapsulate (Packet *transportPacket)
	Encapsulate packet coming from higher layers into IPv6Datagram. More...
virtual void	preroutingFinish (Packet *packet, const NetworkInterface *fromIE, const NetworkInterface *destIE, Ipv6Address nextHopAddr)
virtual void	handleMessage (cMessage *msg) override
virtual void	handleRequest (Request *request)
virtual void	handleMessageFromHL (Packet *msg)
	Handle messages (typically packets to be send in Ipv6) from transport or ICMP. More...
virtual void	datagramLocalOut (Packet *packet, const NetworkInterface *destIE, Ipv6Address requestedNextHopAddress)
virtual void	handleReceivedIcmp (Packet *msg)
	Handle incoming ICMP messages. More...
virtual void	routePacket (Packet *packet, const NetworkInterface *destIE, const NetworkInterface *fromIE, Ipv6Address requestedNextHopAddress, bool fromHL)
	Performs routing. More...
virtual void	resolveMACAddressAndSendPacket (Packet *packet, int interfaceID, Ipv6Address nextHop, bool fromHL)
virtual void	routeMulticastPacket (Packet *packet, const NetworkInterface *destIE, const NetworkInterface *fromIE, bool fromHL)
	Forwards packets to all multicast destinations, using fragmentAndSend(). More...
virtual void	fragmentPostRouting (Packet *packet, const NetworkInterface *ie, const MacAddress &nextHopAddr, bool fromHL)
virtual void	fragmentAndSend (Packet *packet, const NetworkInterface *destIE, const MacAddress &nextHopAddr, bool fromHL)
	Performs fragmentation if needed, and sends the original datagram or the fragments through the specified interface. More...
virtual void	localDeliver (Packet *packet, const NetworkInterface *fromIE)
	Perform reassembly of fragmented datagrams, then send them up to the higher layers using sendToHL(). More...
virtual void	decapsulate (Packet *packet)
	Decapsulate packet. More...
virtual void	sendDatagramToOutput (Packet *packet, const NetworkInterface *destIE, const MacAddress &macAddr)
	Last hoplimit check, then send datagram on the given interface. More...
void	sendIcmpError (Packet *origPacket, Icmpv6Type type, int code)
IHook::Result	datagramPreRoutingHook (Packet *packet)
	called before a packet arriving from the network is routed More...
IHook::Result	datagramForwardHook (Packet *packet)
	called before a packet arriving from the network is delivered via the network More...
IHook::Result	datagramPostRoutingHook (Packet *packet, const NetworkInterface *inIE, const NetworkInterface *&outIE, L3Address &nextHopAddr)
	called before a packet is delivered via the network More...
IHook::Result	datagramLocalInHook (Packet *packet, const NetworkInterface *inIE)
	called before a packet arriving from the network is delivered locally More...
IHook::Result	datagramLocalOutHook (Packet *packet)
	called before a packet arriving locally is delivered More...
virtual void	initialize (int stage) override
	Initialization. More...
virtual int	numInitStages () const override
bool	determineOutputInterface (const Ipv6Address &destAddress, Ipv6Address &nextHop, int &interfaceId, Packet *packet, bool fromHL)
	Determines the correct interface for the specified destination address. More...

Protected Attributes
ModuleRefByPar< IInterfaceTable >	ift
ModuleRefByPar< Ipv6RoutingTable >	rt
ModuleRefByPar< Ipv6NeighbourDiscovery >	nd
ModuleRefByPar< Icmpv6 >	icmp
ModuleRefByPar< Ipv6Tunneling >	tunneling
unsigned int	curFragmentId = -1
Ipv6FragBuf	fragbuf
simtime_t	lastCheckTime
std::set< const Protocol * >	upperProtocols
std::map< int, SocketDescriptor * >	socketIdToSocketDescriptor
int	numMulticast = 0
int	numLocalDeliver = 0
int	numDropped = 0
int	numUnroutable = 0
int	numForwarded = 0
DatagramQueueForHooks	queuedDatagramsForHooks
Protected Attributes inherited from inet::NetfilterBase
std::multimap< int, IHook * >	hooks

Detailed Description

Ipv6 implementation.

Member Typedef Documentation

DatagramQueueForHooks

typedef std::list<QueuedDatagramForHook> inet::Ipv6::DatagramQueueForHooks

protected

Constructor & Destructor Documentation

Ipv6()

inet::Ipv6::Ipv6

(

)

           :
    curFragmentId(0)
{
}

~Ipv6()

inet::Ipv6::~Ipv6

(

)

{
    for (auto it : socketIdToSocketDescriptor)
        delete it.second;

    for (auto& elem : queuedDatagramsForHooks) {
        delete elem.packet;
    }
}

Member Function Documentation

datagramForwardHook()

INetfilter::IHook::Result inet::Ipv6::datagramForwardHook ( Packet *  packet )

protected

called before a packet arriving from the network is delivered via the network

{
    for (auto& elem : hooks) {
        IHook::Result r = elem.second->datagramForwardHook(packet);
        switch (r) {
            case INetfilter::IHook::ACCEPT:
                break; // continue iteration

            case INetfilter::IHook::DROP:
                delete packet;
                return r;

            case INetfilter::IHook::QUEUE:
                queuedDatagramsForHooks.push_back(QueuedDatagramForHook(packet, INetfilter::IHook::FORWARD));
                return r;

            case INetfilter::IHook::STOLEN:
                return r;

            default:
                throw cRuntimeError("Unknown Hook::Result value: %d", (int)r);
        }
    }
    return INetfilter::IHook::ACCEPT;
}

datagramLocalInHook()

INetfilter::IHook::Result inet::Ipv6::datagramLocalInHook ( Packet *  packet, const NetworkInterface *  inIE  )

protected

called before a packet arriving from the network is delivered locally

{
    for (auto& elem : hooks) {
        IHook::Result r = elem.second->datagramLocalInHook(packet);
        switch (r) {
            case INetfilter::IHook::ACCEPT:
                break; // continue iteration

            case INetfilter::IHook::DROP:
                delete packet;
                return r;

            case INetfilter::IHook::QUEUE:
                queuedDatagramsForHooks.push_back(QueuedDatagramForHook(packet, INetfilter::IHook::LOCALIN));
                return r;

            case INetfilter::IHook::STOLEN:
                return r;

            default:
                throw cRuntimeError("Unknown Hook::Result value: %d", (int)r);
        }
    }
    return INetfilter::IHook::ACCEPT;
}

datagramLocalOut()

void inet::Ipv6::datagramLocalOut ( Packet *  packet, const NetworkInterface *  destIE, Ipv6Address  requestedNextHopAddress  )

protectedvirtual

{
    const auto& ipv6Header = packet->peekAtFront<Ipv6Header>();
    // route packet
    if (destIE != nullptr)
        fragmentPostRouting(packet, destIE, MacAddress::BROADCAST_ADDRESS, true); // FIXME what MAC address to use?
    else if (!ipv6Header->getDestAddress().isMulticast())
        routePacket(packet, destIE, nullptr, requestedNextHopAddress, true);
    else
        routeMulticastPacket(packet, destIE, nullptr, true);
}

Referenced by handleMessage(), handleMessageFromHL(), and reinjectQueuedDatagram().

datagramLocalOutHook()

INetfilter::IHook::Result inet::Ipv6::datagramLocalOutHook ( Packet *  packet )

protected

called before a packet arriving locally is delivered

{
    for (auto& elem : hooks) {
        IHook::Result r = elem.second->datagramLocalOutHook(packet);
        switch (r) {
            case INetfilter::IHook::ACCEPT:
                break; // continue iteration

            case INetfilter::IHook::DROP:
                delete packet;
                return r;

            case INetfilter::IHook::QUEUE:
                queuedDatagramsForHooks.push_back(QueuedDatagramForHook(packet, INetfilter::IHook::LOCALOUT));
                return r;

            case INetfilter::IHook::STOLEN:
                return r;

            default:
                throw cRuntimeError("Unknown Hook::Result value: %d", (int)r);
        }
    }
    return INetfilter::IHook::ACCEPT;
}

Referenced by handleMessage(), and handleMessageFromHL().

datagramPostRoutingHook()

INetfilter::IHook::Result inet::Ipv6::datagramPostRoutingHook ( Packet *  packet, const NetworkInterface *  inIE, const NetworkInterface *&  outIE, L3Address &  nextHopAddr  )

protected

called before a packet is delivered via the network

{
    for (auto& elem : hooks) {
        IHook::Result r = elem.second->datagramPostRoutingHook(packet);
        switch (r) {
            case INetfilter::IHook::ACCEPT:
                break; // continue iteration

            case INetfilter::IHook::DROP:
                delete packet;
                return r;

            case INetfilter::IHook::QUEUE:
                queuedDatagramsForHooks.push_back(QueuedDatagramForHook(packet, INetfilter::IHook::POSTROUTING));
                return r;

            case INetfilter::IHook::STOLEN:
                return r;

            default:
                throw cRuntimeError("Unknown Hook::Result value: %d", (int)r);
        }
    }
    return INetfilter::IHook::ACCEPT;
}

Referenced by fragmentPostRouting().

datagramPreRoutingHook()

INetfilter::IHook::Result inet::Ipv6::datagramPreRoutingHook ( Packet *  packet )

protected

called before a packet arriving from the network is routed

{
    for (auto& elem : hooks) {
        IHook::Result r = elem.second->datagramPreRoutingHook(packet);
        switch (r) {
            case INetfilter::IHook::ACCEPT:
                break; // continue iteration

            case INetfilter::IHook::DROP:
                delete packet;
                return r;

            case INetfilter::IHook::QUEUE:
                queuedDatagramsForHooks.push_back(QueuedDatagramForHook(packet, INetfilter::IHook::PREROUTING));
                return r;

            case INetfilter::IHook::STOLEN:
                return r;

            default:
                throw cRuntimeError("Unknown Hook::Result value: %d", (int)r);
        }
    }
    return INetfilter::IHook::ACCEPT;
}

Referenced by handleMessage().

decapsulate()

void inet::Ipv6::decapsulate ( Packet *  packet )

protectedvirtual

Decapsulate packet.

{
    // decapsulate transport packet
    auto ipv6Header = packet->popAtFront<Ipv6Header>();

    B payloadLength = ipv6Header->getPayloadLength();
    if (payloadLength != B(0)) { // payloadLength == 0 occured with Jumbo payload
        ASSERT(payloadLength <= packet->getDataLength());
        // drop padding behind the payload:
        if (payloadLength < packet->getDataLength())
            packet->setBackOffset(packet->getFrontOffset() + payloadLength);
    }

    // create and fill in control info
    packet->addTagIfAbsent<TosInd>()->setTos(ipv6Header->getTrafficClass());
    packet->addTagIfAbsent<DscpInd>()->setDifferentiatedServicesCodePoint(ipv6Header->getDscp());
    packet->addTagIfAbsent<EcnInd>()->setExplicitCongestionNotification(ipv6Header->getEcn());
    packet->addTagIfAbsent<DispatchProtocolInd>()->setProtocol(&Protocol::ipv6);
    auto payloadProtocol = ipv6Header->getProtocol();
    packet->addTagIfAbsent<PacketProtocolTag>()->setProtocol(payloadProtocol);
    packet->addTagIfAbsent<DispatchProtocolReq>()->setProtocol(payloadProtocol);
    auto networkProtocolInd = packet->addTagIfAbsent<NetworkProtocolInd>();
    networkProtocolInd->setProtocol(&Protocol::ipv6);
    networkProtocolInd->setNetworkProtocolHeader(ipv6Header);
    auto l3AddressInd = packet->addTagIfAbsent<L3AddressInd>();
    l3AddressInd->setSrcAddress(ipv6Header->getSrcAddress());
    l3AddressInd->setDestAddress(ipv6Header->getDestAddress());
    packet->addTagIfAbsent<HopLimitInd>()->setHopLimit(ipv6Header->getHopLimit());
}

Referenced by localDeliver().

determineOutputInterface()

bool inet::Ipv6::determineOutputInterface ( const Ipv6Address &  destAddress, Ipv6Address &  nextHop, int &  interfaceId, Packet *  packet, bool  fromHL  )

protected

Determines the correct interface for the specified destination address.

The nextHop and interfaceId are output parameter.

{
    // try destination cache
    nextHop = rt->lookupDestCache(destAddress, interfaceId);

    if (interfaceId == -1) {
        // address not in destination cache: do longest prefix match in routing table
        EV_INFO << "do longest prefix match in routing table" << endl;
        const Ipv6Route *route = rt->doLongestPrefixMatch(destAddress);
        EV_INFO << "finished longest prefix match in routing table" << endl;
        if (!route) {
            if (rt->isRouter()) {
                EV_INFO << "unroutable, sending ICMPv6_DESTINATION_UNREACHABLE\n";
                numUnroutable++;
                sendIcmpError(packet, ICMPv6_DESTINATION_UNREACHABLE, 0); // FIXME check ICMP 'code'
            }
            else { // host
                EV_INFO << "no match in routing table, passing datagram to Neighbour Discovery module for default router selection\n";
                Ipv6NdControlInfo *ctrl = new Ipv6NdControlInfo();
                ctrl->setFromHL(fromHL);
                ctrl->setNextHop(nextHop);
                ctrl->setInterfaceId(interfaceId);
                packet->cMessage::setControlInfo(ctrl);
                send(packet, "ndOut");
            }
            return false;
        }
        interfaceId = route->getInterface() ? route->getInterface()->getInterfaceId() : -1;
        nextHop = route->getNextHop();
        if (nextHop.isUnspecified())
            nextHop = destAddress; // next hop is the host itself

        // add result into destination cache
        rt->updateDestCache(destAddress, nextHop, interfaceId, route->getExpiryTime());
    }

    return true;
}

Referenced by routePacket().

dropQueuedDatagram()

void inet::Ipv6::dropQueuedDatagram ( const Packet *  daragram )

overridevirtual

Requests the network layer to drop the datagram, because it's no longer needed.

This function may be used by a reactive routing protocol when it cancels the route discovery process.

Implements inet::INetfilter.

{
    Enter_Method("dropQueuedDatagram()");
    for (auto iter = queuedDatagramsForHooks.begin(); iter != queuedDatagramsForHooks.end(); iter++) {
        if (iter->packet == packet) {
            delete packet;
            queuedDatagramsForHooks.erase(iter);
            return;
        }
    }
}

encapsulate()

void inet::Ipv6::encapsulate ( Packet *  transportPacket )

protectedvirtual

Encapsulate packet coming from higher layers into IPv6Datagram.

{
    auto ipv6Header = makeShared<Ipv6Header>(); // TODO transportPacket->getName());

    auto& addresses = transportPacket->removeTag<L3AddressReq>();
    Ipv6Address src = addresses->getSrcAddress().toIpv6();
    Ipv6Address dest = addresses->getDestAddress().toIpv6();

    auto hopLimitReq = transportPacket->removeTagIfPresent<HopLimitReq>();
    short ttl = (hopLimitReq != nullptr) ? hopLimitReq->getHopLimit() : -1;

    ipv6Header->setPayloadLength(transportPacket->getDataLength());

    // set source and destination address
    ipv6Header->setDestAddress(dest);
    ipv6Header->setSrcAddress(src);

    // set other fields
    if (auto& tosReq = transportPacket->removeTagIfPresent<TosReq>()) {
        ipv6Header->setTrafficClass(tosReq->getTos());
        if (transportPacket->findTag<DscpReq>())
            throw cRuntimeError("TosReq and DscpReq found together");
        if (transportPacket->findTag<EcnReq>())
            throw cRuntimeError("TosReq and EcnReq found together");
    }
    if (auto& dscpReq = transportPacket->removeTagIfPresent<DscpReq>())
        ipv6Header->setDscp(dscpReq->getDifferentiatedServicesCodePoint());
    if (auto& ecnReq = transportPacket->removeTagIfPresent<EcnReq>())
        ipv6Header->setEcn(ecnReq->getExplicitCongestionNotification());

    ipv6Header->setHopLimit(ttl != -1 ? ttl : 32); // FIXME use iface hop limit instead of 32?
    ASSERT(ipv6Header->getHopLimit() > 0);
    ipv6Header->setProtocolId(static_cast<IpProtocolId>(ProtocolGroup::ipprotocol.getProtocolNumber(transportPacket->getTag<PacketProtocolTag>()->getProtocol())));

    // #### Move extension headers from ctrlInfo to datagram if present
    auto extHeadersTag = transportPacket->removeTagIfPresent<Ipv6ExtHeaderReq>();
    while (extHeadersTag && 0 < extHeadersTag->getExtensionHeaderArraySize()) {
        Ipv6ExtensionHeader *extHeader = extHeadersTag->removeFirstExtensionHeader();
        ipv6Header->addExtensionHeader(extHeader);
//        EV << "Move extension header to datagram." << endl;
    }

    ipv6Header->setChunkLength(B(ipv6Header->calculateHeaderByteLength()));
    transportPacket->trimFront();
    insertNetworkProtocolHeader(transportPacket, Protocol::ipv6, ipv6Header);
    // setting IP options is currently not supported
}

Referenced by handleMessageFromHL().

fragmentAndSend()

void inet::Ipv6::fragmentAndSend ( Packet *  packet, const NetworkInterface *  destIE, const MacAddress &  nextHopAddr, bool  fromHL  )

protectedvirtual

Performs fragmentation if needed, and sends the original datagram or the fragments through the specified interface.

{
    auto ipv6Header = packet->peekAtFront<Ipv6Header>();
    // hop counter check
    if (ipv6Header->getHopLimit() <= 0) {
        // drop datagram, destruction responsibility in ICMP
        EV_INFO << "datagram hopLimit reached zero, sending ICMPv6_TIME_EXCEEDED\n";
        sendIcmpError(packet, ICMPv6_TIME_EXCEEDED, 0); // FIXME check icmp 'code'
        return;
    }

    // ensure source address is filled
    if (fromHL && ipv6Header->getSrcAddress().isUnspecified() &&
        !ipv6Header->getDestAddress().isSolicitedNodeMulticastAddress())
    {
        // source address can be unspecified during DAD
        const Ipv6Address& srcAddr = ie->getProtocolData<Ipv6InterfaceData>()->getPreferredAddress();
        ASSERT(!srcAddr.isUnspecified()); // FIXME what if we don't have an address yet?

        // TODO factor out
        packet->eraseAtFront(ipv6Header->getChunkLength());
        auto ipv6HeaderCopy = staticPtrCast<Ipv6Header>(ipv6Header->dupShared());
        // TODO dup or mark ipv4Header->markMutableIfExclusivelyOwned();
        ipv6HeaderCopy->setSrcAddress(srcAddr);
        packet->insertAtFront(ipv6HeaderCopy);
        ipv6Header = ipv6HeaderCopy;

    #ifdef INET_WITH_xMIPv6
        // if the datagram has a tentative address as source we have to reschedule it
        // as it can not be sent before the address' tentative status is cleared - CB
        if (ie->getProtocolData<Ipv6InterfaceData>()->isTentativeAddress(srcAddr)) {
            EV_INFO << "Source address is tentative - enqueueing datagram for later resubmission." << endl;
            ScheduledDatagram *sDgram = new ScheduledDatagram(packet, ipv6Header.get(), ie, nextHopAddr, fromHL);
//            queue.insert(sDgram);
            scheduleAfter(1.0, sDgram); // KLUDGE wait 1s for tentative->permanent. MISSING: timeout for drop or send back icmpv6 error, processing signals from IE, need another msg queue for waiting (similar to Ipv4 ARP)
            return;
        }
    #endif /* INET_WITH_xMIPv6 */
    }

    int mtu = ie->getMtu();

    // check if datagram does not require fragmentation
    if (packet->getTotalLength() <= B(mtu)) {
        sendDatagramToOutput(packet, ie, nextHopAddr);
        return;
    }

    // routed datagrams are not fragmented
    if (!fromHL) {
        // FIXME check for multicast datagrams, how many ICMP error should be sent
        sendIcmpError(packet, ICMPv6_PACKET_TOO_BIG, 0); // TODO set MTU
        return;
    }

    // create and send fragments
    ipv6Header = packet->popAtFront<Ipv6Header>();
    B headerLength = ipv6Header->calculateUnfragmentableHeaderByteLength();
    B payloadLength = packet->getDataLength();
    B fragmentLength = ((B(mtu) - headerLength - IPv6_FRAGMENT_HEADER_LENGTH) / 8) * 8;
    ASSERT(fragmentLength > B(0));

    int noOfFragments = B(payloadLength + fragmentLength - B(1)).get() / B(fragmentLength).get();
    EV_INFO << "Breaking datagram into " << noOfFragments << " fragments\n";
    std::string fragMsgName = packet->getName();
    fragMsgName += "-frag-";

    // FIXME is need to remove unfragmentable header extensions? see calculateUnfragmentableHeaderByteLength()

    unsigned int identification = curFragmentId++;
    for (B offset = B(0); offset < payloadLength; offset += fragmentLength) {
        bool lastFragment = (offset + fragmentLength >= payloadLength);
        B thisFragmentLength = lastFragment ? payloadLength - offset : fragmentLength;

        std::string curFragName = fragMsgName + std::to_string(offset.get());
        if (lastFragment)
            curFragName += "-last";
        Packet *fragPk = new Packet(curFragName.c_str());
        const auto& fragHdr = staticPtrCast<Ipv6Header>(ipv6Header->dupShared());
        auto *fh = new Ipv6FragmentHeader();
        fh->setIdentification(identification);
        fh->setFragmentOffset(offset.get());
        fh->setMoreFragments(!lastFragment);
        fragHdr->addExtensionHeader(fh);
        fragHdr->setChunkLength(headerLength + fh->getByteLength()); // KLUDGE
        fragPk->insertAtFront(fragHdr);
        fragPk->insertAtBack(packet->peekDataAt(offset, thisFragmentLength));

        ASSERT(fragPk->getDataLength() == headerLength + fh->getByteLength() + thisFragmentLength);

        sendDatagramToOutput(fragPk, ie, nextHopAddr);
    }

    delete packet;
}

Referenced by fragmentPostRouting().

fragmentPostRouting()

void inet::Ipv6::fragmentPostRouting ( Packet *  packet, const NetworkInterface *  ie, const MacAddress &  nextHopAddr, bool  fromHL  )

protectedvirtual

{
//    const NetworkInterface *destIE = ift->getInterfaceById(packet->getTag<InterfaceReq>()->getInterfaceId());
    auto ipv6Header = packet->peekAtFront<Ipv6Header>();
    // ensure source address is filled
    if (fromHL && ipv6Header->getSrcAddress().isUnspecified() &&
        !ipv6Header->getDestAddress().isSolicitedNodeMulticastAddress())
    {
        // source address can be unspecified during DAD
        const Ipv6Address& srcAddr = ie->getProtocolData<Ipv6InterfaceData>()->getPreferredAddress();
        ASSERT(!srcAddr.isUnspecified()); // FIXME what if we don't have an address yet?

        // TODO factor out
        ipv6Header = nullptr;
        auto newIpv6Header = removeNetworkProtocolHeader<Ipv6Header>(packet);
        newIpv6Header->setSrcAddress(srcAddr);
        insertNetworkProtocolHeader(packet, Protocol::ipv6, newIpv6Header);
        ipv6Header = newIpv6Header;
    }
    const NetworkInterface *fromIe = fromHL ? nullptr : ift->getInterfaceById(packet->getTag<InterfaceInd>()->getInterfaceId());
    L3Address nextHopAddr_(nextHopAddr);
    if (datagramPostRoutingHook(packet, fromIe, ie, nextHopAddr_) == INetfilter::IHook::ACCEPT) {
        fragmentAndSend(packet, ie, nextHopAddr_.toMac(), fromHL);
    }
}

Referenced by datagramLocalOut(), handleMessage(), resolveMACAddressAndSendPacket(), and routeMulticastPacket().

getSourceInterfaceFrom()

NetworkInterface * inet::Ipv6::getSourceInterfaceFrom ( Packet *  msg )

protectedvirtual

{
    const auto& interfaceInd = packet->findTag<InterfaceInd>();
    return interfaceInd != nullptr ? ift->getInterfaceById(interfaceInd->getInterfaceId()) : nullptr;
}

Referenced by handleMessage().

handleMessage()

void inet::Ipv6::handleMessage ( cMessage *  msg )

overrideprotectedvirtual

{
    auto& tags = check_and_cast<ITaggedObject *>(msg)->getTags();

#ifdef INET_WITH_xMIPv6
    // 28.09.07 - CB
    // support for rescheduling datagrams which are supposed to be sent over
    // a tentative address.
    if (msg->isSelfMessage()) {
        ScheduledDatagram *sDgram = check_and_cast<ScheduledDatagram *>(msg);

        // take care of datagram which was supposed to be sent over a tentative address
        if (sDgram->getIE()->getProtocolData<Ipv6InterfaceData>()->isTentativeAddress(sDgram->getSrcAddress())) {
            // address is still tentative - enqueue again
//            queue.insert(sDgram);
            scheduleAfter(1.0, sDgram); // KLUDGE wait 1s for tentative->permanent. MISSING: timeout for drop or send back icmpv6 error, processing signals from IE, need another msg queue for waiting (similar to Ipv4 ARP)
        }
        else {
            // address is not tentative anymore - send out datagram
            numForwarded++;
            fragmentPostRouting(sDgram->removeDatagram(), sDgram->getIE(), sDgram->getMacAddress(), sDgram->getFromHL());
            delete sDgram;
        }
    }
    else
#endif /* INET_WITH_xMIPv6 */

    if (auto request = dynamic_cast<Request *>(msg))
        handleRequest(request);
    else if (msg->getArrivalGate()->isName("transportIn")
             || (msg->arrivedOn("ndIn") && tags.getTag<PacketProtocolTag>()->getProtocol() == &Protocol::icmpv6)
             || (msg->arrivedOn("upperTunnelingIn")) // for tunneling support-CB
#ifdef INET_WITH_xMIPv6
             || (msg->arrivedOn("xMIPv6In") && tags.getTag<PacketProtocolTag>()->getProtocol() == &Protocol::mobileipv6)
#endif /* INET_WITH_xMIPv6 */
             )
    {
        // packet from upper layers, tunnel link-layer output or ND: encapsulate and send out
        handleMessageFromHL(check_and_cast<Packet *>(msg));
    }
    else if (msg->arrivedOn("ndIn") && tags.getTag<PacketProtocolTag>()->getProtocol() == &Protocol::ipv6) {
        auto packet = check_and_cast<Packet *>(msg);
        Ipv6NdControlInfo *ctrl = check_and_cast<Ipv6NdControlInfo *>(msg->removeControlInfo());
        bool fromHL = ctrl->getFromHL();
        Ipv6Address nextHop = ctrl->getNextHop();
        int interfaceId = ctrl->getInterfaceId();
        delete ctrl;
        resolveMACAddressAndSendPacket(packet, interfaceId, nextHop, fromHL);
    }
    else {
        // datagram from network or from ND: localDeliver and/or route
        auto packet = check_and_cast<Packet *>(msg);
        auto ipv6Header = packet->peekAtFront<Ipv6Header>();
        packet->addTagIfAbsent<NetworkProtocolInd>()->setProtocol(&Protocol::ipv6);
        packet->addTagIfAbsent<NetworkProtocolInd>()->setNetworkProtocolHeader(ipv6Header);
        bool fromHL = false;
        if (packet->getArrivalGate()->isName("ndIn")) {
            Ipv6NdControlInfo *ctrl = check_and_cast<Ipv6NdControlInfo *>(msg->removeControlInfo());
            fromHL = ctrl->getFromHL();
            Ipv6Address nextHop = ctrl->getNextHop();
            int interfaceId = ctrl->getInterfaceId();
            delete ctrl;
            resolveMACAddressAndSendPacket(packet, interfaceId, nextHop, fromHL);
        }
        else
            emit(packetReceivedFromLowerSignal, msg);

        // Do not handle header biterrors, because
        // 1. Ipv6 header does not contain checksum for the header fields, each field is
        //    validated when they are processed.
        // 2. The Ethernet or PPP frame is dropped by the link-layer if there is a transmission error.
        ASSERT(!packet->hasBitError());

        const NetworkInterface *fromIE = getSourceInterfaceFrom(packet);
        const NetworkInterface *destIE = nullptr;
        L3Address nextHop(Ipv6Address::UNSPECIFIED_ADDRESS);
        if (fromHL) {
            // remove control info
            delete packet->removeControlInfo();
            if (datagramLocalOutHook(packet) == INetfilter::IHook::ACCEPT)
                datagramLocalOut(packet, destIE, nextHop.toIpv6());
        }
        else {
            if (datagramPreRoutingHook(packet) == INetfilter::IHook::ACCEPT)
                preroutingFinish(packet, fromIE, destIE, nextHop.toIpv6());
        }
    }
}

handleMessageFromHL()

void inet::Ipv6::handleMessageFromHL ( Packet *  msg )

protectedvirtual

Handle messages (typically packets to be send in Ipv6) from transport or ICMP.

Invokes encapsulate(), then routePacket().

{
    emit(packetReceivedFromUpperSignal, packet);

    // if no interface exists, do not send datagram
    if (ift->getNumInterfaces() == 0) {
        EV_WARN << "No interfaces exist, dropping packet\n";
        PacketDropDetails details;
        details.setReason(NO_INTERFACE_FOUND);
        emit(packetDroppedSignal, packet, &details);
        delete packet;
        return;
    }

    const auto& ifTag = packet->findTag<InterfaceReq>();
    const NetworkInterface *destIE = ifTag ? ift->getInterfaceById(ifTag->getInterfaceId()) : nullptr;

    // when source address was given, use it; otherwise it'll get the address
    // of the outgoing interface after routing
    Ipv6Address src = packet->getTag<L3AddressReq>()->getSrcAddress().toIpv6();
    if (!src.isUnspecified()) {
        // if interface parameter does not match existing interface, do not send datagram
        if (rt->getInterfaceByAddress(src) == nullptr) {
#ifdef INET_WITH_xMIPv6
            EV_WARN << "Encapsulation failed - dropping packet." << endl;
            PacketDropDetails details;
            details.setReason(NO_INTERFACE_FOUND);
            emit(packetDroppedSignal, packet, &details);
            delete packet;
            return;
#else /* INET_WITH_xMIPv6 */
            throw cRuntimeError("Wrong source address %s in (%s)%s: no interface with such address",
                    src.str().c_str(), packet->getClassName(), packet->getFullName());
#endif /* INET_WITH_xMIPv6 */
        }
    }

    // encapsulate upper-layer packet into IPv6Datagram
    encapsulate(packet);

    auto ipv6Header = packet->peekAtFront<Ipv6Header>();
    Ipv6Address destAddress = ipv6Header->getDestAddress();

    // check for local delivery
    if (!destAddress.isMulticast() && rt->isLocalAddress(destAddress)) {
        EV_INFO << "local delivery\n";
        if (ipv6Header->getSrcAddress().isUnspecified()) {
            // allows two apps on the same host to communicate
            packet->trim();
            ipv6Header = nullptr;
            const auto& newIpv6Header = removeNetworkProtocolHeader<Ipv6Header>(packet);
            newIpv6Header->setSrcAddress(destAddress);
            insertNetworkProtocolHeader(packet, Protocol::ipv6, newIpv6Header);
            ipv6Header = newIpv6Header;
        }

        if (destIE && !destIE->isLoopback()) {
            EV_INFO << "datagram destination address is local, ignoring destination interface specified in the control info\n";
            destIE = nullptr;
        }
        if (!destIE)
            destIE = ift->findFirstLoopbackInterface();
        ASSERT(destIE);
    }
    L3Address nextHopAddr(Ipv6Address::UNSPECIFIED_ADDRESS);
    if (datagramLocalOutHook(packet) == INetfilter::IHook::ACCEPT)
        datagramLocalOut(packet, destIE, nextHopAddr.toIpv6());
}

Referenced by handleMessage().

handleReceivedIcmp()

void inet::Ipv6::handleReceivedIcmp ( Packet *  msg )

protectedvirtual

Handle incoming ICMP messages.

{
    const auto& icmpHeader = msg->peekAtFront<Icmpv6Header>();
    if (dynamicPtrCast<const Ipv6NdMessage>(icmpHeader) != nullptr) {
        EV_INFO << "Neighbour Discovery packet: passing it to ND module\n";
        send(msg, "ndOut");
    }
    else {
        EV_INFO << "ICMPv6 packet: passing it to ICMPv6 module\n";
        send(msg, "transportOut");
    }
}

Referenced by localDeliver().

handleRegisterProtocol()

void inet::Ipv6::handleRegisterProtocol ( const Protocol &  protocol, cGate *  gate, ServicePrimitive  servicePrimitive  )

overridevirtual

Reimplemented from inet::DefaultProtocolRegistrationListener.

{
    Enter_Method("handleRegisterProtocol");
    if (gate->isName("transportOut"))
        upperProtocols.insert(&protocol);
}

handleRegisterService()

void inet::Ipv6::handleRegisterService ( const Protocol &  protocol, cGate *  gate, ServicePrimitive  servicePrimitive  )

overridevirtual

Reimplemented from inet::DefaultProtocolRegistrationListener.

{
    Enter_Method("handleRegisterService");
}

handleRequest()

void inet::Ipv6::handleRequest ( Request *  request )

protectedvirtual

{
    auto ctrl = request->getControlInfo();
    if (ctrl == nullptr)
        throw cRuntimeError("Request '%s' arrived without controlinfo", request->getName());
    if (auto *command = dynamic_cast<Ipv6SocketBindCommand *>(ctrl)) {
        int socketId = request->getTag<SocketReq>()->getSocketId();
        SocketDescriptor *descriptor = new SocketDescriptor(socketId, command->getProtocol()->getId(), command->getLocalAddress());
        socketIdToSocketDescriptor[socketId] = descriptor;
        delete request;
    }
    else if (auto *command = dynamic_cast<Ipv6SocketConnectCommand *>(ctrl)) {
        int socketId = request->getTag<SocketReq>()->getSocketId();
        if (!containsKey(socketIdToSocketDescriptor, socketId))
            throw cRuntimeError("Ipv6Socket: should use bind() before connect()");
        socketIdToSocketDescriptor[socketId]->remoteAddress = command->getRemoteAddress();
        delete request;
    }
    else if (dynamic_cast<Ipv6SocketCloseCommand *>(ctrl) != nullptr) {
        int socketId = 0;
        request->getTag<SocketReq>()->getSocketId();
        auto it = socketIdToSocketDescriptor.find(socketId);
        if (it != socketIdToSocketDescriptor.end()) {
            delete it->second;
            socketIdToSocketDescriptor.erase(it);
            auto indication = new Indication("closed", IPv6_I_SOCKET_CLOSED);
            auto ctrl = new Ipv6SocketClosedIndication();
            indication->setControlInfo(ctrl);
            indication->addTag<SocketInd>()->setSocketId(socketId);
            send(indication, "transportOut");
        }
        delete request;
    }
    else if (dynamic_cast<Ipv6SocketDestroyCommand *>(ctrl) != nullptr) {
        int socketId = 0;
        request->getTag<SocketReq>()->getSocketId();
        auto it = socketIdToSocketDescriptor.find(socketId);
        if (it != socketIdToSocketDescriptor.end()) {
            delete it->second;
            socketIdToSocketDescriptor.erase(it);
        }
        delete request;
    }
    else
        throw cRuntimeError("Unknown command: '%s' with %s", request->getName(), ctrl->getClassName());
}

Referenced by handleMessage().

initialize()

void inet::Ipv6::initialize ( int  stage )

overrideprotectedvirtual

Initialization.

{
    if (stage == INITSTAGE_LOCAL) {
        ift.reference(this, "interfaceTableModule", true);
        rt.reference(this, "routingTableModule", true);
        nd.reference(this, "ipv6NeighbourDiscoveryModule", true);
        icmp.reference(this, "icmpv6Module", true);
        tunneling.reference(this, "ipv6TunnelingModule", true);

        curFragmentId = 0;
        lastCheckTime = SIMTIME_ZERO;
        fragbuf.init(icmp);

        // NetFilter:
        hooks.clear();
        queuedDatagramsForHooks.clear();

        numMulticast = numLocalDeliver = numDropped = numUnroutable = numForwarded = 0;

        WATCH(numMulticast);
        WATCH(numLocalDeliver);
        WATCH(numDropped);
        WATCH(numUnroutable);
        WATCH(numForwarded);
    }
    else if (stage == INITSTAGE_NETWORK_LAYER) {
        cModule *node = findContainingNode(this);
        NodeStatus *nodeStatus = node ? check_and_cast_nullable<NodeStatus *>(node->getSubmodule("status")) : nullptr;
        bool isOperational = (!nodeStatus) || nodeStatus->getState() == NodeStatus::UP;
        if (!isOperational)
            throw cRuntimeError("This module doesn't support starting in node DOWN state");

        registerService(Protocol::ipv6, gate("transportIn"), gate("transportOut"));
        registerProtocol(Protocol::ipv6, gate("queueOut"), gate("queueIn"));
    }
}

localDeliver()

void inet::Ipv6::localDeliver ( Packet *  packet, const NetworkInterface *  fromIE  )

protectedvirtual

Perform reassembly of fragmented datagrams, then send them up to the higher layers using sendToHL().

{
    const auto& ipv6Header = packet->peekAtFront<Ipv6Header>();

    // Defragmentation. skip defragmentation if datagram is not fragmented
    const Ipv6FragmentHeader *fh = dynamic_cast<const Ipv6FragmentHeader *>(ipv6Header->findExtensionHeaderByType(IP_PROT_IPv6EXT_FRAGMENT));
    if (fh) {
        EV_DETAIL << "Datagram fragment: offset=" << fh->getFragmentOffset()
                  << ", MORE=" << (fh->getMoreFragments() ? "true" : "false") << ".\n";

        // erase timed out fragments in fragmentation buffer; check every 10 seconds max
        if (simTime() >= lastCheckTime + 10) {
            lastCheckTime = simTime();
            fragbuf.purgeStaleFragments(simTime() - FRAGMENT_TIMEOUT);
        }

        packet = fragbuf.addFragment(packet, ipv6Header.get(), fh, simTime());
        if (!packet) {
            EV_DETAIL << "No complete datagram yet.\n";
            return;
        }
        EV_DETAIL << "This fragment completes the datagram.\n";
    }

#ifdef INET_WITH_xMIPv6
    // #### 29.08.07 - CB
    // check for extension headers
    if (!processExtensionHeaders(packet, ipv6Header.get())) {
        // ext. header processing not yet finished
        // datagram was sent to another module or dropped
        // -> interrupt local delivery process
        return;
    }
    // #### end CB
#endif /* INET_WITH_xMIPv6 */

    auto origPacket = packet->dup();
    const Protocol *protocol = ipv6Header->getProtocol();
    auto remoteAddress(ipv6Header->getSrcAddress());
    auto localAddress(ipv6Header->getDestAddress());
    decapsulate(packet);
    bool hasSocket = false;
    for (const auto& elem : socketIdToSocketDescriptor) {
        if (elem.second->protocolId == protocol->getId()
            && (elem.second->localAddress.isUnspecified() || elem.second->localAddress == localAddress)
            && (elem.second->remoteAddress.isUnspecified() || elem.second->remoteAddress == remoteAddress))
        {
            auto *packetCopy = packet->dup();
            packetCopy->setKind(IPv6_I_DATA);
            packetCopy->addTagIfAbsent<SocketInd>()->setSocketId(elem.second->socketId);
            EV_INFO << "Passing up to socket " << elem.second->socketId << "\n";
            emit(packetSentToUpperSignal, packetCopy);
            send(packetCopy, "transportOut");
            hasSocket = true;
        }
    }

    if (protocol == &Protocol::icmpv6) {
        handleReceivedIcmp(packet);
    } // Added by WEI to forward ICMPv6 msgs to ICMPv6 module.
#ifdef INET_WITH_xMIPv6
    else if (protocol == &Protocol::mobileipv6) {
        // added check for MIPv6 support to prevent nodes w/o the
        // xMIP module from processing related messages, 4.9.07 - CB
        if (rt->hasMipv6Support()) {
            EV_INFO << "MIPv6 packet: passing it to xMIPv6 module\n";
            send(packet, "xMIPv6Out");
        }
        else {
            // update 12.9.07 - CB
            /*RFC3775, 11.3.5
               Any node that does not recognize the Mobility header will return an
               ICMP Parameter Problem, Code 1, message to the sender of the packet*/
            EV_INFO << "No MIPv6 support on this node!\n";
            sendIcmpError(packet, ICMPv6_PARAMETER_PROBLEM, UNRECOGNIZED_NEXT_HDR_TYPE);
        }
    }
#endif /* INET_WITH_xMIPv6 */
    else if (protocol == &Protocol::ipv4 || protocol == &Protocol::ipv6) {
        EV_INFO << "Tunnelled IP datagram\n";
        send(packet, "upperTunnelingOut");
    }
    else if (contains(upperProtocols, protocol)) {
        EV_INFO << "Passing up to protocol " << *protocol << "\n";
        emit(packetSentToUpperSignal, packet);
        send(packet, "transportOut");
    }
    else if (!hasSocket) {
        // send ICMP Destination Unreacheable error: protocol unavailable
        EV_INFO << "Transport layer gate not connected - dropping packet!\n";
        sendIcmpError(origPacket, ICMPv6_PARAMETER_PROBLEM, UNRECOGNIZED_NEXT_HDR_TYPE);
        origPacket = nullptr; // for not delete
        delete packet; // delete decapsulated packet
    }
    delete origPacket;
}

Referenced by routeMulticastPacket(), and routePacket().

numInitStages()

virtual int inet::Ipv6::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

preroutingFinish()

void inet::Ipv6::preroutingFinish ( Packet *  packet, const NetworkInterface *  fromIE, const NetworkInterface *  destIE, Ipv6Address  nextHopAddr  )

protectedvirtual

{
    const auto& ipv6Header = packet->peekAtFront<Ipv6Header>();
    Ipv6Address destAddr = ipv6Header->getDestAddress();
    // remove control info
    delete packet->removeControlInfo();

    // routepacket
    if (!destAddr.isMulticast())
        routePacket(packet, destIE, fromIE, nextHopAddr, false);
    else
        routeMulticastPacket(packet, destIE, fromIE, false);
}

Referenced by handleMessage(), and reinjectQueuedDatagram().

refreshDisplay()

void inet::Ipv6::refreshDisplay ( ) const

overrideprotectedvirtual

{
    char buf[80] = "";
    if (numForwarded > 0)
        sprintf(buf + strlen(buf), "fwd:%d ", numForwarded);
    if (numLocalDeliver > 0)
        sprintf(buf + strlen(buf), "up:%d ", numLocalDeliver);
    if (numMulticast > 0)
        sprintf(buf + strlen(buf), "mcast:%d ", numMulticast);
    if (numDropped > 0)
        sprintf(buf + strlen(buf), "DROP:%d ", numDropped);
    if (numUnroutable > 0)
        sprintf(buf + strlen(buf), "UNROUTABLE:%d ", numUnroutable);
    getDisplayString().setTagArg("t", 0, buf);
}

registerHook()

void inet::Ipv6::registerHook ( int  priority, IHook *  hook  )

overridevirtual

Adds the provided hook to the list of registered hooks that will be called by the network layer when it processes datagrams.

Reimplemented from inet::NetfilterBase.

{
    Enter_Method("registerHook()");
    NetfilterBase::registerHook(priority, hook);
}

reinjectQueuedDatagram()

void inet::Ipv6::reinjectQueuedDatagram ( const Packet *  datagram )

overridevirtual

Requests the network layer to restart the processing of the datagram.

This function may be used by a reactive routing protocol when it completes the route discovery process.

Implements inet::INetfilter.

{
    Enter_Method("reinjectDatagram()");
    for (auto iter = queuedDatagramsForHooks.begin(); iter != queuedDatagramsForHooks.end(); iter++) {
        if (iter->packet == packet) {
            Packet *datagram = iter->packet;
            switch (iter->hookType) {
                case INetfilter::IHook::LOCALOUT:
                    datagramLocalOut(datagram, iter->outIE, iter->nextHopAddr);
                    break;

                case INetfilter::IHook::PREROUTING:
                    preroutingFinish(datagram, iter->inIE, iter->outIE, iter->nextHopAddr);
                    break;

                case INetfilter::IHook::POSTROUTING:
//                    fragmentAndSend(datagram, iter->outIE, iter->nextHopAddr);
                    throw cRuntimeError("Re-injection of datagram queued for POSTROUTING hook not implemented");
                    break;

                case INetfilter::IHook::LOCALIN:
//                    reassembleAndDeliverFinish(datagram);
                    throw cRuntimeError("Re-injection of datagram queued for LOCALIN hook not implemented");
                    break;

                case INetfilter::IHook::FORWARD:
                    throw cRuntimeError("Re-injection of datagram queued for FORWARD hook not implemented");
                    break;

                default:
                    throw cRuntimeError("Unknown hook ID: %d", (int)(iter->hookType));
                    break;
            }
            queuedDatagramsForHooks.erase(iter);
            return;
        }
    }
}

resolveMACAddressAndSendPacket()

void inet::Ipv6::resolveMACAddressAndSendPacket ( Packet *  packet, int  interfaceID, Ipv6Address  nextHop, bool  fromHL  )

protectedvirtual

{
    const auto& ipv6Header = packet->peekAtFront<Ipv6Header>();
    NetworkInterface *ie = ift->getInterfaceById(interfaceId);
    ASSERT(ie != nullptr);
    ASSERT(!nextHop.isUnspecified());
    Ipv6Address destAddress = ipv6Header->getDestAddress();
    EV_INFO << "next hop for " << destAddress << " is " << nextHop << ", interface " << ie->getInterfaceName() << "\n";

#ifdef INET_WITH_xMIPv6
    if (rt->isMobileNode()) {
        // if the source address is the HoA and we have a CoA then drop the packet
        // (address is topologically incorrect!)
        if (ipv6Header->getSrcAddress() == ie->getProtocolData<Ipv6InterfaceData>()->getMNHomeAddress()
            && !ie->getProtocolData<Ipv6InterfaceData>()->getGlobalAddress(Ipv6InterfaceData::CoA).isUnspecified())
        {
            EV_WARN << "Using HoA instead of CoA... dropping datagram" << endl;
            delete packet;
            numDropped++;
            return;
        }
    }
#endif /* INET_WITH_xMIPv6 */

    MacAddress macAddr = nd->resolveNeighbour(nextHop, interfaceId); // might initiate NUD
    if (macAddr.isUnspecified()) {
        if (!ie->isPointToPoint()) {
            EV_INFO << "no link-layer address for next hop yet, passing datagram to Neighbour Discovery module\n";
            Ipv6NdControlInfo *ctrl = new Ipv6NdControlInfo();
            ctrl->setFromHL(fromHL);
            ctrl->setNextHop(nextHop);
            ctrl->setInterfaceId(interfaceId);
            packet->cMessage::setControlInfo(ctrl);
            send(packet, "ndOut");
            return;
        }
    }
    else
        EV_DETAIL << "link-layer address: " << macAddr << "\n";

    // send out datagram
    numForwarded++;
    fragmentPostRouting(packet, ie, macAddr, fromHL);
}

Referenced by handleMessage(), and routePacket().

routeMulticastPacket()

void inet::Ipv6::routeMulticastPacket ( Packet *  packet, const NetworkInterface *  destIE, const NetworkInterface *  fromIE, bool  fromHL  )

protectedvirtual

Forwards packets to all multicast destinations, using fragmentAndSend().

{
    auto ipv6Header = packet->peekAtFront<Ipv6Header>();
    const Ipv6Address& destAddr = ipv6Header->getDestAddress();

    EV_INFO << "destination address " << destAddr << " is multicast, doing multicast routing\n";
    numMulticast++;

    // if received from the network...
    if (fromIE != nullptr) {
        ASSERT(!fromHL);
        // deliver locally
        if (rt->isLocalAddress(destAddr)) {
            EV_INFO << "local delivery of multicast packet\n";
            numLocalDeliver++;
            localDeliver(packet->dup(), fromIE);
        }

        // if ipv6Header arrived from input gate and IP forwarding is off, delete datagram
        if (!rt->isRouter()) {
            EV_INFO << "forwarding is off\n";
            delete packet;
            return;
        }

        // make sure scope of multicast address is large enough to be forwarded to other links
        if (destAddr.getMulticastScope() <= 2) {
            EV_INFO << "multicast dest address is link-local (or smaller) scope\n";
            delete packet;
            return;
        }

        // hop counter decrement: only if datagram arrived from network, and will be
        // sent out to the network (hoplimit check will be done just before sending
        // out datagram)
        packet->trim();
        ipv6Header = nullptr;
        const auto& newIpv6Header = removeNetworkProtocolHeader<Ipv6Header>(packet);
        newIpv6Header->setHopLimit(ipv6Header->getHopLimit() - 1);
        insertNetworkProtocolHeader(packet, Protocol::ipv6, newIpv6Header);
        ipv6Header = newIpv6Header;
    }

    // for now, we just send it out on every interface except on which it came. FIXME better!!!
    EV_INFO << "sending out datagram on every interface (except incoming one)\n";
    for (int i = 0; i < ift->getNumInterfaces(); i++) {
        NetworkInterface *ie = ift->getInterface(i);
        if (fromIE != ie && !ie->isLoopback())
            fragmentPostRouting(packet->dup(), ie, MacAddress::BROADCAST_ADDRESS, fromHL);
    }
    delete packet;

/* FIXME implement handling of multicast

    According to Gopi: "multicast routing table" should map
       srcAddr+multicastDestAddr to a set of next hops (interface+nexthopAddr)
    Where srcAddr is the multicast server, and destAddr sort of narrows it down to a given stream

    // FIXME multicast-->tunneling link (present in original IPSuite) missing from here

    // DVMRP: process datagram only if sent locally or arrived on the shortest
    // route (provided routing table already contains srcAddr); otherwise
    // discard and continue.
    int inputGateIndex = datagram->getArrivalGate() ? datagram->getArrivalGate()->getIndex() : -1;
    int shortestPathInputGateIndex = rt->outputGateIndexNo(datagram->getSrcAddress());
    if (inputGateIndex!=-1 && shortestPathInputGateIndex!=-1 && inputGateIndex!=shortestPathInputGateIndex)
    {
        // FIXME count dropped
        EV << "Packet dropped.\n";
        delete datagram;
        return;
    }

    // check for local delivery
    Ipv6Address destAddress = datagram->getDestAddress();
    if (rt->isLocalMulticastAddress(destAddress))
    {
        IPv6Datagram *datagramCopy = datagram->dup();

        // FIXME code from the Mpls model: set packet dest address to routerId (???)
        datagramCopy->setDestAddress(rt->getRouterId());

        localDeliver(datagramCopy, fromIE);
    }

    // forward datagram only if IP forward is enabled, or sent locally
    if (inputGateIndex!=-1 && !rt->isRouter())
    {
        delete datagram;
        return;
    }

    MulticastRoutes routes = rt->getMulticastRoutesFor(destAddress);
    if (routes.size()==0)
    {
        // no destination: delete datagram
        delete datagram;
    }
    else
    {
        // copy original datagram for multiple destinations
        for (unsigned int i=0; i<routes.size(); i++)
        {
            int outputGateIndex = routes[i].interf->outputGateIndex();

            // don't forward to input port
            if (outputGateIndex>=0 && outputGateIndex!=inputGateIndex)
            {
                IPv6Datagram *datagramCopy = datagram->dup();

                // set datagram source address if not yet set
                if (datagramCopy->getSrcAddress().isUnspecified())
                    datagramCopy->setSrcAddress(ift->interfaceByPortNo(outputGateIndex)->getProtocolData<Ipv6InterfaceData>()->getIPAddress());

                // send
                Ipv6Address nextHopAddr = routes[i].gateway;
                fragmentPostRouting(datagramCopy, outputGateIndex, macAddr, fromHL);
            }
        }

        // only copies sent, delete original datagram
        delete datagram;
    }
 */
}

Referenced by datagramLocalOut(), and preroutingFinish().

routePacket()

void inet::Ipv6::routePacket ( Packet *  packet, const NetworkInterface *  destIE, const NetworkInterface *  fromIE, Ipv6Address  requestedNextHopAddress, bool  fromHL  )

protectedvirtual

Performs routing.

Based on the routing decision, it dispatches to localDeliver() for local packets, to fragmentAndSend() for forwarded packets, to routeMulticastPacket() for multicast packets, or drops the packet if it's unroutable or forwarding is off.

{
    auto ipv6Header = packet->peekAtFront<Ipv6Header>();
    // TODO add option handling code here
    Ipv6Address destAddress = ipv6Header->getDestAddress();

    EV_INFO << "Routing datagram `" << ipv6Header->getName() << "' with dest=" << destAddress << ", requested nexthop is " << requestedNextHopAddress << " on " << (destIE ? destIE->getFullName() : "unspec") << " interface: \n";

    // local delivery of unicast packets
    if (rt->isLocalAddress(destAddress)) {
        if (fromHL)
            throw cRuntimeError("model error: local unicast packet arrived from HL, but handleMessageFromHL() not detected it");
        EV_INFO << "local delivery\n";

        numLocalDeliver++;
        localDeliver(packet, fromIE);
        return;
    }

    if (!fromHL) {
        // if datagram arrived from input gate and IP forwarding is off, delete datagram
        // yes but datagrams from the ND module is getting dropped too!-WEI
        // so we add a 2nd condition
        // FIXME rewrite code so that condition is cleaner --Andras
        //if (!rt->isRouter())
        if (!rt->isRouter() && !(packet->getArrivalGate()->isName("ndIn"))) {
            EV_INFO << "forwarding is off, dropping packet\n";
            numDropped++;
            delete packet;
            return;
        }

        // don't forward link-local addresses or weaker
        if (destAddress.isLinkLocal() || destAddress.isLoopback()) {
            EV_INFO << "dest address is link-local (or weaker) scope, doesn't get forwarded\n";
            delete packet;
            return;
        }

        // hop counter decrement: only if datagram arrived from network, and will be
        // sent out to the network (hoplimit check will be done just before sending
        // out datagram)
        // TODO: in Ipv4, arrange TTL check like this
        packet->trim();
        ipv6Header = nullptr;
        const auto& newIpv6Header = removeNetworkProtocolHeader<Ipv6Header>(packet);
        newIpv6Header->setHopLimit(newIpv6Header->getHopLimit() - 1);
        insertNetworkProtocolHeader(packet, Protocol::ipv6, newIpv6Header);
        ipv6Header = newIpv6Header;
    }

    // routing
    int interfaceId = -1;
    Ipv6Address nextHop(requestedNextHopAddress);

#ifdef INET_WITH_xMIPv6
    // tunneling support - CB
    // check if destination is covered by tunnel lists
    if ((ipv6Header->getProtocolId() != IP_PROT_IPv6) && // if datagram was already tunneled, don't tunnel again
        (ipv6Header->getExtensionHeaderArraySize() == 0) && // we do not already have extension headers - FIXME check for RH2 existence
        ((rt->isMobileNode() && rt->isHomeAddress(ipv6Header->getSrcAddress())) || // for MNs: only if source address is a HoA // 27.08.07 - CB
         rt->isHomeAgent() || // but always check for tunnel if node is a HA
         !rt->isMobileNode())) // or if it is a correspondent or non-MIP node
    {
        if (ipv6Header->getProtocolId() == IP_PROT_IPv6EXT_MOB)
            // in case of mobility header we can only search for "real" tunnels
            // as T2RH or HoA Opt. are not allowed with these messages
            interfaceId = tunneling->getVIfIndexForDest(destAddress, Ipv6Tunneling::NORMAL); // 10.06.08 - CB
//        getVIfIndexForDestForXSplitTunnel(destAddress);
        else
            // otherwise we can search for everything
            interfaceId = tunneling->getVIfIndexForDest(destAddress);
    }
#else // ifdef INET_WITH_xMIPv6
    // FIXME this is not the same as the code above (when INET_WITH_xMIPv6 is defined),
    // so tunneling examples could not work with xMIPv6
    interfaceId = tunneling->getVIfIndexForDest(destAddress, Ipv6Tunneling::NORMAL);
#endif /* INET_WITH_xMIPv6 */

    if (interfaceId == -1 && destIE != nullptr)
        interfaceId = destIE->getInterfaceId(); // set interfaceId to destIE when not tunneling

    if (interfaceId > ift->getBiggestInterfaceId()) {
        // a virtual tunnel interface provides a path to the destination: do tunneling
        EV_INFO << "tunneling: src addr=" << ipv6Header->getSrcAddress() << ", dest addr=" << destAddress << std::endl;
        send(packet, "lowerTunnelingOut");
        return;
    }

    if (interfaceId == -1)
        if (!determineOutputInterface(destAddress, nextHop, interfaceId, packet, fromHL))
            // no interface found; sent to ND or to ICMP for error processing
//            throw cRuntimeError("No interface found!");//return;
            return;
    // don't raise error if sent to ND or ICMP!

    resolveMACAddressAndSendPacket(packet, interfaceId, nextHop, fromHL);
}

Referenced by datagramLocalOut(), and preroutingFinish().

sendDatagramToOutput()

void inet::Ipv6::sendDatagramToOutput ( Packet *  packet, const NetworkInterface *  destIE, const MacAddress &  macAddr  )

protectedvirtual

Last hoplimit check, then send datagram on the given interface.

{
    packet->addTagIfAbsent<MacAddressReq>()->setDestAddress(macAddr);
    packet->addTagIfAbsent<InterfaceReq>()->setInterfaceId(destIE->getInterfaceId());
    packet->addTagIfAbsent<PacketProtocolTag>()->setProtocol(&Protocol::ipv6);
    packet->addTagIfAbsent<DispatchProtocolInd>()->setProtocol(&Protocol::ipv6);
    auto protocol = destIE->getProtocol();
    if (protocol != nullptr)
        packet->addTagIfAbsent<DispatchProtocolReq>()->setProtocol(protocol);
    else
        packet->removeTagIfPresent<DispatchProtocolReq>();
    send(packet, "queueOut");
}

Referenced by fragmentAndSend().

sendIcmpError()

void inet::Ipv6::sendIcmpError ( Packet *  origPacket, Icmpv6Type  type, int  code  )

protected

{
    icmp->sendErrorMessage(packet, type, code);
    delete packet;
}

Referenced by determineOutputInterface(), fragmentAndSend(), and localDeliver().

unregisterHook()

void inet::Ipv6::unregisterHook ( IHook *  hook )

overridevirtual

Removes the provided hook from the list of registered hooks.

Reimplemented from inet::NetfilterBase.

{
    Enter_Method("unregisterHook()");
    NetfilterBase::unregisterHook(hook);
}

Member Data Documentation

curFragmentId

unsigned int inet::Ipv6::curFragmentId = -1

protected

Referenced by fragmentAndSend(), and initialize().

fragbuf

Ipv6FragBuf inet::Ipv6::fragbuf

protected

Referenced by initialize(), and localDeliver().

icmp

ModuleRefByPar<Icmpv6> inet::Ipv6::icmp

protected

ift

ModuleRefByPar<IInterfaceTable> inet::Ipv6::ift

protected

Referenced by fragmentPostRouting(), getSourceInterfaceFrom(), handleMessageFromHL(), initialize(), resolveMACAddressAndSendPacket(), routeMulticastPacket(), and routePacket().

lastCheckTime

simtime_t inet::Ipv6::lastCheckTime

protected

Referenced by initialize(), and localDeliver().

nd

ModuleRefByPar<Ipv6NeighbourDiscovery> inet::Ipv6::nd

protected

Referenced by initialize(), and resolveMACAddressAndSendPacket().

numDropped

int inet::Ipv6::numDropped = 0

protected

Referenced by initialize(), refreshDisplay(), resolveMACAddressAndSendPacket(), and routePacket().

numForwarded

int inet::Ipv6::numForwarded = 0

protected

Referenced by handleMessage(), initialize(), refreshDisplay(), and resolveMACAddressAndSendPacket().

numLocalDeliver

int inet::Ipv6::numLocalDeliver = 0

protected

Referenced by initialize(), refreshDisplay(), routeMulticastPacket(), and routePacket().

numMulticast

int inet::Ipv6::numMulticast = 0

protected

Referenced by initialize(), refreshDisplay(), and routeMulticastPacket().

numUnroutable

int inet::Ipv6::numUnroutable = 0

protected

Referenced by determineOutputInterface(), initialize(), and refreshDisplay().

queuedDatagramsForHooks

DatagramQueueForHooks inet::Ipv6::queuedDatagramsForHooks

protected

Referenced by datagramForwardHook(), datagramLocalInHook(), datagramLocalOutHook(), datagramPostRoutingHook(), datagramPreRoutingHook(), dropQueuedDatagram(), initialize(), reinjectQueuedDatagram(), and ~Ipv6().

rt

ModuleRefByPar<Ipv6RoutingTable> inet::Ipv6::rt

protected

Referenced by determineOutputInterface(), handleMessageFromHL(), initialize(), localDeliver(), resolveMACAddressAndSendPacket(), routeMulticastPacket(), and routePacket().

socketIdToSocketDescriptor

std::map<int, SocketDescriptor *> inet::Ipv6::socketIdToSocketDescriptor

protected

Referenced by handleRequest(), localDeliver(), and ~Ipv6().

tunneling

ModuleRefByPar<Ipv6Tunneling> inet::Ipv6::tunneling

protected

Referenced by initialize(), and routePacket().

upperProtocols

std::set<const Protocol *> inet::Ipv6::upperProtocols

protected

Referenced by handleRegisterProtocol(), and localDeliver().

---

The documentation for this class was generated from the following files:

• Ipv6.h
• Ipv6.cc
