inet::Ieee8022Llc Class Reference

#include <Ieee8022Llc.h>

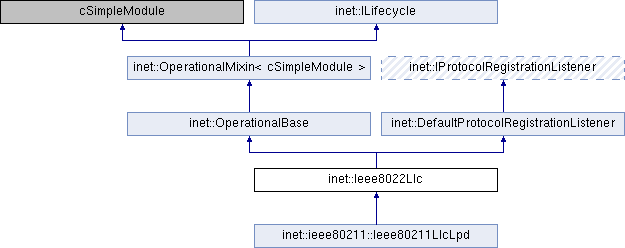

Inheritance diagram for inet::Ieee8022Llc:

Classes
struct	SocketDescriptor

Public Member Functions
virtual	~Ieee8022Llc ()
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()
Public Member Functions inherited from inet::DefaultProtocolRegistrationListener
virtual void	handleRegisterServiceGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) override
virtual void	handleRegisterProtocolGroup (const ProtocolGroup &protocolGroup, cGate *gate, ServicePrimitive servicePrimitive) override
virtual void	handleRegisterAnyService (cGate *gate, ServicePrimitive servicePrimitive) override
virtual void	handleRegisterAnyProtocol (cGate *gate, ServicePrimitive servicePrimitive) override

Static Public Member Functions
static const Protocol *	getProtocol (const Ptr< const Ieee8022LlcHeader > &header)

Protected Member Functions
void	clearSockets ()
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessageWhenUp (cMessage *message) override
virtual void	encapsulate (Packet *frame)
virtual void	decapsulate (Packet *frame)
virtual void	processPacketFromHigherLayer (Packet *msg)
virtual bool	deliverCopyToSockets (Packet *packet)
virtual bool	isDeliverableToUpperLayer (Packet *packet)
virtual void	processPacketFromMac (Packet *packet)
virtual void	processCommandFromHigherLayer (Request *request)
virtual void	registerMyProtocol ()
virtual void	handleRegisterService (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) override
virtual void	handleRegisterProtocol (const Protocol &protocol, cGate *gate, ServicePrimitive servicePrimitive) override
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Protected Attributes
std::set< const Protocol * >	upperProtocols
std::map< int, SocketDescriptor * >	socketIdToSocketDescriptor
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Friends
std::ostream &	operator<< (std::ostream &o, const SocketDescriptor &t)

Additional Inherited Members
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Constructor & Destructor Documentation

~Ieee8022Llc()

inet::Ieee8022Llc::~Ieee8022Llc ( )

virtual

{
    clearSockets();
}

Member Function Documentation

clearSockets()

void inet::Ieee8022Llc::clearSockets ( )

protected

{
    for (auto& elem : socketIdToSocketDescriptor) {
        delete elem.second;
        elem.second = nullptr;
    }
    socketIdToSocketDescriptor.clear();
}

Referenced by handleCrashOperation(), handleStartOperation(), handleStopOperation(), and ~Ieee8022Llc().

decapsulate()

void inet::Ieee8022Llc::decapsulate ( Packet *  frame )

protectedvirtual

{
    const auto& llcHeader = frame->popAtFront<Ieee8022LlcHeader>();

    auto sapInd = frame->addTagIfAbsent<Ieee802SapInd>();
    sapInd->setSsap(llcHeader->getSsap());
    sapInd->setDsap(llcHeader->getDsap());
    // TODO control?

    if (llcHeader->getSsap() == 0xAA && llcHeader->getDsap() == 0xAA && llcHeader->getControl() == 0x03) {
        const auto& snapHeader = dynamicPtrCast<const Ieee8022LlcSnapHeader>(llcHeader);
        if (snapHeader == nullptr)
            throw cRuntimeError("LLC header indicates SNAP header, but SNAP header is missing");
    }
    auto payloadProtocol = getProtocol(llcHeader);
    if (payloadProtocol) {
        frame->addTagIfAbsent<DispatchProtocolReq>()->setProtocol(payloadProtocol);
        frame->addTagIfAbsent<PacketProtocolTag>()->setProtocol(payloadProtocol);
    }
    else {
        frame->removeTagIfPresent<DispatchProtocolReq>();
        frame->removeTagIfPresent<PacketProtocolTag>();
    }
}

Referenced by processPacketFromMac().

deliverCopyToSockets()

bool inet::Ieee8022Llc::deliverCopyToSockets ( Packet *  packet )

protectedvirtual

{
    bool isSent = false;
    if (auto sap = packet->findTag<Ieee802SapInd>()) {
        int localSap = sap->getDsap();
        int remoteSap = sap->getSsap();
        for (const auto& elem : socketIdToSocketDescriptor) {
            if ((elem.second->localSap == localSap || elem.second->localSap == -1)
                && (elem.second->remoteSap == remoteSap || elem.second->remoteSap == -1))
            {
                auto *packetCopy = packet->dup();
                packetCopy->addTagIfAbsent<SocketInd>()->setSocketId(elem.second->socketId);
                EV_INFO << "Passing up to socket " << elem.second->socketId << "\n";
                packetCopy->setKind(SOCKET_I_DATA);
                send(packetCopy, "upperLayerOut");
                isSent = true;
            }
        }
    }
    return isSent;
}

Referenced by processPacketFromMac().

encapsulate()

void inet::Ieee8022Llc::encapsulate ( Packet *  frame )

protectedvirtual

Reimplemented in inet::ieee80211::Ieee80211LlcLpd.

{
    const auto& sapReq = frame->findTag<Ieee802SapReq>();
    const auto& protocolTag = frame->findTag<PacketProtocolTag>();
    const Protocol *protocol = protocolTag ? protocolTag->getProtocol() : nullptr;
    int ethType = -1;
    int snapOui = -1;
    if (sapReq == nullptr && protocol != nullptr) {
        ethType = ProtocolGroup::ethertype.findProtocolNumber(protocol);
        if (ethType == -1)
            snapOui = ProtocolGroup::snapOui.findProtocolNumber(protocol);
    }
    if (ethType != -1 || snapOui != -1) {
        const auto& snapHeader = makeShared<Ieee8022LlcSnapHeader>();
        if (ethType != -1) {
            snapHeader->setOui(0);
            snapHeader->setProtocolId(ethType);
        }
        else {
            snapHeader->setOui(snapOui);
            snapHeader->setProtocolId(-1); // FIXME get value from a tag (e.g. protocolTag->getSubId() ???)
        }
        frame->insertAtFront(snapHeader);
    }
    else {
        const auto& llcHeader = makeShared<Ieee8022LlcHeader>();
        int sapData = ProtocolGroup::ieee8022protocol.findProtocolNumber(protocol);
        if (sapReq == nullptr && sapData != -1) {
            llcHeader->setSsap((sapData >> 8) & 0xFF);
            llcHeader->setDsap(sapData & 0xFF);
            llcHeader->setControl(3);
        }
        else if (sapReq != nullptr) {
            llcHeader->setSsap(sapReq->getSsap());
            llcHeader->setDsap(sapReq->getDsap());
            llcHeader->setControl(3); // TODO get from sapTag
        }
        else
            throw cRuntimeError("Missing the required Ieee802SapReq for LLC header, or protocol number for SNAP header.");
        frame->insertAtFront(llcHeader);
    }
    frame->addTagIfAbsent<PacketProtocolTag>()->setProtocol(&Protocol::ieee8022llc);
    frame->addTagIfAbsent<DispatchProtocolReq>()->setProtocol(&Protocol::ethernetMac);
}

Referenced by inet::ieee80211::Ieee80211LlcLpd::encapsulate(), and processPacketFromHigherLayer().

getProtocol()

const Protocol * inet::Ieee8022Llc::getProtocol ( const Ptr< const Ieee8022LlcHeader > &  header )

static

{
    const Protocol *payloadProtocol = nullptr;
    if (llcHeader->getSsap() == 0xAA && llcHeader->getDsap() == 0xAA && llcHeader->getControl() == 0x03) {
        const auto& snapHeader = dynamicPtrCast<const Ieee8022LlcSnapHeader>(llcHeader);
        if (snapHeader == nullptr)
            throw cRuntimeError("LLC header indicates SNAP header, but SNAP header is missing");
        if (snapHeader->getOui() == 0)
            payloadProtocol = ProtocolGroup::ethertype.findProtocol(snapHeader->getProtocolId());
        else
            payloadProtocol = ProtocolGroup::snapOui.findProtocol(snapHeader->getOui());
    }
    else {
        int32_t sapData = ((llcHeader->getSsap() & 0xFF) << 8) | (llcHeader->getDsap() & 0xFF);
        payloadProtocol = ProtocolGroup::ieee8022protocol.findProtocol(sapData); // do not use getProtocol
    }
    return payloadProtocol;
}

Referenced by decapsulate(), and inet::Ieee802LlcDissector::dissect().

handleCrashOperation()

void inet::Ieee8022Llc::handleCrashOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    clearSockets();
}

handleMessageWhenUp()

void inet::Ieee8022Llc::handleMessageWhenUp ( cMessage *  message )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    if (msg->arrivedOn("upperLayerIn")) {
        // from upper layer
        EV_INFO << "Received " << msg << " from upper layer." << endl;
        if (msg->isPacket())
            processPacketFromHigherLayer(check_and_cast<Packet *>(msg));
        else
            processCommandFromHigherLayer(check_and_cast<Request *>(msg));
    }
    else if (msg->arrivedOn("lowerLayerIn")) {
        EV_INFO << "Received " << msg << " from lower layer." << endl;
        processPacketFromMac(check_and_cast<Packet *>(msg));
    }
    else
        throw cRuntimeError("Unknown gate");
}

handleRegisterProtocol()

void inet::Ieee8022Llc::handleRegisterProtocol ( const Protocol &  protocol, cGate *  gate, ServicePrimitive  servicePrimitive  )

overrideprotectedvirtual

Reimplemented from inet::DefaultProtocolRegistrationListener.

{
    Enter_Method("handleRegisterProtocol");
    // KLUDGE this should be here: if (!strcmp("upperLayerOut", gate->getBaseName()))
    // but then the register protocol calls are lost, because they can't go through the traffic conditioner
    upperProtocols.insert(&protocol);
}

handleRegisterService()

void inet::Ieee8022Llc::handleRegisterService ( const Protocol &  protocol, cGate *  gate, ServicePrimitive  servicePrimitive  )

overrideprotectedvirtual

Reimplemented from inet::DefaultProtocolRegistrationListener.

{
    Enter_Method("handleRegisterService");
}

handleStartOperation()

void inet::Ieee8022Llc::handleStartOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    clearSockets();
}

handleStopOperation()

void inet::Ieee8022Llc::handleStopOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    clearSockets();
}

initialize()

void inet::Ieee8022Llc::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

{
    OperationalBase::initialize(stage);
    if (stage == INITSTAGE_LOCAL) {
        // TODO parameterization for llc or snap?
    }
    else if (stage == INITSTAGE_LINK_LAYER) {
        if (par("registerProtocol").boolValue()) { // FIXME //KUDGE should redesign place of EthernetEncapsulation and LLC modules
            // register service and protocol
            registerService(Protocol::ieee8022llc, gate("upperLayerIn"), gate("upperLayerOut"));
            registerMyProtocol();
        }

        WATCH_PTRMAP(socketIdToSocketDescriptor);
        WATCH_PTRSET(upperProtocols);
    }
}

isDeliverableToUpperLayer()

bool inet::Ieee8022Llc::isDeliverableToUpperLayer ( Packet *  packet )

protectedvirtual

{
    const auto& protocolTag = packet->findTag<PacketProtocolTag>();
    return (protocolTag != nullptr && contains(upperProtocols, protocolTag->getProtocol()));
}

Referenced by processPacketFromMac().

isInitializeStage()

virtual bool inet::Ieee8022Llc::isInitializeStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == INITSTAGE_LINK_LAYER; }

isModuleStartStage()

virtual bool inet::Ieee8022Llc::isModuleStartStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == ModuleStartOperation::STAGE_LINK_LAYER; }

isModuleStopStage()

virtual bool inet::Ieee8022Llc::isModuleStopStage ( int  stage ) const

inlineoverrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{ return stage == ModuleStopOperation::STAGE_LINK_LAYER; }

numInitStages()

virtual int inet::Ieee8022Llc::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

processCommandFromHigherLayer()

void inet::Ieee8022Llc::processCommandFromHigherLayer ( Request *  request )

protectedvirtual

{
    auto ctrl = request->getControlInfo();
    if (ctrl == nullptr)
        throw cRuntimeError("Request '%s' arrived without controlinfo", request->getName());
    else if (auto command = dynamic_cast<Ieee8022LlcSocketOpenCommand *>(ctrl)) {
        int socketId = request->getTag<SocketReq>()->getSocketId();
        SocketDescriptor *descriptor = new SocketDescriptor(socketId, command->getLocalSap());
        socketIdToSocketDescriptor[socketId] = descriptor;
        delete request;
    }
    else if (dynamic_cast<SocketCloseCommand *>(ctrl) != nullptr) {
        int socketId = request->getTag<SocketReq>()->getSocketId();
        auto it = socketIdToSocketDescriptor.find(socketId);
        if (it != socketIdToSocketDescriptor.end()) {
            delete it->second;
            socketIdToSocketDescriptor.erase(it);
        }
        delete request;
        auto indication = new Indication("closed", SOCKET_I_CLOSED);
        auto ctrl = new SocketClosedIndication();
        indication->setControlInfo(ctrl);
        indication->addTag<SocketInd>()->setSocketId(socketId);
        send(indication, "upperLayerOut");

    }
    else if (dynamic_cast<SocketDestroyCommand *>(ctrl) != nullptr) {
        int socketId = request->getTag<SocketReq>()->getSocketId();
        auto it = socketIdToSocketDescriptor.find(socketId);
        if (it != socketIdToSocketDescriptor.end()) {
            delete it->second;
            socketIdToSocketDescriptor.erase(it);
        }
        delete request;
    }
    else
        throw cRuntimeError("Unknown command: '%s' with %s", request->getName(), ctrl->getClassName());
}

Referenced by handleMessageWhenUp().

processPacketFromHigherLayer()

void inet::Ieee8022Llc::processPacketFromHigherLayer ( Packet *  msg )

protectedvirtual

{
    encapsulate(packet);
    send(packet, "lowerLayerOut");
}

Referenced by handleMessageWhenUp().

processPacketFromMac()

void inet::Ieee8022Llc::processPacketFromMac ( Packet *  packet )

protectedvirtual

{
    decapsulate(packet);
    bool isSent = deliverCopyToSockets(packet);

    if (isDeliverableToUpperLayer(packet)) {
        send(packet, "upperLayerOut");
    }
    else {
        if (!isSent) {
            EV_WARN << "Unknown protocol, dropping packet\n";
            PacketDropDetails details;
            details.setReason(NO_PROTOCOL_FOUND);
            emit(packetDroppedSignal, packet, &details);
        }
        delete packet;
    }
}

Referenced by handleMessageWhenUp().

registerMyProtocol()

void inet::Ieee8022Llc::registerMyProtocol ( )

protectedvirtual

{
    registerProtocol(Protocol::ieee8022llc, gate("lowerLayerOut"), gate("lowerLayerIn"));
}

Referenced by initialize().

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  o, const SocketDescriptor &  t  )

friend

{
    o << "(id:" << t.socketId << ",lsap:" << t.localSap << ",rsap" << t.remoteSap << ")";
    return o;
}

Member Data Documentation

socketIdToSocketDescriptor

std::map<int, SocketDescriptor *> inet::Ieee8022Llc::socketIdToSocketDescriptor

protected

Referenced by clearSockets(), deliverCopyToSockets(), initialize(), and processCommandFromHigherLayer().

upperProtocols

std::set<const Protocol *> inet::Ieee8022Llc::upperProtocols

protected

Referenced by handleRegisterProtocol(), initialize(), and isDeliverableToUpperLayer().

---

The documentation for this class was generated from the following files:

• Ieee8022Llc.h
• Ieee8022Llc.cc
