inet::SctpRcvReq Class Reference

Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:168 by opp_msgtool. More...

#include <SctpCommand_m.h>

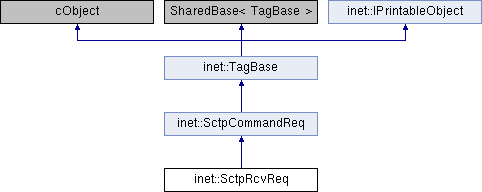

Inheritance diagram for inet::SctpRcvReq:

Public Member Functions
	SctpRcvReq ()
	SctpRcvReq (const SctpRcvReq &other)
virtual	~SctpRcvReq ()
SctpRcvReq &	operator= (const SctpRcvReq &other)
virtual SctpRcvReq *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual uint32_t	getPpid () const
virtual void	setPpid (uint32_t ppid)
virtual uint32_t	getTsn () const
virtual void	setTsn (uint32_t tsn)
virtual uint32_t	getCumTsn () const
virtual void	setCumTsn (uint32_t cumTsn)
Public Member Functions inherited from inet::SctpCommandReq
	SctpCommandReq ()
	SctpCommandReq (const SctpCommandReq &other)
virtual	~SctpCommandReq ()
SctpCommandReq &	operator= (const SctpCommandReq &other)
virtual int	getSocketId () const
virtual void	setSocketId (int socketId)
virtual int	getSid () const
virtual void	setSid (int sid)
virtual int	getNumMsgs () const
virtual void	setNumMsgs (int numMsgs)
virtual int	getSsn () const
virtual void	setSsn (int ssn)
virtual unsigned short	getSendUnordered () const
virtual void	setSendUnordered (unsigned short sendUnordered)
virtual double	getPrValue () const
virtual void	setPrValue (double prValue)
virtual const L3Address &	getLocalAddr () const
virtual L3Address &	getLocalAddrForUpdate ()
virtual void	setLocalAddr (const L3Address &localAddr)
virtual const L3Address &	getRemoteAddr () const
virtual L3Address &	getRemoteAddrForUpdate ()
virtual void	setRemoteAddr (const L3Address &remoteAddr)
virtual int	getLocalPort () const
virtual void	setLocalPort (int localPort)
virtual int	getRemotePort () const
virtual void	setRemotePort (int remotePort)
virtual int	getGate () const
virtual void	setGate (int gate)
virtual int	getFd () const
virtual void	setFd (int fd)
Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const
virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const
virtual void	parsimPack (cCommBuffer *buffer) const override
virtual void	parsimUnpack (cCommBuffer *buffer) override
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...
virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const
virtual std::string	str () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SctpRcvReq &)=delete
Protected Member Functions inherited from inet::SctpCommandReq
bool	operator== (const SctpCommandReq &)=delete

Protected Attributes
uint32_t	ppid = 0
uint32_t	tsn = 0
uint32_t	cumTsn = 0
Protected Attributes inherited from inet::SctpCommandReq
int	socketId = -1
int	sid = -1
int	numMsgs = 1
int	ssn = -1
unsigned short	sendUnordered = false
double	prValue = 0
L3Address	localAddr
L3Address	remoteAddr
int	localPort = -1
int	remotePort = -1
int	gate = -1
int	fd = -1

Private Member Functions
void	copy (const SctpRcvReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:168 by opp_msgtool.

class SctpRcvReq extends SctpCommandReq
{
    uint32_t ppid;
    uint32_t tsn;
    uint32_t cumTsn;
}

Constructor & Destructor Documentation

SctpRcvReq() [1/2]

inet::SctpRcvReq::SctpRcvReq

(

)

SctpRcvReq() [2/2]

inet::SctpRcvReq::SctpRcvReq

(

const SctpRcvReq &

other

)

~SctpRcvReq()

virtual inet::SctpRcvReq::~SctpRcvReq ( )

virtual

Member Function Documentation

copy()

void inet::SctpRcvReq::copy ( const SctpRcvReq &  other )

private

dup()

virtual SctpRcvReq* inet::SctpRcvReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::SctpCommandReq.

{return new SctpRcvReq(*this);}

getCumTsn()

virtual uint32_t inet::SctpRcvReq::getCumTsn ( ) const

virtual

getPpid()

virtual uint32_t inet::SctpRcvReq::getPpid ( ) const

virtual

getTsn()

virtual uint32_t inet::SctpRcvReq::getTsn ( ) const

virtual

operator=()

SctpRcvReq& inet::SctpRcvReq::operator=

(

const SctpRcvReq &

other

)

operator==()

bool inet::SctpRcvReq::operator== ( const SctpRcvReq &  )

protecteddelete

parsimPack()

virtual void inet::SctpRcvReq::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimPacking().

parsimUnpack()

virtual void inet::SctpRcvReq::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimUnpacking().

setCumTsn()

virtual void inet::SctpRcvReq::setCumTsn ( uint32_t  cumTsn )

virtual

setPpid()

virtual void inet::SctpRcvReq::setPpid ( uint32_t  ppid )

virtual

setTsn()

virtual void inet::SctpRcvReq::setTsn ( uint32_t  tsn )

virtual

Member Data Documentation

cumTsn

uint32_t inet::SctpRcvReq::cumTsn = 0

protected

ppid

uint32_t inet::SctpRcvReq::ppid = 0

protected

tsn

uint32_t inet::SctpRcvReq::tsn = 0

protected

---

The documentation for this class was generated from the following file:

• SctpCommand_m.h
