inet::SctpConnectReq Class Reference

Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:160 by opp_msgtool. More...

#include <SctpCommand_m.h>

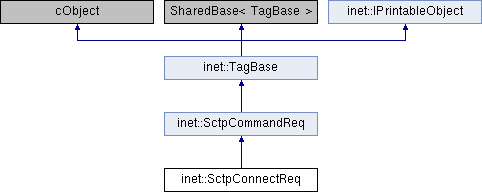

Inheritance diagram for inet::SctpConnectReq:
inet::SctpCommandReq inet::TagBase inet::IPrintableObject

Public Member Functions

 SctpConnectReq ()

 SctpConnectReq (const SctpConnectReq &other)

virtual ~SctpConnectReq ()

SctpConnectReq & operator= (const SctpConnectReq &other)

virtual SctpConnectReq * dup () const override

virtual void parsimPack (omnetpp::cCommBuffer *b) const override

virtual void parsimUnpack (omnetpp::cCommBuffer *b) override

virtual const AddressVector & getRemoteAddresses () const

virtual AddressVector & getRemoteAddressesForUpdate ()

virtual void setRemoteAddresses (const AddressVector &remoteAddresses)

virtual int getStatus () const

virtual void setStatus (int status)

virtual int getInboundStreams () const

virtual void setInboundStreams (int inboundStreams)

virtual int getOutboundStreams () const

virtual void setOutboundStreams (int outboundStreams)

- Public Member Functions inherited from inet::SctpCommandReq
 SctpCommandReq ()

 SctpCommandReq (const SctpCommandReq &other)

virtual ~SctpCommandReq ()

SctpCommandReq & operator= (const SctpCommandReq &other)

virtual int getSocketId () const

virtual void setSocketId (int socketId)

virtual int getSid () const

virtual void setSid (int sid)

virtual int getNumMsgs () const

virtual void setNumMsgs (int numMsgs)

virtual int getSsn () const

virtual void setSsn (int ssn)

virtual unsigned short getSendUnordered () const

virtual void setSendUnordered (unsigned short sendUnordered)

virtual double getPrValue () const

virtual void setPrValue (double prValue)

virtual const L3Address & getLocalAddr () const

virtual L3Address & getLocalAddrForUpdate ()

virtual void setLocalAddr (const L3Address &localAddr)

virtual const L3Address & getRemoteAddr () const

virtual L3Address & getRemoteAddrForUpdate ()

virtual void setRemoteAddr (const L3Address &remoteAddr)

virtual int getLocalPort () const

virtual void setLocalPort (int localPort)

virtual int getRemotePort () const

virtual void setRemotePort (int remotePort)

virtual int getGate () const

virtual void setGate (int gate)

virtual int getFd () const

virtual void setFd (int fd)

- Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase > dupShared () const

virtual const Ptr< TagBase > changeRegion (b offsetDelta, b lengthDelta) const

virtual void parsimPack (cCommBuffer *buffer) const override

virtual void parsimUnpack (cCommBuffer *buffer) override

virtual std::ostream & printToStream (std::ostream &stream, int level, int evFlags) const override
 Prints this object to the provided output stream. More...

virtual std::ostream & printFieldsToStream (std::ostream &stream, int level, int evFlags) const

virtual std::string str () const override

- Public Member Functions inherited from inet::IPrintableObject
virtual ~IPrintableObject ()

virtual std::string printToString () const

virtual std::string printToString (int level, int evFlags=0) const

virtual std::string getInfoStringRepresentation (int evFlags=0) const

virtual std::string getDetailStringRepresentation (int evFlags=0) const

virtual std::string getDebugStringRepresentation (int evFlags=0) const

virtual std::string getTraceStringRepresentation (int evFlags=0) const

virtual std::string getCompleteStringRepresentation (int evFlags=0) const


Protected Member Functions

bool operator== (const SctpConnectReq &)=delete

- Protected Member Functions inherited from inet::SctpCommandReq
bool operator== (const SctpCommandReq &)=delete


Protected Attributes

AddressVector remoteAddresses

int status = 0

int inboundStreams = 0

int outboundStreams = 0

- Protected Attributes inherited from inet::SctpCommandReq
int socketId = -1

int sid = -1

int numMsgs = 1

int ssn = -1

unsigned short sendUnordered = false

double prValue = 0

L3Address localAddr

L3Address remoteAddr

int localPort = -1

int remotePort = -1

int gate = -1

int fd = -1


Private Member Functions

void copy (const SctpConnectReq &other)


Additional Inherited Members

- Public Types inherited from inet::IPrintableObject
enum  PrintLevel {
  PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,
  PRINT_LEVEL_COMPLETE = INT_MIN
}

enum  PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }


Detailed Description

Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:160 by opp_msgtool.

class SctpConnectReq extends SctpCommandReq
{
    AddressVector remoteAddresses;
    int status;
    int inboundStreams;
    int outboundStreams;
}

Constructor & Destructor Documentation

◆ SctpConnectReq() [1/2]

inet::SctpConnectReq::SctpConnectReq ( )

◆ SctpConnectReq() [2/2]

inet::SctpConnectReq::SctpConnectReq ( const SctpConnectReq &  other)

◆ ~SctpConnectReq()

virtual inet::SctpConnectReq::~SctpConnectReq ( )
virtual

Member Function Documentation

◆ copy()

void inet::SctpConnectReq::copy ( const SctpConnectReq &  other)
private

◆ dup()

virtual SctpConnectReq* inet::SctpConnectReq::dup ( ) const
inlineoverridevirtual

Reimplemented from inet::SctpCommandReq.

609 {return new SctpConnectReq(*this);}

◆ getInboundStreams()

virtual int inet::SctpConnectReq::getInboundStreams ( ) const
virtual

◆ getOutboundStreams()

virtual int inet::SctpConnectReq::getOutboundStreams ( ) const
virtual

◆ getRemoteAddresses()

virtual const AddressVector& inet::SctpConnectReq::getRemoteAddresses ( ) const
virtual

◆ getRemoteAddressesForUpdate()

virtual AddressVector& inet::SctpConnectReq::getRemoteAddressesForUpdate ( )
inlinevirtual
614 { return const_cast<AddressVector&>(const_cast<SctpConnectReq*>(this)->getRemoteAddresses());}

◆ getStatus()

virtual int inet::SctpConnectReq::getStatus ( ) const
virtual

◆ operator=()

SctpConnectReq& inet::SctpConnectReq::operator= ( const SctpConnectReq &  other)

◆ operator==()

bool inet::SctpConnectReq::operator== ( const SctpConnectReq &  )
protecteddelete

◆ parsimPack()

virtual void inet::SctpConnectReq::parsimPack ( omnetpp::cCommBuffer *  b) const
overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimPacking().

◆ parsimUnpack()

virtual void inet::SctpConnectReq::parsimUnpack ( omnetpp::cCommBuffer *  b)
overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimUnpacking().

◆ setInboundStreams()

virtual void inet::SctpConnectReq::setInboundStreams ( int  inboundStreams)
virtual

◆ setOutboundStreams()

virtual void inet::SctpConnectReq::setOutboundStreams ( int  outboundStreams)
virtual

◆ setRemoteAddresses()

virtual void inet::SctpConnectReq::setRemoteAddresses ( const AddressVector &  remoteAddresses)
virtual

◆ setStatus()

virtual void inet::SctpConnectReq::setStatus ( int  status)
virtual

Member Data Documentation

◆ inboundStreams

int inet::SctpConnectReq::inboundStreams = 0
protected

◆ outboundStreams

int inet::SctpConnectReq::outboundStreams = 0
protected

◆ remoteAddresses

AddressVector inet::SctpConnectReq::remoteAddresses
protected

◆ status

int inet::SctpConnectReq::status = 0
protected
The documentation for this class was generated from the following file:
inet::AddressVector
std::vector< L3Address > AddressVector
Definition: SctpCommand_m.h:70
inet::SctpConnectReq::SctpConnectReq
SctpConnectReq()
inet::SctpConnectReq::getRemoteAddresses
virtual const AddressVector & getRemoteAddresses() const
