Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:183 by opp_msgtool. More...

#include <SctpCommand_m.h>

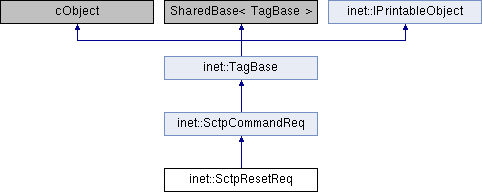

Inheritance diagram for inet::SctpResetReq:

Public Member Functions
	SctpResetReq ()

	SctpResetReq (const SctpResetReq &other)

virtual	~SctpResetReq ()

SctpResetReq &	operator= (const SctpResetReq &other)

virtual SctpResetReq *	dup () const override

virtual void	parsimPack (omnetpp::cCommBuffer *b) const override

virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override

virtual unsigned short	getRequestType () const

virtual void	setRequestType (unsigned short requestType)

virtual uint16_t	getInstreams () const

virtual void	setInstreams (uint16_t instreams)

virtual uint16_t	getOutstreams () const

virtual void	setOutstreams (uint16_t outstreams)

virtual void	setStreamsArraySize (size_t size)

virtual size_t	getStreamsArraySize () const

virtual uint16_t	getStreams (size_t k) const

virtual void	setStreams (size_t k, uint16_t streams)

virtual void	insertStreams (size_t k, uint16_t streams)

void	insertStreams (uint16_t streams)

virtual void	appendStreams (uint16_t streams)

virtual void	eraseStreams (size_t k)

Public Member Functions inherited from inet::SctpCommandReq
	SctpCommandReq ()

	SctpCommandReq (const SctpCommandReq &other)

virtual	~SctpCommandReq ()

SctpCommandReq &	operator= (const SctpCommandReq &other)

virtual int	getSocketId () const

virtual void	setSocketId (int socketId)

virtual int	getSid () const

virtual void	setSid (int sid)

virtual int	getNumMsgs () const

virtual void	setNumMsgs (int numMsgs)

virtual int	getSsn () const

virtual void	setSsn (int ssn)

virtual unsigned short	getSendUnordered () const

virtual void	setSendUnordered (unsigned short sendUnordered)

virtual double	getPrValue () const

virtual void	setPrValue (double prValue)

virtual const L3Address &	getLocalAddr () const

virtual L3Address &	getLocalAddrForUpdate ()

virtual void	setLocalAddr (const L3Address &localAddr)

virtual const L3Address &	getRemoteAddr () const

virtual L3Address &	getRemoteAddrForUpdate ()

virtual void	setRemoteAddr (const L3Address &remoteAddr)

virtual int	getLocalPort () const

virtual void	setLocalPort (int localPort)

virtual int	getRemotePort () const

virtual void	setRemotePort (int remotePort)

virtual int	getGate () const

virtual void	setGate (int gate)

virtual int	getFd () const

virtual void	setFd (int fd)

Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const

virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const

virtual void	parsimPack (cCommBuffer *buffer) const override

virtual void	parsimUnpack (cCommBuffer *buffer) override

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...

virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const

virtual std::string	str () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SctpResetReq &)=delete

Protected Member Functions inherited from inet::SctpCommandReq
bool	operator== (const SctpCommandReq &)=delete

Protected Attributes
unsigned short	requestType = 0

uint16_t	instreams = 0

uint16_t	outstreams = 0

uint16_t *	streams = nullptr

size_t	streams_arraysize = 0

Protected Attributes inherited from inet::SctpCommandReq
int	socketId = -1

int	sid = -1

int	numMsgs = 1

int	ssn = -1

unsigned short	sendUnordered = false

double	prValue = 0

L3Address	localAddr

L3Address	remoteAddr

int	localPort = -1

int	remotePort = -1

int	gate = -1

int	fd = -1

Private Member Functions
void	copy (const SctpResetReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:183 by opp_msgtool.

class SctpResetReq extends SctpCommandReq
{
    unsigned short requestType = 0;
    uint16_t instreams = 0;
    uint16_t outstreams = 0;
    uint16_t streams[];
}

Constructor & Destructor Documentation

◆ SctpResetReq() [1/2]

inet::SctpResetReq::SctpResetReq ( )

◆ SctpResetReq() [2/2]

inet::SctpResetReq::SctpResetReq ( const SctpResetReq & other )

◆ ~SctpResetReq()

virtual inet::SctpResetReq::~SctpResetReq ( )

virtual

Member Function Documentation

◆ appendStreams()

virtual void inet::SctpResetReq::appendStreams ( uint16_t streams )

virtual

◆ copy()

void inet::SctpResetReq::copy ( const SctpResetReq & other )

private

◆ dup()

virtual SctpResetReq* inet::SctpResetReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::SctpCommandReq.

760 {return new SctpResetReq(*this);}

Referenced by inet::sctp::SctpAssociation::process_STREAM_RESET().

◆ eraseStreams()

virtual void inet::SctpResetReq::eraseStreams ( size_t k )

virtual

◆ getInstreams()

virtual uint16_t inet::SctpResetReq::getInstreams ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::makeAddStreamsRequestParameter(), and inet::sctp::SctpAssociation::sendAddInAndOutStreamsRequest().

◆ getOutstreams()

virtual uint16_t inet::SctpResetReq::getOutstreams ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::makeAddStreamsRequestParameter(), and inet::sctp::SctpAssociation::sendAddInAndOutStreamsRequest().

◆ getRequestType()

virtual unsigned short inet::SctpResetReq::getRequestType ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_STREAM_RESET(), and inet::sctp::SctpAssociation::sendStreamResetRequest().

◆ getStreams()

virtual uint16_t inet::SctpResetReq::getStreams ( size_t k ) const

virtual

Referenced by inet::sctp::SctpAssociation::makeIncomingStreamResetParameter(), inet::sctp::SctpAssociation::makeOutgoingStreamResetParameter(), and inet::sctp::SctpAssociation::process_STREAM_RESET().

◆ getStreamsArraySize()

virtual size_t inet::SctpResetReq::getStreamsArraySize ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::makeIncomingStreamResetParameter(), inet::sctp::SctpAssociation::makeOutgoingStreamResetParameter(), and inet::sctp::SctpAssociation::process_STREAM_RESET().

◆ insertStreams() [1/2]

virtual void inet::SctpResetReq::insertStreams	(	size_t	k,
		uint16_t	streams
	)

virtual

◆ insertStreams() [2/2]

void inet::SctpResetReq::insertStreams ( uint16_t streams )

inline

778 {appendStreams(streams);}

◆ operator=()

SctpResetReq& inet::SctpResetReq::operator= ( const SctpResetReq & other )

◆ operator==()

bool inet::SctpResetReq::operator== ( const SctpResetReq & )

protecteddelete

◆ parsimPack()

virtual void inet::SctpResetReq::parsimPack ( omnetpp::cCommBuffer * b ) const

overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimPacking().

◆ parsimUnpack()

virtual void inet::SctpResetReq::parsimUnpack ( omnetpp::cCommBuffer * b )

overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimUnpacking().

◆ setInstreams()

virtual void inet::SctpResetReq::setInstreams ( uint16_t instreams )

virtual

◆ setOutstreams()

virtual void inet::SctpResetReq::setOutstreams ( uint16_t outstreams )

virtual

◆ setRequestType()

virtual void inet::SctpResetReq::setRequestType ( unsigned short requestType )

virtual

◆ setStreams()

virtual void inet::SctpResetReq::setStreams	(	size_t	k,
		uint16_t	streams
	)

virtual

◆ setStreamsArraySize()

virtual void inet::SctpResetReq::setStreamsArraySize ( size_t size )

virtual

Member Data Documentation

◆ instreams

uint16_t inet::SctpResetReq::instreams = 0

protected

◆ outstreams

uint16_t inet::SctpResetReq::outstreams = 0

protected

◆ requestType

unsigned short inet::SctpResetReq::requestType = 0

protected

◆ streams

uint16_t* inet::SctpResetReq::streams = nullptr

protected

◆ streams_arraysize

size_t inet::SctpResetReq::streams_arraysize = 0

protected

The documentation for this class was generated from the following file:

SctpCommand_m.h
