Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:130 by opp_msgtool. More...

#include <SctpCommand_m.h>

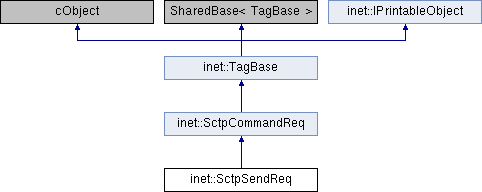

Inheritance diagram for inet::SctpSendReq:

Public Member Functions
	SctpSendReq ()

	SctpSendReq (const SctpSendReq &other)

virtual	~SctpSendReq ()

SctpSendReq &	operator= (const SctpSendReq &other)

virtual SctpSendReq *	dup () const override

virtual void	parsimPack (omnetpp::cCommBuffer *b) const override

virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override

virtual unsigned int	getPrMethod () const

virtual void	setPrMethod (unsigned int prMethod)

virtual bool	getLast () const

virtual void	setLast (bool last)

virtual unsigned int	getPpid () const

virtual void	setPpid (unsigned int ppid)

virtual bool	getPrimary () const

virtual void	setPrimary (bool primary)

virtual bool	getSackNow () const

virtual void	setSackNow (bool sackNow)

Public Member Functions inherited from inet::SctpCommandReq
	SctpCommandReq ()

	SctpCommandReq (const SctpCommandReq &other)

virtual	~SctpCommandReq ()

SctpCommandReq &	operator= (const SctpCommandReq &other)

virtual int	getSocketId () const

virtual void	setSocketId (int socketId)

virtual int	getSid () const

virtual void	setSid (int sid)

virtual int	getNumMsgs () const

virtual void	setNumMsgs (int numMsgs)

virtual int	getSsn () const

virtual void	setSsn (int ssn)

virtual unsigned short	getSendUnordered () const

virtual void	setSendUnordered (unsigned short sendUnordered)

virtual double	getPrValue () const

virtual void	setPrValue (double prValue)

virtual const L3Address &	getLocalAddr () const

virtual L3Address &	getLocalAddrForUpdate ()

virtual void	setLocalAddr (const L3Address &localAddr)

virtual const L3Address &	getRemoteAddr () const

virtual L3Address &	getRemoteAddrForUpdate ()

virtual void	setRemoteAddr (const L3Address &remoteAddr)

virtual int	getLocalPort () const

virtual void	setLocalPort (int localPort)

virtual int	getRemotePort () const

virtual void	setRemotePort (int remotePort)

virtual int	getGate () const

virtual void	setGate (int gate)

virtual int	getFd () const

virtual void	setFd (int fd)

Public Member Functions inherited from inet::TagBase
virtual const Ptr< TagBase >	dupShared () const

virtual const Ptr< TagBase >	changeRegion (b offsetDelta, b lengthDelta) const

virtual void	parsimPack (cCommBuffer *buffer) const override

virtual void	parsimUnpack (cCommBuffer *buffer) override

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags) const override
	Prints this object to the provided output stream. More...

virtual std::ostream &	printFieldsToStream (std::ostream &stream, int level, int evFlags) const

virtual std::string	str () const override

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Member Functions
bool	operator== (const SctpSendReq &)=delete

Protected Member Functions inherited from inet::SctpCommandReq
bool	operator== (const SctpCommandReq &)=delete

Protected Attributes
unsigned int	prMethod = 0

bool	last = false

unsigned int	ppid = 0

bool	primary = true

bool	sackNow = false

Protected Attributes inherited from inet::SctpCommandReq
int	socketId = -1

int	sid = -1

int	numMsgs = 1

int	ssn = -1

unsigned short	sendUnordered = false

double	prValue = 0

L3Address	localAddr

L3Address	remoteAddr

int	localPort = -1

int	remotePort = -1

int	gate = -1

int	fd = -1

Private Member Functions
void	copy (const SctpSendReq &other)

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Detailed Description

Class generated from inet/transportlayer/contract/sctp/SctpCommand.msg:130 by opp_msgtool.

class SctpSendReq extends SctpCommandReq
{
    unsigned int prMethod;
    bool last;
    unsigned int ppid = 0;
    bool primary = true;
    bool sackNow = false;
}

Constructor & Destructor Documentation

◆ SctpSendReq() [1/2]

inet::SctpSendReq::SctpSendReq ( )

◆ SctpSendReq() [2/2]

inet::SctpSendReq::SctpSendReq ( const SctpSendReq & other )

◆ ~SctpSendReq()

virtual inet::SctpSendReq::~SctpSendReq ( )

virtual

Member Function Documentation

◆ copy()

void inet::SctpSendReq::copy ( const SctpSendReq & other )

private

◆ dup()

virtual SctpSendReq* inet::SctpSendReq::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::SctpCommandReq.

426 {return new SctpSendReq(*this);}

◆ getLast()

virtual bool inet::SctpSendReq::getLast ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_SEND().

◆ getPpid()

virtual unsigned int inet::SctpSendReq::getPpid ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_SEND().

◆ getPrimary()

virtual bool inet::SctpSendReq::getPrimary ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_SEND().

◆ getPrMethod()

virtual unsigned int inet::SctpSendReq::getPrMethod ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_SEND().

◆ getSackNow()

virtual bool inet::SctpSendReq::getSackNow ( ) const

virtual

Referenced by inet::sctp::SctpAssociation::process_SEND().

◆ operator=()

SctpSendReq& inet::SctpSendReq::operator= ( const SctpSendReq & other )

◆ operator==()

bool inet::SctpSendReq::operator== ( const SctpSendReq & )

protecteddelete

◆ parsimPack()

virtual void inet::SctpSendReq::parsimPack ( omnetpp::cCommBuffer * b ) const

overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimPacking().

◆ parsimUnpack()

virtual void inet::SctpSendReq::parsimUnpack ( omnetpp::cCommBuffer * b )

overridevirtual

Reimplemented from inet::SctpCommandReq.

Referenced by inet::doParsimUnpacking().

◆ setLast()

virtual void inet::SctpSendReq::setLast ( bool last )

virtual

Referenced by inet::SctpNatPeer::addressAddedArrived(), inet::SctpServer::generateAndSend(), inet::SctpPeer::generateAndSend(), inet::SctpNatPeer::generateAndSend(), inet::SctpNatServer::sendInfo(), inet::SctpNatPeer::sendRequest(), inet::SctpClient::sendRequest(), inet::SctpPeer::sendRequest(), inet::SctpClient::socketDataArrived(), inet::SctpPeer::socketDataArrived(), inet::SctpNatPeer::socketDataArrived(), and inet::SctpNatPeer::socketEstablished().

◆ setPpid()

virtual void inet::SctpSendReq::setPpid ( unsigned int ppid )

virtual

◆ setPrimary()

virtual void inet::SctpSendReq::setPrimary ( bool primary )

virtual

◆ setPrMethod()

virtual void inet::SctpSendReq::setPrMethod ( unsigned int prMethod )

virtual

◆ setSackNow()

virtual void inet::SctpSendReq::setSackNow ( bool sackNow )

virtual

Member Data Documentation

◆ last

bool inet::SctpSendReq::last = false

protected

◆ ppid

unsigned int inet::SctpSendReq::ppid = 0

protected

◆ primary

bool inet::SctpSendReq::primary = true

protected

◆ prMethod

unsigned int inet::SctpSendReq::prMethod = 0

protected

◆ sackNow

bool inet::SctpSendReq::sackNow = false

protected

The documentation for this class was generated from the following file:

SctpCommand_m.h
