inet::visualizer::LinkVisualizerBase Class Reference

#include <LinkVisualizerBase.h>

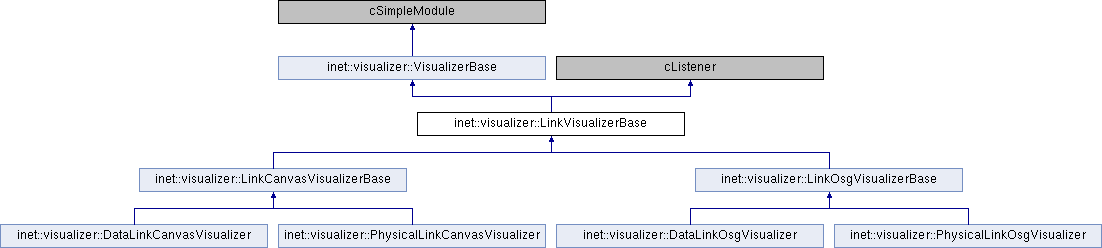

Inheritance diagram for inet::visualizer::LinkVisualizerBase:

Classes
class	DirectiveResolver
class	LinkVisualization

Protected Types
enum	ActivityLevel { ACTIVITY_LEVEL_SERVICE, ACTIVITY_LEVEL_PEER, ACTIVITY_LEVEL_PROTOCOL }

Parameters
bool	displayLinks = false
ActivityLevel	activityLevel = static_cast<ActivityLevel>(-1)
NetworkNodeFilter	nodeFilter
InterfaceFilter	interfaceFilter
PacketFilter	packetFilter
cFigure::Color	lineColor
cFigure::LineStyle	lineStyle
double	lineWidth = NaN
double	lineShift = NaN
const char *	lineShiftMode = nullptr
double	lineContactSpacing = NaN
const char *	lineContactMode = nullptr
StringFormat	labelFormat
cFigure::Font	labelFont
cFigure::Color	labelColor
const char *	fadeOutMode = nullptr
double	fadeOutTime = NaN
double	fadeOutAnimationSpeed = NaN
double	holdAnimationTime = NaN
LineManager *	lineManager = nullptr
std::map< int, int >	lastModules
	Maps packet to last module. More...
std::map< std::pair< int, int >, const LinkVisualization * >	linkVisualizations
	Maps source/destination module ids to link visualizations. More...
virtual void	initialize (int stage) override
virtual void	handleParameterChange (const char *name) override
virtual void	refreshDisplay () const override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual bool	isLinkStart (cModule *module) const =0
virtual bool	isLinkEnd (cModule *module) const =0
virtual const LinkVisualization *	createLinkVisualization (cModule *source, cModule *destination, cPacket *packet) const =0
virtual const LinkVisualization *	getLinkVisualization (std::pair< int, int > linkVisualization)
virtual void	addLinkVisualization (std::pair< int, int > sourceAndDestination, const LinkVisualization *linkVisualization)
virtual void	removeLinkVisualization (const LinkVisualization *linkVisualization)
virtual void	removeAllLinkVisualizations ()
virtual void	setAlpha (const LinkVisualization *linkVisualization, double alpha) const =0
virtual cModule *	getLastModule (int treeId)
virtual void	setLastModule (int treeId, cModule *lastModule)
virtual void	removeLastModule (int treeId)
virtual std::string	getLinkVisualizationText (cPacket *packet) const
virtual void	refreshLinkVisualization (const LinkVisualization *linkVisualization, cPacket *packet)
virtual void	updateLinkVisualization (cModule *source, cModule *destination, cPacket *packet)
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override

Additional Inherited Members
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Member Enumeration Documentation

ActivityLevel

enum inet::visualizer::LinkVisualizerBase::ActivityLevel

protected

Enumerator
ACTIVITY_LEVEL_SERVICE
ACTIVITY_LEVEL_PEER
ACTIVITY_LEVEL_PROTOCOL

                       {
        ACTIVITY_LEVEL_SERVICE,
        ACTIVITY_LEVEL_PEER,
        ACTIVITY_LEVEL_PROTOCOL,
    };

Member Function Documentation

addLinkVisualization()

void inet::visualizer::LinkVisualizerBase::addLinkVisualization ( std::pair< int, int >  sourceAndDestination, const LinkVisualization *  linkVisualization  )

protectedvirtual

Reimplemented in inet::visualizer::LinkCanvasVisualizerBase, and inet::visualizer::LinkOsgVisualizerBase.

{
    linkVisualizations[sourceAndDestination] = linkVisualization;
    if (holdAnimationTime != 0)
        visualizationTargetModule->getCanvas()->holdSimulationFor(holdAnimationTime);
}

Referenced by inet::visualizer::LinkOsgVisualizerBase::addLinkVisualization(), inet::visualizer::LinkCanvasVisualizerBase::addLinkVisualization(), and updateLinkVisualization().

createLinkVisualization()

virtual const LinkVisualization* inet::visualizer::LinkVisualizerBase::createLinkVisualization ( cModule *  source, cModule *  destination, cPacket *  packet  ) const

protectedpure virtual

Implemented in inet::visualizer::LinkCanvasVisualizerBase, inet::visualizer::LinkOsgVisualizerBase, inet::visualizer::DataLinkCanvasVisualizer, and inet::visualizer::PhysicalLinkCanvasVisualizer.

Referenced by updateLinkVisualization().

getLastModule()

cModule * inet::visualizer::LinkVisualizerBase::getLastModule ( int  treeId )

protectedvirtual

{
    auto it = lastModules.find(treeId);
    return (it == lastModules.end()) ? nullptr : getSimulation()->getModule(it->second);
}

getLinkVisualization()

const LinkVisualizerBase::LinkVisualization * inet::visualizer::LinkVisualizerBase::getLinkVisualization ( std::pair< int, int >  linkVisualization )

protectedvirtual

{
    auto it = linkVisualizations.find(linkVisualization);
    return it == linkVisualizations.end() ? nullptr : it->second;
}

Referenced by updateLinkVisualization().

getLinkVisualizationText()

std::string inet::visualizer::LinkVisualizerBase::getLinkVisualizationText ( cPacket *  packet ) const

protectedvirtual

{
    DirectiveResolver directiveResolver(packet);
    return labelFormat.formatString(&directiveResolver);
}

Referenced by inet::visualizer::LinkCanvasVisualizerBase::createLinkVisualization(), and inet::visualizer::LinkCanvasVisualizerBase::refreshLinkVisualization().

handleParameterChange()

void inet::visualizer::LinkVisualizerBase::handleParameterChange ( const char *  name )

overrideprotectedvirtual

{
    if (!hasGUI()) return;
    if (name != nullptr) {
        if (!strcmp(name, "nodeFilter"))
            nodeFilter.setPattern(par("nodeFilter"));
        else if (!strcmp(name, "interfaceFilter"))
            interfaceFilter.setPattern(par("interfaceFilter"));
        else if (!strcmp(name, "packetFilter"))
            packetFilter.setExpression(par("packetFilter").objectValue());
        removeAllLinkVisualizations();
    }
}

initialize()

void inet::visualizer::LinkVisualizerBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::VisualizerBase.

Reimplemented in inet::visualizer::LinkCanvasVisualizerBase, and inet::visualizer::LinkOsgVisualizerBase.

{
    VisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        displayLinks = par("displayLinks");
        const char *activityLevelString = par("activityLevel");
        if (!strcmp(activityLevelString, "service"))
            activityLevel = ACTIVITY_LEVEL_SERVICE;
        else if (!strcmp(activityLevelString, "peer"))
            activityLevel = ACTIVITY_LEVEL_PEER;
        else if (!strcmp(activityLevelString, "protocol"))
            activityLevel = ACTIVITY_LEVEL_PROTOCOL;
        else
            throw cRuntimeError("Unknown activity level: %s", activityLevelString);
        nodeFilter.setPattern(par("nodeFilter"));
        interfaceFilter.setPattern(par("interfaceFilter"));
        packetFilter.setExpression(par("packetFilter").objectValue());
        lineColor = cFigure::Color(par("lineColor"));
        lineStyle = cFigure::parseLineStyle(par("lineStyle"));
        lineWidth = par("lineWidth");
        lineShift = par("lineShift");
        lineShiftMode = par("lineShiftMode");
        lineContactSpacing = par("lineContactSpacing");
        lineContactMode = par("lineContactMode");
        labelFormat.parseFormat(par("labelFormat"));
        labelFont = cFigure::parseFont(par("labelFont"));
        labelColor = cFigure::Color(par("labelColor"));
        fadeOutMode = par("fadeOutMode");
        fadeOutTime = par("fadeOutTime");
        fadeOutAnimationSpeed = par("fadeOutAnimationSpeed");
        holdAnimationTime = par("holdAnimationTime");
        if (displayLinks)
            subscribe();
    }
}

Referenced by inet::visualizer::LinkOsgVisualizerBase::initialize(), and inet::visualizer::LinkCanvasVisualizerBase::initialize().

isLinkEnd()

virtual bool inet::visualizer::LinkVisualizerBase::isLinkEnd ( cModule *  module ) const

protectedpure virtual

Implemented in inet::visualizer::DataLinkCanvasVisualizer, inet::visualizer::PhysicalLinkCanvasVisualizer, inet::visualizer::DataLinkOsgVisualizer, and inet::visualizer::PhysicalLinkOsgVisualizer.

Referenced by receiveSignal().

isLinkStart()

virtual bool inet::visualizer::LinkVisualizerBase::isLinkStart ( cModule *  module ) const

protectedpure virtual

Implemented in inet::visualizer::DataLinkCanvasVisualizer, inet::visualizer::PhysicalLinkCanvasVisualizer, inet::visualizer::DataLinkOsgVisualizer, and inet::visualizer::PhysicalLinkOsgVisualizer.

Referenced by receiveSignal().

preDelete()

void inet::visualizer::LinkVisualizerBase::preDelete ( cComponent *  root )

overrideprotectedvirtual

{
    if (displayLinks) {
        unsubscribe();
        removeAllLinkVisualizations();
    }
}

receiveSignal()

void inet::visualizer::LinkVisualizerBase::receiveSignal ( cComponent *  source, simsignal_t  signal, cObject *  object, cObject *  details  )

overridevirtual

{
    Enter_Method("%s", cComponent::getSignalName(signal));

    if ((activityLevel == ACTIVITY_LEVEL_SERVICE && signal == packetReceivedFromUpperSignal) ||
        (activityLevel == ACTIVITY_LEVEL_PEER && signal == packetSentToPeerSignal) ||
        (activityLevel == ACTIVITY_LEVEL_PROTOCOL && signal == packetSentToLowerSignal))
    {
        if (isLinkStart(static_cast<cModule *>(source))) {
            auto module = check_and_cast<cModule *>(source);
            auto packet = check_and_cast<Packet *>(object);
            mapChunks(packet->peekAt(b(0), packet->getTotalLength()), [&] (const Ptr<const Chunk>& chunk, int id) { if (getLastModule(id) != nullptr) removeLastModule(id); });
            auto networkNode = getContainingNode(module);
            auto networkInterface = getContainingNicModule(module);
            if (nodeFilter.matches(networkNode) && interfaceFilter.matches(networkInterface) && packetFilter.matches(packet)) {
                mapChunks(packet->peekAt(b(0), packet->getTotalLength()), [&] (const Ptr<const Chunk>& chunk, int id) { setLastModule(id, module); });
            }
        }
    }
    else if ((activityLevel == ACTIVITY_LEVEL_SERVICE && signal == packetSentToUpperSignal) ||
             (activityLevel == ACTIVITY_LEVEL_PEER && signal == packetReceivedFromPeerSignal) ||
             (activityLevel == ACTIVITY_LEVEL_PROTOCOL && signal == packetReceivedFromLowerSignal))
    {
        if (isLinkEnd(static_cast<cModule *>(source))) {
            auto module = check_and_cast<cModule *>(source);
            auto packet = check_and_cast<Packet *>(object);
            auto networkNode = getContainingNode(module);
            auto networkInterface = getContainingNicModule(module);
            if (nodeFilter.matches(networkNode) && interfaceFilter.matches(networkInterface) && packetFilter.matches(packet)) {
                mapChunks(packet->peekAt(b(0), packet->getTotalLength()), [&] (const Ptr<const Chunk>& chunk, int id) {
                    auto lastModule = getLastModule(id);
                    if (lastModule != nullptr)
                        updateLinkVisualization(getContainingNode(lastModule), networkNode, packet);
                    // NOTE: don't call removeLastModule(treeId) because other network nodes may still receive this packet
                });
            }
        }
    }
    else
        throw cRuntimeError("Unknown signal");
}

refreshDisplay()

void inet::visualizer::LinkVisualizerBase::refreshDisplay ( ) const

overrideprotectedvirtual

Reimplemented in inet::visualizer::LinkCanvasVisualizerBase, and inet::visualizer::LinkOsgVisualizerBase.

{
    if (displayLinks) {
        AnimationPosition currentAnimationPosition;
        std::vector<const LinkVisualization *> removedLinkVisualizations;
        for (auto it : linkVisualizations) {
            auto linkVisualization = it.second;
            double delta;
            if (!strcmp(fadeOutMode, "simulationTime"))
                delta = (currentAnimationPosition.getSimulationTime() - linkVisualization->lastUsageAnimationPosition.getSimulationTime()).dbl();
            else if (!strcmp(fadeOutMode, "animationTime"))
                delta = currentAnimationPosition.getAnimationTime() - linkVisualization->lastUsageAnimationPosition.getAnimationTime();
            else if (!strcmp(fadeOutMode, "realTime"))
                delta = currentAnimationPosition.getRealTime() - linkVisualization->lastUsageAnimationPosition.getRealTime();
            else
                throw cRuntimeError("Unknown fadeOutMode: %s", fadeOutMode);
            if (delta > fadeOutTime)
                removedLinkVisualizations.push_back(linkVisualization);
            else
                setAlpha(linkVisualization, 1 - delta / fadeOutTime);
        }
        for (auto linkVisualization : removedLinkVisualizations) {
            const_cast<LinkVisualizerBase *>(this)->removeLinkVisualization(linkVisualization);
            delete linkVisualization;
        }
    }
}

Referenced by inet::visualizer::LinkOsgVisualizerBase::refreshDisplay(), and inet::visualizer::LinkCanvasVisualizerBase::refreshDisplay().

refreshLinkVisualization()

void inet::visualizer::LinkVisualizerBase::refreshLinkVisualization ( const LinkVisualization *  linkVisualization, cPacket *  packet  )

protectedvirtual

Reimplemented in inet::visualizer::LinkCanvasVisualizerBase.

{
    linkVisualization->lastUsageAnimationPosition = AnimationPosition();
}

Referenced by inet::visualizer::LinkCanvasVisualizerBase::refreshLinkVisualization(), and updateLinkVisualization().

removeAllLinkVisualizations()

void inet::visualizer::LinkVisualizerBase::removeAllLinkVisualizations ( )

protectedvirtual

{
    lastModules.clear();
    std::vector<const LinkVisualization *> removedLinkVisualizations;
    for (auto it : linkVisualizations)
        removedLinkVisualizations.push_back(it.second);
    for (auto it : removedLinkVisualizations) {
        removeLinkVisualization(it);
        delete it;
    }
}

Referenced by handleParameterChange(), and preDelete().

removeLastModule()

void inet::visualizer::LinkVisualizerBase::removeLastModule ( int  treeId )

protectedvirtual

{
    lastModules.erase(lastModules.find(treeId));
}

removeLinkVisualization()

void inet::visualizer::LinkVisualizerBase::removeLinkVisualization ( const LinkVisualization *  linkVisualization )

protectedvirtual

Reimplemented in inet::visualizer::LinkCanvasVisualizerBase, and inet::visualizer::LinkOsgVisualizerBase.

{
    linkVisualizations.erase(linkVisualizations.find(std::pair<int, int>(linkVisualization->sourceModuleId, linkVisualization->destinationModuleId)));
}

Referenced by refreshDisplay(), removeAllLinkVisualizations(), inet::visualizer::LinkOsgVisualizerBase::removeLinkVisualization(), and inet::visualizer::LinkCanvasVisualizerBase::removeLinkVisualization().

setAlpha()

virtual void inet::visualizer::LinkVisualizerBase::setAlpha ( const LinkVisualization *  linkVisualization, double  alpha  ) const

protectedpure virtual

Implemented in inet::visualizer::LinkCanvasVisualizerBase, and inet::visualizer::LinkOsgVisualizerBase.

Referenced by refreshDisplay().

setLastModule()

void inet::visualizer::LinkVisualizerBase::setLastModule ( int  treeId, cModule *  lastModule  )

protectedvirtual

{
    lastModules[treeId] = module->getId();
}

subscribe()

void inet::visualizer::LinkVisualizerBase::subscribe ( )

protectedvirtual

{
    if (activityLevel == ACTIVITY_LEVEL_SERVICE) {
        visualizationSubjectModule->subscribe(packetSentToUpperSignal, this);
        visualizationSubjectModule->subscribe(packetReceivedFromUpperSignal, this);
    }
    else if (activityLevel == ACTIVITY_LEVEL_PEER) {
        visualizationSubjectModule->subscribe(packetSentToPeerSignal, this);
        visualizationSubjectModule->subscribe(packetReceivedFromPeerSignal, this);
    }
    else if (activityLevel == ACTIVITY_LEVEL_PROTOCOL) {
        visualizationSubjectModule->subscribe(packetSentToLowerSignal, this);
        visualizationSubjectModule->subscribe(packetReceivedFromLowerSignal, this);
    }
}

Referenced by initialize().

unsubscribe()

void inet::visualizer::LinkVisualizerBase::unsubscribe ( )

protectedvirtual

{
    // NOTE: lookup the module again because it may have been deleted first
    auto visualizationSubjectModule = findModuleFromPar<cModule>(par("visualizationSubjectModule"), this);
    if (visualizationSubjectModule != nullptr) {
        if (activityLevel == ACTIVITY_LEVEL_SERVICE) {
            visualizationSubjectModule->unsubscribe(packetSentToUpperSignal, this);
            visualizationSubjectModule->unsubscribe(packetReceivedFromUpperSignal, this);
        }
        else if (activityLevel == ACTIVITY_LEVEL_PEER) {
            visualizationSubjectModule->unsubscribe(packetSentToPeerSignal, this);
            visualizationSubjectModule->unsubscribe(packetReceivedFromPeerSignal, this);
        }
        else if (activityLevel == ACTIVITY_LEVEL_PROTOCOL) {
            visualizationSubjectModule->unsubscribe(packetSentToLowerSignal, this);
            visualizationSubjectModule->unsubscribe(packetReceivedFromLowerSignal, this);
        }
    }
}

Referenced by preDelete().

updateLinkVisualization()

void inet::visualizer::LinkVisualizerBase::updateLinkVisualization ( cModule *  source, cModule *  destination, cPacket *  packet  )

protectedvirtual

{
    auto key = std::pair<int, int>(source->getId(), destination->getId());
    auto linkVisualization = getLinkVisualization(key);
    if (linkVisualization == nullptr) {
        linkVisualization = createLinkVisualization(source, destination, packet);
        addLinkVisualization(key, linkVisualization);
    }
    else
        refreshLinkVisualization(linkVisualization, packet);
}

Member Data Documentation

activityLevel

ActivityLevel inet::visualizer::LinkVisualizerBase::activityLevel = static_cast<ActivityLevel>(-1)

protected

Referenced by initialize(), receiveSignal(), subscribe(), and unsubscribe().

displayLinks

bool inet::visualizer::LinkVisualizerBase::displayLinks = false

protected

Referenced by initialize(), preDelete(), and refreshDisplay().

fadeOutAnimationSpeed

double inet::visualizer::LinkVisualizerBase::fadeOutAnimationSpeed = NaN

protected

Referenced by initialize(), inet::visualizer::LinkOsgVisualizerBase::refreshDisplay(), and inet::visualizer::LinkCanvasVisualizerBase::refreshDisplay().

fadeOutMode

const char* inet::visualizer::LinkVisualizerBase::fadeOutMode = nullptr

protected

Referenced by initialize(), and refreshDisplay().

fadeOutTime

double inet::visualizer::LinkVisualizerBase::fadeOutTime = NaN

protected

Referenced by initialize(), and refreshDisplay().

holdAnimationTime

double inet::visualizer::LinkVisualizerBase::holdAnimationTime = NaN

protected

Referenced by addLinkVisualization(), and initialize().

interfaceFilter

InterfaceFilter inet::visualizer::LinkVisualizerBase::interfaceFilter

protected

Referenced by handleParameterChange(), initialize(), and receiveSignal().

labelColor

cFigure::Color inet::visualizer::LinkVisualizerBase::labelColor

protected

Referenced by inet::visualizer::LinkCanvasVisualizerBase::createLinkVisualization(), and initialize().

labelFont

cFigure::Font inet::visualizer::LinkVisualizerBase::labelFont

protected

Referenced by inet::visualizer::LinkCanvasVisualizerBase::createLinkVisualization(), and initialize().

labelFormat

StringFormat inet::visualizer::LinkVisualizerBase::labelFormat

protected

Referenced by getLinkVisualizationText(), and initialize().

lastModules

std::map<int, int> inet::visualizer::LinkVisualizerBase::lastModules

protected

Maps packet to last module.

Referenced by getLastModule(), removeAllLinkVisualizations(), removeLastModule(), and setLastModule().

lineColor

cFigure::Color inet::visualizer::LinkVisualizerBase::lineColor

protected

Referenced by inet::visualizer::LinkOsgVisualizerBase::createLinkVisualization(), inet::visualizer::LinkCanvasVisualizerBase::createLinkVisualization(), and initialize().

lineContactMode

const char* inet::visualizer::LinkVisualizerBase::lineContactMode = nullptr

protected

Referenced by initialize(), inet::visualizer::LinkOsgVisualizerBase::refreshDisplay(), and inet::visualizer::LinkCanvasVisualizerBase::refreshDisplay().

lineContactSpacing

double inet::visualizer::LinkVisualizerBase::lineContactSpacing = NaN

protected

Referenced by initialize(), inet::visualizer::LinkOsgVisualizerBase::refreshDisplay(), and inet::visualizer::LinkCanvasVisualizerBase::refreshDisplay().

lineManager

LineManager* inet::visualizer::LinkVisualizerBase::lineManager = nullptr

protected

Referenced by inet::visualizer::LinkOsgVisualizerBase::addLinkVisualization(), inet::visualizer::LinkCanvasVisualizerBase::addLinkVisualization(), inet::visualizer::LinkOsgVisualizerBase::initialize(), inet::visualizer::LinkCanvasVisualizerBase::initialize(), inet::visualizer::LinkOsgVisualizerBase::refreshDisplay(), inet::visualizer::LinkCanvasVisualizerBase::refreshDisplay(), inet::visualizer::LinkOsgVisualizerBase::removeLinkVisualization(), and inet::visualizer::LinkCanvasVisualizerBase::removeLinkVisualization().

lineShift

double inet::visualizer::LinkVisualizerBase::lineShift = NaN

protected

Referenced by initialize(), inet::visualizer::LinkOsgVisualizerBase::refreshDisplay(), and inet::visualizer::LinkCanvasVisualizerBase::refreshDisplay().

lineShiftMode

const char* inet::visualizer::LinkVisualizerBase::lineShiftMode = nullptr

protected

Referenced by initialize(), inet::visualizer::LinkOsgVisualizerBase::refreshDisplay(), and inet::visualizer::LinkCanvasVisualizerBase::refreshDisplay().

lineStyle

cFigure::LineStyle inet::visualizer::LinkVisualizerBase::lineStyle

protected

Referenced by inet::visualizer::LinkOsgVisualizerBase::createLinkVisualization(), inet::visualizer::LinkCanvasVisualizerBase::createLinkVisualization(), and initialize().

lineWidth

double inet::visualizer::LinkVisualizerBase::lineWidth = NaN

protected

Referenced by inet::visualizer::LinkOsgVisualizerBase::createLinkVisualization(), inet::visualizer::LinkCanvasVisualizerBase::createLinkVisualization(), and initialize().

linkVisualizations

std::map<std::pair<int, int>, const LinkVisualization *> inet::visualizer::LinkVisualizerBase::linkVisualizations

protected

Maps source/destination module ids to link visualizations.

Referenced by addLinkVisualization(), getLinkVisualization(), inet::visualizer::LinkOsgVisualizerBase::refreshDisplay(), inet::visualizer::LinkCanvasVisualizerBase::refreshDisplay(), refreshDisplay(), removeAllLinkVisualizations(), and removeLinkVisualization().

nodeFilter

NetworkNodeFilter inet::visualizer::LinkVisualizerBase::nodeFilter

protected

Referenced by handleParameterChange(), initialize(), and receiveSignal().

packetFilter

PacketFilter inet::visualizer::LinkVisualizerBase::packetFilter

protected

Referenced by handleParameterChange(), initialize(), and receiveSignal().

---

The documentation for this class was generated from the following files:

• LinkVisualizerBase.h
• LinkVisualizerBase.cc
