inet::visualizer::DataLinkCanvasVisualizer Class Reference

#include <DataLinkCanvasVisualizer.h>

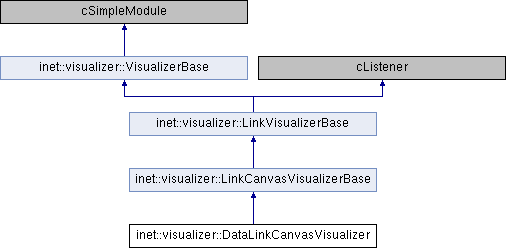

Inheritance diagram for inet::visualizer::DataLinkCanvasVisualizer:

Protected Member Functions
virtual bool	isLinkStart (cModule *module) const override
virtual bool	isLinkEnd (cModule *module) const override
virtual const LinkVisualization *	createLinkVisualization (cModule *source, cModule *destination, cPacket *packet) const override
Protected Member Functions inherited from inet::visualizer::LinkCanvasVisualizerBase
virtual void	initialize (int stage) override
virtual void	refreshDisplay () const override
virtual void	addLinkVisualization (std::pair< int, int > sourceAndDestination, const LinkVisualization *linkVisualization) override
virtual void	removeLinkVisualization (const LinkVisualization *linkVisualization) override
virtual void	setAlpha (const LinkVisualization *linkVisualization, double alpha) const override
virtual void	refreshLinkVisualization (const LinkVisualization *linkVisualization, cPacket *packet) override
Protected Member Functions inherited from inet::visualizer::LinkVisualizerBase
virtual void	handleParameterChange (const char *name) override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual const LinkVisualization *	getLinkVisualization (std::pair< int, int > linkVisualization)
virtual void	removeAllLinkVisualizations ()
virtual cModule *	getLastModule (int treeId)
virtual void	setLastModule (int treeId, cModule *lastModule)
virtual void	removeLastModule (int treeId)
virtual std::string	getLinkVisualizationText (cPacket *packet) const
virtual void	updateLinkVisualization (cModule *source, cModule *destination, cPacket *packet)
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::LinkVisualizerBase
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override
Protected Types inherited from inet::visualizer::LinkVisualizerBase
enum	ActivityLevel { ACTIVITY_LEVEL_SERVICE, ACTIVITY_LEVEL_PEER, ACTIVITY_LEVEL_PROTOCOL }
Protected Attributes inherited from inet::visualizer::LinkCanvasVisualizerBase
double	zIndex = NaN
const CanvasProjection *	canvasProjection = nullptr
cGroupFigure *	linkGroup = nullptr
Protected Attributes inherited from inet::visualizer::LinkVisualizerBase
bool	displayLinks = false
ActivityLevel	activityLevel = static_cast<ActivityLevel>(-1)
NetworkNodeFilter	nodeFilter
InterfaceFilter	interfaceFilter
PacketFilter	packetFilter
cFigure::Color	lineColor
cFigure::LineStyle	lineStyle
double	lineWidth = NaN
double	lineShift = NaN
const char *	lineShiftMode = nullptr
double	lineContactSpacing = NaN
const char *	lineContactMode = nullptr
StringFormat	labelFormat
cFigure::Font	labelFont
cFigure::Color	labelColor
const char *	fadeOutMode = nullptr
double	fadeOutTime = NaN
double	fadeOutAnimationSpeed = NaN
double	holdAnimationTime = NaN
LineManager *	lineManager = nullptr
std::map< int, int >	lastModules
	Maps packet to last module. More...
std::map< std::pair< int, int >, const LinkVisualization * >	linkVisualizations
	Maps source/destination module ids to link visualizations. More...
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Member Function Documentation

createLinkVisualization()

const LinkVisualizerBase::LinkVisualization * inet::visualizer::DataLinkCanvasVisualizer::createLinkVisualization ( cModule *  source, cModule *  destination, cPacket *  packet  ) const

overrideprotectedvirtual

Reimplemented from inet::visualizer::LinkCanvasVisualizerBase.

{
    auto linkVisualization = static_cast<const LinkCanvasVisualization *>(LinkCanvasVisualizerBase::createLinkVisualization(source, destination, packet));
    linkVisualization->figure->setTags((std::string("data_link ") + tags).c_str());
    linkVisualization->figure->setTooltip("This arrow represents a data link between two network nodes");
    linkVisualization->shiftPriority = 2;
    return linkVisualization;
}

isLinkEnd()

bool inet::visualizer::DataLinkCanvasVisualizer::isLinkEnd ( cModule *  module ) const

overrideprotectedvirtual

Implements inet::visualizer::LinkVisualizerBase.

{
    // KLUDGE: for visualizing when using the layered Ethernet model
    return false
#ifdef INET_WITH_PROTOCOLELEMENT
            || dynamic_cast<PacketEmitter *>(module) != nullptr
#endif // INET_WITH_PROTOCOLELEMENT
            || dynamic_cast<MacProtocolBase *>(module) != nullptr
#ifdef INET_WITH_IEEE80211
            || dynamic_cast<ieee80211::ICoordinationFunction *>(module) != nullptr
#endif // INET_WITH_IEEE80211
        ;
}

isLinkStart()

bool inet::visualizer::DataLinkCanvasVisualizer::isLinkStart ( cModule *  module ) const

overrideprotectedvirtual

Implements inet::visualizer::LinkVisualizerBase.

{
    // KLUDGE: for visualizing when using the layered Ethernet model
    return false
#ifdef INET_WITH_PROTOCOLELEMENT
            || dynamic_cast<PacketEmitter *>(module) != nullptr
#endif // INET_WITH_PROTOCOLELEMENT
            || dynamic_cast<MacProtocolBase *>(module) != nullptr
#ifdef INET_WITH_IEEE80211
            || dynamic_cast<ieee80211::ICoordinationFunction *>(module) != nullptr
#endif // INET_WITH_IEEE80211
        ;
}

---

The documentation for this class was generated from the following files:

• DataLinkCanvasVisualizer.h
• DataLinkCanvasVisualizer.cc
