#include <PhysicalLinkCanvasVisualizer.h>

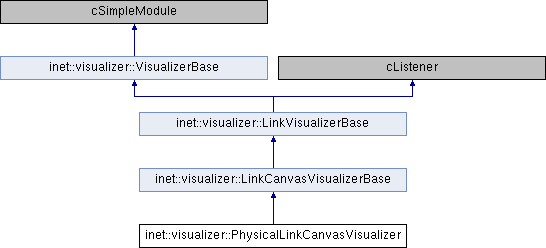

Inheritance diagram for inet::visualizer::PhysicalLinkCanvasVisualizer:

Protected Member Functions
virtual bool	isLinkStart (cModule *module) const override

virtual bool	isLinkEnd (cModule *module) const override

virtual const LinkVisualization *	createLinkVisualization (cModule source, cModule destination, cPacket *packet) const override

Protected Member Functions inherited from inet::visualizer::LinkCanvasVisualizerBase
virtual void	initialize (int stage) override

virtual void	refreshDisplay () const override

virtual void	addLinkVisualization (std::pair< int, int > sourceAndDestination, const LinkVisualization *linkVisualization) override

virtual void	removeLinkVisualization (const LinkVisualization *linkVisualization) override

virtual void	setAlpha (const LinkVisualization *linkVisualization, double alpha) const override

virtual void	refreshLinkVisualization (const LinkVisualization linkVisualization, cPacket packet) override

Protected Member Functions inherited from inet::visualizer::LinkVisualizerBase
virtual void	handleParameterChange (const char *name) override

virtual void	preDelete (cComponent *root) override

virtual void	subscribe ()

virtual void	unsubscribe ()

virtual const LinkVisualization *	getLinkVisualization (std::pair< int, int > linkVisualization)

virtual void	removeAllLinkVisualizations ()

virtual cModule *	getLastModule (int treeId)

virtual void	setLastModule (int treeId, cModule *lastModule)

virtual void	removeLastModule (int treeId)

virtual std::string	getLinkVisualizationText (cPacket *packet) const

virtual void	updateLinkVisualization (cModule source, cModule destination, cPacket *packet)

Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override

virtual Coord	getPosition (const cModule *networkNode) const

virtual Coord	getContactPosition (const cModule networkNode, const Coord &fromPosition, const char contactMode, double contactSpacing) const

virtual Quaternion	getOrientation (const cModule *networkNode) const

virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::LinkVisualizerBase
virtual void	receiveSignal (cComponent source, simsignal_t signal, cObject object, cObject *details) override

Protected Types inherited from inet::visualizer::LinkVisualizerBase
enum	ActivityLevel { ACTIVITY_LEVEL_SERVICE, ACTIVITY_LEVEL_PEER, ACTIVITY_LEVEL_PROTOCOL }

Protected Attributes inherited from inet::visualizer::LinkCanvasVisualizerBase
double	zIndex = NaN

const CanvasProjection *	canvasProjection = nullptr

cGroupFigure *	linkGroup = nullptr

Protected Attributes inherited from inet::visualizer::LinkVisualizerBase
bool	displayLinks = false

ActivityLevel	activityLevel = static_cast<ActivityLevel>(-1)

NetworkNodeFilter	nodeFilter

InterfaceFilter	interfaceFilter

PacketFilter	packetFilter

cFigure::Color	lineColor

cFigure::LineStyle	lineStyle

double	lineWidth = NaN

double	lineShift = NaN

const char *	lineShiftMode = nullptr

double	lineContactSpacing = NaN

const char *	lineContactMode = nullptr

StringFormat	labelFormat

cFigure::Font	labelFont

cFigure::Color	labelColor

const char *	fadeOutMode = nullptr

double	fadeOutTime = NaN

double	fadeOutAnimationSpeed = NaN

double	holdAnimationTime = NaN

LineManager *	lineManager = nullptr

std::map< int, int >	lastModules
	Maps packet to last module. More...

std::map< std::pair< int, int >, const LinkVisualization * >	linkVisualizations
	Maps source/destination module ids to link visualizations. More...

Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr

cModule *	visualizationSubjectModule = nullptr

const char *	tags = nullptr

Member Function Documentation

◆ createLinkVisualization()

const LinkVisualizerBase::LinkVisualization * inet::visualizer::PhysicalLinkCanvasVisualizer::createLinkVisualization	(	cModule *	source,
		cModule *	destination,
		cPacket *	packet
	)		const

overrideprotectedvirtual

Reimplemented from inet::visualizer::LinkCanvasVisualizerBase.

 {
     auto linkVisualization = static_cast<const LinkCanvasVisualization *>(LinkCanvasVisualizerBase::createLinkVisualization(source, destination, packet));
     linkVisualization->figure->setTags((std::string("physical_link ") + tags).c_str());
     linkVisualization->figure->setTooltip("This arrow represents a physical link between two network nodes");
     linkVisualization->shiftPriority = 1;
     return linkVisualization;
 }

◆ isLinkEnd()

bool inet::visualizer::PhysicalLinkCanvasVisualizer::isLinkEnd ( cModule * module ) const

overrideprotectedvirtual

Implements inet::visualizer::LinkVisualizerBase.

 {
     return dynamic_cast<inet::physicallayer::IRadio *>(module) != nullptr;
 }

◆ isLinkStart()

bool inet::visualizer::PhysicalLinkCanvasVisualizer::isLinkStart ( cModule * module ) const

overrideprotectedvirtual

Implements inet::visualizer::LinkVisualizerBase.

 {
     return dynamic_cast<inet::physicallayer::IRadio *>(module) != nullptr;
 }

The documentation for this class was generated from the following files:
