inet::visualizer::PhysicalLinkOsgVisualizer Class Reference
#include <PhysicalLinkOsgVisualizer.h>

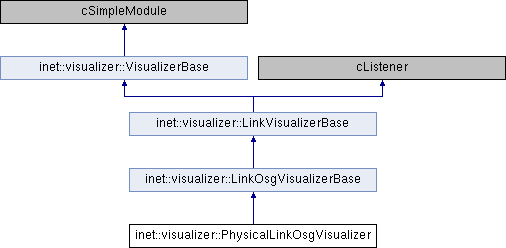

Inheritance diagram for inet::visualizer::PhysicalLinkOsgVisualizer:
Protected Member Functions | |
| virtual bool | isLinkStart (cModule *module) const override |
| virtual bool | isLinkEnd (cModule *module) const override |
 Protected Member Functions inherited from inet::visualizer::LinkOsgVisualizerBase | |
| virtual void | initialize (int stage) override |
| virtual void | refreshDisplay () const override |
| virtual const LinkVisualization * | createLinkVisualization (cModule *source, cModule *destination, cPacket *packet) const override |
| virtual void | addLinkVisualization (std::pair< int, int > sourceAndDestination, const LinkVisualization *linkVisualization) override |
| virtual void | removeLinkVisualization (const LinkVisualization *linkVisualization) override |
| virtual void | setAlpha (const LinkVisualization *linkVisualization, double alpha) const override |
| Protected Member Functions inherited from inet::visualizer::LinkVisualizerBase | |
| virtual void | handleParameterChange (const char *name) override |
| virtual void | preDelete (cComponent *root) override |
| virtual void | subscribe () |
| virtual void | unsubscribe () |
| virtual const LinkVisualization * | getLinkVisualization (std::pair< int, int > linkVisualization) |
| virtual void | removeAllLinkVisualizations () |
| virtual cModule * | getLastModule (int treeId) |
| virtual void | setLastModule (int treeId, cModule *lastModule) |
| virtual void | removeLastModule (int treeId) |
| virtual std::string | getLinkVisualizationText (cPacket *packet) const |
| virtual void | refreshLinkVisualization (const LinkVisualization *linkVisualization, cPacket *packet) |
| virtual void | updateLinkVisualization (cModule *source, cModule *destination, cPacket *packet) |
| Protected Member Functions inherited from inet::visualizer::VisualizerBase | |
| virtual int | numInitStages () const override |
| virtual Coord | getPosition (const cModule *networkNode) const |
| virtual Coord | getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const |
| virtual Quaternion | getOrientation (const cModule *networkNode) const |
| virtual void | mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const |
Additional Inherited Members | |
| Public Member Functions inherited from inet::visualizer::LinkVisualizerBase | |
| virtual void | receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override |
| Protected Types inherited from inet::visualizer::LinkVisualizerBase | |
| enum | ActivityLevel { ACTIVITY_LEVEL_SERVICE, ACTIVITY_LEVEL_PEER, ACTIVITY_LEVEL_PROTOCOL } |
| Protected Attributes inherited from inet::visualizer::LinkVisualizerBase | |
| bool | displayLinks = false |
| ActivityLevel | activityLevel = static_cast<ActivityLevel>(-1) |
| NetworkNodeFilter | nodeFilter |
| InterfaceFilter | interfaceFilter |
| PacketFilter | packetFilter |
| cFigure::Color | lineColor |
| cFigure::LineStyle | lineStyle |
| double | lineWidth = NaN |
| double | lineShift = NaN |
| const char * | lineShiftMode = nullptr |
| double | lineContactSpacing = NaN |
| const char * | lineContactMode = nullptr |
| StringFormat | labelFormat |
| cFigure::Font | labelFont |
| cFigure::Color | labelColor |
| const char * | fadeOutMode = nullptr |
| double | fadeOutTime = NaN |
| double | fadeOutAnimationSpeed = NaN |
| double | holdAnimationTime = NaN |
| LineManager * | lineManager = nullptr |
| std::map< int, int > | lastModules |
| Maps packet to last module. More... | |
| std::map< std::pair< int, int >, const LinkVisualization * > | linkVisualizations |
| Maps source/destination module ids to link visualizations. More... | |
| Protected Attributes inherited from inet::visualizer::VisualizerBase | |
| cModule * | visualizationTargetModule = nullptr |
| cModule * | visualizationSubjectModule = nullptr |
| const char * | tags = nullptr |
Member Function Documentation
◆ isLinkEnd()
|
overrideprotectedvirtual |
Implements inet::visualizer::LinkVisualizerBase.
◆ isLinkStart()
|
overrideprotectedvirtual |
Implements inet::visualizer::LinkVisualizerBase.
The documentation for this class was generated from the following files:
