#include <TransmissionBase.h>

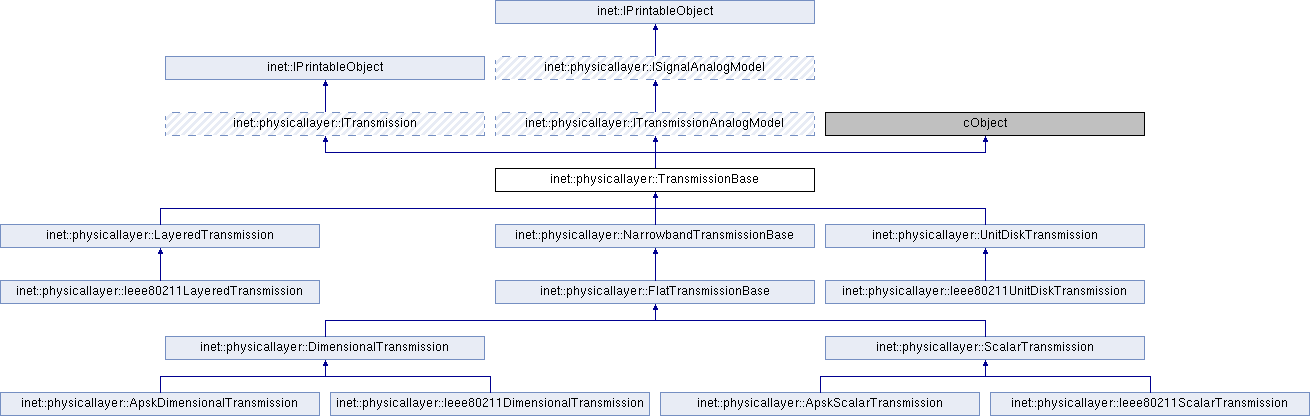

Inheritance diagram for inet::physicallayer::TransmissionBase:

Public Member Functions
	TransmissionBase (const IRadio transmitter, const Packet packet, const simtime_t startTime, const simtime_t endTime, const simtime_t preambleDuration, const simtime_t headerDuration, const simtime_t dataDuration, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation)

virtual int	getId () const override
	Returns an identifier for this transmission which is globally unique for the whole lifetime of the simulation among all transmissions. More...

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const IRadio *	getTransmitter () const override
	Returns the transmitter that transmitted this radio signal on the radio channel. More...

virtual int	getTransmitterId () const override
	Returns the transmitter's id that transmitted this radio signal on the radio channel. More...

virtual const IAntennaGain *	getTransmitterAntennaGain () const override
	Returns the gain of the transmitting antenna. More...

virtual const IRadioMedium *	getMedium () const override
	Returns the radio medium used for this transmission. More...

virtual const Packet *	getPacket () const override
	Returns the packet corresponding to this transmission. More...

virtual const simtime_t	getStartTime () const override
	Returns the time when the transmitter started this transmission. More...

virtual const simtime_t	getEndTime () const override
	Returns the time when the transmitter ended this transmission. More...

virtual const simtime_t	getStartTime (IRadioSignal::SignalPart part) const override

virtual const simtime_t	getEndTime (IRadioSignal::SignalPart part) const override

virtual const simtime_t	getPreambleStartTime () const override

virtual const simtime_t	getPreambleEndTime () const override

virtual const simtime_t	getHeaderStartTime () const override

virtual const simtime_t	getHeaderEndTime () const override

virtual const simtime_t	getDataStartTime () const override

virtual const simtime_t	getDataEndTime () const override

virtual const simtime_t	getDuration () const override
	Returns the total length of this transmission. More...

virtual const simtime_t	getDuration (IRadioSignal::SignalPart part) const override
	Returns the length of the provided part of this transmission. More...

virtual const simtime_t	getPreambleDuration () const override
	Returns the length of the preamble part of this transmission. More...

virtual const simtime_t	getHeaderDuration () const override
	Returns the length of the header part of this transmission. More...

virtual const simtime_t	getDataDuration () const override
	Returns the length of the data part of this transmission. More...

virtual const Coord &	getStartPosition () const override
	Returns the antenna's position when the transmitter started this transmission. More...

virtual const Coord &	getEndPosition () const override
	Returns the antenna's position when the transmitter ended this transmission. More...

virtual const Quaternion &	getStartOrientation () const override
	Returns the antenna's orientation when the transmitter started this transmission. More...

virtual const Quaternion &	getEndOrientation () const override
	Returns the antenna's orientation when the transmitter ended this transmission. More...

virtual const ITransmissionAnalogModel *	getAnalogModel () const override
	Returns the analog model of the transmitted signal. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const int	id

const IRadioMedium *	radioMedium

const int	transmitterId

Ptr< const IAntennaGain >	transmitterGain

const Packet *	packet

const simtime_t	startTime

const simtime_t	endTime

const simtime_t	preambleDuration

const simtime_t	headerDuration

const simtime_t	dataDuration

const Coord	startPosition

const Coord	endPosition

const Quaternion	startOrientation

const Quaternion	endOrientation

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Static Protected Attributes inherited from inet::physicallayer::ITransmission
static int	nextId = 0

Constructor & Destructor Documentation

◆ TransmissionBase()

inet::physicallayer::TransmissionBase::TransmissionBase	(	const IRadio *	transmitter,
		const Packet *	packet,
		const simtime_t	startTime,
		const simtime_t	endTime,
		const simtime_t	preambleDuration,
		const simtime_t	headerDuration,
		const simtime_t	dataDuration,
		const Coord &	startPosition,
		const Coord &	endPosition,
		const Quaternion &	startOrientation,
		const Quaternion &	endOrientation
	)

                                                                                                                                                                                                                                                                                                                                                                   :
     id(nextId++),
     radioMedium(transmitter->getMedium()),
     transmitterId(transmitter->getId()),
     transmitterGain(transmitter->getAntenna()->getGain()),
     packet(packet),
     startTime(startTime),
     endTime(endTime),
     preambleDuration(preambleDuration),
     headerDuration(headerDuration),
     dataDuration(dataDuration),
     startPosition(startPosition),
     endPosition(endPosition),
     startOrientation(startOrientation),
     endOrientation(endOrientation)
 {
 }

Member Function Documentation

◆ getAnalogModel()

virtual const ITransmissionAnalogModel* inet::physicallayer::TransmissionBase::getAnalogModel ( ) const

inlineoverridevirtual

Returns the analog model of the transmitted signal.

Implements inet::physicallayer::ITransmission.

Reimplemented in inet::physicallayer::LayeredTransmission.

77 { return check_and_cast<const ITransmissionAnalogModel *>(this); }

◆ getDataDuration()

virtual const simtime_t inet::physicallayer::TransmissionBase::getDataDuration ( ) const

inlineoverridevirtual

Returns the length of the data part of this transmission.

Implements inet::physicallayer::ITransmission.

69 { return dataDuration; }

Referenced by getDuration().

◆ getDataEndTime()

virtual const simtime_t inet::physicallayer::TransmissionBase::getDataEndTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ITransmission.

62 { return endTime; }

Referenced by getEndTime().

◆ getDataStartTime()

virtual const simtime_t inet::physicallayer::TransmissionBase::getDataStartTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ITransmission.

61 { return endTime - dataDuration; }

Referenced by getStartTime().

◆ getDuration() [1/2]

virtual const simtime_t inet::physicallayer::TransmissionBase::getDuration ( ) const

inlineoverridevirtual

Returns the total length of this transmission.

Implements inet::physicallayer::ITransmission.

64 { return endTime - startTime; }

Referenced by getDuration().

◆ getDuration() [2/2]

const simtime_t inet::physicallayer::TransmissionBase::getDuration ( IRadioSignal::SignalPart part ) const

overridevirtual

Returns the length of the provided part of this transmission.

Implements inet::physicallayer::ITransmission.

 {
     switch (part) {
         case IRadioSignal::SIGNAL_PART_WHOLE:
             return getDuration();
         case IRadioSignal::SIGNAL_PART_PREAMBLE:
             return getPreambleDuration();
         case IRadioSignal::SIGNAL_PART_HEADER:
             return getHeaderDuration();
         case IRadioSignal::SIGNAL_PART_DATA:
             return getDataDuration();
         default:
             throw cRuntimeError("Unknown signal part: '%s'", IRadioSignal::getSignalPartName(part));
     }
 }

◆ getEndOrientation()

virtual const Quaternion& inet::physicallayer::TransmissionBase::getEndOrientation ( ) const

inlineoverridevirtual

Returns the antenna's orientation when the transmitter ended this transmission.

Implements inet::physicallayer::ITransmission.

75 { return endOrientation; }

◆ getEndPosition()

virtual const Coord& inet::physicallayer::TransmissionBase::getEndPosition ( ) const

inlineoverridevirtual

Returns the antenna's position when the transmitter ended this transmission.

Implements inet::physicallayer::ITransmission.

72 { return endPosition; }

◆ getEndTime() [1/2]

virtual const simtime_t inet::physicallayer::TransmissionBase::getEndTime ( ) const

inlineoverridevirtual

Returns the time when the transmitter ended this transmission.

It is the end of the last bit's transmission.

Implements inet::physicallayer::ITransmission.

53 { return endTime; }

Referenced by getEndTime().

◆ getEndTime() [2/2]

const simtime_t inet::physicallayer::TransmissionBase::getEndTime ( IRadioSignal::SignalPart part ) const

overridevirtual

Implements inet::physicallayer::ITransmission.

 {
     switch (part) {
         case IRadioSignal::SIGNAL_PART_WHOLE:
             return getEndTime();
         case IRadioSignal::SIGNAL_PART_PREAMBLE:
             return getPreambleEndTime();
         case IRadioSignal::SIGNAL_PART_HEADER:
             return getHeaderEndTime();
         case IRadioSignal::SIGNAL_PART_DATA:
             return getDataEndTime();
         default:
             throw cRuntimeError("Unknown signal part: '%s'", IRadioSignal::getSignalPartName(part));
     }
 }

◆ getHeaderDuration()

virtual const simtime_t inet::physicallayer::TransmissionBase::getHeaderDuration ( ) const

inlineoverridevirtual

Returns the length of the header part of this transmission.

Implements inet::physicallayer::ITransmission.

68 { return headerDuration; }

Referenced by getDuration().

◆ getHeaderEndTime()

virtual const simtime_t inet::physicallayer::TransmissionBase::getHeaderEndTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ITransmission.

60 { return endTime - dataDuration; }

Referenced by getEndTime().

◆ getHeaderStartTime()

virtual const simtime_t inet::physicallayer::TransmissionBase::getHeaderStartTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ITransmission.

59 { return startTime + preambleDuration; }

Referenced by getStartTime().

◆ getId()

virtual int inet::physicallayer::TransmissionBase::getId ( ) const

inlineoverridevirtual

Returns an identifier for this transmission which is globally unique for the whole lifetime of the simulation among all transmissions.

Implements inet::physicallayer::ITransmission.

42 { return id; }

◆ getMedium()

virtual const IRadioMedium* inet::physicallayer::TransmissionBase::getMedium ( ) const

inlineoverridevirtual

Returns the radio medium used for this transmission.

This function never return nullptr.

Implements inet::physicallayer::ITransmission.

49 { return radioMedium; }

◆ getPacket()

virtual const Packet* inet::physicallayer::TransmissionBase::getPacket ( ) const

inlineoverridevirtual

Returns the packet corresponding to this transmission.

This function never returns nullptr.

Implements inet::physicallayer::ITransmission.

Reimplemented in inet::physicallayer::LayeredTransmission.

50 { return packet; }

◆ getPreambleDuration()

virtual const simtime_t inet::physicallayer::TransmissionBase::getPreambleDuration ( ) const

inlineoverridevirtual

Returns the length of the preamble part of this transmission.

Implements inet::physicallayer::ITransmission.

67 { return preambleDuration; }

Referenced by getDuration().

◆ getPreambleEndTime()

virtual const simtime_t inet::physicallayer::TransmissionBase::getPreambleEndTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ITransmission.

58 { return startTime + preambleDuration; }

Referenced by getEndTime().

◆ getPreambleStartTime()

virtual const simtime_t inet::physicallayer::TransmissionBase::getPreambleStartTime ( ) const

inlineoverridevirtual

Implements inet::physicallayer::ITransmission.

57 { return startTime; }

Referenced by getStartTime().

◆ getStartOrientation()

virtual const Quaternion& inet::physicallayer::TransmissionBase::getStartOrientation ( ) const

inlineoverridevirtual

Returns the antenna's orientation when the transmitter started this transmission.

Implements inet::physicallayer::ITransmission.

74 { return startOrientation; }

◆ getStartPosition()

virtual const Coord& inet::physicallayer::TransmissionBase::getStartPosition ( ) const

inlineoverridevirtual

Returns the antenna's position when the transmitter started this transmission.

Implements inet::physicallayer::ITransmission.

71 { return startPosition; }

◆ getStartTime() [1/2]

virtual const simtime_t inet::physicallayer::TransmissionBase::getStartTime ( ) const

inlineoverridevirtual

Returns the time when the transmitter started this transmission.

It is the start of the first bit's transmission.

Implements inet::physicallayer::ITransmission.

52 { return startTime; }

Referenced by getStartTime().

◆ getStartTime() [2/2]

const simtime_t inet::physicallayer::TransmissionBase::getStartTime ( IRadioSignal::SignalPart part ) const

overridevirtual

Implements inet::physicallayer::ITransmission.

 {
     switch (part) {
         case IRadioSignal::SIGNAL_PART_WHOLE:
             return getStartTime();
         case IRadioSignal::SIGNAL_PART_PREAMBLE:
             return getPreambleStartTime();
         case IRadioSignal::SIGNAL_PART_HEADER:
             return getHeaderStartTime();
         case IRadioSignal::SIGNAL_PART_DATA:
             return getDataStartTime();
         default:
             throw cRuntimeError("Unknown signal part: '%s'", IRadioSignal::getSignalPartName(part));
     }
 }

◆ getTransmitter()

const IRadio * inet::physicallayer::TransmissionBase::getTransmitter ( ) const

overridevirtual

Returns the transmitter that transmitted this radio signal on the radio channel.

This function may return nullptr.

Implements inet::physicallayer::ITransmission.

 {
     return radioMedium->getRadio(transmitterId);
 }

◆ getTransmitterAntennaGain()

virtual const IAntennaGain* inet::physicallayer::TransmissionBase::getTransmitterAntennaGain ( ) const

inlineoverridevirtual

Returns the gain of the transmitting antenna.

Implements inet::physicallayer::ITransmission.

48 { return transmitterGain.get(); }

◆ getTransmitterId()

virtual int inet::physicallayer::TransmissionBase::getTransmitterId ( ) const

inlineoverridevirtual

Returns the transmitter's id that transmitted this radio signal on the radio channel.

Implements inet::physicallayer::ITransmission.

47 { return transmitterId; }

◆ printToStream()

std::ostream & inet::physicallayer::TransmissionBase::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

 {
     if (level <= PRINT_LEVEL_DETAIL)
         stream << EV_FIELD(id);
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(transmitterId)
                << EV_FIELD(startTime)
                << EV_FIELD(endTime)
                << EV_FIELD(preambleDuration)
                << EV_FIELD(headerDuration)
                << EV_FIELD(dataDuration)
                << EV_FIELD(startPosition)
                << EV_FIELD(endPosition)
                << EV_FIELD(startOrientation)
                << EV_FIELD(endOrientation);
     return stream;
 }

Referenced by inet::physicallayer::NarrowbandTransmissionBase::printToStream(), inet::physicallayer::UnitDiskTransmission::printToStream(), and inet::physicallayer::LayeredTransmission::printToStream().

Member Data Documentation

◆ dataDuration

const simtime_t inet::physicallayer::TransmissionBase::dataDuration

protected

Referenced by printToStream().

◆ endOrientation

const Quaternion inet::physicallayer::TransmissionBase::endOrientation

protected

Referenced by printToStream().

◆ endPosition

const Coord inet::physicallayer::TransmissionBase::endPosition

protected

Referenced by printToStream().

◆ endTime

const simtime_t inet::physicallayer::TransmissionBase::endTime

protected

Referenced by printToStream().

◆ headerDuration

const simtime_t inet::physicallayer::TransmissionBase::headerDuration

protected

Referenced by printToStream().

◆ id

const int inet::physicallayer::TransmissionBase::id

protected

◆ packet

const Packet* inet::physicallayer::TransmissionBase::packet

protected

◆ preambleDuration

const simtime_t inet::physicallayer::TransmissionBase::preambleDuration

protected

Referenced by printToStream().

◆ radioMedium

const IRadioMedium* inet::physicallayer::TransmissionBase::radioMedium

protected

Referenced by getTransmitter().

◆ startOrientation

const Quaternion inet::physicallayer::TransmissionBase::startOrientation

protected

Referenced by printToStream().

◆ startPosition

const Coord inet::physicallayer::TransmissionBase::startPosition

protected

Referenced by printToStream().

◆ startTime

const simtime_t inet::physicallayer::TransmissionBase::startTime

protected

Referenced by printToStream().

◆ transmitterGain

Ptr<const IAntennaGain> inet::physicallayer::TransmissionBase::transmitterGain

protected

◆ transmitterId

const int inet::physicallayer::TransmissionBase::transmitterId

protected

Referenced by getTransmitter(), and printToStream().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ TransmissionBase()

Member Function Documentation

◆ getAnalogModel()

◆ getDataDuration()

◆ getDataEndTime()

◆ getDataStartTime()

◆ getDuration() [1/2]

◆ getDuration() [2/2]

◆ getEndOrientation()

◆ getEndPosition()

◆ getEndTime() [1/2]

◆ getEndTime() [2/2]

◆ getHeaderDuration()

◆ getHeaderEndTime()

◆ getHeaderStartTime()

◆ getId()

◆ getMedium()

◆ getPacket()

◆ getPreambleDuration()

◆ getPreambleEndTime()

◆ getPreambleStartTime()

◆ getStartOrientation()

◆ getStartPosition()

◆ getStartTime() [1/2]

◆ getStartTime() [2/2]

◆ getTransmitter()

◆ getTransmitterAntennaGain()

◆ getTransmitterId()

◆ printToStream()

Member Data Documentation

◆ dataDuration

◆ endOrientation

◆ endPosition

◆ endTime

◆ headerDuration

◆ id

◆ packet

◆ preambleDuration

◆ radioMedium

◆ startOrientation

◆ startPosition

◆ startTime

◆ transmitterGain

◆ transmitterId
