This model characterizes transmissions with the communication range, interference range, and detection range. More...

#include <UnitDiskTransmission.h>

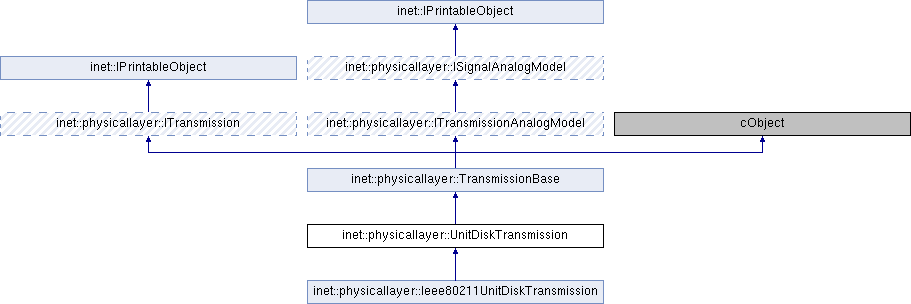

Inheritance diagram for inet::physicallayer::UnitDiskTransmission:

Public Member Functions
	UnitDiskTransmission (const IRadio transmitter, const Packet macFrame, const simtime_t startTime, const simtime_t endTime, const simtime_t preambleDuration, const simtime_t headerDuration, const simtime_t dataDuration, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation, m communicationRange, m interferenceRange, m detectionRange)

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual m	getCommunicationRange () const

virtual m	getInterferenceRange () const

virtual m	getDetectionRange () const

Public Member Functions inherited from inet::physicallayer::TransmissionBase
	TransmissionBase (const IRadio transmitter, const Packet packet, const simtime_t startTime, const simtime_t endTime, const simtime_t preambleDuration, const simtime_t headerDuration, const simtime_t dataDuration, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation)

virtual int	getId () const override
	Returns an identifier for this transmission which is globally unique for the whole lifetime of the simulation among all transmissions. More...

virtual const IRadio *	getTransmitter () const override
	Returns the transmitter that transmitted this radio signal on the radio channel. More...

virtual int	getTransmitterId () const override
	Returns the transmitter's id that transmitted this radio signal on the radio channel. More...

virtual const IAntennaGain *	getTransmitterAntennaGain () const override
	Returns the gain of the transmitting antenna. More...

virtual const IRadioMedium *	getMedium () const override
	Returns the radio medium used for this transmission. More...

virtual const Packet *	getPacket () const override
	Returns the packet corresponding to this transmission. More...

virtual const simtime_t	getStartTime () const override
	Returns the time when the transmitter started this transmission. More...

virtual const simtime_t	getEndTime () const override
	Returns the time when the transmitter ended this transmission. More...

virtual const simtime_t	getStartTime (IRadioSignal::SignalPart part) const override

virtual const simtime_t	getEndTime (IRadioSignal::SignalPart part) const override

virtual const simtime_t	getPreambleStartTime () const override

virtual const simtime_t	getPreambleEndTime () const override

virtual const simtime_t	getHeaderStartTime () const override

virtual const simtime_t	getHeaderEndTime () const override

virtual const simtime_t	getDataStartTime () const override

virtual const simtime_t	getDataEndTime () const override

virtual const simtime_t	getDuration () const override
	Returns the total length of this transmission. More...

virtual const simtime_t	getDuration (IRadioSignal::SignalPart part) const override
	Returns the length of the provided part of this transmission. More...

virtual const simtime_t	getPreambleDuration () const override
	Returns the length of the preamble part of this transmission. More...

virtual const simtime_t	getHeaderDuration () const override
	Returns the length of the header part of this transmission. More...

virtual const simtime_t	getDataDuration () const override
	Returns the length of the data part of this transmission. More...

virtual const Coord &	getStartPosition () const override
	Returns the antenna's position when the transmitter started this transmission. More...

virtual const Coord &	getEndPosition () const override
	Returns the antenna's position when the transmitter ended this transmission. More...

virtual const Quaternion &	getStartOrientation () const override
	Returns the antenna's orientation when the transmitter started this transmission. More...

virtual const Quaternion &	getEndOrientation () const override
	Returns the antenna's orientation when the transmitter ended this transmission. More...

virtual const ITransmissionAnalogModel *	getAnalogModel () const override
	Returns the analog model of the transmitted signal. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const m	communicationRange

const m	interferenceRange

const m	detectionRange

Protected Attributes inherited from inet::physicallayer::TransmissionBase
const int	id

const IRadioMedium *	radioMedium

const int	transmitterId

Ptr< const IAntennaGain >	transmitterGain

const Packet *	packet

const simtime_t	startTime

const simtime_t	endTime

const simtime_t	preambleDuration

const simtime_t	headerDuration

const simtime_t	dataDuration

const Coord	startPosition

const Coord	endPosition

const Quaternion	startOrientation

const Quaternion	endOrientation

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Static Protected Attributes inherited from inet::physicallayer::ITransmission
static int	nextId = 0

Detailed Description

This model characterizes transmissions with the communication range, interference range, and detection range.

Constructor & Destructor Documentation

◆ UnitDiskTransmission()

inet::physicallayer::UnitDiskTransmission::UnitDiskTransmission	(	const IRadio *	transmitter,
		const Packet *	macFrame,
		const simtime_t	startTime,
		const simtime_t	endTime,
		const simtime_t	preambleDuration,
		const simtime_t	headerDuration,
		const simtime_t	dataDuration,
		const Coord &	startPosition,
		const Coord &	endPosition,
		const Quaternion &	startOrientation,
		const Quaternion &	endOrientation,
		m	communicationRange,
		m	interferenceRange,
		m	detectionRange
	)

                                                                                                                                                                                                                                                                                                                                                                                                                                          :
     TransmissionBase(transmitter, macFrame, startTime, endTime, preambleDuration, headerDuration, dataDuration, startPosition, endPosition, startOrientation, endOrientation),
     communicationRange(communicationRange),
     interferenceRange(interferenceRange),
     detectionRange(detectionRange)
 {
 }

Member Function Documentation

◆ getCommunicationRange()

virtual m inet::physicallayer::UnitDiskTransmission::getCommunicationRange ( ) const

inlinevirtual

33 { return communicationRange; }

◆ getDetectionRange()

virtual m inet::physicallayer::UnitDiskTransmission::getDetectionRange ( ) const

inlinevirtual

35 { return detectionRange; }

◆ getInterferenceRange()

virtual m inet::physicallayer::UnitDiskTransmission::getInterferenceRange ( ) const

inlinevirtual

34 { return interferenceRange; }

◆ printToStream()

std::ostream & inet::physicallayer::UnitDiskTransmission::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::TransmissionBase.

Reimplemented in inet::physicallayer::Ieee80211UnitDiskTransmission.

 {
     stream << "UnitDiskTransmission";
     if (level <= PRINT_LEVEL_INFO)
         stream << EV_FIELD(communicationRange);
     if (level <= PRINT_LEVEL_TRACE)
         stream << EV_FIELD(interferenceRange)
                << EV_FIELD(detectionRange);
     return TransmissionBase::printToStream(stream, level);
 }

Referenced by inet::physicallayer::Ieee80211UnitDiskTransmission::printToStream().

Member Data Documentation

◆ communicationRange

const m inet::physicallayer::UnitDiskTransmission::communicationRange

protected

Referenced by printToStream().

◆ detectionRange

const m inet::physicallayer::UnitDiskTransmission::detectionRange

protected

Referenced by printToStream().

◆ interferenceRange

const m inet::physicallayer::UnitDiskTransmission::interferenceRange

protected

Referenced by printToStream().

The documentation for this class was generated from the following files:
