#include <LayeredTransmission.h>

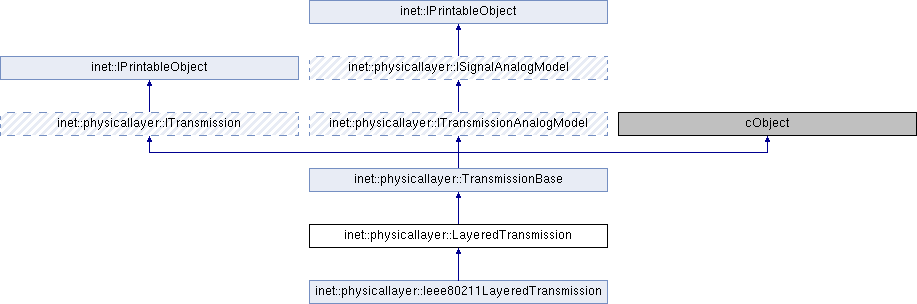

Inheritance diagram for inet::physicallayer::LayeredTransmission:

Public Member Functions
	LayeredTransmission (const ITransmissionPacketModel packetModel, const ITransmissionBitModel bitModel, const ITransmissionSymbolModel symbolModel, const ITransmissionSampleModel sampleModel, const ITransmissionAnalogModel analogModel, const IRadio transmitter, const Packet *packet, const simtime_t startTime, const simtime_t endTime, const simtime_t preambleDuration, const simtime_t headerDuration, const simtime_t dataDuration, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation)

virtual	~LayeredTransmission ()

virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...

virtual const ITransmissionPacketModel *	getPacketModel () const

virtual const ITransmissionBitModel *	getBitModel () const

virtual const ITransmissionSymbolModel *	getSymbolModel () const

virtual const ITransmissionSampleModel *	getSampleModel () const

virtual const ITransmissionAnalogModel *	getAnalogModel () const override
	Returns the analog model of the transmitted signal. More...

virtual const Packet *	getPacket () const override
	Returns the packet corresponding to this transmission. More...

Public Member Functions inherited from inet::physicallayer::TransmissionBase
	TransmissionBase (const IRadio transmitter, const Packet packet, const simtime_t startTime, const simtime_t endTime, const simtime_t preambleDuration, const simtime_t headerDuration, const simtime_t dataDuration, const Coord &startPosition, const Coord &endPosition, const Quaternion &startOrientation, const Quaternion &endOrientation)

virtual int	getId () const override
	Returns an identifier for this transmission which is globally unique for the whole lifetime of the simulation among all transmissions. More...

virtual const IRadio *	getTransmitter () const override
	Returns the transmitter that transmitted this radio signal on the radio channel. More...

virtual int	getTransmitterId () const override
	Returns the transmitter's id that transmitted this radio signal on the radio channel. More...

virtual const IAntennaGain *	getTransmitterAntennaGain () const override
	Returns the gain of the transmitting antenna. More...

virtual const IRadioMedium *	getMedium () const override
	Returns the radio medium used for this transmission. More...

virtual const simtime_t	getStartTime () const override
	Returns the time when the transmitter started this transmission. More...

virtual const simtime_t	getEndTime () const override
	Returns the time when the transmitter ended this transmission. More...

virtual const simtime_t	getStartTime (IRadioSignal::SignalPart part) const override

virtual const simtime_t	getEndTime (IRadioSignal::SignalPart part) const override

virtual const simtime_t	getPreambleStartTime () const override

virtual const simtime_t	getPreambleEndTime () const override

virtual const simtime_t	getHeaderStartTime () const override

virtual const simtime_t	getHeaderEndTime () const override

virtual const simtime_t	getDataStartTime () const override

virtual const simtime_t	getDataEndTime () const override

virtual const simtime_t	getDuration () const override
	Returns the total length of this transmission. More...

virtual const simtime_t	getDuration (IRadioSignal::SignalPart part) const override
	Returns the length of the provided part of this transmission. More...

virtual const simtime_t	getPreambleDuration () const override
	Returns the length of the preamble part of this transmission. More...

virtual const simtime_t	getHeaderDuration () const override
	Returns the length of the header part of this transmission. More...

virtual const simtime_t	getDataDuration () const override
	Returns the length of the data part of this transmission. More...

virtual const Coord &	getStartPosition () const override
	Returns the antenna's position when the transmitter started this transmission. More...

virtual const Coord &	getEndPosition () const override
	Returns the antenna's position when the transmitter ended this transmission. More...

virtual const Quaternion &	getStartOrientation () const override
	Returns the antenna's orientation when the transmitter started this transmission. More...

virtual const Quaternion &	getEndOrientation () const override
	Returns the antenna's orientation when the transmitter ended this transmission. More...

Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()

virtual std::string	printToString () const

virtual std::string	printToString (int level, int evFlags=0) const

virtual std::string	getInfoStringRepresentation (int evFlags=0) const

virtual std::string	getDetailStringRepresentation (int evFlags=0) const

virtual std::string	getDebugStringRepresentation (int evFlags=0) const

virtual std::string	getTraceStringRepresentation (int evFlags=0) const

virtual std::string	getCompleteStringRepresentation (int evFlags=0) const

Protected Attributes
const ITransmissionPacketModel *	packetModel

const ITransmissionBitModel *	bitModel

const ITransmissionSymbolModel *	symbolModel

const ITransmissionSampleModel *	sampleModel

const ITransmissionAnalogModel *	analogModel

Protected Attributes inherited from inet::physicallayer::TransmissionBase
const int	id

const IRadioMedium *	radioMedium

const int	transmitterId

Ptr< const IAntennaGain >	transmitterGain

const Packet *	packet

const simtime_t	startTime

const simtime_t	endTime

const simtime_t	preambleDuration

const simtime_t	headerDuration

const simtime_t	dataDuration

const Coord	startPosition

const Coord	endPosition

const Quaternion	startOrientation

const Quaternion	endOrientation

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel { PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO, PRINT_LEVEL_COMPLETE = INT_MIN }

enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Static Protected Attributes inherited from inet::physicallayer::ITransmission
static int	nextId = 0

Constructor & Destructor Documentation

◆ LayeredTransmission()

inet::physicallayer::LayeredTransmission::LayeredTransmission	(	const ITransmissionPacketModel *	packetModel,
		const ITransmissionBitModel *	bitModel,
		const ITransmissionSymbolModel *	symbolModel,
		const ITransmissionSampleModel *	sampleModel,
		const ITransmissionAnalogModel *	analogModel,
		const IRadio *	transmitter,
		const Packet *	packet,
		const simtime_t	startTime,
		const simtime_t	endTime,
		const simtime_t	preambleDuration,
		const simtime_t	headerDuration,
		const simtime_t	dataDuration,
		const Coord &	startPosition,
		const Coord &	endPosition,
		const Quaternion &	startOrientation,
		const Quaternion &	endOrientation
	)

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    :
     TransmissionBase(transmitter, packet, startTime, endTime, preambleDuration, headerDuration, dataDuration, startPosition, endPosition, startOrientation, endOrientation),
     packetModel(packetModel),
     bitModel(bitModel),
     symbolModel(symbolModel),
     sampleModel(sampleModel),
     analogModel(analogModel)
 {
 }

◆ ~LayeredTransmission()

inet::physicallayer::LayeredTransmission::~LayeredTransmission ( )

virtual

 {
     delete packetModel;
     delete bitModel;
     delete symbolModel;
     delete sampleModel;
     delete analogModel;
 }

Member Function Documentation

◆ getAnalogModel()

virtual const ITransmissionAnalogModel* inet::physicallayer::LayeredTransmission::getAnalogModel ( ) const

inlineoverridevirtual

Returns the analog model of the transmitted signal.

Reimplemented from inet::physicallayer::TransmissionBase.

40 { return analogModel; }

Referenced by inet::physicallayer::ApskLayeredErrorModel::computeBitModel(), inet::physicallayer::Ieee80211OfdmErrorModel::computeBitModel(), inet::physicallayer::ApskLayeredErrorModel::computePacketModel(), inet::physicallayer::LayeredDimensionalAnalogModel::computeReception(), inet::physicallayer::LayeredScalarAnalogModel::computeReception(), and inet::physicallayer::ApskLayeredErrorModel::computeSymbolModel().

◆ getBitModel()

virtual const ITransmissionBitModel* inet::physicallayer::LayeredTransmission::getBitModel ( ) const

inlinevirtual

37 { return bitModel; }

Referenced by inet::physicallayer::LayeredErrorModelBase::computeBitModel(), inet::physicallayer::ApskLayeredErrorModel::computeBitModel(), inet::physicallayer::Ieee80211OfdmErrorModel::computeBitModel(), inet::physicallayer::ApskLayeredErrorModel::computePacketModel(), and inet::physicallayer::ApskLayeredErrorModel::computeSymbolModel().

◆ getPacket()

virtual const Packet* inet::physicallayer::LayeredTransmission::getPacket ( ) const

inlineoverridevirtual

Returns the packet corresponding to this transmission.

This function never returns nullptr.

Reimplemented from inet::physicallayer::TransmissionBase.

42 { return packetModel->getPacket(); }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmReceiver::computeReceptionResult().

◆ getPacketModel()

virtual const ITransmissionPacketModel* inet::physicallayer::LayeredTransmission::getPacketModel ( ) const

inlinevirtual

36 { return packetModel; }

Referenced by inet::physicallayer::LayeredErrorModelBase::computePacketModel(), inet::physicallayer::ApskLayeredErrorModel::computePacketModel(), and inet::physicallayer::Ieee80211OfdmErrorModel::computePacketModel().

◆ getSampleModel()

virtual const ITransmissionSampleModel* inet::physicallayer::LayeredTransmission::getSampleModel ( ) const

inlinevirtual

39 { return sampleModel; }

Referenced by inet::physicallayer::Ieee80211OfdmErrorModel::computeSampleModel().

◆ getSymbolModel()

virtual const ITransmissionSymbolModel* inet::physicallayer::LayeredTransmission::getSymbolModel ( ) const

inlinevirtual

38 { return symbolModel; }

Referenced by inet::physicallayer::ApskLayeredErrorModel::computeBitModel(), inet::physicallayer::Ieee80211OfdmErrorModel::computeBitModel(), inet::physicallayer::ApskLayeredErrorModel::computePacketModel(), inet::physicallayer::LayeredErrorModelBase::computeSymbolModel(), inet::physicallayer::ApskLayeredErrorModel::computeSymbolModel(), and inet::physicallayer::Ieee80211OfdmErrorModel::computeSymbolModel().

◆ printToStream()

std::ostream & inet::physicallayer::LayeredTransmission::printToStream	(	std::ostream &	stream,
		int	level,
		int	evFlags = `0`
	)		const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::physicallayer::TransmissionBase.

Reimplemented in inet::physicallayer::Ieee80211LayeredTransmission.

 {
     stream << "LayeredTransmission";
     if (level <= PRINT_LEVEL_DETAIL)
         stream << EV_FIELD(packetModel, printFieldToString(packetModel, level + 1, evFlags))
                << EV_FIELD(bitModel, printFieldToString(bitModel, level + 1, evFlags))
                << EV_FIELD(symbolModel, printFieldToString(symbolModel, level + 1, evFlags))
                << EV_FIELD(sampleModel, printFieldToString(sampleModel, level + 1, evFlags))
                << EV_FIELD(analogModel, printFieldToString(analogModel, level + 1, evFlags));
     return TransmissionBase::printToStream(stream, level);
 }

Referenced by inet::physicallayer::Ieee80211LayeredTransmission::printToStream().

Member Data Documentation

◆ analogModel

const ITransmissionAnalogModel* inet::physicallayer::LayeredTransmission::analogModel

protected

Referenced by printToStream(), and ~LayeredTransmission().

◆ bitModel

const ITransmissionBitModel* inet::physicallayer::LayeredTransmission::bitModel

protected

Referenced by printToStream(), and ~LayeredTransmission().

◆ packetModel

const ITransmissionPacketModel* inet::physicallayer::LayeredTransmission::packetModel

protected

Referenced by printToStream(), and ~LayeredTransmission().

◆ sampleModel

const ITransmissionSampleModel* inet::physicallayer::LayeredTransmission::sampleModel

protected

Referenced by printToStream(), and ~LayeredTransmission().

◆ symbolModel

const ITransmissionSymbolModel* inet::physicallayer::LayeredTransmission::symbolModel

protected

Referenced by printToStream(), and ~LayeredTransmission().

The documentation for this class was generated from the following files:
