inet::visualizer::StatisticOsgVisualizer Class Reference

#include <StatisticOsgVisualizer.h>

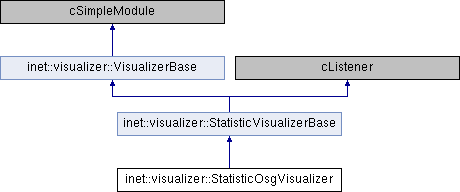

Inheritance diagram for inet::visualizer::StatisticOsgVisualizer:

Classes
class	StatisticOsgVisualization

Protected Member Functions
virtual void	initialize (int stage) override
virtual StatisticVisualization *	createStatisticVisualization (cComponent *source, simsignal_t signal) override
virtual void	addStatisticVisualization (const StatisticVisualization *statisticVisualization) override
virtual void	removeStatisticVisualization (const StatisticVisualization *statisticVisualization) override
virtual void	refreshStatisticVisualization (const StatisticVisualization *statisticVisualization) override
Protected Member Functions inherited from inet::visualizer::StatisticVisualizerBase
virtual void	handleParameterChange (const char *name) override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual void	addResultRecorder (cComponent *source, simsignal_t signal)
virtual LastValueRecorder *	getResultRecorder (cComponent *source, simsignal_t signal)
virtual LastValueRecorder *	findResultRecorder (cResultListener *resultListener)
virtual std::string	getText (const StatisticVisualization *statisticVisualization)
virtual const char *	getUnit (cComponent *source)
virtual std::string	getRecordingMode ()
virtual const StatisticVisualization *	getStatisticVisualization (cComponent *source, simsignal_t signal)
virtual void	removeAllStatisticVisualizations ()
virtual void	processSignal (cComponent *source, simsignal_t signal, std::function< void(cIListener *)> receiveSignal)
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
ModuleRefByPar< NetworkNodeOsgVisualizer >	networkNodeVisualizer
Protected Attributes inherited from inet::visualizer::StatisticVisualizerBase
bool	displayStatistics = false
ModuleFilter	sourceFilter
const char *	signalName = nullptr
const char *	statisticName = nullptr
const char *	statisticUnit = nullptr
const char *	statisticExpression = nullptr
StringFormat	format
std::vector< std::string >	units
cFigure::Font	font
cFigure::Color	textColor
cFigure::Color	backgroundColor
double	opacity = NaN
Placement	placementHint
double	placementPriority
std::map< std::pair< int, simsignal_t >, const StatisticVisualization * >	statisticVisualizations
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::StatisticVisualizerBase
virtual void	receiveSignal (cComponent *source, simsignal_t signal, bool b, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, intval_t l, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, uintval_t l, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, double d, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, const SimTime &t, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, const char *s, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *obj, cObject *details) override

Member Function Documentation

addStatisticVisualization()

void inet::visualizer::StatisticOsgVisualizer::addStatisticVisualization ( const StatisticVisualization *  statisticVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::StatisticVisualizerBase.

{
    StatisticVisualizerBase::addStatisticVisualization(statisticVisualization);
    auto statisticOsgVisualization = static_cast<const StatisticOsgVisualization *>(statisticVisualization);
    statisticOsgVisualization->networkNodeVisualization->addAnnotation(statisticOsgVisualization->node, osg::Vec3d(100, 18, 0), 1.0);
}

createStatisticVisualization()

StatisticVisualizerBase::StatisticVisualization * inet::visualizer::StatisticOsgVisualizer::createStatisticVisualization ( cComponent *  source, simsignal_t  signal  )

overrideprotectedvirtual

Implements inet::visualizer::StatisticVisualizerBase.

{
    auto label = new osgText::Text();
    label->setCharacterSize(18);
    label->setBoundingBoxColor(osg::Vec4(backgroundColor.red / 255.0, backgroundColor.green / 255.0, backgroundColor.blue / 255.0, 0.5));
    label->setColor(osg::Vec4(textColor.red / 255.0, textColor.green / 255.0, textColor.blue / 255.0, 0.5));
    label->setAlignment(osgText::Text::CENTER_BOTTOM);
    label->setText("");
    label->setDrawMode(osgText::Text::FILLEDBOUNDINGBOX | osgText::Text::TEXT);
    label->setPosition(osg::Vec3(0.0, 0.0, 0.0));
    auto geode = new osg::Geode();
    geode->getOrCreateStateSet()->setMode(GL_LIGHTING, osg::StateAttribute::OFF | osg::StateAttribute::OVERRIDE);
    geode->addDrawable(label);
    auto networkNode = getContainingNode(check_and_cast<cModule *>(source));
    auto networkNodeVisualization = networkNodeVisualizer->getNetworkNodeVisualization(networkNode);
    return new StatisticOsgVisualization(networkNodeVisualization, geode, source->getId(), signal, getUnit(source));
}

initialize()

void inet::visualizer::StatisticOsgVisualizer::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::StatisticVisualizerBase.

{
    StatisticVisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        networkNodeVisualizer.reference(this, "networkNodeVisualizerModule", true);
    }
}

refreshStatisticVisualization()

void inet::visualizer::StatisticOsgVisualizer::refreshStatisticVisualization ( const StatisticVisualization *  statisticVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::StatisticVisualizerBase.

{
    StatisticVisualizerBase::refreshStatisticVisualization(statisticVisualization);
    auto statisticOsgVisualization = static_cast<const StatisticOsgVisualization *>(statisticVisualization);
    auto geode = check_and_cast<osg::Geode *>(statisticOsgVisualization->node);
    auto label = check_and_cast<osgText::Text *>(geode->getDrawable(0));
    label->setText(getText(statisticVisualization));
}

removeStatisticVisualization()

void inet::visualizer::StatisticOsgVisualizer::removeStatisticVisualization ( const StatisticVisualization *  statisticVisualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::StatisticVisualizerBase.

{
    StatisticVisualizerBase::removeStatisticVisualization(statisticVisualization);
    auto statisticOsgVisualization = static_cast<const StatisticOsgVisualization *>(statisticVisualization);
    if (networkNodeVisualizer != nullptr)
        statisticOsgVisualization->networkNodeVisualization->removeAnnotation(statisticOsgVisualization->node);
}

Member Data Documentation

networkNodeVisualizer

ModuleRefByPar<NetworkNodeOsgVisualizer> inet::visualizer::StatisticOsgVisualizer::networkNodeVisualizer

protected

Referenced by createStatisticVisualization(), initialize(), and removeStatisticVisualization().

---

The documentation for this class was generated from the following files:

• StatisticOsgVisualizer.h
• StatisticOsgVisualizer.cc
