inet::visualizer::NetworkNodeOsgVisualizer Class Reference

#include <NetworkNodeOsgVisualizer.h>

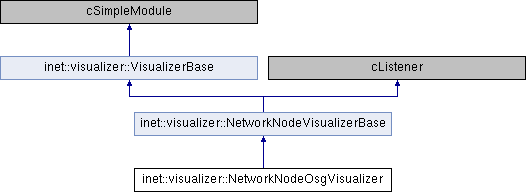

Inheritance diagram for inet::visualizer::NetworkNodeOsgVisualizer:

Public Member Functions
virtual	~NetworkNodeOsgVisualizer ()
virtual NetworkNodeOsgVisualization *	findNetworkNodeVisualization (const cModule *networkNode) const override
virtual NetworkNodeOsgVisualization *	getNetworkNodeVisualization (const cModule *networkNode) const override
Public Member Functions inherited from inet::visualizer::NetworkNodeVisualizerBase
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	refreshDisplay () const override
virtual NetworkNodeOsgVisualization *	createNetworkNodeVisualization (cModule *networkNode) const override
virtual void	addNetworkNodeVisualization (NetworkNodeVisualization *networkNodeVisualization) override
virtual void	removeNetworkNodeVisualization (NetworkNodeVisualization *networkNodeVisualization) override
virtual void	destroyNetworkNodeVisualization (NetworkNodeVisualization *networkNodeVisualization) override
Protected Member Functions inherited from inet::visualizer::NetworkNodeVisualizerBase
virtual void	handleParameterChange (const char *name) override
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
bool	displayModuleName
std::map< int, osg::ref_ptr< NetworkNodeOsgVisualization > >	networkNodeVisualizations
Protected Attributes inherited from inet::visualizer::NetworkNodeVisualizerBase
NetworkNodeFilter	nodeFilter
double	annotationSpacing
double	placementPenalty
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Constructor & Destructor Documentation

~NetworkNodeOsgVisualizer()

inet::visualizer::NetworkNodeOsgVisualizer::~NetworkNodeOsgVisualizer ( )

virtual

{
    for (auto& it : networkNodeVisualizations) {
        auto networkNodeVisualization = it.second;
        while (networkNodeVisualization->getNumAnnotations() != 0)
            networkNodeVisualization->removeAnnotation(0);
    }
}

Member Function Documentation

addNetworkNodeVisualization()

void inet::visualizer::NetworkNodeOsgVisualizer::addNetworkNodeVisualization ( NetworkNodeVisualization *  networkNodeVisualization )

overrideprotectedvirtual

Implements inet::visualizer::NetworkNodeVisualizerBase.

{
    auto networkNodeOsgVisualization = check_and_cast<NetworkNodeOsgVisualization *>(networkNodeVisualization);
    networkNodeVisualizations[networkNodeOsgVisualization->networkNode->getId()] = networkNodeOsgVisualization;
    auto scene = inet::osg::TopLevelScene::getSimulationScene(visualizationTargetModule);
    scene->addChild(networkNodeOsgVisualization);
}

Referenced by initialize().

createNetworkNodeVisualization()

NetworkNodeOsgVisualization * inet::visualizer::NetworkNodeOsgVisualizer::createNetworkNodeVisualization ( cModule *  networkNode ) const

overrideprotectedvirtual

Implements inet::visualizer::NetworkNodeVisualizerBase.

{
    return new NetworkNodeOsgVisualization(networkNode, displayModuleName);
}

Referenced by initialize().

destroyNetworkNodeVisualization()

virtual void inet::visualizer::NetworkNodeOsgVisualizer::destroyNetworkNodeVisualization ( NetworkNodeVisualization *  networkNodeVisualization )

inlineoverrideprotectedvirtual

Implements inet::visualizer::NetworkNodeVisualizerBase.

{}

findNetworkNodeVisualization()

NetworkNodeOsgVisualization * inet::visualizer::NetworkNodeOsgVisualizer::findNetworkNodeVisualization ( const cModule *  networkNode ) const

overridevirtual

Implements inet::visualizer::NetworkNodeVisualizerBase.

{
    auto it = networkNodeVisualizations.find(networkNode->getId());
    return it == networkNodeVisualizations.end() ? nullptr : it->second;
}

getNetworkNodeVisualization()

NetworkNodeOsgVisualization * inet::visualizer::NetworkNodeOsgVisualizer::getNetworkNodeVisualization ( const cModule *  networkNode ) const

overridevirtual

Reimplemented from inet::visualizer::NetworkNodeVisualizerBase.

{
    return static_cast<NetworkNodeOsgVisualization *>(NetworkNodeVisualizerBase::getNetworkNodeVisualization(networkNode));
}

initialize()

void inet::visualizer::NetworkNodeOsgVisualizer::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::NetworkNodeVisualizerBase.

{
    NetworkNodeVisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        displayModuleName = par("displayModuleName");
        for (cModule::SubmoduleIterator it(visualizationSubjectModule); !it.end(); it++) {
            auto networkNode = *it;
            if (isNetworkNode(networkNode) && nodeFilter.matches(networkNode)) {
                auto visualization = createNetworkNodeVisualization(networkNode);
                addNetworkNodeVisualization(visualization);
            }
        }
    }
}

refreshDisplay()

void inet::visualizer::NetworkNodeOsgVisualizer::refreshDisplay ( ) const

overrideprotectedvirtual

{
    for (auto it : networkNodeVisualizations) {
        auto networkNode = getSimulation()->getModule(it.first);
        auto visualization = it.second;
        auto position = getPosition(networkNode);
        auto orientation = getOrientation(networkNode);
        visualization->setPosition(osg::Vec3d(position.x, position.y, position.z));
        visualization->setAttitude(osg::Quat(osg::Vec4d(orientation.v.x, orientation.v.y, orientation.v.z, orientation.s)));
    }
}

removeNetworkNodeVisualization()

void inet::visualizer::NetworkNodeOsgVisualizer::removeNetworkNodeVisualization ( NetworkNodeVisualization *  networkNodeVisualization )

overrideprotectedvirtual

Implements inet::visualizer::NetworkNodeVisualizerBase.

{
    auto networkNodeOsgVisualization = check_and_cast<NetworkNodeOsgVisualization *>(networkNodeVisualization);
    networkNodeVisualizations.erase(networkNodeVisualizations.find(networkNodeOsgVisualization->networkNode->getId()));
    auto scene = inet::osg::TopLevelScene::getSimulationScene(visualizationTargetModule);
    scene->removeChild(networkNodeOsgVisualization);
}

Member Data Documentation

displayModuleName

bool inet::visualizer::NetworkNodeOsgVisualizer::displayModuleName

protected

Referenced by createNetworkNodeVisualization(), and initialize().

networkNodeVisualizations

std::map<int, osg::ref_ptr<NetworkNodeOsgVisualization> > inet::visualizer::NetworkNodeOsgVisualizer::networkNodeVisualizations

protected

Referenced by addNetworkNodeVisualization(), findNetworkNodeVisualization(), refreshDisplay(), removeNetworkNodeVisualization(), and ~NetworkNodeOsgVisualizer().

---

The documentation for this class was generated from the following files:

• NetworkNodeOsgVisualizer.h
• NetworkNodeOsgVisualizer.cc
