inet::visualizer::NetworkNodeVisualizerBase Class Reference

#include <NetworkNodeVisualizerBase.h>

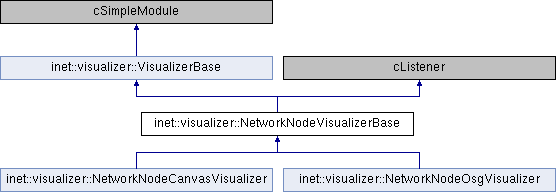

Inheritance diagram for inet::visualizer::NetworkNodeVisualizerBase:

Classes
class	NetworkNodeVisualization

Public Member Functions
virtual NetworkNodeVisualization *	findNetworkNodeVisualization (const cModule *networkNode) const =0
virtual NetworkNodeVisualization *	getNetworkNodeVisualization (const cModule *networkNode) const
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	handleParameterChange (const char *name) override
virtual NetworkNodeVisualization *	createNetworkNodeVisualization (cModule *networkNode) const =0
virtual void	addNetworkNodeVisualization (NetworkNodeVisualization *networkNodeVisualization)=0
virtual void	removeNetworkNodeVisualization (NetworkNodeVisualization *networkNodeVisualization)=0
virtual void	destroyNetworkNodeVisualization (NetworkNodeVisualization *networkNodeVisualization)=0
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
NetworkNodeFilter	nodeFilter
double	annotationSpacing
double	placementPenalty
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Member Function Documentation

addNetworkNodeVisualization()

virtual void inet::visualizer::NetworkNodeVisualizerBase::addNetworkNodeVisualization ( NetworkNodeVisualization *  networkNodeVisualization )

protectedpure virtual

Implemented in inet::visualizer::NetworkNodeCanvasVisualizer, and inet::visualizer::NetworkNodeOsgVisualizer.

Referenced by receiveSignal().

createNetworkNodeVisualization()

virtual NetworkNodeVisualization* inet::visualizer::NetworkNodeVisualizerBase::createNetworkNodeVisualization ( cModule *  networkNode ) const

protectedpure virtual

Implemented in inet::visualizer::NetworkNodeCanvasVisualizer, and inet::visualizer::NetworkNodeOsgVisualizer.

Referenced by receiveSignal().

destroyNetworkNodeVisualization()

virtual void inet::visualizer::NetworkNodeVisualizerBase::destroyNetworkNodeVisualization ( NetworkNodeVisualization *  networkNodeVisualization )

protectedpure virtual

Implemented in inet::visualizer::NetworkNodeCanvasVisualizer, and inet::visualizer::NetworkNodeOsgVisualizer.

Referenced by receiveSignal().

findNetworkNodeVisualization()

virtual NetworkNodeVisualization* inet::visualizer::NetworkNodeVisualizerBase::findNetworkNodeVisualization ( const cModule *  networkNode ) const

pure virtual

Implemented in inet::visualizer::NetworkNodeCanvasVisualizer, and inet::visualizer::NetworkNodeOsgVisualizer.

Referenced by getNetworkNodeVisualization().

getNetworkNodeVisualization()

NetworkNodeVisualizerBase::NetworkNodeVisualization * inet::visualizer::NetworkNodeVisualizerBase::getNetworkNodeVisualization ( const cModule *  networkNode ) const

virtual

Reimplemented in inet::visualizer::NetworkNodeCanvasVisualizer, and inet::visualizer::NetworkNodeOsgVisualizer.

{
    auto visualization = findNetworkNodeVisualization(networkNode);
    if (visualization == nullptr)
        throw cRuntimeError("Network node visualization is not found for '%s'", networkNode->getFullPath().c_str());
    else
        return visualization;
}

Referenced by inet::visualizer::NetworkNodeCanvasVisualizer::getNetworkNodeVisualization(), inet::visualizer::NetworkNodeOsgVisualizer::getNetworkNodeVisualization(), and receiveSignal().

handleParameterChange()

void inet::visualizer::NetworkNodeVisualizerBase::handleParameterChange ( const char *  name )

overrideprotectedvirtual

{
    if (!hasGUI()) return;
    if (name != nullptr) {
        if (!strcmp(name, "nodeFilter"))
            nodeFilter.setPattern(par("nodeFilter"));
        // TODO
    }
}

initialize()

void inet::visualizer::NetworkNodeVisualizerBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::VisualizerBase.

Reimplemented in inet::visualizer::NetworkNodeCanvasVisualizer, and inet::visualizer::NetworkNodeOsgVisualizer.

{
    VisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        nodeFilter.setPattern(par("nodeFilter"));
        annotationSpacing = par("annotationSpacing");
        placementPenalty = par("placementPenalty");
        visualizationSubjectModule->subscribe(POST_MODEL_CHANGE, this);
        visualizationSubjectModule->subscribe(PRE_MODEL_CHANGE, this);
    }
}

Referenced by inet::visualizer::NetworkNodeCanvasVisualizer::initialize(), and inet::visualizer::NetworkNodeOsgVisualizer::initialize().

receiveSignal()

void inet::visualizer::NetworkNodeVisualizerBase::receiveSignal ( cComponent *  source, simsignal_t  signal, cObject *  object, cObject *  details  )

overridevirtual

{
    Enter_Method("%s", cComponent::getSignalName(signal));

    if (signal == POST_MODEL_CHANGE) {
        if (auto moduleInit = dynamic_cast<cPreModuleInitNotification *>(object)) {
            auto module = moduleInit->module;
            if (isNetworkNode(module) && nodeFilter.matches(module)) {
                auto visualization = createNetworkNodeVisualization(module);
                addNetworkNodeVisualization(visualization);
            }
        }
    }
    else if (signal == PRE_MODEL_CHANGE) {
        if (auto moduleDelete = dynamic_cast<cPreModuleDeleteNotification *>(object)) {
            auto module = moduleDelete->module;
            if (isNetworkNode(module) && nodeFilter.matches(module)) {
                auto visualization = getNetworkNodeVisualization(module);
                removeNetworkNodeVisualization(visualization);
                destroyNetworkNodeVisualization(visualization);
            }
        }
    }
    else
        throw cRuntimeError("Unknown signal");
}

removeNetworkNodeVisualization()

virtual void inet::visualizer::NetworkNodeVisualizerBase::removeNetworkNodeVisualization ( NetworkNodeVisualization *  networkNodeVisualization )

protectedpure virtual

Implemented in inet::visualizer::NetworkNodeCanvasVisualizer, and inet::visualizer::NetworkNodeOsgVisualizer.

Referenced by receiveSignal().

Member Data Documentation

annotationSpacing

double inet::visualizer::NetworkNodeVisualizerBase::annotationSpacing

protected

Referenced by inet::visualizer::NetworkNodeCanvasVisualizer::createNetworkNodeVisualization(), and initialize().

nodeFilter

NetworkNodeFilter inet::visualizer::NetworkNodeVisualizerBase::nodeFilter

protected

Referenced by handleParameterChange(), inet::visualizer::NetworkNodeCanvasVisualizer::initialize(), inet::visualizer::NetworkNodeOsgVisualizer::initialize(), initialize(), and receiveSignal().

placementPenalty

double inet::visualizer::NetworkNodeVisualizerBase::placementPenalty

protected

Referenced by inet::visualizer::NetworkNodeCanvasVisualizer::createNetworkNodeVisualization(), and initialize().

---

The documentation for this class was generated from the following files:

• NetworkNodeVisualizerBase.h
• NetworkNodeVisualizerBase.cc
