inet::visualizer::StatisticVisualizerBase Class Reference

#include <StatisticVisualizerBase.h>

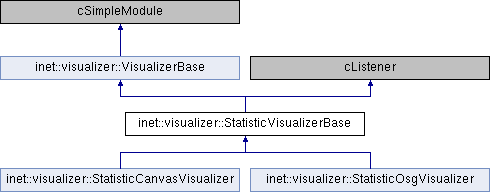

Inheritance diagram for inet::visualizer::StatisticVisualizerBase:

Classes
class	DirectiveResolver
class	LastValueRecorder
class	StatisticVisualization

Parameters
bool	displayStatistics = false
ModuleFilter	sourceFilter
const char *	signalName = nullptr
const char *	statisticName = nullptr
const char *	statisticUnit = nullptr
const char *	statisticExpression = nullptr
StringFormat	format
std::vector< std::string >	units
cFigure::Font	font
cFigure::Color	textColor
cFigure::Color	backgroundColor
double	opacity = NaN
Placement	placementHint
double	placementPriority
std::map< std::pair< int, simsignal_t >, const StatisticVisualization * >	statisticVisualizations
virtual void	initialize (int stage) override
virtual void	handleParameterChange (const char *name) override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual void	addResultRecorder (cComponent *source, simsignal_t signal)
virtual LastValueRecorder *	getResultRecorder (cComponent *source, simsignal_t signal)
virtual LastValueRecorder *	findResultRecorder (cResultListener *resultListener)
virtual std::string	getText (const StatisticVisualization *statisticVisualization)
virtual const char *	getUnit (cComponent *source)
virtual std::string	getRecordingMode ()
virtual StatisticVisualization *	createStatisticVisualization (cComponent *source, simsignal_t signal)=0
virtual const StatisticVisualization *	getStatisticVisualization (cComponent *source, simsignal_t signal)
virtual void	addStatisticVisualization (const StatisticVisualization *statisticVisualization)
virtual void	removeStatisticVisualization (const StatisticVisualization *statisticVisualization)
virtual void	removeAllStatisticVisualizations ()
virtual void	refreshStatisticVisualization (const StatisticVisualization *statisticVisualization)
virtual void	processSignal (cComponent *source, simsignal_t signal, std::function< void(cIListener *)> receiveSignal)
virtual void	receiveSignal (cComponent *source, simsignal_t signal, bool b, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, intval_t l, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, uintval_t l, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, double d, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, const SimTime &t, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, const char *s, cObject *details) override
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *obj, cObject *details) override

Additional Inherited Members
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Member Function Documentation

addResultRecorder()

void inet::visualizer::StatisticVisualizerBase::addResultRecorder ( cComponent *  source, simsignal_t  signal  )

protectedvirtual

{
    cStatisticBuilder statisticBuilder(getEnvir()->getConfig());
    cProperty statisticTemplateProperty;
    auto recordingMode = getRecordingMode();
    statisticTemplateProperty.addKey("record");
    statisticTemplateProperty.setValue("record", 0, recordingMode.c_str());
    statisticBuilder.addResultRecorders(source, signal, statisticName, &statisticTemplateProperty);
}

Referenced by processSignal().

addStatisticVisualization()

void inet::visualizer::StatisticVisualizerBase::addStatisticVisualization ( const StatisticVisualization *  statisticVisualization )

protectedvirtual

Reimplemented in inet::visualizer::StatisticOsgVisualizer, and inet::visualizer::StatisticCanvasVisualizer.

{
    auto key = std::pair<int, simsignal_t>(statisticVisualization->moduleId, statisticVisualization->signal);
    statisticVisualizations[key] = statisticVisualization;
}

Referenced by inet::visualizer::StatisticCanvasVisualizer::addStatisticVisualization(), inet::visualizer::StatisticOsgVisualizer::addStatisticVisualization(), and processSignal().

createStatisticVisualization()

virtual StatisticVisualization* inet::visualizer::StatisticVisualizerBase::createStatisticVisualization ( cComponent *  source, simsignal_t  signal  )

protectedpure virtual

Implemented in inet::visualizer::StatisticOsgVisualizer, and inet::visualizer::StatisticCanvasVisualizer.

Referenced by processSignal().

findResultRecorder()

StatisticVisualizerBase::LastValueRecorder * inet::visualizer::StatisticVisualizerBase::findResultRecorder ( cResultListener *  resultListener )

protectedvirtual

{
    if (auto resultRecorder = dynamic_cast<StatisticVisualizerBase::LastValueRecorder *>(resultListener)) {
        if (getRecordingMode() == resultRecorder->getRecordingMode() && !strcmp(statisticName, resultRecorder->getStatisticName()))
            return resultRecorder;
        else
            return nullptr;
    }
    else if (auto resultFilter = dynamic_cast<cResultFilter *>(resultListener)) {
        auto delegates = resultFilter->getDelegates();
        for (auto delegate : delegates) {
            auto foundResultFilter = findResultRecorder(delegate);
            if (foundResultFilter != nullptr)
                return foundResultFilter;
        }
    }
    return nullptr;
}

Referenced by getResultRecorder().

getRecordingMode()

std::string inet::visualizer::StatisticVisualizerBase::getRecordingMode ( )

protectedvirtual

{
    if (*statisticExpression == '\0')
        return "statisticVisualizerLastValueRecorder";
    else
        return std::string("statisticVisualizerLastValueRecorder(") + statisticExpression + std::string(")");
}

Referenced by addResultRecorder(), and findResultRecorder().

getResultRecorder()

StatisticVisualizerBase::LastValueRecorder * inet::visualizer::StatisticVisualizerBase::getResultRecorder ( cComponent *  source, simsignal_t  signal  )

protectedvirtual

{
    auto listeners = source->getLocalSignalListeners(signal);
    for (auto listener : listeners) {
        if (auto resultListener = dynamic_cast<cResultListener *>(listener)) {
            auto foundResultFilter = findResultRecorder(resultListener);
            if (foundResultFilter != nullptr)
                return foundResultFilter;
        }
    }
    throw cRuntimeError("Recorder not found for signal '%s'", signalName);
}

Referenced by processSignal().

getStatisticVisualization()

const StatisticVisualizerBase::StatisticVisualization * inet::visualizer::StatisticVisualizerBase::getStatisticVisualization ( cComponent *  source, simsignal_t  signal  )

protectedvirtual

{
    auto key = std::pair<int, simsignal_t>(source->getId(), signal);
    auto it = statisticVisualizations.find(key);
    return (it == statisticVisualizations.end()) ? nullptr : it->second;
}

Referenced by processSignal().

getText()

std::string inet::visualizer::StatisticVisualizerBase::getText ( const StatisticVisualization *  statisticVisualization )

protectedvirtual

{
    DirectiveResolver directiveResolver(this, statisticVisualization);
    return format.formatString(&directiveResolver);
}

Referenced by inet::visualizer::StatisticCanvasVisualizer::refreshStatisticVisualization(), and inet::visualizer::StatisticOsgVisualizer::refreshStatisticVisualization().

getUnit()

const char * inet::visualizer::StatisticVisualizerBase::getUnit ( cComponent *  source )

protectedvirtual

{
    auto properties = source->getProperties();
    for (int i = 0; i < properties->getNumProperties(); i++) {
        auto property = properties->get(i);
        if (!strcmp(property->getName(), "statistic") && !strcmp(property->getIndex(), statisticName)) {
            auto unit = property->getValue("unit", 0);
            if (unit != nullptr)
                return unit;
        }
    }
    return statisticUnit;
}

Referenced by inet::visualizer::StatisticCanvasVisualizer::createStatisticVisualization(), and inet::visualizer::StatisticOsgVisualizer::createStatisticVisualization().

handleParameterChange()

void inet::visualizer::StatisticVisualizerBase::handleParameterChange ( const char *  name )

overrideprotectedvirtual

{
    if (!hasGUI()) return;
    if (name != nullptr) {
        if (!strcmp(name, "sourceFilter"))
            sourceFilter.setPattern(par("sourceFilter"));
        else if (!strcmp(name, "format"))
            format.parseFormat(par("format"));
        removeAllStatisticVisualizations();
    }
}

initialize()

void inet::visualizer::StatisticVisualizerBase::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::VisualizerBase.

Reimplemented in inet::visualizer::StatisticOsgVisualizer, and inet::visualizer::StatisticCanvasVisualizer.

{
    VisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        displayStatistics = par("displayStatistics");
        sourceFilter.setPattern(par("sourceFilter"));
        signalName = par("signalName");
        statisticName = par("statisticName");
        statisticUnit = par("statisticUnit");
        statisticExpression = par("statisticExpression");
        format.parseFormat(par("format"));
        cStringTokenizer tokenizer(par("unit"));
        while (tokenizer.hasMoreTokens())
            units.push_back(tokenizer.nextToken());
        font = cFigure::parseFont(par("font"));
        textColor = cFigure::Color(par("textColor"));
        backgroundColor = cFigure::Color(par("backgroundColor"));
        opacity = par("opacity");
        placementHint = parsePlacement(par("placementHint"));
        placementPriority = par("placementPriority");
        if (displayStatistics)
            subscribe();
    }
}

Referenced by inet::visualizer::StatisticCanvasVisualizer::initialize(), and inet::visualizer::StatisticOsgVisualizer::initialize().

preDelete()

void inet::visualizer::StatisticVisualizerBase::preDelete ( cComponent *  root )

overrideprotectedvirtual

{
    if (displayStatistics) {
        unsubscribe();
        removeAllStatisticVisualizations();
    }
}

processSignal()

void inet::visualizer::StatisticVisualizerBase::processSignal ( cComponent *  source, simsignal_t  signal, std::function< void(cIListener *)>  receiveSignal  )

protectedvirtual

{
    auto statisticVisualization = getStatisticVisualization(source, signal);
    if (statisticVisualization != nullptr)
        refreshStatisticVisualization(statisticVisualization);
    else {
        if (sourceFilter.matches(check_and_cast<cModule *>(source))) {
            auto statisticVisualization = createStatisticVisualization(source, signal);
            addResultRecorder(source, signal);
            statisticVisualization->recorder = getResultRecorder(source, signal);
            auto listeners = source->getLocalSignalListeners(signal);
            receiveSignal(listeners[listeners.size() - 1]);
            addStatisticVisualization(statisticVisualization);
            refreshStatisticVisualization(statisticVisualization);
        }
    }
}

receiveSignal() [1/7]

virtual void inet::visualizer::StatisticVisualizerBase::receiveSignal ( cComponent *  source, simsignal_t  signal, bool  b, cObject *  details  )

inlineoverridevirtual

{ PROCESS_SIGNAL(b); }

Referenced by processSignal().

receiveSignal() [2/7]

virtual void inet::visualizer::StatisticVisualizerBase::receiveSignal ( cComponent *  source, simsignal_t  signal, cObject *  obj, cObject *  details  )

inlineoverridevirtual

{ PROCESS_SIGNAL(obj); }

receiveSignal() [3/7]

virtual void inet::visualizer::StatisticVisualizerBase::receiveSignal ( cComponent *  source, simsignal_t  signal, const char *  s, cObject *  details  )

inlineoverridevirtual

{ PROCESS_SIGNAL(s); }

receiveSignal() [4/7]

virtual void inet::visualizer::StatisticVisualizerBase::receiveSignal ( cComponent *  source, simsignal_t  signal, const SimTime &  t, cObject *  details  )

inlineoverridevirtual

{ PROCESS_SIGNAL(t); }

receiveSignal() [5/7]

virtual void inet::visualizer::StatisticVisualizerBase::receiveSignal ( cComponent *  source, simsignal_t  signal, double  d, cObject *  details  )

inlineoverridevirtual

{ PROCESS_SIGNAL(d); }

receiveSignal() [6/7]

virtual void inet::visualizer::StatisticVisualizerBase::receiveSignal ( cComponent *  source, simsignal_t  signal, intval_t  l, cObject *  details  )

inlineoverridevirtual

{ PROCESS_SIGNAL(l); }

receiveSignal() [7/7]

virtual void inet::visualizer::StatisticVisualizerBase::receiveSignal ( cComponent *  source, simsignal_t  signal, uintval_t  l, cObject *  details  )

inlineoverridevirtual

{ PROCESS_SIGNAL(l); }

refreshStatisticVisualization()

void inet::visualizer::StatisticVisualizerBase::refreshStatisticVisualization ( const StatisticVisualization *  statisticVisualization )

protectedvirtual

Reimplemented in inet::visualizer::StatisticOsgVisualizer, and inet::visualizer::StatisticCanvasVisualizer.

{
    double value = statisticVisualization->recorder->getLastValue();
    if (std::isnan(value) || units.empty()) {
        statisticVisualization->printValue = value;
        statisticVisualization->printUnit = statisticVisualization->unit == nullptr ? "" : statisticVisualization->unit;
    }
    else {
        for (auto& unit : units) {
            statisticVisualization->printUnit = unit.c_str();
            statisticVisualization->printValue = cNEDValue::convertUnit(value, statisticVisualization->unit, statisticVisualization->printUnit);
            if (statisticVisualization->printValue > 1)
                break;
        }
    }
}

Referenced by processSignal(), inet::visualizer::StatisticCanvasVisualizer::refreshStatisticVisualization(), and inet::visualizer::StatisticOsgVisualizer::refreshStatisticVisualization().

removeAllStatisticVisualizations()

void inet::visualizer::StatisticVisualizerBase::removeAllStatisticVisualizations ( )

protectedvirtual

{
    std::vector<const StatisticVisualization *> removedStatisticVisualizations;
    for (auto it : statisticVisualizations)
        removedStatisticVisualizations.push_back(it.second);
    for (auto it : removedStatisticVisualizations) {
        removeStatisticVisualization(it);
        delete it;
    }
}

Referenced by handleParameterChange(), and preDelete().

removeStatisticVisualization()

void inet::visualizer::StatisticVisualizerBase::removeStatisticVisualization ( const StatisticVisualization *  statisticVisualization )

protectedvirtual

Reimplemented in inet::visualizer::StatisticOsgVisualizer, and inet::visualizer::StatisticCanvasVisualizer.

{
    auto key = std::pair<int, simsignal_t>(statisticVisualization->moduleId, statisticVisualization->signal);
    statisticVisualizations.erase(statisticVisualizations.find(key));
}

Referenced by removeAllStatisticVisualizations(), inet::visualizer::StatisticCanvasVisualizer::removeStatisticVisualization(), and inet::visualizer::StatisticOsgVisualizer::removeStatisticVisualization().

subscribe()

void inet::visualizer::StatisticVisualizerBase::subscribe ( )

protectedvirtual

{
    if (*signalName != '\0')
        visualizationSubjectModule->subscribe(registerSignal(signalName), this);
}

Referenced by initialize().

unsubscribe()

void inet::visualizer::StatisticVisualizerBase::unsubscribe ( )

protectedvirtual

{
    // NOTE: lookup the module again because it may have been deleted first
    auto visualizationSubjectModule = findModuleFromPar<cModule>(par("visualizationSubjectModule"), this);
    if (visualizationSubjectModule != nullptr) {
        if (*signalName != '\0')
            visualizationSubjectModule->unsubscribe(registerSignal(signalName), this);
    }
}

Referenced by preDelete().

Member Data Documentation

backgroundColor

cFigure::Color inet::visualizer::StatisticVisualizerBase::backgroundColor

protected

Referenced by inet::visualizer::StatisticCanvasVisualizer::createStatisticVisualization(), inet::visualizer::StatisticOsgVisualizer::createStatisticVisualization(), and initialize().

displayStatistics

bool inet::visualizer::StatisticVisualizerBase::displayStatistics = false

protected

Referenced by initialize(), and preDelete().

font

cFigure::Font inet::visualizer::StatisticVisualizerBase::font

protected

Referenced by inet::visualizer::StatisticCanvasVisualizer::createStatisticVisualization(), and initialize().

format

StringFormat inet::visualizer::StatisticVisualizerBase::format

protected

Referenced by getText(), handleParameterChange(), and initialize().

opacity

double inet::visualizer::StatisticVisualizerBase::opacity = NaN

protected

Referenced by inet::visualizer::StatisticCanvasVisualizer::createStatisticVisualization(), and initialize().

placementHint

Placement inet::visualizer::StatisticVisualizerBase::placementHint

protected

Referenced by inet::visualizer::StatisticCanvasVisualizer::addStatisticVisualization(), and initialize().

placementPriority

double inet::visualizer::StatisticVisualizerBase::placementPriority

protected

Referenced by inet::visualizer::StatisticCanvasVisualizer::addStatisticVisualization(), and initialize().

signalName

const char* inet::visualizer::StatisticVisualizerBase::signalName = nullptr

protected

Referenced by getResultRecorder(), initialize(), subscribe(), and unsubscribe().

sourceFilter

ModuleFilter inet::visualizer::StatisticVisualizerBase::sourceFilter

protected

Referenced by handleParameterChange(), initialize(), and processSignal().

statisticExpression

const char* inet::visualizer::StatisticVisualizerBase::statisticExpression = nullptr

protected

Referenced by getRecordingMode(), and initialize().

statisticName

const char* inet::visualizer::StatisticVisualizerBase::statisticName = nullptr

protected

Referenced by addResultRecorder(), findResultRecorder(), getUnit(), and initialize().

statisticUnit

const char* inet::visualizer::StatisticVisualizerBase::statisticUnit = nullptr

protected

Referenced by getUnit(), and initialize().

statisticVisualizations

std::map<std::pair<int, simsignal_t>, const StatisticVisualization *> inet::visualizer::StatisticVisualizerBase::statisticVisualizations

protected

Referenced by addStatisticVisualization(), getStatisticVisualization(), removeAllStatisticVisualizations(), and removeStatisticVisualization().

textColor

cFigure::Color inet::visualizer::StatisticVisualizerBase::textColor

protected

Referenced by inet::visualizer::StatisticCanvasVisualizer::createStatisticVisualization(), inet::visualizer::StatisticOsgVisualizer::createStatisticVisualization(), and initialize().

units

std::vector<std::string> inet::visualizer::StatisticVisualizerBase::units

protected

Referenced by initialize(), and refreshStatisticVisualization().

---

The documentation for this class was generated from the following files:

• StatisticVisualizerBase.h
• StatisticVisualizerBase.cc
