inet::visualizer::RadioOsgVisualizer Class Reference

#include <RadioOsgVisualizer.h>

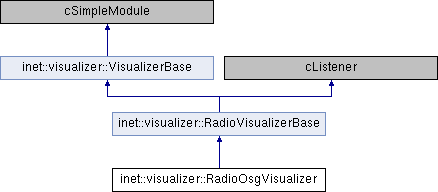

Inheritance diagram for inet::visualizer::RadioOsgVisualizer:

Classes
class	RadioOsgVisualization

Protected Member Functions
virtual void	initialize (int stage) override
virtual RadioVisualization *	createRadioVisualization (const physicallayer::IRadio *radio) const override
virtual void	refreshRadioVisualization (const RadioVisualization *radioVisualization) const override
Protected Member Functions inherited from inet::visualizer::RadioVisualizerBase
virtual void	handleParameterChange (const char *name) override
virtual void	refreshDisplay () const override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual const RadioVisualization *	getRadioVisualization (int radioModuleId)
virtual void	addRadioVisualization (const RadioVisualization *radioVisualization)
virtual void	removeRadioVisualization (const RadioVisualization *radioVisualization)
virtual void	removeAllRadioVisualizations ()
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
ModuleRefByPar< NetworkNodeOsgVisualizer >	networkNodeVisualizer
Protected Attributes inherited from inet::visualizer::RadioVisualizerBase
bool	displayRadios = false
bool	displayRadioMode = false
bool	displayReceptionState = false
bool	displayTransmissionState = false
std::vector< std::string >	radioModeImages
std::vector< std::string >	receptionStateImages
std::vector< std::string >	transmissionStateImages
ModuleFilter	radioFilter
double	width
double	height
Placement	placementHint
double	placementPriority
bool	antennaLobeNormalize = false
bool	antennaLobeRelativeLabels = false
bool	displayAntennaLobes = false
bool	antennaLobePlaneGlobal = false
const char *	antennaLobePlane = nullptr
const char *	antennaLobeMode = nullptr
double	antennaLobeLogarithmicBase = NaN
double	antennaLobeLogarithmicScale = NaN
double	antennaLobeRadius = NaN
deg	antennaLobeStep = deg(NaN)
double	antennaLobeOpacity = NaN
bool	antennaLobeLineSmooth = false
cFigure::Color	antennaLobeLineColor
cFigure::LineStyle	antennaLobeLineStyle
double	antennaLobeLineWidth = NaN
cFigure::Color	antennaLobeFillColor
std::map< int, const RadioVisualization * >	radioVisualizations
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::RadioVisualizerBase
virtual void	receiveSignal (cComponent *source, simsignal_t signal, intval_t value, cObject *details) override

Member Function Documentation

createRadioVisualization()

RadioVisualizerBase::RadioVisualization * inet::visualizer::RadioOsgVisualizer::createRadioVisualization ( const physicallayer::IRadio *  radio ) const

overrideprotectedvirtual

Implements inet::visualizer::RadioVisualizerBase.

{
    auto module = check_and_cast<const cModule *>(radio);
    auto geode = new osg::Geode();
    geode->getOrCreateStateSet()->setMode(GL_LIGHTING, osg::StateAttribute::OFF | osg::StateAttribute::OVERRIDE);
    auto networkNode = getContainingNode(module);
    auto networkNodeVisualization = networkNodeVisualizer->getNetworkNodeVisualization(networkNode);
    return new RadioOsgVisualization(networkNodeVisualization, geode, module->getId());
}

initialize()

void inet::visualizer::RadioOsgVisualizer::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::RadioVisualizerBase.

{
    RadioVisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        networkNodeVisualizer.reference(this, "networkNodeVisualizerModule", true);
    }
    else if (stage == INITSTAGE_LAST) {
        for (auto it : radioVisualizations) {
            auto radioOsgVisualization = static_cast<const RadioOsgVisualization *>(it.second);
            auto node = radioOsgVisualization->node;
            radioOsgVisualization->networkNodeVisualization->addAnnotation(node, osg::Vec3d(0, 0, 0), 0);
        }
    }
}

refreshRadioVisualization()

void inet::visualizer::RadioOsgVisualizer::refreshRadioVisualization ( const RadioVisualization *  radioVisualization ) const

overrideprotectedvirtual

Implements inet::visualizer::RadioVisualizerBase.

{
    // TODO
//    auto infoOsgVisualization = static_cast<const RadioOsgVisualization *>(radioVisualization);
//    auto node = infoOsgVisualization->node;
}

Member Data Documentation

networkNodeVisualizer

ModuleRefByPar<NetworkNodeOsgVisualizer> inet::visualizer::RadioOsgVisualizer::networkNodeVisualizer

protected

Referenced by createRadioVisualization(), and initialize().

---

The documentation for this class was generated from the following files:

• RadioOsgVisualizer.h
• RadioOsgVisualizer.cc
