#include <Ieee80211VisualizerBase.h>

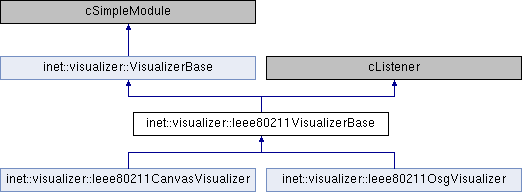

Inheritance diagram for inet::visualizer::Ieee80211VisualizerBase:

Classes
class	Ieee80211Visualization

Parameters
bool	displayAssociations = false

NetworkNodeFilter	nodeFilter

InterfaceFilter	interfaceFilter

double	minPowerDbm = NaN

double	maxPowerDbm = NaN

std::vector< std::string >	icons

ColorSet	iconColorSet

cFigure::Font	labelFont

cFigure::Color	labelColor

Placement	placementHint

double	placementPriority

std::map< std::pair< int, int >, const Ieee80211Visualization * >	ieee80211Visualizations

virtual void	initialize (int stage) override

virtual void	handleParameterChange (const char *name) override

virtual void	preDelete (cComponent *root) override

virtual void	subscribe ()

virtual void	unsubscribe ()

virtual Ieee80211Visualization *	createIeee80211Visualization (cModule networkNode, NetworkInterface networkInterface, std::string ssid, W power)=0

virtual const Ieee80211Visualization *	getIeee80211Visualization (cModule networkNode, NetworkInterface networkInterface)

virtual void	addIeee80211Visualization (const Ieee80211Visualization *ieee80211Visualization)

virtual void	removeIeee80211Visualization (const Ieee80211Visualization *ieee80211Visualization)

virtual void	removeAllIeee80211Visualizations ()

virtual std::string	getIcon (W power) const

virtual void	receiveSignal (cComponent source, simsignal_t signal, cObject object, cObject *details) override

Additional Inherited Members
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override

virtual Coord	getPosition (const cModule *networkNode) const

virtual Coord	getContactPosition (const cModule networkNode, const Coord &fromPosition, const char contactMode, double contactSpacing) const

virtual Quaternion	getOrientation (const cModule *networkNode) const

virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr

cModule *	visualizationSubjectModule = nullptr

const char *	tags = nullptr

Member Function Documentation

◆ addIeee80211Visualization()

void inet::visualizer::Ieee80211VisualizerBase::addIeee80211Visualization ( const Ieee80211Visualization * ieee80211Visualization )

protectedvirtual

Reimplemented in inet::visualizer::Ieee80211CanvasVisualizer, and inet::visualizer::Ieee80211OsgVisualizer.

 {
     auto key = std::pair<int, int>(ieee80211Visualization->networkNodeId, ieee80211Visualization->interfaceId);
     ieee80211Visualizations[key] = ieee80211Visualization;
 }

Referenced by inet::visualizer::Ieee80211OsgVisualizer::addIeee80211Visualization(), inet::visualizer::Ieee80211CanvasVisualizer::addIeee80211Visualization(), and receiveSignal().

◆ createIeee80211Visualization()

virtual Ieee80211Visualization* inet::visualizer::Ieee80211VisualizerBase::createIeee80211Visualization	(	cModule *	networkNode,
		NetworkInterface *	networkInterface,
		std::string	ssid,
		W	power
	)

protectedpure virtual

Implemented in inet::visualizer::Ieee80211CanvasVisualizer, and inet::visualizer::Ieee80211OsgVisualizer.

Referenced by receiveSignal().

◆ getIcon()

std::string inet::visualizer::Ieee80211VisualizerBase::getIcon ( W power ) const

protectedvirtual

 {
     int index;
     auto powerDbm = math::mW2dBmW(mW(power).get());
     if (std::isnan(powerDbm))
         index = icons.size() - 1;
     else if (powerDbm < minPowerDbm)
         index = 0;
     else if (powerDbm > maxPowerDbm)
         index = icons.size() - 1;
     else
         index = round((icons.size() - 1) * (powerDbm - minPowerDbm) / (maxPowerDbm - minPowerDbm));
     return icons[index];
 }

Referenced by inet::visualizer::Ieee80211OsgVisualizer::createIeee80211Visualization(), inet::visualizer::Ieee80211CanvasVisualizer::createIeee80211Visualization(), and inet::visualizer::Ieee80211CanvasVisualizer::refreshDisplay().

◆ getIeee80211Visualization()

const Ieee80211VisualizerBase::Ieee80211Visualization * inet::visualizer::Ieee80211VisualizerBase::getIeee80211Visualization	(	cModule *	networkNode,
		NetworkInterface *	networkInterface
	)

protectedvirtual

 {
     auto key = std::pair<int, int>(networkNode->getId(), networkInterface->getInterfaceId());
     auto it = ieee80211Visualizations.find(key);
     return it == ieee80211Visualizations.end() ? nullptr : it->second;
 }

Referenced by receiveSignal().

◆ handleParameterChange()

void inet::visualizer::Ieee80211VisualizerBase::handleParameterChange ( const char * name )

overrideprotectedvirtual

 {
     if (!hasGUI()) return;
     if (name != nullptr) {
         if (!strcmp(name, "nodeFilter"))
             nodeFilter.setPattern(par("nodeFilter"));
         else if (!strcmp(name, "interfaceFilter"))
             interfaceFilter.setPattern(par("interfaceFilter"));
         removeAllIeee80211Visualizations();
     }
 }

◆ initialize()

void inet::visualizer::Ieee80211VisualizerBase::initialize ( int stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::VisualizerBase.

Reimplemented in inet::visualizer::Ieee80211CanvasVisualizer, and inet::visualizer::Ieee80211OsgVisualizer.

 {
     VisualizerBase::initialize(stage);
     if (!hasGUI()) return;
     if (stage == INITSTAGE_LOCAL) {
         displayAssociations = par("displayAssociations");
         nodeFilter.setPattern(par("nodeFilter"));
         interfaceFilter.setPattern(par("interfaceFilter"));
         minPowerDbm = par("minPower");
         maxPowerDbm = par("maxPower");
         const char *iconsAsString = par("icons");
         cStringTokenizer tokenizer(iconsAsString);
         while (tokenizer.hasMoreTokens())
             icons.push_back(tokenizer.nextToken());
         iconColorSet.parseColors(par("iconColor"));
         labelFont = cFigure::parseFont(par("labelFont"));
         labelColor = cFigure::Color(par("labelColor"));
         placementHint = parsePlacement(par("placementHint"));
         placementPriority = par("placementPriority");
         if (displayAssociations)
             subscribe();
     }
 }

Referenced by inet::visualizer::Ieee80211OsgVisualizer::initialize(), and inet::visualizer::Ieee80211CanvasVisualizer::initialize().

◆ preDelete()

void inet::visualizer::Ieee80211VisualizerBase::preDelete ( cComponent * root )

overrideprotectedvirtual

 {
     if (displayAssociations) {
         unsubscribe();
         removeAllIeee80211Visualizations();
     }
 }

◆ receiveSignal()

void inet::visualizer::Ieee80211VisualizerBase::receiveSignal	(	cComponent *	source,
		simsignal_t	signal,
		cObject *	object,
		cObject *	details
	)

overridevirtual

 {
 #ifdef INET_WITH_IEEE80211
     Enter_Method("%s", cComponent::getSignalName(signal));

     if (signal == l2AssociatedSignal) {
         auto networkNode = getContainingNode(check_and_cast<cModule *>(source));
         if (nodeFilter.matches(networkNode)) {
             auto networkInterface = check_and_cast<NetworkInterface *>(object);
             auto apInfo = check_and_cast<inet::ieee80211::Ieee80211MgmtSta::ApInfo *>(details);
             auto ieee80211Visualization = createIeee80211Visualization(networkNode, networkInterface, apInfo->ssid, W(apInfo->rxPower));
             addIeee80211Visualization(ieee80211Visualization);
         }
     }
     else if (signal == l2DisassociatedSignal) {
         auto networkNode = getContainingNode(check_and_cast<cModule *>(source));
         if (nodeFilter.matches(networkNode)) {
             auto networkInterface = check_and_cast<NetworkInterface *>(object);
             auto ieee80211Visualization = getIeee80211Visualization(networkNode, networkInterface);
             if (ieee80211Visualization != nullptr) {
                 removeIeee80211Visualization(ieee80211Visualization);
                 delete ieee80211Visualization;
             }
         }
     }
     else if (signal == l2ApAssociatedSignal) {
         auto networkNode = getContainingNode(check_and_cast<cModule *>(source));
         if (nodeFilter.matches(networkNode)) {
             // KLUDGE this is the wrong way to lookup the interface and the ssid
             auto mgmt = check_and_cast<inet::ieee80211::Ieee80211MgmtAp *>(source);
             auto networkInterface = getContainingNicModule(mgmt);
             auto ieee80211Visualization = getIeee80211Visualization(networkNode, networkInterface);
             if (ieee80211Visualization == nullptr) {
                 auto ieee80211Visualization = createIeee80211Visualization(networkNode, networkInterface, mgmt->par("ssid"), W(NaN));
                 addIeee80211Visualization(ieee80211Visualization);
             }
         }
     }
     else if (signal == l2ApDisassociatedSignal) {
         auto networkNode = getContainingNode(check_and_cast<cModule *>(source));
         if (nodeFilter.matches(networkNode)) {
             // KLUDGE this is the wrong way to lookup the interface
             auto mgmt = check_and_cast<inet::ieee80211::Ieee80211MgmtAp *>(source);
             auto networkInterface = getContainingNicModule(mgmt);
             auto ieee80211Visualization = getIeee80211Visualization(networkNode, networkInterface);
             if (ieee80211Visualization != nullptr) {
                 removeIeee80211Visualization(ieee80211Visualization);
                 delete ieee80211Visualization;
             }
         }
     }
     else
         throw cRuntimeError("Unknown signal");
 #endif // INET_WITH_IEEE80211
 }

◆ removeAllIeee80211Visualizations()

void inet::visualizer::Ieee80211VisualizerBase::removeAllIeee80211Visualizations ( )

protectedvirtual

 {
     std::vector<const Ieee80211Visualization *> removedIeee80211Visualizations;
     for (auto it : ieee80211Visualizations)
         removedIeee80211Visualizations.push_back(it.second);
     for (auto visualization : removedIeee80211Visualizations) {
         removeIeee80211Visualization(visualization);
         delete visualization;
     }
 }

Referenced by handleParameterChange(), and preDelete().

◆ removeIeee80211Visualization()

void inet::visualizer::Ieee80211VisualizerBase::removeIeee80211Visualization ( const Ieee80211Visualization * ieee80211Visualization )

protectedvirtual

Reimplemented in inet::visualizer::Ieee80211CanvasVisualizer, and inet::visualizer::Ieee80211OsgVisualizer.

 {
     auto key = std::pair<int, int>(ieee80211Visualization->networkNodeId, ieee80211Visualization->interfaceId);
     ieee80211Visualizations.erase(ieee80211Visualizations.find(key));
 }

Referenced by receiveSignal(), removeAllIeee80211Visualizations(), inet::visualizer::Ieee80211OsgVisualizer::removeIeee80211Visualization(), and inet::visualizer::Ieee80211CanvasVisualizer::removeIeee80211Visualization().

◆ subscribe()

void inet::visualizer::Ieee80211VisualizerBase::subscribe ( )

protectedvirtual

 {
     visualizationSubjectModule->subscribe(l2AssociatedSignal, this);
     visualizationSubjectModule->subscribe(l2DisassociatedSignal, this);
     visualizationSubjectModule->subscribe(l2ApAssociatedSignal, this);
     visualizationSubjectModule->subscribe(l2ApDisassociatedSignal, this);
 }

Referenced by initialize().

◆ unsubscribe()

void inet::visualizer::Ieee80211VisualizerBase::unsubscribe ( )

protectedvirtual

 {
     // NOTE: lookup the module again because it may have been deleted first
     auto visualizationSubjectModule = findModuleFromPar<cModule>(par("visualizationSubjectModule"), this);
     if (visualizationSubjectModule != nullptr) {
         visualizationSubjectModule->unsubscribe(l2AssociatedSignal, this);
         visualizationSubjectModule->unsubscribe(l2DisassociatedSignal, this);
         visualizationSubjectModule->unsubscribe(l2ApAssociatedSignal, this);
         visualizationSubjectModule->unsubscribe(l2ApDisassociatedSignal, this);
     }
 }
