inet::visualizer::Ieee80211OsgVisualizer Class Reference

#include <Ieee80211OsgVisualizer.h>

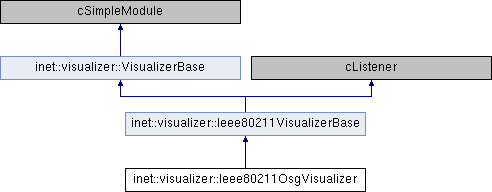

Inheritance diagram for inet::visualizer::Ieee80211OsgVisualizer:

Classes
class	Ieee80211OsgVisualization

Protected Member Functions
virtual void	initialize (int stage) override
virtual Ieee80211Visualization *	createIeee80211Visualization (cModule *networkNode, NetworkInterface *networkInterface, std::string ssid, W power) override
virtual void	addIeee80211Visualization (const Ieee80211Visualization *ieee80211Visualization) override
virtual void	removeIeee80211Visualization (const Ieee80211Visualization *ieee80211Visualization) override
Protected Member Functions inherited from inet::visualizer::Ieee80211VisualizerBase
virtual void	handleParameterChange (const char *name) override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual const Ieee80211Visualization *	getIeee80211Visualization (cModule *networkNode, NetworkInterface *networkInterface)
virtual void	removeAllIeee80211Visualizations ()
virtual std::string	getIcon (W power) const
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
ModuleRefByPar< NetworkNodeOsgVisualizer >	networkNodeVisualizer
Protected Attributes inherited from inet::visualizer::Ieee80211VisualizerBase
bool	displayAssociations = false
NetworkNodeFilter	nodeFilter
InterfaceFilter	interfaceFilter
double	minPowerDbm = NaN
double	maxPowerDbm = NaN
std::vector< std::string >	icons
ColorSet	iconColorSet
cFigure::Font	labelFont
cFigure::Color	labelColor
Placement	placementHint
double	placementPriority
std::map< std::pair< int, int >, const Ieee80211Visualization * >	ieee80211Visualizations
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::Ieee80211VisualizerBase
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override

Member Function Documentation

addIeee80211Visualization()

void inet::visualizer::Ieee80211OsgVisualizer::addIeee80211Visualization ( const Ieee80211Visualization *  ieee80211Visualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::Ieee80211VisualizerBase.

{
    Ieee80211VisualizerBase::addIeee80211Visualization(ieee80211Visualization);
    auto ieee80211OsgVisualization = static_cast<const Ieee80211OsgVisualization *>(ieee80211Visualization);
    ieee80211OsgVisualization->networkNodeVisualization->addAnnotation(ieee80211OsgVisualization->node, osg::Vec3d(0, 0, 32), 0);
}

createIeee80211Visualization()

Ieee80211VisualizerBase::Ieee80211Visualization * inet::visualizer::Ieee80211OsgVisualizer::createIeee80211Visualization ( cModule *  networkNode, NetworkInterface *  networkInterface, std::string  ssid, W  power  )

overrideprotectedvirtual

Implements inet::visualizer::Ieee80211VisualizerBase.

{
    auto path = resolveResourcePath((getIcon(power) + ".png").c_str());
    auto image = inet::osg::createImage(path.c_str());
    auto texture = new osg::Texture2D();
    texture->setImage(image);
    auto geometry = osg::createTexturedQuadGeometry(osg::Vec3(-image->s() / 2, 0.0, 0.0), osg::Vec3(image->s(), 0.0, 0.0), osg::Vec3(0.0, image->t(), 0.0), 0.0, 0.0, 1.0, 1.0);
    auto stateSet = geometry->getOrCreateStateSet();
    stateSet->setTextureAttributeAndModes(0, texture);
    stateSet->setMode(GL_DEPTH_TEST, osg::StateAttribute::OFF | osg::StateAttribute::OVERRIDE);
    stateSet->setMode(GL_BLEND, osg::StateAttribute::ON);
    stateSet->setMode(GL_LIGHTING, osg::StateAttribute::OFF);
    stateSet->setRenderingHint(osg::StateSet::TRANSPARENT_BIN);
    std::hash<std::string> hasher;
    auto color = iconColorSet.getColor(hasher(ssid));
    auto colorArray = new osg::Vec4Array();
    colorArray->push_back(osg::Vec4((double)color.red / 255.0, (double)color.green / 255.0, (double)color.blue / 255.0, 1));
    geometry->setColorArray(colorArray, osg::Array::BIND_OVERALL);
    auto geode = new osg::Geode();
    geode->addDrawable(geometry);
    // TODO apply tinting
    auto networkNodeVisualization = networkNodeVisualizer->getNetworkNodeVisualization(networkNode);
    return new Ieee80211OsgVisualization(networkNodeVisualization, geode, networkNode->getId(), networkInterface->getInterfaceId());
}

initialize()

void inet::visualizer::Ieee80211OsgVisualizer::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::Ieee80211VisualizerBase.

{
    Ieee80211VisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        networkNodeVisualizer.reference(this, "networkNodeVisualizerModule", true);
    }
}

removeIeee80211Visualization()

void inet::visualizer::Ieee80211OsgVisualizer::removeIeee80211Visualization ( const Ieee80211Visualization *  ieee80211Visualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::Ieee80211VisualizerBase.

{
    Ieee80211VisualizerBase::removeIeee80211Visualization(ieee80211Visualization);
    auto ieee80211OsgVisualization = static_cast<const Ieee80211OsgVisualization *>(ieee80211Visualization);
    if (networkNodeVisualizer != nullptr)
        ieee80211OsgVisualization->networkNodeVisualization->removeAnnotation(ieee80211OsgVisualization->node);
}

Member Data Documentation

networkNodeVisualizer

ModuleRefByPar<NetworkNodeOsgVisualizer> inet::visualizer::Ieee80211OsgVisualizer::networkNodeVisualizer

protected

Referenced by createIeee80211Visualization(), initialize(), and removeIeee80211Visualization().

---

The documentation for this class was generated from the following files:

• Ieee80211OsgVisualizer.h
• Ieee80211OsgVisualizer.cc
