inet::visualizer::Ieee80211CanvasVisualizer Class Reference

#include <Ieee80211CanvasVisualizer.h>

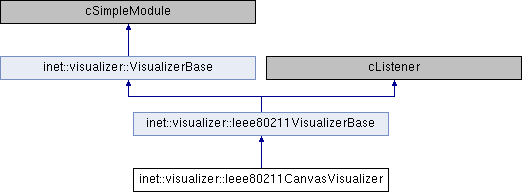

Inheritance diagram for inet::visualizer::Ieee80211CanvasVisualizer:

Classes
class	Ieee80211CanvasVisualization

Protected Member Functions
virtual void	initialize (int stage) override
virtual void	refreshDisplay () const override
virtual Ieee80211Visualization *	createIeee80211Visualization (cModule *networkNode, NetworkInterface *networkInterface, std::string ssid, W power) override
virtual void	addIeee80211Visualization (const Ieee80211Visualization *ieee80211Visualization) override
virtual void	removeIeee80211Visualization (const Ieee80211Visualization *ieee80211Visualization) override
Protected Member Functions inherited from inet::visualizer::Ieee80211VisualizerBase
virtual void	handleParameterChange (const char *name) override
virtual void	preDelete (cComponent *root) override
virtual void	subscribe ()
virtual void	unsubscribe ()
virtual const Ieee80211Visualization *	getIeee80211Visualization (cModule *networkNode, NetworkInterface *networkInterface)
virtual void	removeAllIeee80211Visualizations ()
virtual std::string	getIcon (W power) const
Protected Member Functions inherited from inet::visualizer::VisualizerBase
virtual int	numInitStages () const override
virtual Coord	getPosition (const cModule *networkNode) const
virtual Coord	getContactPosition (const cModule *networkNode, const Coord &fromPosition, const char *contactMode, double contactSpacing) const
virtual Quaternion	getOrientation (const cModule *networkNode) const
virtual void	mapChunks (const Ptr< const Chunk > &chunk, const std::function< void(const Ptr< const Chunk > &, int)> &thunk) const

Protected Attributes
double	zIndex = NaN
ModuleRefByPar< NetworkNodeCanvasVisualizer >	networkNodeVisualizer
Protected Attributes inherited from inet::visualizer::Ieee80211VisualizerBase
bool	displayAssociations = false
NetworkNodeFilter	nodeFilter
InterfaceFilter	interfaceFilter
double	minPowerDbm = NaN
double	maxPowerDbm = NaN
std::vector< std::string >	icons
ColorSet	iconColorSet
cFigure::Font	labelFont
cFigure::Color	labelColor
Placement	placementHint
double	placementPriority
std::map< std::pair< int, int >, const Ieee80211Visualization * >	ieee80211Visualizations
Protected Attributes inherited from inet::visualizer::VisualizerBase
cModule *	visualizationTargetModule = nullptr
cModule *	visualizationSubjectModule = nullptr
const char *	tags = nullptr

Additional Inherited Members
Public Member Functions inherited from inet::visualizer::Ieee80211VisualizerBase
virtual void	receiveSignal (cComponent *source, simsignal_t signal, cObject *object, cObject *details) override

Member Function Documentation

addIeee80211Visualization()

void inet::visualizer::Ieee80211CanvasVisualizer::addIeee80211Visualization ( const Ieee80211Visualization *  ieee80211Visualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::Ieee80211VisualizerBase.

{
    Ieee80211VisualizerBase::addIeee80211Visualization(ieee80211Visualization);
    auto ieee80211CanvasVisualization = static_cast<const Ieee80211CanvasVisualization *>(ieee80211Visualization);
    ieee80211CanvasVisualization->networkNodeVisualization->addAnnotation(ieee80211CanvasVisualization->figure, ieee80211CanvasVisualization->figure->getBounds().getSize(), placementHint, placementPriority);
}

createIeee80211Visualization()

Ieee80211VisualizerBase::Ieee80211Visualization * inet::visualizer::Ieee80211CanvasVisualizer::createIeee80211Visualization ( cModule *  networkNode, NetworkInterface *  networkInterface, std::string  ssid, W  power  )

overrideprotectedvirtual

Implements inet::visualizer::Ieee80211VisualizerBase.

{
    std::string icon = getIcon(power);
    auto labeledIconFigure = new LabeledIconFigure("ieee80211Association");
    labeledIconFigure->setTags((std::string("ieee80211_association ") + tags).c_str());
    labeledIconFigure->setAssociatedObject(networkInterface);
    labeledIconFigure->setZIndex(zIndex);
    auto iconFigure = labeledIconFigure->getIconFigure();
    iconFigure->setTooltip("This icon represents an IEEE 802.11 association");
    iconFigure->setImageName(icon.substr(0, icon.find_first_of(".")).c_str());
    std::hash<std::string> hasher;
    iconFigure->setTintColor(iconColorSet.getColor(hasher(ssid)));
    iconFigure->setTintAmount(1);
    auto labelFigure = labeledIconFigure->getLabelFigure();
    labelFigure->setTooltip("This label represents the SSID of an IEEE 802.11 association");
    labelFigure->setFont(labelFont);
    labelFigure->setColor(labelColor);
    labelFigure->setText(ssid.c_str());
    labelFigure->setPosition(iconFigure->getBounds().getSize() / 2);
    auto networkNodeVisualization = networkNodeVisualizer->getNetworkNodeVisualization(networkNode);
    return new Ieee80211CanvasVisualization(networkNodeVisualization, labeledIconFigure, networkNode->getId(), networkInterface->getInterfaceId());
}

initialize()

void inet::visualizer::Ieee80211CanvasVisualizer::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::visualizer::Ieee80211VisualizerBase.

{
    Ieee80211VisualizerBase::initialize(stage);
    if (!hasGUI()) return;
    if (stage == INITSTAGE_LOCAL) {
        zIndex = par("zIndex");
        networkNodeVisualizer.reference(this, "networkNodeVisualizerModule", true);
    }
}

refreshDisplay()

void inet::visualizer::Ieee80211CanvasVisualizer::refreshDisplay ( ) const

overrideprotectedvirtual

{
#ifdef INET_WITH_IEEE80211
    auto simulation = getSimulation();
    for (auto& entry : ieee80211Visualizations) {
        auto networkNode = simulation->getModule(entry.second->networkNodeId);
        if (networkNode != nullptr) {
            L3AddressResolver addressResolver;
            auto interfaceTable = addressResolver.findInterfaceTableOf(networkNode);
            if (interfaceTable != nullptr) {
                auto networkInterface = interfaceTable->getInterfaceById(entry.second->interfaceId);
                auto mgmt = dynamic_cast<inet::ieee80211::Ieee80211MgmtSta *>(networkInterface->getSubmodule("mgmt"));
                if (mgmt != nullptr) {
                    auto apInfo = mgmt->getAssociatedAp();
                    std::string icon = getIcon(W(apInfo->rxPower));
                    auto canvasVisualization = check_and_cast<const Ieee80211CanvasVisualization *>(entry.second);
                    auto iconFigure = check_and_cast<LabeledIconFigure *>(canvasVisualization->figure)->getIconFigure();
                    iconFigure->setImageName(icon.substr(0, icon.find_first_of(".")).c_str());
                }
            }
        }
    }
#endif
}

removeIeee80211Visualization()

void inet::visualizer::Ieee80211CanvasVisualizer::removeIeee80211Visualization ( const Ieee80211Visualization *  ieee80211Visualization )

overrideprotectedvirtual

Reimplemented from inet::visualizer::Ieee80211VisualizerBase.

{
    Ieee80211VisualizerBase::removeIeee80211Visualization(ieee80211Visualization);
    auto ieee80211CanvasVisualization = static_cast<const Ieee80211CanvasVisualization *>(ieee80211Visualization);
    if (networkNodeVisualizer != nullptr)
        ieee80211CanvasVisualization->networkNodeVisualization->removeAnnotation(ieee80211CanvasVisualization->figure);
}

Member Data Documentation

networkNodeVisualizer

ModuleRefByPar<NetworkNodeCanvasVisualizer> inet::visualizer::Ieee80211CanvasVisualizer::networkNodeVisualizer

protected

Referenced by createIeee80211Visualization(), initialize(), and removeIeee80211Visualization().

zIndex

double inet::visualizer::Ieee80211CanvasVisualizer::zIndex = NaN

protected

Referenced by createIeee80211Visualization(), and initialize().

---

The documentation for this class was generated from the following files:

• Ieee80211CanvasVisualizer.h
• Ieee80211CanvasVisualizer.cc
