inet::physicallayer::Ieee80211OfdmMode Class Reference

#include <Ieee80211OfdmMode.h>

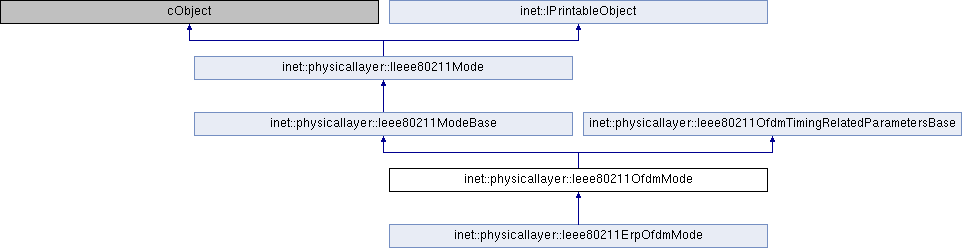

Inheritance diagram for inet::physicallayer::Ieee80211OfdmMode:

Public Member Functions
	Ieee80211OfdmMode (const char *name, const Ieee80211OfdmPreambleMode *preambleMode, const Ieee80211OfdmSignalMode *signalMode, const Ieee80211OfdmDataMode *dataMode, Hz channelSpacing, Hz bandwidth)
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
virtual const Ieee80211OfdmPreambleMode *	getPreambleMode () const override
virtual const Ieee80211OfdmSignalMode *	getHeaderMode () const override
virtual const Ieee80211OfdmDataMode *	getDataMode () const override
virtual const Ieee80211OfdmSignalMode *	getSignalMode () const
virtual const simtime_t	getDuration (b dataLength) const override
virtual const simtime_t	getSlotTime () const override
virtual const simtime_t	getSifsTime () const override
virtual const simtime_t	getRifsTime () const override
virtual const simtime_t	getCcaTime () const override
virtual const simtime_t	getPhyRxStartDelay () const override
virtual const simtime_t	getRxTxTurnaroundTime () const override
virtual const simtime_t	getPreambleLength () const override
virtual const simtime_t	getPlcpHeaderLength () const override
virtual int	getMpduMaxLength () const override
Public Member Functions inherited from inet::physicallayer::Ieee80211ModeBase
	Ieee80211ModeBase (const char *name)
virtual const char *	getName () const override
Public Member Functions inherited from inet::physicallayer::IIeee80211Mode
IIeee80211PreambleMode *	_getPreambleMode () const
IIeee80211HeaderMode *	_getHeaderMode () const
IIeee80211DataMode *	_getDataMode () const
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const
Public Member Functions inherited from inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase
	Ieee80211OfdmTimingRelatedParametersBase (Hz channelSpacing)
Hz	getSubcarrierFrequencySpacing () const
const simtime_t	getFFTTransformPeriod () const
const simtime_t	getGIDuration () const
const simtime_t	getSymbolInterval () const
const Hz	getChannelSpacing () const

Protected Member Functions
virtual int	getLegacyCwMin () const override
virtual int	getLegacyCwMax () const override

Protected Attributes
const Ieee80211OfdmPreambleMode *	preambleMode
const Ieee80211OfdmSignalMode *	signalMode
const Ieee80211OfdmDataMode *	dataMode
Protected Attributes inherited from inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase
Hz	channelSpacing

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }

Constructor & Destructor Documentation

Ieee80211OfdmMode()

inet::physicallayer::Ieee80211OfdmMode::Ieee80211OfdmMode	(	const char *	name,
		const Ieee80211OfdmPreambleMode *	preambleMode,
		const Ieee80211OfdmSignalMode *	signalMode,
		const Ieee80211OfdmDataMode *	dataMode,
		Hz	channelSpacing,
		Hz	bandwidth
	)

                                                                                                                                                                                                                       :
    Ieee80211ModeBase(name),
    Ieee80211OfdmTimingRelatedParametersBase(channelSpacing),
    preambleMode(preambleMode),
    signalMode(signalMode),
    dataMode(dataMode)
{
}

Member Function Documentation

getCcaTime()

const simtime_t inet::physicallayer::Ieee80211OfdmMode::getCcaTime ( ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{
    // < 4, < 8, < 16
    if (channelSpacing == MHz(20))
        return 4E-6;
    else if (channelSpacing == MHz(10))
        return 8E-6;
    else if (channelSpacing == MHz(5))
        return 16E-6;
    else
        throw cRuntimeError("Unknown channel spacing = %f", channelSpacing.get());
}

getDataMode()

virtual const Ieee80211OfdmDataMode* inet::physicallayer::Ieee80211OfdmMode::getDataMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return dataMode; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createBitModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createDataFieldBitModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createDataFieldPacketModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createPacketModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createSymbolModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::encodeAndModulate(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::getBandwidth(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::~Ieee80211LayeredOfdmReceiver(), and inet::physicallayer::Ieee80211LayeredOfdmTransmitter::~Ieee80211LayeredOfdmTransmitter().

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211OfdmMode::getDuration ( b  dataLength ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

Reimplemented in inet::physicallayer::Ieee80211ErpOfdmMode.

{ return preambleMode->getDuration() + signalMode->getDuration() + dataMode->getDuration(dataLength); }

getHeaderMode()

virtual const Ieee80211OfdmSignalMode* inet::physicallayer::Ieee80211OfdmMode::getHeaderMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return signalMode; }

getLegacyCwMax()

virtual int inet::physicallayer::Ieee80211OfdmMode::getLegacyCwMax ( ) const

inlineoverrideprotectedvirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 1023; }

getLegacyCwMin()

virtual int inet::physicallayer::Ieee80211OfdmMode::getLegacyCwMin ( ) const

inlineoverrideprotectedvirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 15; }

getMpduMaxLength()

virtual int inet::physicallayer::Ieee80211OfdmMode::getMpduMaxLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return 4095; }

getPhyRxStartDelay()

const simtime_t inet::physicallayer::Ieee80211OfdmMode::getPhyRxStartDelay ( ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{
    if (channelSpacing == MHz(20))
        return 25E-6;
    else if (channelSpacing == MHz(10))
        return 49E-6;
    else if (channelSpacing == MHz(5))
        return 97E-6;
    else
        throw cRuntimeError("Unknown channel spacing = %f", channelSpacing.get());
}

getPlcpHeaderLength()

virtual const simtime_t inet::physicallayer::Ieee80211OfdmMode::getPlcpHeaderLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return signalMode->getDuration(); }

getPreambleLength()

virtual const simtime_t inet::physicallayer::Ieee80211OfdmMode::getPreambleLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode->getDuration(); }

getPreambleMode()

virtual const Ieee80211OfdmPreambleMode* inet::physicallayer::Ieee80211OfdmMode::getPreambleMode ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{ return preambleMode; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::~Ieee80211LayeredOfdmReceiver(), and inet::physicallayer::Ieee80211LayeredOfdmTransmitter::~Ieee80211LayeredOfdmTransmitter().

getRifsTime()

const simtime_t inet::physicallayer::Ieee80211OfdmMode::getRifsTime ( ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Mode.

Reimplemented in inet::physicallayer::Ieee80211ErpOfdmMode.

{
    return -1;
}

getRxTxTurnaroundTime()

const simtime_t inet::physicallayer::Ieee80211OfdmMode::getRxTxTurnaroundTime ( ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Mode.

{
    // TODO < 2;
    return -1;
}

getSifsTime()

const simtime_t inet::physicallayer::Ieee80211OfdmMode::getSifsTime ( ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Mode.

Reimplemented in inet::physicallayer::Ieee80211ErpOfdmMode.

{
    if (channelSpacing == MHz(20))
        return 16E-6;
    else if (channelSpacing == MHz(10))
        return 32E-6;
    else if (channelSpacing == MHz(5))
        return 64E-6;
    else
        throw cRuntimeError("Unknown channel spacing = %f", channelSpacing.get());
}

getSignalMode()

virtual const Ieee80211OfdmSignalMode* inet::physicallayer::Ieee80211OfdmMode::getSignalMode ( ) const

inlinevirtual

{ return signalMode; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createBitModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createSymbolModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::encodeAndModulate(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::~Ieee80211LayeredOfdmReceiver(), and inet::physicallayer::Ieee80211LayeredOfdmTransmitter::~Ieee80211LayeredOfdmTransmitter().

getSlotTime()

const simtime_t inet::physicallayer::Ieee80211OfdmMode::getSlotTime ( ) const

overridevirtual

Implements inet::physicallayer::IIeee80211Mode.

Reimplemented in inet::physicallayer::Ieee80211ErpOfdmMode.

{
    if (channelSpacing == MHz(20))
        return 9E-6;
    else if (channelSpacing == MHz(10))
        return 13E-6;
    else if (channelSpacing == MHz(5))
        return 21E-6;
    else
        throw cRuntimeError("Unknown channel spacing = %f", channelSpacing.get());
}

printToStream()

std::ostream & inet::physicallayer::Ieee80211OfdmMode::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

Reimplemented in inet::physicallayer::Ieee80211ErpOfdmMode.

{
    stream << "Ieee80211OfdmMode";
    if (level <= PRINT_LEVEL_DEBUG)
        stream << EV_FIELD(preambleMode, printFieldToString(preambleMode, level + 1, evFlags))
               << EV_FIELD(signalMode, printFieldToString(signalMode, level + 1, evFlags));
    if (level <= PRINT_LEVEL_DETAIL)
        stream << EV_FIELD(dataMode, printFieldToString(dataMode, level + 1, evFlags));
    return stream;
}

Member Data Documentation

dataMode

const Ieee80211OfdmDataMode* inet::physicallayer::Ieee80211OfdmMode::dataMode

protected

Referenced by printToStream().

preambleMode

const Ieee80211OfdmPreambleMode* inet::physicallayer::Ieee80211OfdmMode::preambleMode

protected

Referenced by printToStream().

signalMode

const Ieee80211OfdmSignalMode* inet::physicallayer::Ieee80211OfdmMode::signalMode

protected

Referenced by printToStream().

---

The documentation for this class was generated from the following files:

• Ieee80211OfdmMode.h
• Ieee80211OfdmMode.cc
