inet::physicallayer::Ieee80211OfdmPreambleMode Class Reference

#include <Ieee80211OfdmMode.h>

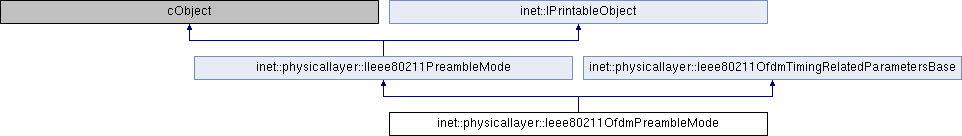

Inheritance diagram for inet::physicallayer::Ieee80211OfdmPreambleMode:

Public Member Functions
	Ieee80211OfdmPreambleMode (Hz channelSpacing)
virtual	~Ieee80211OfdmPreambleMode ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
const simtime_t	getTrainingSymbolGIDuration () const
const simtime_t	getShortTrainingSequenceDuration () const
const simtime_t	getLongTrainingSequenceDuration () const
virtual const simtime_t	getDuration () const override
virtual Ptr< Ieee80211PhyPreamble >	createPreamble () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const
Public Member Functions inherited from inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase
	Ieee80211OfdmTimingRelatedParametersBase (Hz channelSpacing)
Hz	getSubcarrierFrequencySpacing () const
const simtime_t	getFFTTransformPeriod () const
const simtime_t	getGIDuration () const
const simtime_t	getSymbolInterval () const
const Hz	getChannelSpacing () const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Attributes inherited from inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase
Hz	channelSpacing

Constructor & Destructor Documentation

Ieee80211OfdmPreambleMode()

inet::physicallayer::Ieee80211OfdmPreambleMode::Ieee80211OfdmPreambleMode

(

Hz

channelSpacing

)

                                                                      :
    Ieee80211OfdmTimingRelatedParametersBase(channelSpacing)
{
}

~Ieee80211OfdmPreambleMode()

virtual inet::physicallayer::Ieee80211OfdmPreambleMode::~Ieee80211OfdmPreambleMode ( )

inlinevirtual

{}

Member Function Documentation

createPreamble()

virtual Ptr<Ieee80211PhyPreamble> inet::physicallayer::Ieee80211OfdmPreambleMode::createPreamble ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211PreambleMode.

{ return makeShared<Ieee80211OfdmPhyPreamble>(); }

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211OfdmPreambleMode::getDuration ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211PreambleMode.

{ return getShortTrainingSequenceDuration() + getLongTrainingSequenceDuration(); }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel(), inet::physicallayer::Ieee80211OfdmMode::getDuration(), and inet::physicallayer::Ieee80211OfdmMode::getPreambleLength().

getLongTrainingSequenceDuration()

const simtime_t inet::physicallayer::Ieee80211OfdmPreambleMode::getLongTrainingSequenceDuration ( ) const

inline

{ return getTrainingSymbolGIDuration() + 2 * getFFTTransformPeriod(); }

getShortTrainingSequenceDuration()

const simtime_t inet::physicallayer::Ieee80211OfdmPreambleMode::getShortTrainingSequenceDuration ( ) const

inline

{ return 10 * getFFTTransformPeriod() / 4; }

getTrainingSymbolGIDuration()

const simtime_t inet::physicallayer::Ieee80211OfdmPreambleMode::getTrainingSymbolGIDuration ( ) const

inline

{ return getFFTTransformPeriod() / 2; }

printToStream()

std::ostream & inet::physicallayer::Ieee80211OfdmPreambleMode::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    return stream << "Ieee80211OfdmPreambleMode";
}

---

The documentation for this class was generated from the following files:

• Ieee80211OfdmMode.h
• Ieee80211OfdmMode.cc
