inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase Class Reference

#include <Ieee80211OfdmMode.h>

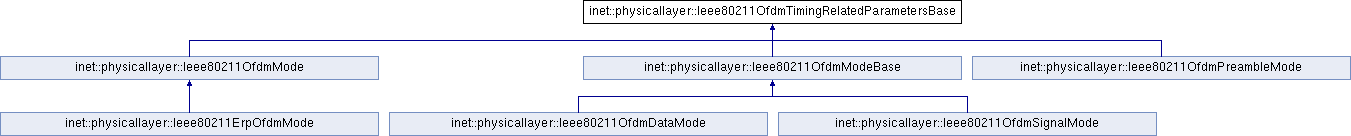

Inheritance diagram for inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase:
inet::physicallayer::Ieee80211OfdmMode inet::physicallayer::Ieee80211OfdmModeBase inet::physicallayer::Ieee80211OfdmPreambleMode inet::physicallayer::Ieee80211ErpOfdmMode inet::physicallayer::Ieee80211OfdmDataMode inet::physicallayer::Ieee80211OfdmSignalMode

Public Member Functions

 Ieee80211OfdmTimingRelatedParametersBase (Hz channelSpacing)

Hz getSubcarrierFrequencySpacing () const

const simtime_t getFFTTransformPeriod () const

const simtime_t getGIDuration () const

const simtime_t getSymbolInterval () const

const Hz getChannelSpacing () const


Protected Attributes

Hz channelSpacing


Constructor & Destructor Documentation

◆ Ieee80211OfdmTimingRelatedParametersBase()

inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase::Ieee80211OfdmTimingRelatedParametersBase ( Hz  channelSpacing)
inline
24 : channelSpacing(channelSpacing) {}

Member Function Documentation

◆ getChannelSpacing()

const Hz inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase::getChannelSpacing ( ) const
inline
31 { return channelSpacing; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::getCarrierSpacing().

◆ getFFTTransformPeriod()

const simtime_t inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase::getFFTTransformPeriod ( ) const
inline
27 { return simtime_t(1 / getSubcarrierFrequencySpacing().get()); }

◆ getGIDuration()

const simtime_t inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase::getGIDuration ( ) const
inline
28 { return getFFTTransformPeriod() / 4; }

◆ getSubcarrierFrequencySpacing()

Hz inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase::getSubcarrierFrequencySpacing ( ) const
inline
26 { return channelSpacing / 64; }

◆ getSymbolInterval()

const simtime_t inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase::getSymbolInterval ( ) const
inline
29 { return getGIDuration() + getFFTTransformPeriod(); }

Referenced by inet::physicallayer::Ieee80211OfdmModeBase::computeGrossBitrate(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createSymbolModel(), and inet::physicallayer::Ieee80211OfdmDataMode::getDuration().

Member Data Documentation

◆ channelSpacing

Hz inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase::channelSpacing
protected

Referenced by inet::physicallayer::Ieee80211OfdmMode::getCcaTime(), inet::physicallayer::Ieee80211OfdmMode::getPhyRxStartDelay(), inet::physicallayer::Ieee80211OfdmMode::getSifsTime(), and inet::physicallayer::Ieee80211OfdmMode::getSlotTime().

The documentation for this class was generated from the following file:
