inet::physicallayer::Ieee80211OfdmDataMode Class Reference

#include <Ieee80211OfdmMode.h>

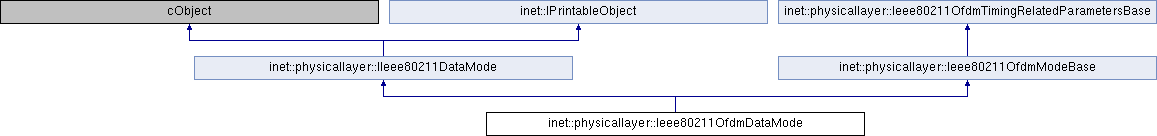

Inheritance diagram for inet::physicallayer::Ieee80211OfdmDataMode:

Public Member Functions
	Ieee80211OfdmDataMode (const Ieee80211OfdmCode *code, const Ieee80211OfdmModulation *modulation, Hz channelSpacing, Hz bandwidth)
virtual	~Ieee80211OfdmDataMode ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
b	getServiceFieldLength () const
b	getTailFieldLength () const
virtual Hz	getBandwidth () const override
virtual b	getPaddingLength (b dataLength) const override
virtual b	getCompleteLength (b dataLength) const override
virtual const simtime_t	getDuration (b dataLength) const override
const Ieee80211OfdmCode *	getCode () const
const Ieee80211OfdmModulation *	getModulation () const override
virtual bps	getGrossBitrate () const override
virtual bps	getNetBitrate () const override
virtual int	getNumberOfSpatialStreams () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const
Public Member Functions inherited from inet::physicallayer::Ieee80211OfdmModeBase
	Ieee80211OfdmModeBase (const Ieee80211OfdmModulation *modulation, const Ieee80211OfdmCode *code, Hz channelSpacing, Hz bandwidth)
virtual	~Ieee80211OfdmModeBase ()
int	getNumberOfDataSubcarriers () const
int	getNumberOfPilotSubcarriers () const
int	getNumberOfTotalSubcarriers () const
Public Member Functions inherited from inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase
	Ieee80211OfdmTimingRelatedParametersBase (Hz channelSpacing)
Hz	getSubcarrierFrequencySpacing () const
const simtime_t	getFFTTransformPeriod () const
const simtime_t	getGIDuration () const
const simtime_t	getSymbolInterval () const
const Hz	getChannelSpacing () const

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Member Functions inherited from inet::physicallayer::Ieee80211OfdmModeBase
bps	computeGrossBitrate (const Ieee80211OfdmModulation *modulation) const
bps	computeNetBitrate (bps grossBitrate, const Ieee80211OfdmCode *code) const
Protected Attributes inherited from inet::physicallayer::Ieee80211OfdmModeBase
const Ieee80211OfdmModulation *	modulation
const Ieee80211OfdmCode *	code
const Hz	bandwidth
bps	netBitrate
bps	grossBitrate
Protected Attributes inherited from inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase
Hz	channelSpacing

Constructor & Destructor Documentation

Ieee80211OfdmDataMode()

inet::physicallayer::Ieee80211OfdmDataMode::Ieee80211OfdmDataMode	(	const Ieee80211OfdmCode *	code,
		const Ieee80211OfdmModulation *	modulation,
		Hz	channelSpacing,
		Hz	bandwidth
	)

                                                                                                                                                      :
    Ieee80211OfdmModeBase(modulation, code, channelSpacing, bandwidth)
{
}

~Ieee80211OfdmDataMode()

virtual inet::physicallayer::Ieee80211OfdmDataMode::~Ieee80211OfdmDataMode ( )

inlinevirtual

{}

Member Function Documentation

getBandwidth()

virtual Hz inet::physicallayer::Ieee80211OfdmDataMode::getBandwidth ( ) const

inlineoverridevirtual

Reimplemented from inet::physicallayer::Ieee80211OfdmModeBase.

{ return bandwidth; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel(), and inet::physicallayer::Ieee80211LayeredOfdmTransmitter::getBandwidth().

getCode()

const Ieee80211OfdmCode* inet::physicallayer::Ieee80211OfdmDataMode::getCode ( ) const

inline

{ return code; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmReceiver::createDataFieldBitModel(), inet::physicallayer::Ieee80211LayeredOfdmReceiver::createDataFieldPacketModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel(), and inet::physicallayer::Ieee80211LayeredOfdmTransmitter::encodeAndModulate().

getCompleteLength()

b inet::physicallayer::Ieee80211OfdmDataMode::getCompleteLength ( b  dataLength ) const

overridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{
    return dataLength + getTailFieldLength() + getPaddingLength(dataLength);
}

Referenced by getDuration().

getDuration()

const simtime_t inet::physicallayer::Ieee80211OfdmDataMode::getDuration ( b  dataLength ) const

overridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{
    // IEEE Std 802.11-2007, section 17.3.2.2, table 17-3
    // corresponds to N_{DBPS} in the table
    unsigned int codedBitsPerOFDMSymbol = modulation->getSubcarrierModulation()->getCodeWordSize() * getNumberOfDataSubcarriers();
    const ConvolutionalCode *convolutionalCode = code ? code->getConvolutionalCode() : nullptr;
    unsigned int dataBitsPerOFDMSymbol = convolutionalCode ? convolutionalCode->getDecodedLength(codedBitsPerOFDMSymbol) : codedBitsPerOFDMSymbol;
    // IEEE Std 802.11-2007, section 17.3.5.3, equation (17-11)
    unsigned int numberOfSymbols = lrint(ceil((double)(getServiceFieldLength() + getCompleteLength(dataLength)).get() / dataBitsPerOFDMSymbol));
    // Add signal extension for ERP PHY
    return numberOfSymbols * getSymbolInterval();
}

Referenced by inet::physicallayer::Ieee80211OfdmMode::getDuration().

getGrossBitrate()

virtual bps inet::physicallayer::Ieee80211OfdmDataMode::getGrossBitrate ( ) const

inlineoverridevirtual

Reimplemented from inet::physicallayer::Ieee80211OfdmModeBase.

{ return Ieee80211OfdmModeBase::getGrossBitrate(); }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createBitModel().

getModulation()

const Ieee80211OfdmModulation* inet::physicallayer::Ieee80211OfdmDataMode::getModulation ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return modulation; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmReceiver::createDataFieldBitModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createSymbolModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::encodeAndModulate(), and inet::physicallayer::Ieee80211LayeredOfdmTransmitter::~Ieee80211LayeredOfdmTransmitter().

getNetBitrate()

virtual bps inet::physicallayer::Ieee80211OfdmDataMode::getNetBitrate ( ) const

inlineoverridevirtual

Reimplemented from inet::physicallayer::Ieee80211OfdmModeBase.

{ return Ieee80211OfdmModeBase::getNetBitrate(); }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createPacketModel().

getNumberOfSpatialStreams()

virtual int inet::physicallayer::Ieee80211OfdmDataMode::getNumberOfSpatialStreams ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{ return 1; }

getPaddingLength()

b inet::physicallayer::Ieee80211OfdmDataMode::getPaddingLength ( b  dataLength ) const

overridevirtual

Implements inet::physicallayer::IIeee80211DataMode.

{
    unsigned int codedBitsPerOFDMSymbol = modulation->getSubcarrierModulation()->getCodeWordSize() * NUMBER_OF_OFDM_DATA_SUBCARRIERS;
    unsigned int dataBitsPerOFDMSymbol = codedBitsPerOFDMSymbol; // N_DBPS
    if (code->getConvolutionalCode()) {
        const ConvolutionalCode *convolutionalCode = code->getConvolutionalCode();
        dataBitsPerOFDMSymbol = convolutionalCode->getDecodedLength(codedBitsPerOFDMSymbol);
    }
    unsigned int dataBitsLength = 6 + b(dataLength).get() + 16;
    unsigned int numberOfOFDMSymbols = lrint(ceil(1.0 * dataBitsLength / dataBitsPerOFDMSymbol));
    unsigned int numberOfBitsInTheDataField = dataBitsPerOFDMSymbol * numberOfOFDMSymbols; // N_DATA
    unsigned int numberOfPadBits = numberOfBitsInTheDataField - dataBitsLength; // N_PAD
    return b(numberOfPadBits);
}

Referenced by getCompleteLength().

getServiceFieldLength()

b inet::physicallayer::Ieee80211OfdmDataMode::getServiceFieldLength ( ) const

inline

{ return b(16); }

Referenced by getDuration().

getTailFieldLength()

b inet::physicallayer::Ieee80211OfdmDataMode::getTailFieldLength ( ) const

inline

{ return b(6); }

Referenced by getCompleteLength().

printToStream()

std::ostream & inet::physicallayer::Ieee80211OfdmDataMode::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    stream << "Ieee80211OfdmDataMode";
    if (level <= PRINT_LEVEL_DETAIL)
        stream << EV_FIELD(netBitrate);
    return stream;
}

---

The documentation for this class was generated from the following files:

• Ieee80211OfdmMode.h
• Ieee80211OfdmMode.cc
