inet::physicallayer::Ieee80211OfdmSignalMode Class Reference

#include <Ieee80211OfdmMode.h>

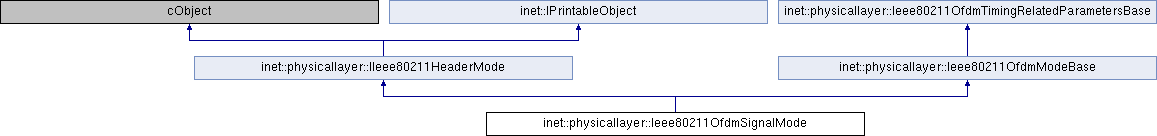

Inheritance diagram for inet::physicallayer::Ieee80211OfdmSignalMode:

Public Member Functions
	Ieee80211OfdmSignalMode (const Ieee80211OfdmCode *code, const Ieee80211OfdmModulation *modulation, Hz channelSpacing, Hz bandwidth, unsigned int rate)
virtual	~Ieee80211OfdmSignalMode ()
virtual std::ostream &	printToStream (std::ostream &stream, int level, int evFlags=0) const override
	Prints this object to the provided output stream. More...
unsigned int	getRate () const
b	getRateFieldLength () const
b	getReservedFieldLength () const
b	getLengthFieldLength () const
b	getParityFieldLength () const
b	getTailFieldLength () const
b	getServiceFieldLength () const
virtual b	getLength () const override
virtual const simtime_t	getDuration () const override
const Ieee80211OfdmCode *	getCode () const
const Ieee80211OfdmModulation *	getModulation () const override
virtual bps	getGrossBitrate () const override
virtual bps	getNetBitrate () const override
virtual Ptr< Ieee80211PhyHeader >	createHeader () const override
Public Member Functions inherited from inet::IPrintableObject
virtual	~IPrintableObject ()
virtual std::string	printToString () const
virtual std::string	printToString (int level, int evFlags=0) const
virtual std::string	getInfoStringRepresentation (int evFlags=0) const
virtual std::string	getDetailStringRepresentation (int evFlags=0) const
virtual std::string	getDebugStringRepresentation (int evFlags=0) const
virtual std::string	getTraceStringRepresentation (int evFlags=0) const
virtual std::string	getCompleteStringRepresentation (int evFlags=0) const
Public Member Functions inherited from inet::physicallayer::Ieee80211OfdmModeBase
	Ieee80211OfdmModeBase (const Ieee80211OfdmModulation *modulation, const Ieee80211OfdmCode *code, Hz channelSpacing, Hz bandwidth)
virtual	~Ieee80211OfdmModeBase ()
int	getNumberOfDataSubcarriers () const
int	getNumberOfPilotSubcarriers () const
int	getNumberOfTotalSubcarriers () const
virtual Hz	getBandwidth () const
Public Member Functions inherited from inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase
	Ieee80211OfdmTimingRelatedParametersBase (Hz channelSpacing)
Hz	getSubcarrierFrequencySpacing () const
const simtime_t	getFFTTransformPeriod () const
const simtime_t	getGIDuration () const
const simtime_t	getSymbolInterval () const
const Hz	getChannelSpacing () const

Protected Attributes
unsigned int	rate
Protected Attributes inherited from inet::physicallayer::Ieee80211OfdmModeBase
const Ieee80211OfdmModulation *	modulation
const Ieee80211OfdmCode *	code
const Hz	bandwidth
bps	netBitrate
bps	grossBitrate
Protected Attributes inherited from inet::physicallayer::Ieee80211OfdmTimingRelatedParametersBase
Hz	channelSpacing

Additional Inherited Members
Public Types inherited from inet::IPrintableObject
enum	PrintLevel {   PRINT_LEVEL_TRACE, PRINT_LEVEL_DEBUG, PRINT_LEVEL_DETAIL, PRINT_LEVEL_INFO,   PRINT_LEVEL_COMPLETE = INT_MIN }
enum	PrintFlag { PRINT_FLAG_FORMATTED = (1 << 0), PRINT_FLAG_MULTILINE = (1 << 1) }
Protected Member Functions inherited from inet::physicallayer::Ieee80211OfdmModeBase
bps	computeGrossBitrate (const Ieee80211OfdmModulation *modulation) const
bps	computeNetBitrate (bps grossBitrate, const Ieee80211OfdmCode *code) const

Constructor & Destructor Documentation

Ieee80211OfdmSignalMode()

inet::physicallayer::Ieee80211OfdmSignalMode::Ieee80211OfdmSignalMode	(	const Ieee80211OfdmCode *	code,
		const Ieee80211OfdmModulation *	modulation,
		Hz	channelSpacing,
		Hz	bandwidth,
		unsigned int	rate
	)

                                                                                                                                                                             :
    Ieee80211OfdmModeBase(modulation, code, channelSpacing, bandwidth),
    rate(rate)
{
}

~Ieee80211OfdmSignalMode()

virtual inet::physicallayer::Ieee80211OfdmSignalMode::~Ieee80211OfdmSignalMode ( )

inlinevirtual

{}

Member Function Documentation

createHeader()

virtual Ptr<Ieee80211PhyHeader> inet::physicallayer::Ieee80211OfdmSignalMode::createHeader ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return makeShared<Ieee80211OfdmPhyHeader>(); }

getCode()

const Ieee80211OfdmCode* inet::physicallayer::Ieee80211OfdmSignalMode::getCode ( ) const

inline

{ return code; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::encodeAndModulate().

getDuration()

virtual const simtime_t inet::physicallayer::Ieee80211OfdmSignalMode::getDuration ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return getSymbolInterval(); }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createSymbolModel(), inet::physicallayer::Ieee80211OfdmMode::getDuration(), inet::physicallayer::Ieee80211HtPreambleMode::getDuration(), and inet::physicallayer::Ieee80211OfdmMode::getPlcpHeaderLength().

getGrossBitrate()

virtual bps inet::physicallayer::Ieee80211OfdmSignalMode::getGrossBitrate ( ) const

inlineoverridevirtual

Reimplemented from inet::physicallayer::Ieee80211OfdmModeBase.

{ return Ieee80211OfdmModeBase::getGrossBitrate(); }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createBitModel().

getLength()

virtual b inet::physicallayer::Ieee80211OfdmSignalMode::getLength ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return getRateFieldLength() + getReservedFieldLength() + getLengthFieldLength() + getParityFieldLength() + getTailFieldLength() + getServiceFieldLength(); }

getLengthFieldLength()

b inet::physicallayer::Ieee80211OfdmSignalMode::getLengthFieldLength ( ) const

inline

{ return b(12); }

getModulation()

const Ieee80211OfdmModulation* inet::physicallayer::Ieee80211OfdmSignalMode::getModulation ( ) const

inlineoverridevirtual

Implements inet::physicallayer::IIeee80211HeaderMode.

{ return modulation; }

Referenced by inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createScalarAnalogModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::createSymbolModel(), inet::physicallayer::Ieee80211LayeredOfdmTransmitter::encodeAndModulate(), and inet::physicallayer::Ieee80211LayeredOfdmTransmitter::~Ieee80211LayeredOfdmTransmitter().

getNetBitrate()

virtual bps inet::physicallayer::Ieee80211OfdmSignalMode::getNetBitrate ( ) const

inlineoverridevirtual

Reimplemented from inet::physicallayer::Ieee80211OfdmModeBase.

{ return Ieee80211OfdmModeBase::getNetBitrate(); }

getParityFieldLength()

b inet::physicallayer::Ieee80211OfdmSignalMode::getParityFieldLength ( ) const

inline

{ return b(1); }

getRate()

unsigned int inet::physicallayer::Ieee80211OfdmSignalMode::getRate ( ) const

inline

{ return rate; }

getRateFieldLength()

b inet::physicallayer::Ieee80211OfdmSignalMode::getRateFieldLength ( ) const

inline

{ return b(4); }

getReservedFieldLength()

b inet::physicallayer::Ieee80211OfdmSignalMode::getReservedFieldLength ( ) const

inline

{ return b(1); }

getServiceFieldLength()

b inet::physicallayer::Ieee80211OfdmSignalMode::getServiceFieldLength ( ) const

inline

{ return b(16); }

getTailFieldLength()

b inet::physicallayer::Ieee80211OfdmSignalMode::getTailFieldLength ( ) const

inline

{ return b(6); }

printToStream()

std::ostream & inet::physicallayer::Ieee80211OfdmSignalMode::printToStream ( std::ostream &  stream, int  level, int  evFlags = 0  ) const

overridevirtual

Prints this object to the provided output stream.

Reimplemented from inet::IPrintableObject.

{
    return stream << "Ieee80211OfdmSignalMode";
}

Member Data Documentation

rate

unsigned int inet::physicallayer::Ieee80211OfdmSignalMode::rate

protected

---

The documentation for this class was generated from the following files:

• Ieee80211OfdmMode.h
• Ieee80211OfdmMode.cc
