inet::physicallayer::Ieee80211ConfigureRadioCommand Class Reference

Class generated from inet/physicallayer/wireless/ieee80211/packetlevel/Ieee80211ControlInfo.msg:19 by opp_msgtool. More...

#include <Ieee80211ControlInfo_m.h>

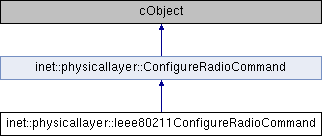

Inheritance diagram for inet::physicallayer::Ieee80211ConfigureRadioCommand:

Public Member Functions
	Ieee80211ConfigureRadioCommand ()
	Ieee80211ConfigureRadioCommand (const Ieee80211ConfigureRadioCommand &other)
virtual	~Ieee80211ConfigureRadioCommand ()
Ieee80211ConfigureRadioCommand &	operator= (const Ieee80211ConfigureRadioCommand &other)
virtual Ieee80211ConfigureRadioCommand *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual const char *	getOpMode () const
virtual void	setOpMode (const char *opMode)
virtual const Ieee80211ModeSet *	getModeSet () const
virtual void	setModeSet (const Ieee80211ModeSet *modeSet)
virtual const IIeee80211Mode *	getMode () const
virtual void	setMode (const IIeee80211Mode *mode)
virtual const IIeee80211Band *	getBand () const
virtual IIeee80211Band *	getBandForUpdate ()
virtual void	setBand (IIeee80211Band *band)
virtual const Ieee80211Channel *	getChannel () const
virtual Ieee80211Channel *	getChannelForUpdate ()
virtual void	setChannel (Ieee80211Channel *channel)
virtual int	getChannelNumber () const
virtual void	setChannelNumber (int channelNumber)
Public Member Functions inherited from inet::physicallayer::ConfigureRadioCommand
	ConfigureRadioCommand ()
	ConfigureRadioCommand (const ConfigureRadioCommand &other)
virtual	~ConfigureRadioCommand ()
ConfigureRadioCommand &	operator= (const ConfigureRadioCommand &other)
virtual int	getRadioMode () const
virtual void	setRadioMode (int radioMode)
virtual ::inet::W	getPower () const
virtual void	setPower (::inet::W power)
virtual ::inet::bps	getBitrate () const
virtual void	setBitrate (::inet::bps bitrate)
virtual const IModulation *	getModulation () const
virtual IModulation *	getModulationForUpdate ()
virtual void	setModulation (IModulation *modulation)
virtual ::inet::Hz	getCenterFrequency () const
virtual void	setCenterFrequency (::inet::Hz centerFrequency)
virtual ::inet::Hz	getBandwidth () const
virtual void	setBandwidth (::inet::Hz bandwidth)

Protected Member Functions
bool	operator== (const Ieee80211ConfigureRadioCommand &)=delete
Protected Member Functions inherited from inet::physicallayer::ConfigureRadioCommand
bool	operator== (const ConfigureRadioCommand &)=delete

Protected Attributes
::omnetpp::opp_string	opMode
const Ieee80211ModeSet *	modeSet = nullptr
const IIeee80211Mode *	mode = nullptr
IIeee80211Band *	band = nullptr
Ieee80211Channel *	channel = nullptr
int	channelNumber = -1
Protected Attributes inherited from inet::physicallayer::ConfigureRadioCommand
int	radioMode = -1
::inet::W	power = W(NaN)
::inet::bps	bitrate = bps(NaN)
IModulation *	modulation = nullptr
::inet::Hz	centerFrequency = Hz(NaN)
::inet::Hz	bandwidth = Hz(NaN)

Private Member Functions
void	copy (const Ieee80211ConfigureRadioCommand &other)

Detailed Description

Class generated from inet/physicallayer/wireless/ieee80211/packetlevel/Ieee80211ControlInfo.msg:19 by opp_msgtool.

//
// Control info attached to a configure command that is sent to the ~Radio.
//
class Ieee80211ConfigureRadioCommand extends ConfigureRadioCommand
{
    string opMode;                         // new default operation mode or "" if not set.
    const Ieee80211ModeSet *modeSet;       // new default mode set or nullptr if not set.
    const IIeee80211Mode *mode;            // new default transmission mode or nullptr if not set.
    IIeee80211Band *band;                  // new default band or nullptr if not set.
    Ieee80211Channel *channel;             // new default band and channel or nullptr if not set.
    int channelNumber = -1;                // new default channel number in the range [0, numChannels] or -1 if not set.
}

Constructor & Destructor Documentation

Ieee80211ConfigureRadioCommand() [1/2]

inet::physicallayer::Ieee80211ConfigureRadioCommand::Ieee80211ConfigureRadioCommand

(

)

Ieee80211ConfigureRadioCommand() [2/2]

inet::physicallayer::Ieee80211ConfigureRadioCommand::Ieee80211ConfigureRadioCommand

(

const Ieee80211ConfigureRadioCommand &

other

)

~Ieee80211ConfigureRadioCommand()

virtual inet::physicallayer::Ieee80211ConfigureRadioCommand::~Ieee80211ConfigureRadioCommand ( )

virtual

Member Function Documentation

copy()

void inet::physicallayer::Ieee80211ConfigureRadioCommand::copy ( const Ieee80211ConfigureRadioCommand &  other )

private

dup()

virtual Ieee80211ConfigureRadioCommand* inet::physicallayer::Ieee80211ConfigureRadioCommand::dup ( ) const

inlineoverridevirtual

Reimplemented from inet::physicallayer::ConfigureRadioCommand.

{return new Ieee80211ConfigureRadioCommand(*this);}

getBand()

virtual const IIeee80211Band* inet::physicallayer::Ieee80211ConfigureRadioCommand::getBand ( ) const

virtual

Referenced by inet::physicallayer::Ieee80211Radio::handleUpperCommand().

getBandForUpdate()

virtual IIeee80211Band* inet::physicallayer::Ieee80211ConfigureRadioCommand::getBandForUpdate ( )

inlinevirtual

{ return const_cast<IIeee80211Band *>(const_cast<Ieee80211ConfigureRadioCommand*>(this)->getBand());}

getChannel()

virtual const Ieee80211Channel* inet::physicallayer::Ieee80211ConfigureRadioCommand::getChannel ( ) const

virtual

Referenced by inet::physicallayer::Ieee80211Radio::handleUpperCommand().

getChannelForUpdate()

virtual Ieee80211Channel* inet::physicallayer::Ieee80211ConfigureRadioCommand::getChannelForUpdate ( )

inlinevirtual

{ return const_cast<Ieee80211Channel *>(const_cast<Ieee80211ConfigureRadioCommand*>(this)->getChannel());}

getChannelNumber()

virtual int inet::physicallayer::Ieee80211ConfigureRadioCommand::getChannelNumber ( ) const

virtual

Referenced by inet::physicallayer::Ieee80211Radio::handleUpperCommand(), and inet::ieee80211::Ieee80211Mac::handleUpperCommand().

getMode()

virtual const IIeee80211Mode* inet::physicallayer::Ieee80211ConfigureRadioCommand::getMode ( ) const

virtual

Referenced by inet::physicallayer::Ieee80211Radio::handleUpperCommand().

getModeSet()

virtual const Ieee80211ModeSet* inet::physicallayer::Ieee80211ConfigureRadioCommand::getModeSet ( ) const

virtual

Referenced by inet::physicallayer::Ieee80211Radio::handleUpperCommand().

getOpMode()

virtual const char* inet::physicallayer::Ieee80211ConfigureRadioCommand::getOpMode ( ) const

virtual

Referenced by inet::physicallayer::Ieee80211Radio::handleUpperCommand().

operator=()

Ieee80211ConfigureRadioCommand& inet::physicallayer::Ieee80211ConfigureRadioCommand::operator=

(

const Ieee80211ConfigureRadioCommand &

other

)

operator==()

bool inet::physicallayer::Ieee80211ConfigureRadioCommand::operator== ( const Ieee80211ConfigureRadioCommand &  )

protecteddelete

parsimPack()

virtual void inet::physicallayer::Ieee80211ConfigureRadioCommand::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented from inet::physicallayer::ConfigureRadioCommand.

Referenced by inet::physicallayer::doParsimPacking().

parsimUnpack()

virtual void inet::physicallayer::Ieee80211ConfigureRadioCommand::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented from inet::physicallayer::ConfigureRadioCommand.

Referenced by inet::physicallayer::doParsimUnpacking().

setBand()

virtual void inet::physicallayer::Ieee80211ConfigureRadioCommand::setBand ( IIeee80211Band *  band )

virtual

setChannel()

virtual void inet::physicallayer::Ieee80211ConfigureRadioCommand::setChannel ( Ieee80211Channel *  channel )

virtual

setChannelNumber()

virtual void inet::physicallayer::Ieee80211ConfigureRadioCommand::setChannelNumber ( int  channelNumber )

virtual

Referenced by inet::ieee80211::Ieee80211MgmtSta::changeChannel(), and inet::ieee80211::Ieee80211Mac::handleUpperCommand().

setMode()

virtual void inet::physicallayer::Ieee80211ConfigureRadioCommand::setMode ( const IIeee80211Mode *  mode )

virtual

setModeSet()

virtual void inet::physicallayer::Ieee80211ConfigureRadioCommand::setModeSet ( const Ieee80211ModeSet *  modeSet )

virtual

setOpMode()

virtual void inet::physicallayer::Ieee80211ConfigureRadioCommand::setOpMode ( const char *  opMode )

virtual

Member Data Documentation

band

IIeee80211Band* inet::physicallayer::Ieee80211ConfigureRadioCommand::band = nullptr

protected

channel

Ieee80211Channel* inet::physicallayer::Ieee80211ConfigureRadioCommand::channel = nullptr

protected

channelNumber

int inet::physicallayer::Ieee80211ConfigureRadioCommand::channelNumber = -1

protected

mode

const IIeee80211Mode* inet::physicallayer::Ieee80211ConfigureRadioCommand::mode = nullptr

protected

modeSet

const Ieee80211ModeSet* inet::physicallayer::Ieee80211ConfigureRadioCommand::modeSet = nullptr

protected

opMode

::omnetpp::opp_string inet::physicallayer::Ieee80211ConfigureRadioCommand::opMode

protected

---

The documentation for this class was generated from the following file:

• Ieee80211ControlInfo_m.h
