inet::physicallayer::ConfigureRadioCommand Class Reference

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/RadioControlInfo.msg:25 by opp_msgtool. More...

#include <RadioControlInfo_m.h>

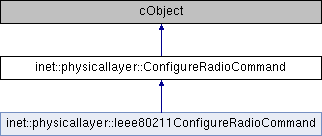

Inheritance diagram for inet::physicallayer::ConfigureRadioCommand:

Public Member Functions
	ConfigureRadioCommand ()
	ConfigureRadioCommand (const ConfigureRadioCommand &other)
virtual	~ConfigureRadioCommand ()
ConfigureRadioCommand &	operator= (const ConfigureRadioCommand &other)
virtual ConfigureRadioCommand *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual int	getRadioMode () const
virtual void	setRadioMode (int radioMode)
virtual ::inet::W	getPower () const
virtual void	setPower (::inet::W power)
virtual ::inet::bps	getBitrate () const
virtual void	setBitrate (::inet::bps bitrate)
virtual const IModulation *	getModulation () const
virtual IModulation *	getModulationForUpdate ()
virtual void	setModulation (IModulation *modulation)
virtual ::inet::Hz	getCenterFrequency () const
virtual void	setCenterFrequency (::inet::Hz centerFrequency)
virtual ::inet::Hz	getBandwidth () const
virtual void	setBandwidth (::inet::Hz bandwidth)

Protected Member Functions
bool	operator== (const ConfigureRadioCommand &)=delete

Protected Attributes
int	radioMode = -1
::inet::W	power = W(NaN)
::inet::bps	bitrate = bps(NaN)
IModulation *	modulation = nullptr
::inet::Hz	centerFrequency = Hz(NaN)
::inet::Hz	bandwidth = Hz(NaN)

Private Member Functions
void	copy (const ConfigureRadioCommand &other)

Detailed Description

Class generated from inet/physicallayer/wireless/common/contract/packetlevel/RadioControlInfo.msg:25 by opp_msgtool.

//
// Control info attached to a configure command that is sent to the ~Radio.
//
class ConfigureRadioCommand extends cObject
{
    int radioMode = -1;                  // new radio mode or -1 if not set.
    W power = W(NaN);                    // new default transmission power in the range (0, +infinity) or NaN if not set.
    bps bitrate = bps(NaN);              // new default bitrate in the range (0, +infinity) or NaN if not set.
    IModulation *modulation;             // new default modulation or nullptr if not set.
    Hz centerFrequency = Hz(NaN);       // new default carrier frequency in the range (0, +infinity) or NaN if not set.
    Hz bandwidth = Hz(NaN);              // new default bandwidth in the rage (0, +infinity) or NaN if not set.
}

Constructor & Destructor Documentation

ConfigureRadioCommand() [1/2]

inet::physicallayer::ConfigureRadioCommand::ConfigureRadioCommand

(

)

ConfigureRadioCommand() [2/2]

inet::physicallayer::ConfigureRadioCommand::ConfigureRadioCommand

(

const ConfigureRadioCommand &

other

)

~ConfigureRadioCommand()

virtual inet::physicallayer::ConfigureRadioCommand::~ConfigureRadioCommand ( )

virtual

Member Function Documentation

copy()

void inet::physicallayer::ConfigureRadioCommand::copy ( const ConfigureRadioCommand &  other )

private

dup()

virtual ConfigureRadioCommand* inet::physicallayer::ConfigureRadioCommand::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::physicallayer::Ieee80211ConfigureRadioCommand.

{return new ConfigureRadioCommand(*this);}

getBandwidth()

virtual ::inet::Hz inet::physicallayer::ConfigureRadioCommand::getBandwidth

(

)

const

Referenced by inet::physicallayer::NarrowbandRadioBase::handleUpperCommand().

getBitrate()

virtual ::inet::bps inet::physicallayer::ConfigureRadioCommand::getBitrate

(

)

const

Referenced by inet::physicallayer::FlatRadioBase::handleUpperCommand(), and inet::ieee80211::Ieee80211Mac::handleUpperCommand().

getCenterFrequency()

virtual ::inet::Hz inet::physicallayer::ConfigureRadioCommand::getCenterFrequency

(

)

const

Referenced by inet::physicallayer::NarrowbandRadioBase::handleUpperCommand().

getModulation()

virtual const IModulation* inet::physicallayer::ConfigureRadioCommand::getModulation ( ) const

virtual

Referenced by inet::physicallayer::NarrowbandRadioBase::handleUpperCommand().

getModulationForUpdate()

virtual IModulation* inet::physicallayer::ConfigureRadioCommand::getModulationForUpdate ( )

inlinevirtual

{ return const_cast<IModulation *>(const_cast<ConfigureRadioCommand*>(this)->getModulation());}

getPower()

virtual ::inet::W inet::physicallayer::ConfigureRadioCommand::getPower

(

)

const

Referenced by inet::physicallayer::FlatRadioBase::handleUpperCommand().

getRadioMode()

virtual int inet::physicallayer::ConfigureRadioCommand::getRadioMode ( ) const

virtual

Referenced by inet::physicallayer::Radio::handleUpperCommand().

operator=()

ConfigureRadioCommand& inet::physicallayer::ConfigureRadioCommand::operator=

(

const ConfigureRadioCommand &

other

)

operator==()

bool inet::physicallayer::ConfigureRadioCommand::operator== ( const ConfigureRadioCommand &  )

protecteddelete

parsimPack()

virtual void inet::physicallayer::ConfigureRadioCommand::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::physicallayer::Ieee80211ConfigureRadioCommand.

Referenced by inet::physicallayer::doParsimPacking().

parsimUnpack()

virtual void inet::physicallayer::ConfigureRadioCommand::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::physicallayer::Ieee80211ConfigureRadioCommand.

Referenced by inet::physicallayer::doParsimUnpacking().

setBandwidth()

virtual void inet::physicallayer::ConfigureRadioCommand::setBandwidth ( ::inet::Hz  bandwidth )

virtual

setBitrate()

virtual void inet::physicallayer::ConfigureRadioCommand::setBitrate ( ::inet::bps  bitrate )

virtual

Referenced by inet::ieee80211::Ieee80211Mac::handleUpperCommand().

setCenterFrequency()

virtual void inet::physicallayer::ConfigureRadioCommand::setCenterFrequency ( ::inet::Hz  centerFrequency )

virtual

setModulation()

virtual void inet::physicallayer::ConfigureRadioCommand::setModulation ( IModulation *  modulation )

virtual

setPower()

virtual void inet::physicallayer::ConfigureRadioCommand::setPower ( ::inet::W  power )

virtual

setRadioMode()

virtual void inet::physicallayer::ConfigureRadioCommand::setRadioMode ( int  radioMode )

virtual

Referenced by inet::ieee80211::Ieee80211Mac::configureRadioMode().

Member Data Documentation

bandwidth

::inet::Hz inet::physicallayer::ConfigureRadioCommand::bandwidth = Hz(NaN)

protected

bitrate

::inet::bps inet::physicallayer::ConfigureRadioCommand::bitrate = bps(NaN)

protected

centerFrequency

::inet::Hz inet::physicallayer::ConfigureRadioCommand::centerFrequency = Hz(NaN)

protected

modulation

IModulation* inet::physicallayer::ConfigureRadioCommand::modulation = nullptr

protected

power

::inet::W inet::physicallayer::ConfigureRadioCommand::power = W(NaN)

protected

radioMode

int inet::physicallayer::ConfigureRadioCommand::radioMode = -1

protected

---

The documentation for this class was generated from the following file:

• RadioControlInfo_m.h
