Ipv4 unicast route in IIpv4RoutingTable. More...

#include <Ipv4Route.h>

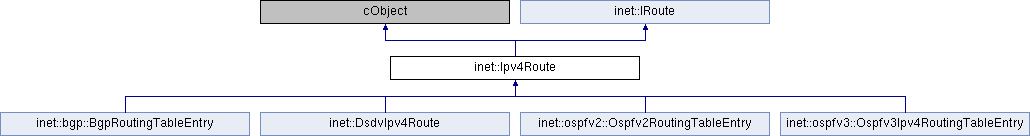

Inheritance diagram for inet::Ipv4Route:

Public Member Functions
	Ipv4Route ()

virtual	~Ipv4Route ()

virtual std::string	str () const override

virtual std::string	detailedInfo () const

bool	operator== (const Ipv4Route &route) const

bool	operator!= (const Ipv4Route &route) const

bool	equals (const Ipv4Route &route) const

virtual void	setRoutingTable (IIpv4RoutingTable *rt)
	To be called by the routing table when this route is added or removed from it. More...

IIpv4RoutingTable *	getRoutingTable () const

virtual bool	isValid () const
	test validity of route entry, e.g. More...

virtual void	setDestination (Ipv4Address _dest)

virtual void	setNetmask (Ipv4Address _netmask)

virtual void	setGateway (Ipv4Address _gateway)

virtual void	setInterface (NetworkInterface *_interfacePtr) override

virtual void	setSourceType (SourceType _source) override

const char *	getSourceTypeAbbreviation () const

virtual void	setAdminDist (unsigned int _adminDist) override

virtual void	setMetric (int _metric) override

const Ipv4Address &	getDestination () const
	Destination address prefix to match. More...

const Ipv4Address &	getNetmask () const
	Represents length of prefix to match. More...

const Ipv4Address &	getGateway () const
	Next hop address. More...

NetworkInterface *	getInterface () const override
	Next hop interface. More...

const char *	getInterfaceName () const
	Convenience method. More...

SourceType	getSourceType () const override
	Source of route. More...

unsigned int	getAdminDist () const
	Route source specific preference value. More...

int	getMetric () const override
	"Cost" to reach the destination More...

void	setSource (cObject *_source) override

cObject *	getSource () const override
	Source of route. More...

cObject *	getProtocolData () const override

void	setProtocolData (cObject *protocolData) override

virtual IRoutingTable *	getRoutingTableAsGeneric () const override
	The routing table in which this route is inserted, or nullptr. More...

virtual void	setDestination (const L3Address &dest) override

virtual void	setPrefixLength (int len) override

virtual void	setNextHop (const L3Address &nextHop) override

virtual L3Address	getDestinationAsGeneric () const override
	Destination address prefix to match. More...

virtual int	getPrefixLength () const override
	Represents length of prefix to match. More...

virtual L3Address	getNextHopAsGeneric () const override
	Next hop address. More...

Public Member Functions inherited from inet::IRoute
virtual	~IRoute ()

virtual void	setSourceType (SourceType type)=0

Protected Member Functions
void	changed (int fieldCode)

Private Member Functions
	Ipv4Route (const Ipv4Route &obj)

Ipv4Route &	operator= (const Ipv4Route &obj)

Private Attributes
IIpv4RoutingTable *	rt
	the routing table in which this route is inserted, or nullptr More...

Ipv4Address	dest
	Destination. More...

Ipv4Address	netmask
	Route mask. More...

Ipv4Address	gateway
	Next hop. More...

NetworkInterface *	interfacePtr
	interface More...

SourceType	sourceType
	manual, routing prot, etc. More...

unsigned int	adminDist
	Cisco like administrative distance. More...

int	metric
	Metric ("cost" to reach the destination) More...

cObject *	source
	Object identifying the source. More...

cObject *	protocolData
	Routing Protocol specific data. More...

Additional Inherited Members
Public Types inherited from inet::IRoute
enum	SourceType { MANUAL, IFACENETMASK, ROUTER_ADVERTISEMENT, OWN_ADV_PREFIX, ICMP_REDIRECT, RIP, OSPF, BGP, ZEBRA, MANET, MANET2, DYMO, AODV, EIGRP, LISP, BABEL, ODR, UNKNOWN, ISIS }
	Specifies where the route comes from. More...

enum	ChangeCodes { F_DESTINATION, F_PREFIX_LENGTH, F_NEXTHOP, F_IFACE, F_SOURCE, F_TYPE, F_ADMINDIST, F_METRIC, F_EXPIRYTIME, F_LAST }
	Field codes for NB_ROUTE_CHANGED notifications. More...

enum	RouteAdminDist { dDirectlyConnected = 0, dStatic = 1, dEIGRPSummary = 5, dBGPExternal = 20, dEIGRPInternal = 90, dIGRP = 100, dOSPF = 110, dISIS = 115, dRIP = 120, dEGP = 140, dODR = 160, dEIGRPExternal = 170, dBGPInternal = 200, dDHCPlearned = 254, dBABEL = 125, dLISP = 210, dUnknown = 255 }
	Cisco like administrative distances. More...

Static Public Member Functions inherited from inet::IRoute
static const char *	sourceTypeName (SourceType sourceType)

Detailed Description

Ipv4 unicast route in IIpv4RoutingTable.

See also: IIpv4RoutingTable, Ipv4RoutingTable

Constructor & Destructor Documentation

◆ Ipv4Route() [1/2]

inet::Ipv4Route::Ipv4Route ( const Ipv4Route & obj )

private

◆ Ipv4Route() [2/2]

inet::Ipv4Route::Ipv4Route ( )

inline

47 : rt(nullptr), interfacePtr(nullptr), sourceType(MANUAL), adminDist(dUnknown),

48 metric(0), source(nullptr), protocolData(nullptr) {}

◆ ~Ipv4Route()

inet::Ipv4Route::~Ipv4Route ( )

virtual

 {
     delete protocolData;
 }

Member Function Documentation

◆ changed()

void inet::Ipv4Route::changed ( int fieldCode )

protected

 {
     if (rt)
         rt->routeChanged(this, fieldCode);
 }

◆ detailedInfo()

std::string inet::Ipv4Route::detailedInfo ( ) const

virtual

 {
     return std::string();
 }

◆ equals()

bool inet::Ipv4Route::equals ( const Ipv4Route & route ) const

 {
     return rt == route.rt && dest == route.dest && netmask == route.netmask && gateway == route.gateway &&
            interfacePtr == route.interfacePtr && sourceType == route.sourceType && metric == route.metric;
 }

◆ getAdminDist()

unsigned int inet::Ipv4Route::getAdminDist ( ) const

inline

Route source specific preference value.

92 { return adminDist; }

Referenced by inet::PimSm::addNewRouteG(), inet::PimSm::addNewRouteSG(), getSourceTypeAbbreviation(), inet::eigrp::EigrpIpv4Pdm::isRTSafeForAdd(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::eigrp::EigrpIpv4Pdm::processRTRouteDel(), inet::Ipv4RoutingTable::routeLessThan(), inet::bgp::BgpRoutingTableEntry::str(), inet::ospfv2::Ospfv2RoutingTableEntry::str(), and inet::PimDm::unroutableMulticastPacketArrived().

◆ getDestination()

const Ipv4Address& inet::Ipv4Route::getDestination ( ) const

inline

Destination address prefix to match.

74 { return dest; }

◆ getDestinationAsGeneric()

virtual L3Address inet::Ipv4Route::getDestinationAsGeneric ( ) const

inlineoverridevirtual

Destination address prefix to match.

Implements inet::IRoute.

108 { return getDestination(); }

Referenced by inet::ospfv3::operator<<(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::operator==(), and inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry().

◆ getGateway()

const Ipv4Address& inet::Ipv4Route::getGateway ( ) const

inline

Next hop address.

80 { return gateway; }

Referenced by inet::PimSm::addNewRouteG(), inet::PimSm::addNewRouteSG(), inet::visualizer::RoutingTableVisualizerBase::addRouteVisualizations(), inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::bgp::BgpRouter::decisionProcess(), inet::Ipv4NetworkConfigurator::dumpConfig(), inet::ospfv2::Router::getRoutesToASBoundaryRouter(), inet::ospfv2::Router::hasRouteToASBoundaryRouter(), inet::ospfv2::Router::isDirectRoute(), inet::bgp::operator<<(), inet::Ipv4NetworkConfigurator::optimizeRoutes(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::Ipv4RoutingTable::printRoutingTable(), inet::eigrp::EigrpIpv4Pdm::processRTRouteDel(), inet::Ldp::rebuildFecList(), inet::Ted::rebuildRoutingTable(), inet::Ipv4NetworkConfigurator::routesHaveSameColor(), inet::Ipv4::routeUnicastPacket(), inet::bgp::BgpRoutingTableEntry::str(), str(), inet::ospfv2::Ospfv2RoutingTableEntry::str(), inet::PimDm::unroutableMulticastPacketArrived(), inet::PimSm::unroutableMulticastPacketArrived(), and inet::bgp::BgpRouter::updateSendProcess().

◆ getInterface()

NetworkInterface* inet::Ipv4Route::getInterface ( ) const

inlineoverridevirtual

Next hop interface.

Implements inet::IRoute.

83 { return interfacePtr; }

Referenced by inet::PimSm::addNewRouteG(), inet::PimSm::addNewRouteSG(), inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::bgp::BgpRouter::decisionProcess(), inet::Ipv4RoutingTable::deleteInterfaceRoutes(), inet::Ipv4::determineOutgoingInterfaceForMulticastDatagram(), inet::Ldp::findPeerAddrFromInterface(), inet::ospfv2::Router::getPreferredEntry(), inet::ospfv2::Router::getRoutesToASBoundaryRouter(), inet::ospfv2::Ospfv2::handleInterfaceDown(), inet::ospfv2::Router::hasRouteToASBoundaryRouter(), inet::Ipv4RoutingTable::internalAddRoute(), inet::bgp::BgpRouter::isExternalAddress(), inet::bgp::BgpRouter::isRouteExcluded(), inet::ospfv3::operator<<(), inet::Ipv4NetworkConfigurator::optimizeRoutes(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry(), inet::Ipv4RoutingTable::printRoutingTable(), inet::PimDm::receiveSignal(), inet::Ipv4NetworkConfigurator::routesHaveSameColor(), inet::Ipv4::routeUnicastPacket(), inet::PimDm::rpfInterfaceHasChanged(), inet::Dsdv::start(), inet::bgp::BgpRoutingTableEntry::str(), inet::ospfv2::Ospfv2RoutingTableEntry::str(), inet::PimDm::unroutableMulticastPacketArrived(), and inet::PimSm::unroutableMulticastPacketArrived().

◆ getInterfaceName()

const char * inet::Ipv4Route::getInterfaceName ( ) const

Convenience method.

 {
     return interfacePtr ? interfacePtr->getInterfaceName() : "";
 }

Referenced by inet::Ipv4NetworkConfigurator::dumpConfig(), inet::bgp::operator<<(), inet::ospfv2::operator<<(), inet::Ted::rebuildRoutingTable(), inet::bgp::BgpRoutingTableEntry::str(), str(), and inet::ospfv2::Ospfv2RoutingTableEntry::str().

◆ getMetric()

int inet::Ipv4Route::getMetric ( ) const

inlineoverridevirtual

"Cost" to reach the destination

Implements inet::IRoute.

95 { return metric; }

Referenced by inet::PimSm::addNewRouteG(), inet::PimSm::addNewRouteSG(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::Ipv4NetworkConfigurator::dumpConfig(), inet::Dsdv::handleMessageWhenUp(), inet::eigrp::EigrpIpv4Pdm::installRouteToRT(), inet::bgp::operator<<(), inet::Ipv4NetworkConfigurator::optimizeRoutes(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry(), inet::Ipv4RoutingTable::printRoutingTable(), inet::Ipv4RoutingTable::routeLessThan(), inet::Ipv4NetworkConfigurator::routesHaveSameColor(), inet::bgp::BgpRoutingTableEntry::str(), inet::ospfv2::Ospfv2RoutingTableEntry::str(), and inet::PimDm::unroutableMulticastPacketArrived().

◆ getNetmask()

const Ipv4Address& inet::Ipv4Route::getNetmask ( ) const

inline

Represents length of prefix to match.

77 { return netmask; }

Referenced by inet::ospfv2::Router::addExternalRouteInIPTable(), inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry(), inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::bgp::BgpRouter::decisionProcess(), inet::bgp::BgpRouter::deleteBGPRoutingEntry(), inet::Ipv4NetworkConfigurator::dumpConfig(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv2::Router::getDefaultRoute(), inet::ospfv2::Router::getRoutesToASBoundaryRouter(), inet::Dsdv::handleMessageWhenUp(), inet::ospfv2::Router::hasRouteToASBoundaryRouter(), inet::Ipv4RoutingTable::internalAddRoute(), inet::ospfv2::Ospfv2Area::isDefaultRoute(), inet::bgp::BgpRouter::isDefaultRoute(), inet::ospfv3::Ospfv3Process::isInRoutingTable(), inet::bgp::BgpRouter::isInRoutingTable(), inet::bgp::BgpRouter::isInTable(), inet::bgp::BgpRouter::isReachable(), inet::bgp::BgpRouter::isRouteExcluded(), inet::bgp::operator<<(), inet::ospfv2::operator<<(), inet::ospfv2::Ospfv2RoutingTableEntry::operator==(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::Ipv4RoutingTable::printRoutingTable(), inet::eigrp::EigrpIpv4Pdm::processRTRouteDel(), inet::Ldp::rebuildFecList(), inet::PimDm::receiveSignal(), inet::Ipv4RoutingTable::routeLessThan(), inet::bgp::BgpRoutingTableEntry::str(), str(), inet::ospfv2::Ospfv2RoutingTableEntry::str(), inet::ospfv2::Router::updateExternalRoute(), and inet::bgp::BgpRouter::updateSendProcess().

◆ getNextHopAsGeneric()

virtual L3Address inet::Ipv4Route::getNextHopAsGeneric ( ) const

inlineoverridevirtual

Next hop address.

Implements inet::IRoute.

110 { return getGateway(); } // TODO rename Ipv4 method

Referenced by inet::ospfv2::Ospfv2::handleInterfaceDown().

◆ getPrefixLength()

virtual int inet::Ipv4Route::getPrefixLength ( ) const

inlineoverridevirtual

Represents length of prefix to match.

Implements inet::IRoute.

109 { return getNetmask().getNetmaskLength(); }

Referenced by inet::ospfv3::operator<<(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::operator==(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getProtocolData()

cObject* inet::Ipv4Route::getProtocolData ( ) const

inlineoverridevirtual

Implements inet::IRoute.

100 { return protocolData; }

◆ getRoutingTable()

IIpv4RoutingTable* inet::Ipv4Route::getRoutingTable ( ) const

inline

59 { return rt; }

Referenced by inet::visualizer::RoutingTableVisualizerBase::addRouteVisualization(), inet::Ipv4RoutingTable::deleteInterfaceRoutes(), inet::Ipv4RoutingTable::deleteRoute(), inet::visualizer::RoutingTableVisualizerBase::getRouteVisualization(), getRoutingTableAsGeneric(), inet::Ipv4RoutingTable::purge(), inet::Ipv4RoutingTable::removeRoute(), inet::visualizer::RoutingTableVisualizerBase::removeRouteVisualization(), inet::bgp::BgpRoutingTableEntry::str(), inet::ospfv2::Ospfv2RoutingTableEntry::str(), and inet::Ipv4RoutingTable::updateNetmaskRoutes().

◆ getRoutingTableAsGeneric()

IRoutingTable * inet::Ipv4Route::getRoutingTableAsGeneric ( ) const

overridevirtual

The routing table in which this route is inserted, or nullptr.

Implements inet::IRoute.

 {
     return getRoutingTable();
 }

◆ getSource()

cObject* inet::Ipv4Route::getSource ( ) const

inlineoverridevirtual

Source of route.

Implements inet::IRoute.

98 { return source; }

Referenced by inet::Ipv4NetworkConfigurator::configureRoutingTable().

◆ getSourceType()

SourceType inet::Ipv4Route::getSourceType ( ) const

inlineoverridevirtual

Source of route.

MANUAL (read from file), from routing protocol, etc

Implements inet::IRoute.

89 { return sourceType; }

Referenced by inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::bgp::BgpRouter::decisionProcess(), inet::eigrp::EigrpIpv4Pdm::installRouteToRT(), inet::bgp::BgpRouter::isReachable(), inet::bgp::BgpRouter::isRouteExcluded(), inet::Ipv4NetworkConfigurator::optimizeRoutes(), inet::bgp::BgpRouter::ospfExist(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), inet::eigrp::EigrpIpv4Pdm::removeRouteFromRT(), inet::Ipv4NetworkConfigurator::routesHaveSameColor(), inet::PimDm::rpfInterfaceHasChanged(), and inet::PimDm::unroutableMulticastPacketArrived().

◆ getSourceTypeAbbreviation()

const char * inet::Ipv4Route::getSourceTypeAbbreviation ( ) const

                                                            {
     switch (sourceType) {
         case IFACENETMASK:
             return "C";
         case MANUAL:
             return getDestination().isUnspecified() ? "S*" : "S";
         case ROUTER_ADVERTISEMENT:
             return "ra";
         case RIP:
             return "R";
         case OSPF:
             return "O";
         case BGP:
             return "B";
         case EIGRP:
             return getAdminDist() < Ipv4Route::dEIGRPExternal ? "D" : "D EX";
         case LISP:
             return "l";
         case BABEL:
             return "ba";
         case ODR:
             return "o";
         default:
             return "???";
     }
 }

Referenced by inet::bgp::BgpRoutingTableEntry::str(), str(), and inet::ospfv2::Ospfv2RoutingTableEntry::str().

◆ isValid()

virtual bool inet::Ipv4Route::isValid ( ) const

inlinevirtual

test validity of route entry, e.g.

check expiry

Reimplemented in inet::DsdvIpv4Route.

62 { return true; }

Referenced by inet::Ipv4RoutingTable::purge().

◆ operator!=()

bool inet::Ipv4Route::operator!= ( const Ipv4Route & route ) const

inline

54 { return !equals(route); }

◆ operator=()

Ipv4Route& inet::Ipv4Route::operator= ( const Ipv4Route & obj )

private

◆ operator==()

bool inet::Ipv4Route::operator== ( const Ipv4Route & route ) const

inline

53 { return equals(route); }

◆ setAdminDist()

virtual void inet::Ipv4Route::setAdminDist ( unsigned int _adminDist )

inlineoverridevirtual

Implements inet::IRoute.

70 { if (adminDist != _adminDist) { adminDist = _adminDist; changed(F_ADMINDIST); } }

Referenced by inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry(), inet::eigrp::EigrpIpv4Pdm::createRTRoute(), inet::bgp::BgpRouter::decisionProcess(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), and inet::Ipv4RoutingTable::updateNetmaskRoutes().

◆ setDestination() [1/2]

virtual void inet::Ipv4Route::setDestination ( const L3Address & dest )

inlineoverridevirtual

Implements inet::IRoute.

104 { setDestination(dest.toIpv4()); }

Referenced by setDestination().

◆ setDestination() [2/2]

virtual void inet::Ipv4Route::setDestination ( Ipv4Address _dest )

inlinevirtual

64 { if (dest != _dest) { dest = _dest; changed(F_DESTINATION); } }

Referenced by inet::ospfv2::Router::addExternalRouteInIPTable(), inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry(), inet::DhcpClient::bindLease(), inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), inet::eigrp::EigrpIpv4Pdm::createRTRoute(), inet::bgp::BgpConfigReader::loadASConfig(), inet::ospfv2::Router::lookup(), inet::Ipv4NetworkConfigurator::optimizeRoutes(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry(), inet::ospfv3::Ospfv3Process::parseConfig(), inet::bgp::BgpRouter::processMessage(), inet::Ipv4NetworkConfigurator::readManualRouteConfiguration(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), inet::Ted::rebuildRoutingTable(), inet::ospfv2::Router::updateExternalRoute(), and inet::Ipv4RoutingTable::updateNetmaskRoutes().

◆ setGateway()

virtual void inet::Ipv4Route::setGateway ( Ipv4Address _gateway )

inlinevirtual

66 { if (gateway != _gateway) { gateway = _gateway; changed(F_NEXTHOP); } }

Referenced by inet::ospfv2::Ospfv2RoutingTableEntry::addNextHop(), inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry(), inet::DhcpClient::bindLease(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::eigrp::EigrpIpv4Pdm::createRTRoute(), inet::bgp::BgpRouter::decisionProcess(), inet::Ipv4NetworkConfigurator::optimizeRoutes(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::Ipv4NetworkConfigurator::readManualRouteConfiguration(), inet::Ted::rebuildRoutingTable(), and inet::Ipv4RoutingTable::updateNetmaskRoutes().

◆ setInterface()

virtual void inet::Ipv4Route::setInterface ( NetworkInterface * _interfacePtr )

inlineoverridevirtual

Implements inet::IRoute.

67 { if (interfacePtr != _interfacePtr) { interfacePtr = _interfacePtr; changed(F_IFACE); } }

Referenced by inet::ospfv2::Router::addExternalRouteInIPTable(), inet::ospfv2::Ospfv2RoutingTableEntry::addNextHop(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::addNextHop(), inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry(), inet::DhcpClient::bindLease(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::eigrp::EigrpIpv4Pdm::createRTRoute(), inet::bgp::BgpRouter::decisionProcess(), inet::Ipv4NetworkConfigurator::optimizeRoutes(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry(), inet::ospfv3::Ospfv3Process::parseConfig(), inet::Ipv4NetworkConfigurator::readManualRouteConfiguration(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), inet::Ted::rebuildRoutingTable(), inet::ospfv2::Router::updateExternalRoute(), and inet::Ipv4RoutingTable::updateNetmaskRoutes().

◆ setMetric()

virtual void inet::Ipv4Route::setMetric ( int _metric )

inlineoverridevirtual

Implements inet::IRoute.

71 { if (metric != _metric) { metric = _metric; changed(F_METRIC); } }

Referenced by inet::ospfv2::Router::addExternalRouteInIPTable(), inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::Ipv4NetworkConfigurator::optimizeRoutes(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry(), inet::ospfv3::Ospfv3Process::parseConfig(), inet::Ipv4NetworkConfigurator::readManualRouteConfiguration(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), inet::Ted::rebuildRoutingTable(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::setCost(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::setPathType(), inet::eigrp::EigrpIpv4Pdm::setRTRouteMetric(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::setType2Cost(), inet::ospfv2::Router::updateExternalRoute(), and inet::Ipv4RoutingTable::updateNetmaskRoutes().

◆ setNetmask()

virtual void inet::Ipv4Route::setNetmask ( Ipv4Address _netmask )

inlinevirtual

65 { if (netmask != _netmask) { netmask = _netmask; changed(F_PREFIX_LENGTH); } }

Referenced by inet::ospfv2::Router::addExternalRouteInIPTable(), inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry(), inet::DhcpClient::bindLease(), inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), inet::eigrp::EigrpIpv4Pdm::createRTRoute(), inet::bgp::BgpConfigReader::loadASConfig(), inet::ospfv2::Router::lookup(), inet::Ipv4NetworkConfigurator::optimizeRoutes(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::ospfv3::Ospfv3Process::parseConfig(), inet::bgp::BgpRouter::processMessage(), inet::Ipv4NetworkConfigurator::readManualRouteConfiguration(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), inet::Ted::rebuildRoutingTable(), inet::ospfv2::Router::updateExternalRoute(), and inet::Ipv4RoutingTable::updateNetmaskRoutes().

◆ setNextHop()

virtual void inet::Ipv4Route::setNextHop ( const L3Address & nextHop )

inlineoverridevirtual

Implements inet::IRoute.

106 { setGateway(nextHop.toIpv4()); } // TODO rename Ipv4 method

Referenced by inet::ospfv3::Ospfv3Process::rebuildRoutingTable().

◆ setPrefixLength()

virtual void inet::Ipv4Route::setPrefixLength ( int len )

inlineoverridevirtual

Implements inet::IRoute.

105 { setNetmask(Ipv4Address::makeNetmask(len)); }

Referenced by inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry().

◆ setProtocolData()

void inet::Ipv4Route::setProtocolData ( cObject * protocolData )

inlineoverridevirtual

Implements inet::IRoute.

101 { this->protocolData = protocolData; }

◆ setRoutingTable()

virtual void inet::Ipv4Route::setRoutingTable ( IIpv4RoutingTable * rt )

inlinevirtual

To be called by the routing table when this route is added or removed from it.

58 { this->rt = rt; }

Referenced by inet::Ipv4RoutingTable::internalAddRoute(), inet::Ipv4RoutingTable::removeRoute(), and inet::Ipv4RoutingTable::updateNetmaskRoutes().

◆ setSource()

void inet::Ipv4Route::setSource ( cObject * _source )

inlineoverridevirtual

Implements inet::IRoute.

97 { if (source != _source) { source = _source; changed(F_SOURCE); } }

Referenced by inet::Ipv4NetworkConfigurator::configureRoutingTable(), and inet::Ipv4RoutingTable::updateNetmaskRoutes().

◆ setSourceType()

virtual void inet::Ipv4Route::setSourceType ( SourceType _source )

inlineoverridevirtual

68 { if (sourceType != _source) { sourceType = _source; changed(F_SOURCE); } }

Referenced by inet::ospfv2::Router::addExternalRouteInIPTable(), inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::bgp::BgpRoutingTableEntry::BgpRoutingTableEntry(), inet::DhcpClient::bindLease(), inet::Ipv4NetworkConfigurator::configureRoutingTable(), inet::eigrp::EigrpIpv4Pdm::createRTRoute(), inet::Ipv4NetworkConfigurator::optimizeRoutes(), inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry(), inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry(), inet::ospfv3::Ospfv3Process::parseConfig(), inet::Ipv4NetworkConfigurator::readManualRouteConfiguration(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), inet::Ted::rebuildRoutingTable(), inet::ospfv2::Router::updateExternalRoute(), and inet::Ipv4RoutingTable::updateNetmaskRoutes().

◆ str()

std::string inet::Ipv4Route::str ( ) const

overridevirtual

Reimplemented in inet::ospfv2::Ospfv2RoutingTableEntry, and inet::bgp::BgpRoutingTableEntry.

 {
     std::stringstream out;
     out << getSourceTypeAbbreviation();
     if (getDestination().isUnspecified())
         out << " 0.0.0.0";
     else
         out << " " << getDestination();
     out << "/";
     if (getNetmask().isUnspecified())
         out << "0";
     else
         out << getNetmask().getNetmaskLength();
     out << " gw:";
     if (gateway.isUnspecified())
         out << "*";
     else
         out << getGateway();
     if (rt && rt->isAdminDistEnabled())
         out << " AD:" << adminDist;
     out << " metric:" << metric;
     out << " if:";
     if (!interfacePtr)
         out << "*";
     else
         out << getInterfaceName();

     if (protocolData)
         out << " " << protocolData->str();

     return out.str();
 }

Referenced by inet::Ipv4RoutingTable::addRoute(), inet::Ipv4NetworkConfigurator::addStaticRoutes(), inet::Ipv4RoutingTable::deleteRoute(), and inet::Ipv4RoutingTable::removeRoute().

Member Data Documentation

◆ adminDist

unsigned int inet::Ipv4Route::adminDist

private

Cisco like administrative distance.

Referenced by str().

◆ dest

Ipv4Address inet::Ipv4Route::dest

private

Destination.

Referenced by equals().

◆ gateway

Ipv4Address inet::Ipv4Route::gateway

private

Next hop.

Referenced by equals(), and str().

◆ interfacePtr

NetworkInterface* inet::Ipv4Route::interfacePtr

private

interface

Referenced by equals(), getInterfaceName(), and str().

◆ metric

int inet::Ipv4Route::metric

private

Metric ("cost" to reach the destination)

Referenced by equals(), and str().

◆ netmask

Ipv4Address inet::Ipv4Route::netmask

private

Route mask.

Referenced by equals().

◆ protocolData

cObject* inet::Ipv4Route::protocolData

private

Routing Protocol specific data.

Referenced by str(), and ~Ipv4Route().

◆ rt

IIpv4RoutingTable* inet::Ipv4Route::rt

private

the routing table in which this route is inserted, or nullptr

Referenced by changed(), equals(), and str().

◆ source

cObject* inet::Ipv4Route::source

private

Object identifying the source.

◆ sourceType

SourceType inet::Ipv4Route::sourceType

private

manual, routing prot, etc.

Referenced by equals(), and getSourceTypeAbbreviation().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Ipv4Route() [1/2]

◆ Ipv4Route() [2/2]

◆ ~Ipv4Route()

Member Function Documentation

◆ changed()

◆ detailedInfo()

◆ equals()

◆ getAdminDist()

◆ getDestination()

◆ getDestinationAsGeneric()

◆ getGateway()

◆ getInterface()

◆ getInterfaceName()

◆ getMetric()

◆ getNetmask()

◆ getNextHopAsGeneric()

◆ getPrefixLength()

◆ getProtocolData()

◆ getRoutingTable()

◆ getRoutingTableAsGeneric()

◆ getSource()

◆ getSourceType()

◆ getSourceTypeAbbreviation()

◆ isValid()

◆ operator!=()

◆ operator=()

◆ operator==()

◆ setAdminDist()

◆ setDestination() [1/2]

◆ setDestination() [2/2]

◆ setGateway()

◆ setInterface()

◆ setMetric()

◆ setNetmask()

◆ setNextHop()

◆ setPrefixLength()

◆ setProtocolData()

◆ setRoutingTable()

◆ setSource()

◆ setSourceType()

◆ str()

Member Data Documentation

◆ adminDist

◆ dest

◆ gateway

◆ interfacePtr

◆ metric

◆ netmask

◆ protocolData

◆ rt

◆ source

◆ sourceType
