#include <Ospfv3RoutingTableEntry.h>

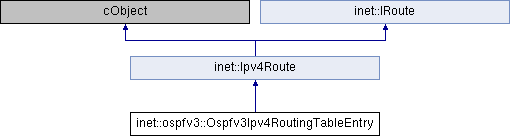

Inheritance diagram for inet::ospfv3::Ospfv3Ipv4RoutingTableEntry:

Public Types
enum	RoutingPathType { INTRAAREA = 0, INTERAREA = 1, TYPE1_EXTERNAL = 2, TYPE2_EXTERNAL = 3 }

typedef unsigned char	RoutingDestinationType

Public Types inherited from inet::IRoute
enum	SourceType { MANUAL, IFACENETMASK, ROUTER_ADVERTISEMENT, OWN_ADV_PREFIX, ICMP_REDIRECT, RIP, OSPF, BGP, ZEBRA, MANET, MANET2, DYMO, AODV, EIGRP, LISP, BABEL, ODR, UNKNOWN, ISIS }
	Specifies where the route comes from. More...

enum	ChangeCodes { F_DESTINATION, F_PREFIX_LENGTH, F_NEXTHOP, F_IFACE, F_SOURCE, F_TYPE, F_ADMINDIST, F_METRIC, F_EXPIRYTIME, F_LAST }
	Field codes for NB_ROUTE_CHANGED notifications. More...

enum	RouteAdminDist { dDirectlyConnected = 0, dStatic = 1, dEIGRPSummary = 5, dBGPExternal = 20, dEIGRPInternal = 90, dIGRP = 100, dOSPF = 110, dISIS = 115, dRIP = 120, dEGP = 140, dODR = 160, dEIGRPExternal = 170, dBGPInternal = 200, dDHCPlearned = 254, dBABEL = 125, dLISP = 210, dUnknown = 255 }
	Cisco like administrative distances. More...

Public Member Functions
	Ospfv3Ipv4RoutingTableEntry (const Ospfv3Ipv4RoutingTableEntry &entry, Ipv4Address destPrefix, int prefixLength, SourceType sourceType)

	Ospfv3Ipv4RoutingTableEntry (IInterfaceTable *ift, Ipv4Address destPrefix, int prefixLength, SourceType sourceType)

virtual	~Ospfv3Ipv4RoutingTableEntry ()

bool	operator== (const Ospfv3Ipv4RoutingTableEntry &entry) const

bool	operator!= (const Ospfv3Ipv4RoutingTableEntry &entry) const

void	setDestinationType (RoutingDestinationType type)

RoutingDestinationType	getDestinationType () const

void	setOptionalCapabilities (Ospfv3Options options)

Ospfv3Options	getOptionalCapabilities () const

void	setArea (AreaID source)

AreaID	getArea () const

void	setPathType (RoutingPathType type)

RoutingPathType	getPathType () const

void	setCost (Metric pathCost)

Metric	getCost () const

void	setType2Cost (Metric pathCost)

Metric	getType2Cost () const

void	setLinkStateOrigin (const Ospfv3Lsa *lsa)

const Ospfv3Lsa *	getLinkStateOrigin () const

void	addNextHop (NextHop hop)

void	clearNextHops ()

unsigned int	getNextHopCount () const

NextHop	getNextHop (unsigned int index) const

Public Member Functions inherited from inet::Ipv4Route
	Ipv4Route ()

virtual	~Ipv4Route ()

virtual std::string	str () const override

virtual std::string	detailedInfo () const

bool	operator== (const Ipv4Route &route) const

bool	operator!= (const Ipv4Route &route) const

bool	equals (const Ipv4Route &route) const

virtual void	setRoutingTable (IIpv4RoutingTable *rt)
	To be called by the routing table when this route is added or removed from it. More...

IIpv4RoutingTable *	getRoutingTable () const

virtual bool	isValid () const
	test validity of route entry, e.g. More...

virtual void	setDestination (Ipv4Address _dest)

virtual void	setNetmask (Ipv4Address _netmask)

virtual void	setGateway (Ipv4Address _gateway)

virtual void	setInterface (NetworkInterface *_interfacePtr) override

virtual void	setSourceType (SourceType _source) override

const char *	getSourceTypeAbbreviation () const

virtual void	setAdminDist (unsigned int _adminDist) override

virtual void	setMetric (int _metric) override

const Ipv4Address &	getDestination () const
	Destination address prefix to match. More...

const Ipv4Address &	getNetmask () const
	Represents length of prefix to match. More...

const Ipv4Address &	getGateway () const
	Next hop address. More...

NetworkInterface *	getInterface () const override
	Next hop interface. More...

const char *	getInterfaceName () const
	Convenience method. More...

SourceType	getSourceType () const override
	Source of route. More...

unsigned int	getAdminDist () const
	Route source specific preference value. More...

int	getMetric () const override
	"Cost" to reach the destination More...

void	setSource (cObject *_source) override

cObject *	getSource () const override
	Source of route. More...

cObject *	getProtocolData () const override

void	setProtocolData (cObject *protocolData) override

virtual IRoutingTable *	getRoutingTableAsGeneric () const override
	The routing table in which this route is inserted, or nullptr. More...

virtual void	setDestination (const L3Address &dest) override

virtual void	setPrefixLength (int len) override

virtual void	setNextHop (const L3Address &nextHop) override

virtual L3Address	getDestinationAsGeneric () const override
	Destination address prefix to match. More...

virtual int	getPrefixLength () const override
	Represents length of prefix to match. More...

virtual L3Address	getNextHopAsGeneric () const override
	Next hop address. More...

Public Member Functions inherited from inet::IRoute
virtual	~IRoute ()

virtual void	setSourceType (SourceType type)=0

Static Public Attributes
static const unsigned char	NETWORK_DESTINATION = 0

static const unsigned char	AREA_BORDER_ROUTER_DESTINATION = 1

static const unsigned char	AS_BOUNDARY_ROUTER_DESTINATION = 2

static const unsigned char	ROUTER_DESTINATION = 3

Private Attributes
IInterfaceTable *	ift = nullptr

RoutingDestinationType	destinationType = 0

Ospfv3Options	optionalCapabilities

AreaID	area

RoutingPathType	pathType = (RoutingPathType) - 1

Metric	cost = 0

Metric	type2Cost = 0

const Ospfv3Lsa *	linkStateOrigin = nullptr

std::vector< NextHop >	nextHops

Additional Inherited Members
Static Public Member Functions inherited from inet::IRoute
static const char *	sourceTypeName (SourceType sourceType)

Protected Member Functions inherited from inet::Ipv4Route
void	changed (int fieldCode)

Member Typedef Documentation

◆ RoutingDestinationType

typedef unsigned char inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::RoutingDestinationType

Member Enumeration Documentation

◆ RoutingPathType

enum inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::RoutingPathType

Enumerator
INTRAAREA
INTERAREA
TYPE1_EXTERNAL
TYPE2_EXTERNAL

                          {
         INTRAAREA      = 0,
         INTERAREA      = 1,
         TYPE1_EXTERNAL = 2,
         TYPE2_EXTERNAL = 3
     };

Constructor & Destructor Documentation

◆ Ospfv3Ipv4RoutingTableEntry() [1/2]

inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry	(	const Ospfv3Ipv4RoutingTableEntry &	entry,
		Ipv4Address	destPrefix,
		int	prefixLength,
		SourceType	sourceType
	)

                                                                                                                                                                   :
     // Ipv6Route(destPrefix, prefixLength, sourceType),
     destinationType(entry.destinationType),
     optionalCapabilities(entry.optionalCapabilities),
     area(entry.area),
     pathType(entry.pathType),
     cost(entry.cost),
     type2Cost(entry.type2Cost),
     linkStateOrigin(entry.linkStateOrigin),
     nextHops(entry.nextHops)
 {
     this->setDestination(entry.getDestinationAsGeneric());
     this->setPrefixLength(prefixLength);
     this->setInterface(entry.getInterface());
     this->setSourceType(entry.getSourceType());
     this->setMetric(entry.getMetric());
 }

◆ Ospfv3Ipv4RoutingTableEntry() [2/2]

inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::Ospfv3Ipv4RoutingTableEntry	(	IInterfaceTable *	ift,
		Ipv4Address	destPrefix,
		int	prefixLength,
		SourceType	sourceType
	)

                                                                                                                                               :
 //     Ipv6Route(destPrefix, prefixLength, sourceType),
     ift(ift),
     area(BACKBONE_AREAID),
     pathType(Ospfv3Ipv4RoutingTableEntry::INTRAAREA)
 {
     this->setDestination(destPrefix);
     this->setPrefixLength(prefixLength);
     this->setSourceType(sourceType);
 }

◆ ~Ospfv3Ipv4RoutingTableEntry()

virtual inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::~Ospfv3Ipv4RoutingTableEntry ( )

inlinevirtual

111 {}

Member Function Documentation

◆ addNextHop()

void inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::addNextHop ( NextHop hop )

 {
     if (nextHops.size() == 0) {
         NetworkInterface *routingInterface = ift->getInterfaceById(hop.ifIndex);

         setInterface(routingInterface);
         // TODO this used to be commented out, but it seems we need it
         // otherwise gateways will never be filled in and gateway is needed for broadcast networks
 //        setGateway(hop.hopAddress);
     }
     nextHops.push_back(hop);
 }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ clearNextHops()

void inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::clearNextHops ( )

inline

131 { nextHops.clear(); }

Referenced by inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getArea()

AreaID inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::getArea ( ) const

inline

121 { return area; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getCost()

Metric inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::getCost ( ) const

inline

125 { return cost; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getDestinationType()

RoutingDestinationType inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::getDestinationType ( ) const

inline

117 { return destinationType; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getLinkStateOrigin()

const Ospfv3Lsa* inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::getLinkStateOrigin ( ) const

inline

129 { return linkStateOrigin; }

Referenced by inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::operator<<().

◆ getNextHop()

NextHop inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::getNextHop ( unsigned int index ) const

inline

133 { return nextHops[index]; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getNextHopCount()

unsigned int inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::getNextHopCount ( ) const

inline

132 { return nextHops.size(); }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getOptionalCapabilities()

Ospfv3Options inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::getOptionalCapabilities ( ) const

inline

119 { return optionalCapabilities; }

◆ getPathType()

RoutingPathType inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::getPathType ( ) const

inline

123 { return pathType; }

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ getType2Cost()

Metric inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::getType2Cost ( ) const

inline

127 { return type2Cost; }

Referenced by inet::ospfv3::operator<<().

◆ operator!=()

bool inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::operator!= ( const Ospfv3Ipv4RoutingTableEntry & entry ) const

inline

114 { return !((*this) == entry); }

◆ operator==()

bool inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::operator== ( const Ospfv3Ipv4RoutingTableEntry & entry ) const

 {
     unsigned int hopCount = nextHops.size();
     unsigned int i = 0;

     if (hopCount != entry.nextHops.size()) {
         return false;
     }
     for (i = 0; i < hopCount; i++) {
         if ((nextHops[i] != entry.nextHops[i])) {
             return false;
         }
     }

     return (this->destinationType == entry.destinationType) &&
            (this->getDestinationAsGeneric() == entry.getDestinationAsGeneric()) &&
            (this->getPrefixLength() == entry.getPrefixLength()) &&
            (this->optionalCapabilities == entry.optionalCapabilities) &&
            (this->area == entry.area) &&
            (this->pathType == entry.pathType) &&
            (this->cost == entry.cost) &&
            (this->type2Cost == entry.type2Cost) &&
            (this->linkStateOrigin == entry.linkStateOrigin);
 }

◆ setArea()

void inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::setArea ( AreaID source )

inline

120 { area = source; }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA().

◆ setCost()

void inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::setCost ( Metric pathCost )

 {
     cost = pathCost;
     // FIXME this is a hack. But the correct way to do it is to implement a separate IIPv4RoutingTable module for OSPF...
     if (pathType == Ospfv3Ipv4RoutingTableEntry::TYPE2_EXTERNAL) {
         setMetric(cost + type2Cost * 1000);
     }
     else {
         setMetric(cost);
     }
 }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA().

◆ setDestinationType()

void inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::setDestinationType ( RoutingDestinationType type )

inline

116 { destinationType = type; }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA().

◆ setLinkStateOrigin()

void inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::setLinkStateOrigin ( const Ospfv3Lsa * lsa )

inline

128 { linkStateOrigin = lsa; }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA().

◆ setOptionalCapabilities()

void inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::setOptionalCapabilities ( Ospfv3Options options )

inline

118 { optionalCapabilities = options; }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), and inet::ospfv3::Ospfv3Area::calculateShortestPathTree().

◆ setPathType()

void inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::setPathType ( RoutingPathType type )

 {
     pathType = type;
     // FIXME this is a hack. But the correct way to do it is to implement a separate IIPv4RoutingTable module for OSPF...
     if (pathType == Ospfv3Ipv4RoutingTableEntry::TYPE2_EXTERNAL) {
         setMetric(cost + type2Cost * 1000);
     }
     else {
         setMetric(cost);
     }
 }

Referenced by inet::ospfv3::Ospfv3Area::addRouterEntry(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), and inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA().

◆ setType2Cost()

void inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::setType2Cost ( Metric pathCost )

 {
     type2Cost = pathCost;
     // FIXME this is a hack. But the correct way to do it is to implement a separate IIPv4RoutingTable module for OSPF...
     if (pathType == Ospfv3Ipv4RoutingTableEntry::TYPE2_EXTERNAL) {
         setMetric(cost + type2Cost * 1000);
     }
     else {
         setMetric(cost);
     }
 }

Member Data Documentation

◆ area

AreaID inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::area

private

Referenced by operator==().

◆ AREA_BORDER_ROUTER_DESTINATION

const unsigned char inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::AREA_BORDER_ROUTER_DESTINATION = 1

static

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ AS_BOUNDARY_ROUTER_DESTINATION

const unsigned char inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::AS_BOUNDARY_ROUTER_DESTINATION = 2

static

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ cost

Metric inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::cost = 0

private

Referenced by operator==(), setCost(), setPathType(), and setType2Cost().

◆ destinationType

RoutingDestinationType inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::destinationType = 0

private

Referenced by operator==().

◆ ift

IInterfaceTable* inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::ift = nullptr

private

Referenced by addNextHop().

◆ linkStateOrigin

const Ospfv3Lsa* inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::linkStateOrigin = nullptr

private

Referenced by operator==().

◆ NETWORK_DESTINATION

const unsigned char inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::NETWORK_DESTINATION = 0

static

Referenced by inet::ospfv3::Ospfv3Area::calculateInterAreaRoutes(), inet::ospfv3::Ospfv3Area::calculateShortestPathTree(), inet::ospfv3::Ospfv3Area::createRoutingTableEntryFromInterAreaPrefixLSA(), inet::ospfv3::Ospfv3Area::findSameOrWorseCostRoute(), inet::ospfv3::operator<<(), inet::ospfv3::Ospfv3Process::rebuildRoutingTable(), and inet::ospfv3::Ospfv3Area::recheckInterAreaPrefixLSAs().

◆ nextHops

std::vector<NextHop> inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::nextHops

private

Referenced by addNextHop(), and operator==().

◆ optionalCapabilities

Ospfv3Options inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::optionalCapabilities

private

Referenced by operator==().

◆ pathType

RoutingPathType inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::pathType = (RoutingPathType) - 1

private

Referenced by operator==(), setCost(), setPathType(), and setType2Cost().

◆ ROUTER_DESTINATION

const unsigned char inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::ROUTER_DESTINATION = 3

static

◆ type2Cost

Metric inet::ospfv3::Ospfv3Ipv4RoutingTableEntry::type2Cost = 0

private

Referenced by operator==(), setCost(), setPathType(), and setType2Cost().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Attributes

Private Attributes

Additional Inherited Members

Member Typedef Documentation

◆ RoutingDestinationType

Member Enumeration Documentation

◆ RoutingPathType

Constructor & Destructor Documentation

◆ Ospfv3Ipv4RoutingTableEntry() [1/2]

◆ Ospfv3Ipv4RoutingTableEntry() [2/2]

◆ ~Ospfv3Ipv4RoutingTableEntry()

Member Function Documentation

◆ addNextHop()

◆ clearNextHops()

◆ getArea()

◆ getCost()

◆ getDestinationType()

◆ getLinkStateOrigin()

◆ getNextHop()

◆ getNextHopCount()

◆ getOptionalCapabilities()

◆ getPathType()

◆ getType2Cost()

◆ operator!=()

◆ operator==()

◆ setArea()

◆ setCost()

◆ setDestinationType()

◆ setLinkStateOrigin()

◆ setOptionalCapabilities()

◆ setPathType()

◆ setType2Cost()

Member Data Documentation

◆ area

◆ AREA_BORDER_ROUTER_DESTINATION

◆ AS_BOUNDARY_ROUTER_DESTINATION

◆ cost

◆ destinationType

◆ ift

◆ linkStateOrigin

◆ NETWORK_DESTINATION

◆ nextHops

◆ optionalCapabilities

◆ pathType

◆ ROUTER_DESTINATION

◆ type2Cost
