#include <Ospfv2RoutingTableEntry.h>

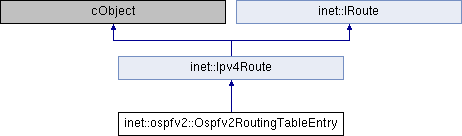

Inheritance diagram for inet::ospfv2::Ospfv2RoutingTableEntry:

Public Types
enum	RoutingPathType { INTRAAREA = 0, INTERAREA = 1, TYPE1_EXTERNAL = 2, TYPE2_EXTERNAL = 3 }

typedef unsigned char	RoutingDestinationType

Public Types inherited from inet::IRoute
enum	SourceType { MANUAL, IFACENETMASK, ROUTER_ADVERTISEMENT, OWN_ADV_PREFIX, ICMP_REDIRECT, RIP, OSPF, BGP, ZEBRA, MANET, MANET2, DYMO, AODV, EIGRP, LISP, BABEL, ODR, UNKNOWN, ISIS }
	Specifies where the route comes from. More...

enum	ChangeCodes { F_DESTINATION, F_PREFIX_LENGTH, F_NEXTHOP, F_IFACE, F_SOURCE, F_TYPE, F_ADMINDIST, F_METRIC, F_EXPIRYTIME, F_LAST }
	Field codes for NB_ROUTE_CHANGED notifications. More...

enum	RouteAdminDist { dDirectlyConnected = 0, dStatic = 1, dEIGRPSummary = 5, dBGPExternal = 20, dEIGRPInternal = 90, dIGRP = 100, dOSPF = 110, dISIS = 115, dRIP = 120, dEGP = 140, dODR = 160, dEIGRPExternal = 170, dBGPInternal = 200, dDHCPlearned = 254, dBABEL = 125, dLISP = 210, dUnknown = 255 }
	Cisco like administrative distances. More...

Public Member Functions
	Ospfv2RoutingTableEntry (IInterfaceTable *ift)

	Ospfv2RoutingTableEntry (const Ospfv2RoutingTableEntry &entry)

virtual	~Ospfv2RoutingTableEntry ()

bool	operator== (const Ospfv2RoutingTableEntry &entry) const

bool	operator!= (const Ospfv2RoutingTableEntry &entry) const

void	setDestinationType (RoutingDestinationType type)

RoutingDestinationType	getDestinationType () const

void	setOptionalCapabilities (Ospfv2Options options)

Ospfv2Options	getOptionalCapabilities () const

void	setArea (AreaId source)

AreaId	getArea () const

void	setPathType (RoutingPathType type)

RoutingPathType	getPathType () const

Metric	getCost () const

void	setCost (Metric cost)

void	setType2Cost (Metric type2Cost)

Metric	getType2Cost () const

void	setLinkStateOrigin (const Ospfv2Lsa *lsa)

const Ospfv2Lsa *	getLinkStateOrigin () const

void	addNextHop (NextHop hop)

void	clearNextHops ()

unsigned int	getNextHopCount () const

NextHop	getNextHop (unsigned int index) const

virtual std::string	str () const

Public Member Functions inherited from inet::Ipv4Route
	Ipv4Route ()

virtual	~Ipv4Route ()

virtual std::string	detailedInfo () const

bool	operator== (const Ipv4Route &route) const

bool	operator!= (const Ipv4Route &route) const

bool	equals (const Ipv4Route &route) const

virtual void	setRoutingTable (IIpv4RoutingTable *rt)
	To be called by the routing table when this route is added or removed from it. More...

IIpv4RoutingTable *	getRoutingTable () const

virtual bool	isValid () const
	test validity of route entry, e.g. More...

virtual void	setDestination (Ipv4Address _dest)

virtual void	setNetmask (Ipv4Address _netmask)

virtual void	setGateway (Ipv4Address _gateway)

virtual void	setInterface (NetworkInterface *_interfacePtr) override

virtual void	setSourceType (SourceType _source) override

const char *	getSourceTypeAbbreviation () const

virtual void	setAdminDist (unsigned int _adminDist) override

virtual void	setMetric (int _metric) override

const Ipv4Address &	getDestination () const
	Destination address prefix to match. More...

const Ipv4Address &	getNetmask () const
	Represents length of prefix to match. More...

const Ipv4Address &	getGateway () const
	Next hop address. More...

NetworkInterface *	getInterface () const override
	Next hop interface. More...

const char *	getInterfaceName () const
	Convenience method. More...

SourceType	getSourceType () const override
	Source of route. More...

unsigned int	getAdminDist () const
	Route source specific preference value. More...

int	getMetric () const override
	"Cost" to reach the destination More...

void	setSource (cObject *_source) override

cObject *	getSource () const override
	Source of route. More...

cObject *	getProtocolData () const override

void	setProtocolData (cObject *protocolData) override

virtual IRoutingTable *	getRoutingTableAsGeneric () const override
	The routing table in which this route is inserted, or nullptr. More...

virtual void	setDestination (const L3Address &dest) override

virtual void	setPrefixLength (int len) override

virtual void	setNextHop (const L3Address &nextHop) override

virtual L3Address	getDestinationAsGeneric () const override
	Destination address prefix to match. More...

virtual int	getPrefixLength () const override
	Represents length of prefix to match. More...

virtual L3Address	getNextHopAsGeneric () const override
	Next hop address. More...

Public Member Functions inherited from inet::IRoute
virtual	~IRoute ()

virtual void	setSourceType (SourceType type)=0

Static Public Member Functions
static const char *	getDestinationTypeString (RoutingDestinationType destType)

static const char *	getPathTypeString (RoutingPathType pathType)

Static Public Member Functions inherited from inet::IRoute
static const char *	sourceTypeName (SourceType sourceType)

Static Public Attributes
static const unsigned char	NETWORK_DESTINATION = 0

static const unsigned char	AREA_BORDER_ROUTER_DESTINATION = 1

static const unsigned char	AS_BOUNDARY_ROUTER_DESTINATION = 2

Private Attributes
IInterfaceTable *	ift = nullptr

RoutingDestinationType	destinationType = 0

Ospfv2Options	optionalCapabilities

AreaId	area

RoutingPathType	pathType = static_cast<RoutingPathType>(-1)

Metric	cost = 0

Metric	type2Cost = 0

const Ospfv2Lsa *	linkStateOrigin = nullptr

std::vector< NextHop >	nextHops

Additional Inherited Members
Protected Member Functions inherited from inet::Ipv4Route
void	changed (int fieldCode)

Member Typedef Documentation

◆ RoutingDestinationType

typedef unsigned char inet::ospfv2::Ospfv2RoutingTableEntry::RoutingDestinationType

Member Enumeration Documentation

◆ RoutingPathType

enum inet::ospfv2::Ospfv2RoutingTableEntry::RoutingPathType

Enumerator
INTRAAREA
INTERAREA
TYPE1_EXTERNAL
TYPE2_EXTERNAL

                          {
         INTRAAREA      = 0,
         INTERAREA      = 1,
         TYPE1_EXTERNAL = 2,
         TYPE2_EXTERNAL = 3
     };

Constructor & Destructor Documentation

◆ Ospfv2RoutingTableEntry() [1/2]

inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry ( IInterfaceTable * ift )

                                                                       :
     ift(_ift),
     destinationType(Ospfv2RoutingTableEntry::NETWORK_DESTINATION),
     area(BACKBONE_AREAID),
     pathType(Ospfv2RoutingTableEntry::INTRAAREA)
 {
     setNetmask(Ipv4Address::ALLONES_ADDRESS);
     setSourceType(IRoute::OSPF);
     setAdminDist(Ipv4Route::dOSPF);
 }

◆ Ospfv2RoutingTableEntry() [2/2]

inet::ospfv2::Ospfv2RoutingTableEntry::Ospfv2RoutingTableEntry ( const Ospfv2RoutingTableEntry & entry )

                                                                                      :
     ift(entry.ift),
     destinationType(entry.destinationType),
     optionalCapabilities(entry.optionalCapabilities),
     area(entry.area),
     pathType(entry.pathType),
     cost(entry.cost),
     type2Cost(entry.type2Cost),
     linkStateOrigin(entry.linkStateOrigin),
     nextHops(entry.nextHops)
 {
     setDestination(entry.getDestination());
     setNetmask(entry.getNetmask());
     setInterface(entry.getInterface());
     setGateway(entry.getGateway());
     setSourceType(entry.getSourceType());
     setMetric(entry.getMetric());
     setAdminDist(entry.getAdminDist());
 }

◆ ~Ospfv2RoutingTableEntry()

virtual inet::ospfv2::Ospfv2RoutingTableEntry::~Ospfv2RoutingTableEntry ( )

inlinevirtual

55 {}

Member Function Documentation

◆ addNextHop()

void inet::ospfv2::Ospfv2RoutingTableEntry::addNextHop ( NextHop hop )

 {
     if (nextHops.size() == 0) {
         NetworkInterface *routingInterface = ift->getInterfaceById(hop.ifIndex);

         setInterface(routingInterface);
         // TODO this used to be commented out, but it seems we need it
         // otherwise gateways will never be filled in and gateway is needed for broadcast networks
         setGateway(hop.hopAddress);
     }
     else {
         for (size_t i = 0; i < nextHops.size(); i++) {
             if (hop.ifIndex == nextHops.at(i).ifIndex && hop.hopAddress == nextHops.at(i).hopAddress)
                 return;
         }
     }
     nextHops.push_back(hop);
 }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), inet::ospfv2::Router::getPreferredEntry(), and inet::ospfv2::Ospfv2Area::recheckSummaryLSAs().

◆ clearNextHops()

void inet::ospfv2::Ospfv2RoutingTableEntry::clearNextHops ( )

inline

75 { nextHops.clear(); }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::Router::getPreferredEntry(), and inet::ospfv2::Ospfv2Area::recheckSummaryLSAs().

◆ getArea()

AreaId inet::ospfv2::Ospfv2RoutingTableEntry::getArea ( ) const

inline

65 { return area; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::operator<<(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), inet::ospfv2::Ospfv2Area::recheckSummaryLSAs(), and inet::ospfv2::Router::selectLeastCostRoutingEntry().

◆ getCost()

Metric inet::ospfv2::Ospfv2RoutingTableEntry::getCost ( ) const

inline

68 { return cost; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::operator<<(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), inet::ospfv2::Ospfv2Area::recheckSummaryLSAs(), and inet::ospfv2::Router::selectLeastCostRoutingEntry().

◆ getDestinationType()

RoutingDestinationType inet::ospfv2::Ospfv2RoutingTableEntry::getDestinationType ( ) const

inline

61 { return destinationType; }

Referenced by inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::operator<<(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), and inet::ospfv2::Ospfv2Area::recheckSummaryLSAs().

◆ getDestinationTypeString()

const char * inet::ospfv2::Ospfv2RoutingTableEntry::getDestinationTypeString ( RoutingDestinationType destType )

static

 {
     switch (destType) {
         case Ospfv2RoutingTableEntry::NETWORK_DESTINATION:
             return "Network";
         case Ospfv2RoutingTableEntry::AREA_BORDER_ROUTER_DESTINATION:
             return "AreaBorderRouter";
         case Ospfv2RoutingTableEntry::AS_BOUNDARY_ROUTER_DESTINATION:
             return "ASBoundaryRouter";
         case Ospfv2RoutingTableEntry::AREA_BORDER_ROUTER_DESTINATION | Ospfv2RoutingTableEntry::AS_BOUNDARY_ROUTER_DESTINATION:
             return "AreaBorderRouter+ASBoundaryRouter";
         default:
             return "Unknown";
     }
 }

Referenced by inet::ospfv2::operator<<(), and str().

◆ getLinkStateOrigin()

const Ospfv2Lsa* inet::ospfv2::Ospfv2RoutingTableEntry::getLinkStateOrigin ( ) const

inline

73 { return linkStateOrigin; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::operator<<(), and inet::ospfv2::Ospfv2Area::originateSummaryLSA().

◆ getNextHop()

NextHop inet::ospfv2::Ospfv2RoutingTableEntry::getNextHop ( unsigned int index ) const

inline

77 { return nextHops[index]; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), inet::ospfv2::operator<<(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), and inet::ospfv2::Ospfv2Area::recheckSummaryLSAs().

◆ getNextHopCount()

unsigned int inet::ospfv2::Ospfv2RoutingTableEntry::getNextHopCount ( ) const

inline

76 { return nextHops.size(); }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), inet::ospfv2::operator<<(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), and inet::ospfv2::Ospfv2Area::recheckSummaryLSAs().

◆ getOptionalCapabilities()

Ospfv2Options inet::ospfv2::Ospfv2RoutingTableEntry::getOptionalCapabilities ( ) const

inline

63 { return optionalCapabilities; }

◆ getPathType()

RoutingPathType inet::ospfv2::Ospfv2RoutingTableEntry::getPathType ( ) const

inline

67 { return pathType; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::Router::getPreferredEntry(), inet::ospfv2::operator<<(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), and inet::ospfv2::Ospfv2Area::recheckSummaryLSAs().

◆ getPathTypeString()

const char * inet::ospfv2::Ospfv2RoutingTableEntry::getPathTypeString ( RoutingPathType pathType )

static

 {
     switch (pathType) {
         case Ospfv2RoutingTableEntry::INTRAAREA:
             return "IntraArea";
         case Ospfv2RoutingTableEntry::INTERAREA:
             return "InterArea";
         case Ospfv2RoutingTableEntry::TYPE1_EXTERNAL:
             return "Type1External";
         case Ospfv2RoutingTableEntry::TYPE2_EXTERNAL:
             return "Type2External";
         default:
             return "Unknown";
     }
 }

Referenced by inet::ospfv2::operator<<(), and str().

◆ getType2Cost()

Metric inet::ospfv2::Ospfv2RoutingTableEntry::getType2Cost ( ) const

inline

71 { return type2Cost; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), and inet::ospfv2::operator<<().

◆ operator!=()

bool inet::ospfv2::Ospfv2RoutingTableEntry::operator!= ( const Ospfv2RoutingTableEntry & entry ) const

inline

58 { return !((*this) == entry); }

◆ operator==()

bool inet::ospfv2::Ospfv2RoutingTableEntry::operator== ( const Ospfv2RoutingTableEntry & entry ) const

 {
     unsigned int hopCount = nextHops.size();
     unsigned int i = 0;

     if (hopCount != entry.nextHops.size()) {
         return false;
     }
     for (i = 0; i < hopCount; i++) {
         if ((nextHops[i] != entry.nextHops[i])) {
             return false;
         }
     }

     return (destinationType == entry.destinationType) &&
            (getDestination() == entry.getDestination()) &&
            (getNetmask() == entry.getNetmask()) &&
            (optionalCapabilities == entry.optionalCapabilities) &&
            (area == entry.area) &&
            (pathType == entry.pathType) &&
            (cost == entry.cost) &&
            (type2Cost == entry.type2Cost) &&
            (linkStateOrigin == entry.linkStateOrigin);
 }

◆ setArea()

void inet::ospfv2::Ospfv2RoutingTableEntry::setArea ( AreaId source )

inline

64 { area = source; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), and inet::ospfv2::Router::lookup().

◆ setCost()

void inet::ospfv2::Ospfv2RoutingTableEntry::setCost ( Metric cost )

inline

69 { this->cost = cost; setMetric(cost); }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), and inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA().

◆ setDestinationType()

void inet::ospfv2::Ospfv2RoutingTableEntry::setDestinationType ( RoutingDestinationType type )

inline

60 { destinationType = type; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), and inet::ospfv2::Router::lookup().

◆ setLinkStateOrigin()

void inet::ospfv2::Ospfv2RoutingTableEntry::setLinkStateOrigin ( const Ospfv2Lsa * lsa )

inline

72 { linkStateOrigin = lsa; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), and inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA().

◆ setOptionalCapabilities()

void inet::ospfv2::Ospfv2RoutingTableEntry::setOptionalCapabilities ( Ospfv2Options options )

inline

62 { optionalCapabilities = options; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), and inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA().

◆ setPathType()

void inet::ospfv2::Ospfv2RoutingTableEntry::setPathType ( RoutingPathType type )

inline

66 { pathType = type; }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), and inet::ospfv2::Router::lookup().

◆ setType2Cost()

void inet::ospfv2::Ospfv2RoutingTableEntry::setType2Cost ( Metric type2Cost )

inline

70 { this->type2Cost = type2Cost; setMetric(type2Cost); }

Referenced by inet::ospfv2::Router::calculateASExternalRoutes().

◆ str()

std::string inet::ospfv2::Ospfv2RoutingTableEntry::str ( ) const

virtual

Reimplemented from inet::Ipv4Route.

 {
     std::ostringstream out;
     out << getSourceTypeAbbreviation();
     out << " ";
     if (getDestination().isUnspecified())
         out << "0.0.0.0";
     else
         out << getDestination();
     out << "/";
     if (getNetmask().isUnspecified())
         out << "0";
     else
         out << getNetmask().getNetmaskLength();
     out << " gw:";
     if (getGateway().isUnspecified())
         out << "*  ";
     else
         out << getGateway() << "  ";
     if (getRoutingTable() && getRoutingTable()->isAdminDistEnabled())
         out << "AD:" << getAdminDist() << "  ";
     out << "metric:" << getMetric() << "  ";
     out << "if:";
     if (!getInterface())
         out << "*";
     else
         out << getInterfaceName();

     out << " destType:" << Ospfv2RoutingTableEntry::getDestinationTypeString(destinationType)
         << " pathType:" << Ospfv2RoutingTableEntry::getPathTypeString(pathType)
         << " area:" << area.str(false);

     return out.str();
 }

Member Data Documentation

◆ area

AreaId inet::ospfv2::Ospfv2RoutingTableEntry::area

private

Referenced by operator==(), and str().

◆ AREA_BORDER_ROUTER_DESTINATION

const unsigned char inet::ospfv2::Ospfv2RoutingTableEntry::AREA_BORDER_ROUTER_DESTINATION = 1

static

Referenced by inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::Ospfv2Area::findSameOrWorseCostRoute(), getDestinationTypeString(), inet::ospfv2::Router::installASExternalLSA(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), and inet::ospfv2::Ospfv2Area::recheckSummaryLSAs().

◆ AS_BOUNDARY_ROUTER_DESTINATION

const unsigned char inet::ospfv2::Ospfv2RoutingTableEntry::AS_BOUNDARY_ROUTER_DESTINATION = 2

static

Referenced by inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), inet::ospfv2::Ospfv2Area::findSameOrWorseCostRoute(), getDestinationTypeString(), inet::ospfv2::Router::installASExternalLSA(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), and inet::ospfv2::Ospfv2Area::recheckSummaryLSAs().

◆ cost

Metric inet::ospfv2::Ospfv2RoutingTableEntry::cost = 0

private

Referenced by operator==().

◆ destinationType

RoutingDestinationType inet::ospfv2::Ospfv2RoutingTableEntry::destinationType = 0

private

Referenced by operator==(), and str().

◆ ift

IInterfaceTable* inet::ospfv2::Ospfv2RoutingTableEntry::ift = nullptr

private

Referenced by addNextHop().

◆ linkStateOrigin

const Ospfv2Lsa* inet::ospfv2::Ospfv2RoutingTableEntry::linkStateOrigin = nullptr

private

Referenced by operator==().

◆ NETWORK_DESTINATION

const unsigned char inet::ospfv2::Ospfv2RoutingTableEntry::NETWORK_DESTINATION = 0

static

Referenced by inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), inet::ospfv2::Ospfv2Area::findSameOrWorseCostRoute(), getDestinationTypeString(), inet::ospfv2::Router::lookup(), inet::ospfv2::Router::notifyAboutRoutingTableChanges(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), inet::ospfv2::Router::rebuildRoutingTable(), and inet::ospfv2::Ospfv2Area::recheckSummaryLSAs().

◆ nextHops

std::vector<NextHop> inet::ospfv2::Ospfv2RoutingTableEntry::nextHops

private

Referenced by addNextHop(), and operator==().

◆ optionalCapabilities

Ospfv2Options inet::ospfv2::Ospfv2RoutingTableEntry::optionalCapabilities

private

Referenced by operator==().

◆ pathType

RoutingPathType inet::ospfv2::Ospfv2RoutingTableEntry::pathType = static_cast<RoutingPathType>(-1)

private

Referenced by getPathTypeString(), operator==(), and str().

◆ type2Cost

Metric inet::ospfv2::Ospfv2RoutingTableEntry::type2Cost = 0

private

Referenced by operator==().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Attributes

Additional Inherited Members

Member Typedef Documentation

◆ RoutingDestinationType

Member Enumeration Documentation

◆ RoutingPathType

Constructor & Destructor Documentation

◆ Ospfv2RoutingTableEntry() [1/2]

◆ Ospfv2RoutingTableEntry() [2/2]

◆ ~Ospfv2RoutingTableEntry()

Member Function Documentation

◆ addNextHop()

◆ clearNextHops()

◆ getArea()

◆ getCost()

◆ getDestinationType()

◆ getDestinationTypeString()

◆ getLinkStateOrigin()

◆ getNextHop()

◆ getNextHopCount()

◆ getOptionalCapabilities()

◆ getPathType()

◆ getPathTypeString()

◆ getType2Cost()

◆ operator!=()

◆ operator==()

◆ setArea()

◆ setCost()

◆ setDestinationType()

◆ setLinkStateOrigin()

◆ setOptionalCapabilities()

◆ setPathType()

◆ setType2Cost()

◆ str()

Member Data Documentation

◆ area

◆ AREA_BORDER_ROUTER_DESTINATION

◆ AS_BOUNDARY_ROUTER_DESTINATION

◆ cost

◆ destinationType

◆ ift

◆ linkStateOrigin

◆ NETWORK_DESTINATION

◆ nextHops

◆ optionalCapabilities

◆ pathType

◆ type2Cost
