inet::ospfv2::Ospfv2Lsa Class Reference

Class generated from inet/routing/ospfv2/Ospfv2Packet.msg:107 by opp_msgtool. More...

#include <Ospfv2Packet_m.h>

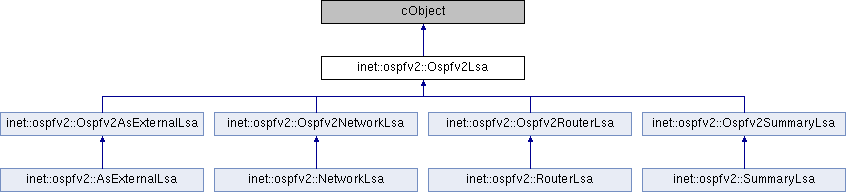

Inheritance diagram for inet::ospfv2::Ospfv2Lsa:

Public Member Functions
	Ospfv2Lsa ()
	Ospfv2Lsa (const Ospfv2Lsa &other)
virtual	~Ospfv2Lsa ()
Ospfv2Lsa &	operator= (const Ospfv2Lsa &other)
virtual Ospfv2Lsa *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual const Ospfv2LsaHeader &	getHeader () const
virtual Ospfv2LsaHeader &	getHeaderForUpdate ()
virtual void	setHeader (const Ospfv2LsaHeader &header)

Protected Member Functions
bool	operator== (const Ospfv2Lsa &)=delete

Protected Attributes
Ospfv2LsaHeader	header

Private Member Functions
void	copy (const Ospfv2Lsa &other)

Detailed Description

Class generated from inet/routing/ospfv2/Ospfv2Packet.msg:107 by opp_msgtool.

//
// common ancestor type for all LSAs
//
class Ospfv2Lsa extends cObject
{
    @packetData;
    Ospfv2LsaHeader header;
}

Constructor & Destructor Documentation

Ospfv2Lsa() [1/2]

inet::ospfv2::Ospfv2Lsa::Ospfv2Lsa

(

)

Ospfv2Lsa() [2/2]

inet::ospfv2::Ospfv2Lsa::Ospfv2Lsa

(

const Ospfv2Lsa &

other

)

~Ospfv2Lsa()

virtual inet::ospfv2::Ospfv2Lsa::~Ospfv2Lsa ( )

virtual

Member Function Documentation

copy()

void inet::ospfv2::Ospfv2Lsa::copy ( const Ospfv2Lsa &  other )

private

dup()

virtual Ospfv2Lsa* inet::ospfv2::Ospfv2Lsa::dup ( ) const

inlineoverridevirtual

Reimplemented in inet::ospfv2::Ospfv2AsExternalLsa, inet::ospfv2::Ospfv2SummaryLsa, inet::ospfv2::Ospfv2NetworkLsa, and inet::ospfv2::Ospfv2RouterLsa.

{return new Ospfv2Lsa(*this);}

Referenced by inet::ospfv2::Ospfv2Interface::createUpdatePacket(), inet::ospfv2::LinkStateUpdateHandler::processPacket(), and inet::ospfv2::Neighbor::retransmitUpdatePacket().

getHeader()

virtual const Ospfv2LsaHeader& inet::ospfv2::Ospfv2Lsa::getHeader ( ) const

virtual

Referenced by inet::ospfv2::Neighbor::addToRetransmissionList(), inet::ospfv2::Ospfv2Area::ageDatabase(), inet::ospfv2::Router::ageDatabase(), inet::ospfv2::Router::calculateASExternalRoutes(), inet::ospfv2::Ospfv2Area::calculateInterAreaRoutes(), inet::ospfv2::calculateLSASize(), inet::ospfv2::Ospfv2Area::calculateNextHops(), inet::ospfv2::Ospfv2Area::calculateShortestPathTree(), inet::ospfv2::Ospfv2InterfaceState::changeState(), inet::ospfv2::Ospfv2::checkExternalRoute(), inet::ospfv2::Neighbor::createDatabaseSummary(), inet::ospfv2::Ospfv2Area::createRoutingTableEntryFromSummaryLSA(), inet::ospfv2::Ospfv2Interface::createUpdatePacket(), inet::ospfv2::Ospfv2PacketSerializer::deserializeAsExternalLsa(), inet::ospfv2::Ospfv2PacketSerializer::deserializeNetworkLsa(), inet::ospfv2::Ospfv2PacketSerializer::deserializeSummaryLsa(), inet::ospfv2::RouterLsa::differsFrom(), inet::ospfv2::NetworkLsa::differsFrom(), inet::ospfv2::SummaryLsa::differsFrom(), inet::ospfv2::AsExternalLsa::differsFrom(), inet::ospfv2::Ospfv2Area::findSameOrWorseCostRoute(), inet::ospfv2::Ospfv2Interface::floodLsa(), inet::ospfv2::Router::floodLSA(), inet::ospfv2::Router::getPreferredEntry(), inet::ospfv2::Ospfv2Area::getUniqueLinkStateID(), inet::ospfv2::Router::getUniqueLinkStateID(), inet::ospfv2::Ospfv2Area::hasLink(), inet::ospfv2::Router::installASExternalLSA(), inet::ospfv2::Router::installLSA(), inet::ospfv2::Ospfv2Area::installNetworkLSA(), inet::ospfv2::Ospfv2Area::installRouterLSA(), inet::ospfv2::Ospfv2Area::installSummaryLSA(), inet::ospfv2::Router::isDestinationUnreachable(), inet::ospfv2::Router::notifyAboutRoutingTableChanges(), inet::ospfv2::operator<<(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), inet::ospfv2::Router::printAsExternalLsa(), inet::ospfv2::MessageHandler::printLinkStateUpdatePacket(), inet::ospfv2::Ospfv2Area::printLSDB(), inet::ospfv2::Ospfv2Area::printSummaryLsa(), inet::ospfv2::DatabaseDescriptionHandler::processDDPacket(), inet::ospfv2::LinkStateAcknowledgementHandler::processPacket(), inet::ospfv2::HelloHandler::processPacket(), inet::ospfv2::LinkStateUpdateHandler::processPacket(), inet::ospfv2::Ospfv2Area::recheckSummaryLSAs(), inet::ospfv2::Ospfv2PacketSerializer::serializeLsa(), and inet::ospfv2::NeighborState::updateLsa().

getHeaderForUpdate()

virtual Ospfv2LsaHeader& inet::ospfv2::Ospfv2Lsa::getHeaderForUpdate ( )

inlinevirtual

{ return const_cast<Ospfv2LsaHeader&>(const_cast<Ospfv2Lsa*>(this)->getHeader());}

Referenced by inet::ospfv2::Ospfv2Area::ageDatabase(), inet::ospfv2::Router::ageDatabase(), inet::ospfv2::Ospfv2InterfaceState::changeState(), inet::ospfv2::Ospfv2Interface::createUpdatePacket(), inet::ospfv2::Ospfv2Area::getUniqueLinkStateID(), inet::ospfv2::Router::getUniqueLinkStateID(), inet::ospfv2::Router::notifyAboutRoutingTableChanges(), inet::ospfv2::Router::originateASExternalLSA(), inet::ospfv2::Ospfv2Area::originateNetworkLSA(), inet::ospfv2::Ospfv2Area::originateRouterLSA(), inet::ospfv2::Ospfv2Area::originateSummaryLSA(), inet::ospfv2::Ospfv2Area::originateSummaryLSA_Stub(), inet::ospfv2::HelloHandler::processPacket(), inet::ospfv2::LinkStateUpdateHandler::processPacket(), inet::ospfv2::setLsaCrc(), inet::ospfv2::Router::updateExternalRoute(), and inet::ospfv2::NeighborState::updateLsa().

operator=()

Ospfv2Lsa& inet::ospfv2::Ospfv2Lsa::operator=

(

const Ospfv2Lsa &

other

)

operator==()

bool inet::ospfv2::Ospfv2Lsa::operator== ( const Ospfv2Lsa &  )

protecteddelete

parsimPack()

virtual void inet::ospfv2::Ospfv2Lsa::parsimPack ( omnetpp::cCommBuffer *  b ) const

overridevirtual

Reimplemented in inet::ospfv2::Ospfv2AsExternalLsa, inet::ospfv2::Ospfv2SummaryLsa, inet::ospfv2::Ospfv2NetworkLsa, and inet::ospfv2::Ospfv2RouterLsa.

Referenced by inet::ospfv2::doParsimPacking().

parsimUnpack()

virtual void inet::ospfv2::Ospfv2Lsa::parsimUnpack ( omnetpp::cCommBuffer *  b )

overridevirtual

Reimplemented in inet::ospfv2::Ospfv2AsExternalLsa, inet::ospfv2::Ospfv2SummaryLsa, inet::ospfv2::Ospfv2NetworkLsa, and inet::ospfv2::Ospfv2RouterLsa.

Referenced by inet::ospfv2::doParsimUnpacking().

setHeader()

virtual void inet::ospfv2::Ospfv2Lsa::setHeader ( const Ospfv2LsaHeader &  header )

virtual

Referenced by inet::ospfv2::Ospfv2PacketSerializer::deserializeLsa().

Member Data Documentation

header

Ospfv2LsaHeader inet::ospfv2::Ospfv2Lsa::header

protected

---

The documentation for this class was generated from the following file:

• Ospfv2Packet_m.h
