inet::ospfv2::AsExternalLsa Class Reference

#include <Lsa.h>

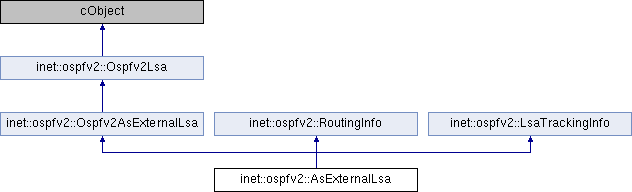

Inheritance diagram for inet::ospfv2::AsExternalLsa:

Public Member Functions
	AsExternalLsa ()
	AsExternalLsa (const Ospfv2AsExternalLsa &lsa)
	AsExternalLsa (const AsExternalLsa &lsa)
virtual	~AsExternalLsa ()
bool	getPurgeable () const
void	setPurgeable (bool purge=true)
bool	validateLSChecksum () const
bool	update (const Ospfv2AsExternalLsa *lsa)
bool	differsFrom (const Ospfv2AsExternalLsa *asExternalLSA) const
Public Member Functions inherited from inet::ospfv2::Ospfv2AsExternalLsa
	Ospfv2AsExternalLsa ()
	Ospfv2AsExternalLsa (const Ospfv2AsExternalLsa &other)
virtual	~Ospfv2AsExternalLsa ()
Ospfv2AsExternalLsa &	operator= (const Ospfv2AsExternalLsa &other)
virtual Ospfv2AsExternalLsa *	dup () const override
virtual void	parsimPack (omnetpp::cCommBuffer *b) const override
virtual void	parsimUnpack (omnetpp::cCommBuffer *b) override
virtual const Ospfv2AsExternalLsaContents &	getContents () const
virtual Ospfv2AsExternalLsaContents &	getContentsForUpdate ()
virtual void	setContents (const Ospfv2AsExternalLsaContents &contents)
Public Member Functions inherited from inet::ospfv2::Ospfv2Lsa
	Ospfv2Lsa ()
	Ospfv2Lsa (const Ospfv2Lsa &other)
virtual	~Ospfv2Lsa ()
Ospfv2Lsa &	operator= (const Ospfv2Lsa &other)
virtual const Ospfv2LsaHeader &	getHeader () const
virtual Ospfv2LsaHeader &	getHeaderForUpdate ()
virtual void	setHeader (const Ospfv2LsaHeader &header)
Public Member Functions inherited from inet::ospfv2::RoutingInfo
	RoutingInfo ()
	RoutingInfo (const RoutingInfo &routingInfo)
virtual	~RoutingInfo ()
void	addNextHop (NextHop nextHop)
void	clearNextHops ()
unsigned int	getNextHopCount () const
NextHop	getNextHop (unsigned int index) const
void	setDistance (unsigned long d)
unsigned long	getDistance () const
void	setParent (Ospfv2Lsa *p)
Ospfv2Lsa *	getParent () const
Public Member Functions inherited from inet::ospfv2::LsaTrackingInfo
	LsaTrackingInfo ()
	LsaTrackingInfo (const LsaTrackingInfo &info)
void	setSource (InstallSource installSource)
InstallSource	getSource () const
void	incrementInstallTime ()
void	resetInstallTime ()
unsigned long	getInstallTime () const

Protected Attributes
bool	purgeable
Protected Attributes inherited from inet::ospfv2::Ospfv2AsExternalLsa
Ospfv2AsExternalLsaContents	contents
Protected Attributes inherited from inet::ospfv2::Ospfv2Lsa
Ospfv2LsaHeader	header

Additional Inherited Members
Public Types inherited from inet::ospfv2::LsaTrackingInfo
enum	InstallSource { ORIGINATED = 0, FLOODED = 1 }
Protected Member Functions inherited from inet::ospfv2::Ospfv2AsExternalLsa
bool	operator== (const Ospfv2AsExternalLsa &)=delete
Protected Member Functions inherited from inet::ospfv2::Ospfv2Lsa
bool	operator== (const Ospfv2Lsa &)=delete

Constructor & Destructor Documentation

AsExternalLsa() [1/3]

inet::ospfv2::AsExternalLsa::AsExternalLsa ( )

inline

: Ospfv2AsExternalLsa(), RoutingInfo(), LsaTrackingInfo(), purgeable(false) {}

AsExternalLsa() [2/3]

inet::ospfv2::AsExternalLsa::AsExternalLsa ( const Ospfv2AsExternalLsa &  lsa )

inline

: Ospfv2AsExternalLsa(lsa), RoutingInfo(), LsaTrackingInfo(), purgeable(false) {}

AsExternalLsa() [3/3]

inet::ospfv2::AsExternalLsa::AsExternalLsa ( const AsExternalLsa &  lsa )

inline

: Ospfv2AsExternalLsa(lsa), RoutingInfo(lsa), LsaTrackingInfo(lsa), purgeable(lsa.purgeable) {}

~AsExternalLsa()

virtual inet::ospfv2::AsExternalLsa::~AsExternalLsa ( )

inlinevirtual

{}

Member Function Documentation

differsFrom()

bool inet::ospfv2::AsExternalLsa::differsFrom

(

const Ospfv2AsExternalLsa *

asExternalLSA

)

const

{
    const Ospfv2LsaHeader& thisHeader = getHeader();
    const Ospfv2LsaHeader& lsaHeader = asExternalLSA->getHeader();
    bool differentHeader = ((thisHeader.getLsOptions() != lsaHeader.getLsOptions()) ||
                            ((thisHeader.getLsAge() == MAX_AGE) && (lsaHeader.getLsAge() != MAX_AGE)) ||
                            ((thisHeader.getLsAge() != MAX_AGE) && (lsaHeader.getLsAge() == MAX_AGE)) ||
                            (thisHeader.getLsaLength() != lsaHeader.getLsaLength()));
    bool differentBody = false;

    if (!differentHeader) {
        const Ospfv2AsExternalLsaContents& thisContents = getContents();
        const Ospfv2AsExternalLsaContents& lsaContents = asExternalLSA->getContents();

        unsigned int thisTosInfoCount = thisContents.getExternalTOSInfoArraySize();

        differentBody = ((thisContents.getNetworkMask() != lsaContents.getNetworkMask()) ||
                         (thisTosInfoCount != lsaContents.getExternalTOSInfoArraySize()));

        if (!differentBody) {
            for (unsigned int i = 0; i < thisTosInfoCount; i++) {
                const auto& thisTOSInfo = thisContents.getExternalTOSInfo(i);
                const auto& lsaTOSInfo = lsaContents.getExternalTOSInfo(i);

                if ((thisTOSInfo.E_ExternalMetricType != lsaTOSInfo.E_ExternalMetricType) ||
                    (thisTOSInfo.routeCost != lsaTOSInfo.routeCost) ||
                    (thisTOSInfo.forwardingAddress != lsaTOSInfo.forwardingAddress) ||
                    (thisTOSInfo.externalRouteTag != lsaTOSInfo.externalRouteTag) ||
                    (thisTOSInfo.tos != lsaTOSInfo.tos))
                {
                    differentBody = true;
                    break;
                }
            }
        }
    }

    return differentHeader || differentBody;
}

Referenced by update().

getPurgeable()

bool inet::ospfv2::AsExternalLsa::getPurgeable ( ) const

inline

{ return purgeable; }

Referenced by inet::ospfv2::Router::ageDatabase().

setPurgeable()

void inet::ospfv2::AsExternalLsa::setPurgeable ( bool  purge = true )

inline

{ purgeable = purge; }

update()

bool inet::ospfv2::AsExternalLsa::update

(

const Ospfv2AsExternalLsa *

lsa

)

{
    bool different = differsFrom(lsa);
    (*this) = (*lsa);
    resetInstallTime();
    if (different) {
        clearNextHops();
    }
    return different;
}

Referenced by inet::ospfv2::Router::ageDatabase().

validateLSChecksum()

bool inet::ospfv2::AsExternalLsa::validateLSChecksum ( ) const

inline

{ return true; } // not implemented

Referenced by inet::ospfv2::Router::ageDatabase().

Member Data Documentation

purgeable

bool inet::ospfv2::AsExternalLsa::purgeable

protected

---

The documentation for this class was generated from the following files:

• Lsa.h
• AsExternalLsa.cc
