inet::PimDm Class Reference

Implementation of PIM-DM protocol (RFC 3973). More...

#include <PimDm.h>

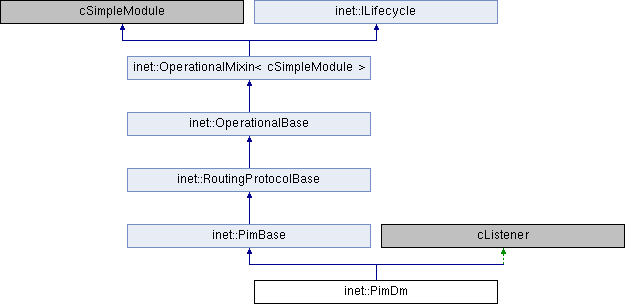

Inheritance diagram for inet::PimDm:

Classes
struct	DownstreamInterface
class	PimDmOutInterface
struct	Route
struct	UpstreamInterface

Public Member Functions
	PimDm ()
virtual	~PimDm ()
Public Member Functions inherited from inet::PimBase
	PimBase (PimInterface::PimMode mode)
virtual	~PimBase ()
Public Member Functions inherited from inet::RoutingProtocolBase
	RoutingProtocolBase ()
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Static Public Member Functions
const static std::string	graftPruneStateString (UpstreamInterface::GraftPruneState ps)
const static std::string	originatorStateString (UpstreamInterface::OriginatorState os)
const static std::string	pruneStateString (DownstreamInterface::PruneState ps)

Protected Member Functions
virtual int	numInitStages () const override
virtual void	handleMessageWhenUp (cMessage *msg) override
virtual void	initialize (int stage) override
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
virtual void	stopPIMRouting ()
Protected Member Functions inherited from inet::PimBase
void	sendHelloPackets ()
void	sendHelloPacket (PimInterface *pimInterface)
void	processHelloTimer (cMessage *timer)
void	processHelloPacket (Packet *pk)
Protected Member Functions inherited from inet::RoutingProtocolBase
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Private Types
typedef std::map< SourceAndGroup, Route * >	RoutingTable

Private Member Functions
void	receiveSignal (cComponent *source, simsignal_t signalID, cObject *obj, cObject *details) override
void	unroutableMulticastPacketArrived (Ipv4Address srcAddress, Ipv4Address destAddress, unsigned short ttl)
	The method process notification about new multicast data stream. More...
void	multicastPacketArrivedOnNonRpfInterface (Ipv4Address group, Ipv4Address source, int interfaceId)
	The method has to solve the problem when multicast data appears on non-RPF interface. More...
void	multicastPacketArrivedOnRpfInterface (int interfaceId, Ipv4Address group, Ipv4Address source, unsigned short ttl)
void	multicastReceiverAdded (NetworkInterface *ie, Ipv4Address newAddr)
void	multicastReceiverRemoved (NetworkInterface *ie, Ipv4Address oldAddr)
	The method process notification about multicast groups removed from interface. More...
void	rpfInterfaceHasChanged (Ipv4MulticastRoute *route, Ipv4Route *routeToSource)
	The method process notification about interface change. More...
void	processPruneTimer (cMessage *timer)
void	processPrunePendingTimer (cMessage *timer)
void	processGraftRetryTimer (cMessage *timer)
void	processOverrideTimer (cMessage *timer)
void	processSourceActiveTimer (cMessage *timer)
void	processStateRefreshTimer (cMessage *timer)
void	processAssertTimer (cMessage *timer)
void	processJoinPrunePacket (Packet *pk)
void	processGraftPacket (Packet *pk)
void	processGraftAckPacket (Packet *pk)
void	processStateRefreshPacket (Packet *pk)
	The method is used to process PimStateRefresh packet. More...
void	processAssertPacket (Packet *pk)
void	processPrune (Route *route, int intId, int holdTime, int numRpfNeighbors, Ipv4Address upstreamNeighborField)
	The method process PIM Prune packet. More...
void	processJoin (Route *route, int intId, int numRpfNeighbors, Ipv4Address upstreamNeighborField)
void	processGraft (Ipv4Address source, Ipv4Address group, Ipv4Address sender, int intId)
	The method is used to process PimGraft packet. More...
void	processAssert (Interface *downstream, AssertMetric receivedMetric, int stateRefreshInterval)
void	processOlistEmptyEvent (Route *route)
void	processOlistNonEmptyEvent (Route *route)
void	sendPrunePacket (Ipv4Address nextHop, Ipv4Address src, Ipv4Address grp, int holdTime, int intId)
void	sendJoinPacket (Ipv4Address nextHop, Ipv4Address source, Ipv4Address group, int interfaceId)
void	sendGraftPacket (Ipv4Address nextHop, Ipv4Address src, Ipv4Address grp, int intId)
void	sendGraftAckPacket (Packet *pk, const Ptr< const PimGraft > &graftPacket)
void	sendStateRefreshPacket (Ipv4Address originator, Route *route, DownstreamInterface *downstream, unsigned short ttl)
void	sendAssertPacket (Ipv4Address source, Ipv4Address group, AssertMetric metric, NetworkInterface *ie)
void	sendToIP (Packet *packet, Ipv4Address source, Ipv4Address dest, int outInterfaceId)
void	restartTimer (cMessage *timer, double interval)
void	cancelAndDeleteTimer (cMessage *&timer)
PimInterface *	getIncomingInterface (NetworkInterface *fromIE)
Ipv4MulticastRoute *	findIpv4MulticastRoute (Ipv4Address group, Ipv4Address source)
Route *	findRoute (Ipv4Address source, Ipv4Address group)
void	deleteRoute (Ipv4Address source, Ipv4Address group)
void	clearRoutes ()

Private Attributes
double	pruneInterval = 0
double	pruneLimitInterval = 0
double	overrideInterval = 0
double	propagationDelay = 0
double	graftRetryInterval = 0
double	sourceActiveInterval = 0
double	stateRefreshInterval = 0
double	assertTime = 0
RoutingTable	routes

Static Private Attributes
static simsignal_t	sentGraftPkSignal = registerSignal("sentGraftPk")
static simsignal_t	rcvdGraftPkSignal = registerSignal("rcvdGraftPk")
static simsignal_t	sentGraftAckPkSignal = registerSignal("sentGraftAckPk")
static simsignal_t	rcvdGraftAckPkSignal = registerSignal("rcvdGraftAckPk")
static simsignal_t	sentJoinPrunePkSignal = registerSignal("sentJoinPrunePk")
static simsignal_t	rcvdJoinPrunePkSignal = registerSignal("rcvdJoinPrunePk")
static simsignal_t	sentAssertPkSignal = registerSignal("sentAssertPk")
static simsignal_t	rcvdAssertPkSignal = registerSignal("rcvdAssertPk")
static simsignal_t	sentStateRefreshPkSignal = registerSignal("sentStateRefreshPk")
static simsignal_t	rcvdStateRefreshPkSignal = registerSignal("rcvdStateRefreshPk")

Friends
std::ostream &	operator<< (std::ostream &out, const PimDm::Route &sourceGroup)

Additional Inherited Members
Protected Types inherited from inet::PimBase
enum	PimTimerKind {   HelloTimer = 1, TriggeredHelloDelay, AssertTimer, PruneTimer,   PrunePendingTimer, GraftRetryTimer, UpstreamOverrideTimer, PruneLimitTimer,   SourceActiveTimer, StateRefreshTimer, KeepAliveTimer, RegisterStopTimer,   ExpiryTimer, JoinTimer }
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State
Protected Attributes inherited from inet::PimBase
ModuleRefByPar< IIpv4RoutingTable >	rt
ModuleRefByPar< IInterfaceTable >	ift
ModuleRefByPar< PimInterfaceTable >	pimIft
ModuleRefByPar< PimNeighborTable >	pimNbt
opp_component_ptr< Pim >	pimModule
bool	isUp = false
bool	isEnabled = false
const char *	hostname = nullptr
double	helloPeriod = 0
double	holdTime = 0
int	designatedRouterPriority = 0
PimInterface::PimMode	mode = static_cast<PimInterface::PimMode>(0)
uint32_t	generationID = 0
cMessage *	helloTimer = nullptr
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer
Static Protected Attributes inherited from inet::PimBase
static const Ipv4Address	ALL_PIM_ROUTERS_MCAST
static simsignal_t	sentHelloPkSignal = registerSignal("sentHelloPk")
static simsignal_t	rcvdHelloPkSignal = registerSignal("rcvdHelloPk")

Detailed Description

Implementation of PIM-DM protocol (RFC 3973).

Member Typedef Documentation

RoutingTable

typedef std::map<SourceAndGroup, Route *> inet::PimDm::RoutingTable

private

Constructor & Destructor Documentation

PimDm()

inet::PimDm::PimDm ( )

inline

: PimBase(PimInterface::DenseMode) {}

~PimDm()

inet::PimDm::~PimDm ( )

virtual

{
    for (auto& elem : routes)
        delete elem.second;
    routes.clear();
}

Member Function Documentation

cancelAndDeleteTimer()

void inet::PimDm::cancelAndDeleteTimer ( cMessage *&  timer )

private

{
    cancelAndDelete(timer);
    timer = nullptr;
}

clearRoutes()

void inet::PimDm::clearRoutes ( )

private

{
    // delete Ipv4 routes
    bool changed = true;
    while (changed) {
        changed = false;
        for (int i = 0; i < rt->getNumMulticastRoutes(); i++) {
            Ipv4MulticastRoute *ipv4Route = rt->getMulticastRoute(i);
            if (ipv4Route->getSource() == this) {
                rt->deleteMulticastRoute(ipv4Route);
                changed = true;
                break;
            }
        }
    }

    // clear local table
    for (auto& elem : routes)
        delete elem.second;
    routes.clear();
}

Referenced by stopPIMRouting().

deleteRoute()

void inet::PimDm::deleteRoute ( Ipv4Address  source, Ipv4Address  group  )

private

{
    auto it = routes.find(SourceAndGroup(source, group));
    if (it != routes.end()) {
        delete it->second;
        routes.erase(it);
    }
}

Referenced by processSourceActiveTimer().

findIpv4MulticastRoute()

Ipv4MulticastRoute * inet::PimDm::findIpv4MulticastRoute ( Ipv4Address  group, Ipv4Address  source  )

private

{
    int numRoutes = rt->getNumMulticastRoutes();
    for (int i = 0; i < numRoutes; i++) {
        Ipv4MulticastRoute *route = rt->getMulticastRoute(i);
        if (route->getSource() == this && route->getMulticastGroup() == group && route->getOrigin() == source)
            return route;
    }
    return nullptr;
}

Referenced by processSourceActiveTimer().

findRoute()

PimDm::Route * inet::PimDm::findRoute ( Ipv4Address  source, Ipv4Address  group  )

private

{
    auto it = routes.find(SourceAndGroup(source, group));
    return it != routes.end() ? it->second : nullptr;
}

Referenced by multicastPacketArrivedOnNonRpfInterface(), multicastPacketArrivedOnRpfInterface(), multicastReceiverAdded(), multicastReceiverRemoved(), processAssertPacket(), processGraft(), processGraftAckPacket(), processJoinPrunePacket(), processStateRefreshPacket(), and rpfInterfaceHasChanged().

getIncomingInterface()

PimInterface * inet::PimDm::getIncomingInterface ( NetworkInterface *  fromIE )

private

{
    if (fromIE)
        return pimIft->getInterfaceById(fromIE->getInterfaceId());
    return nullptr;
}

Referenced by receiveSignal().

graftPruneStateString()

const std::string inet::PimDm::graftPruneStateString ( UpstreamInterface::GraftPruneState  ps )

static

{
    if (ps == UpstreamInterface::FORWARDING)
        return "FORWARDING";
    else if (ps == UpstreamInterface::PRUNED)
        return "PRUNED";
    else if (ps == UpstreamInterface::ACK_PENDING)
        return "ACK_PENDING";

    return "UNKNOWN";
}

Referenced by inet::operator<<().

handleCrashOperation()

void inet::PimDm::handleCrashOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Reimplemented from inet::PimBase.

{
    stopPIMRouting();
    PimBase::handleCrashOperation(operation);
}

handleMessageWhenUp()

void inet::PimDm::handleMessageWhenUp ( cMessage *  msg )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    if (msg->isSelfMessage()) {
        switch (msg->getKind()) {
            case HelloTimer:
                processHelloTimer(msg);
                break;

            case AssertTimer:
                processAssertTimer(msg);
                break;

            case PruneTimer:
                processPruneTimer(msg);
                break;

            case PrunePendingTimer:
                processPrunePendingTimer(msg);
                break;

            case GraftRetryTimer:
                processGraftRetryTimer(msg);
                break;

            case UpstreamOverrideTimer:
                processOverrideTimer(msg);
                break;

            case PruneLimitTimer:
                break;

            case SourceActiveTimer:
                processSourceActiveTimer(msg);
                break;

            case StateRefreshTimer:
                processStateRefreshTimer(msg);
                break;

            default:
                throw cRuntimeError("PimDm: unknown self message: %s (%s)", msg->getName(), msg->getClassName());
        }
    }
    else {
        Packet *pk = check_and_cast<Packet *>(msg);
        const auto& pkt = pk->peekAtFront<PimPacket>();
        if (pkt == nullptr)
            throw cRuntimeError("PimDm: received unknown message: %s (%s).", msg->getName(), msg->getClassName());

        if (!isEnabled) {
            EV_DETAIL << "PIM-DM is disabled, dropping packet.\n";
            delete msg;
            return;
        }

        switch (pkt->getType()) {
            case Hello:
                processHelloPacket(pk);
                break;

            case JoinPrune:
                processJoinPrunePacket(pk);
                break;

            case Assert:
                processAssertPacket(pk);
                break;

            case Graft:
                processGraftPacket(pk);
                break;

            case GraftAck:
                processGraftAckPacket(pk);
                break;

            case StateRefresh:
                processStateRefreshPacket(pk);
                break;

            default:
                EV_WARN << "Dropping packet " << pk->getName() << ".\n";
                delete pk;
                break;
        }
    }
}

handleStartOperation()

void inet::PimDm::handleStartOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Reimplemented from inet::PimBase.

{
    PimBase::handleStartOperation(operation);

    // subscribe for notifications
    if (isEnabled) {
        cModule *host = findContainingNode(this);
        if (!host)
            throw cRuntimeError("PimDm: containing node not found.");
        host->subscribe(ipv4NewMulticastSignal, this);
        host->subscribe(ipv4MulticastGroupRegisteredSignal, this);
        host->subscribe(ipv4MulticastGroupUnregisteredSignal, this);
        host->subscribe(ipv4DataOnNonrpfSignal, this);
        host->subscribe(ipv4DataOnRpfSignal, this);
        host->subscribe(routeAddedSignal, this);
        host->subscribe(interfaceStateChangedSignal, this);

        WATCH_PTRMAP(routes);
    }
}

handleStopOperation()

void inet::PimDm::handleStopOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Reimplemented from inet::PimBase.

{
    // TODO send PIM Hellos to neighbors with 0 HoldTime
    stopPIMRouting();
    PimBase::handleStopOperation(operation);
}

initialize()

void inet::PimDm::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::PimBase.

{
    PimBase::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        pruneInterval = par("pruneInterval");
        pruneLimitInterval = par("pruneLimitInterval");
        overrideInterval = par("overrideInterval");
        propagationDelay = par("propagationDelay");
        graftRetryInterval = par("graftRetryInterval");
        sourceActiveInterval = par("sourceActiveInterval");
        stateRefreshInterval = par("stateRefreshInterval");
        assertTime = par("assertTime");
    }
}

multicastPacketArrivedOnNonRpfInterface()

void inet::PimDm::multicastPacketArrivedOnNonRpfInterface ( Ipv4Address  group, Ipv4Address  source, int  interfaceId  )

private

The method has to solve the problem when multicast data appears on non-RPF interface.

It can happen when there is loop in the network. In this case, router has to prune from the neighbor, so it sends Prune message.

{
    EV_DETAIL << "Received multicast datagram (source=" << source << ", group=" << group << ") on non-RPF interface: " << interfaceId << ".\n";

    Route *route = findRoute(source, group);
    ASSERT(route);

    UpstreamInterface *upstream = route->upstreamInterface;
    DownstreamInterface *downstream = route->findDownstreamInterfaceByInterfaceId(interfaceId);
    if (!downstream)
        return;

    // in case of p2p link, send prune
    // FIXME There should be better indicator of P2P link
    if (pimNbt->getNumNeighbors(interfaceId) == 1) {
        // send Prune msg to the neighbor who sent these multicast data
        Ipv4Address nextHop = (pimNbt->getNeighbor(interfaceId, 0))->getAddress();
        sendPrunePacket(nextHop, source, group, pruneInterval, interfaceId);

        // the incoming interface has to change its state to Pruned
        if (downstream->pruneState == DownstreamInterface::NO_INFO) {
            downstream->pruneState = DownstreamInterface::PRUNED;
            downstream->startPruneTimer(pruneInterval);

            // if there is no outgoing interface, Prune msg has to be sent on upstream
            if (route->isOilistNull()) {
                EV << "Route is not forwarding any more, send Prune to upstream" << endl;
                upstream->graftPruneState = UpstreamInterface::PRUNED;
                if (!upstream->isSourceDirectlyConnected()) {
                    sendPrunePacket(upstream->rpfNeighbor(), source, group, pruneInterval, upstream->getInterfaceId());
                }
            }
        }
        return;
    }

    //
    // Assert State Machine; event: An (S,G) data packet arrives on downstream interface I
    //
    if (downstream->assertState == DownstreamInterface::NO_ASSERT_INFO) {
        // An (S,G) data packet arrived on a downstream interface.  It is
        // optimistically assumed that this router will be the Assert winner
        // for this (S,G).  The Assert state machine MUST transition to the
        // "I am Assert Winner" state, send an Assert(S,G) to interface I,
        // store its own address and metric as the Assert Winner, and set
        // the Assert_Timer (AT(S,G,I) to Assert_Time, thereby initiating
        // the Assert negotiation for (S,G).
        downstream->assertState = DownstreamInterface::I_WON_ASSERT;
        downstream->winnerMetric = route->metric.setAddress(downstream->ie->getProtocolData<Ipv4InterfaceData>()->getIPAddress());
        sendAssertPacket(source, group, route->metric, downstream->ie);
        downstream->startAssertTimer(assertTime);
    }
    else if (downstream->assertState == DownstreamInterface::I_WON_ASSERT) {
        // An (S,G) data packet arrived on a downstream interface.  The
        // Assert state machine remains in the "I am Assert Winner" state.
        // The router MUST send an Assert(S,G) to interface I and set the
        // Assert Timer (AT(S,G,I) to Assert_Time.
        sendAssertPacket(source, group, route->metric, downstream->ie);
        restartTimer(downstream->assertTimer, assertTime);
    }
}

Referenced by receiveSignal().

multicastPacketArrivedOnRpfInterface()

void inet::PimDm::multicastPacketArrivedOnRpfInterface ( int  interfaceId, Ipv4Address  group, Ipv4Address  source, unsigned short  ttl  )

private

{
    EV_DETAIL << "Multicast datagram arrived: source=" << source << ", group=" << group << ".\n";

    Route *route = findRoute(source, group);
    ASSERT(route);
    UpstreamInterface *upstream = route->upstreamInterface;

    // RFC 3973 4.5.2.2
    //
    // Receive Data Packet from S addressed to G
    //      The router remains in the Originator (O) state and MUST reset
    //      SAT(S,G) to SourceLifetime.  The router SHOULD increase its
    //      recorded TTL to match the TTL of the packet, if the packet's TTL
    //      is larger than the previously recorded TTL.  A router MAY record
    //      the TTL based on an implementation specific sampling policy to
    //      avoid examining the TTL of every multicast packet it handles.

    // Is source directly connected?
    if (upstream->isSourceDirectlyConnected()) {
        // State Refresh Originator state machine event: Receive Data from S AND S directly connected
        if (upstream->originatorState == UpstreamInterface::NOT_ORIGINATOR) {
            upstream->originatorState = UpstreamInterface::ORIGINATOR;
            PimInterface *pimInterface = pimIft->getInterfaceById(upstream->ie->getInterfaceId());
            if (pimInterface && pimInterface->getSR())
                upstream->startStateRefreshTimer();
        }
        restartTimer(upstream->sourceActiveTimer, sourceActiveInterval);

        // record max TTL seen, it is used in StateRefresh messages
        upstream->maxTtlSeen = std::max(upstream->maxTtlSeen, ttl);
    }

    // upstream state transition

    // Data Packet arrives on RPF_Interface(S) AND olist(S,G) == nullptr AND S is NOT directly connected ?
    if (upstream->ie->getInterfaceId() == interfaceId && route->isOilistNull() && !upstream->isSourceDirectlyConnected()) {
        EV_DETAIL << "Route does not have any outgoing interface and source is not directly connected.\n";

        switch (upstream->graftPruneState) {
            case UpstreamInterface::FORWARDING:
                // The Upstream(S,G) state machine MUST transition to the Pruned (P)
                // state, send a Prune(S,G) to RPF'(S), and set PLT(S,G) to t_limit seconds.
                sendPrunePacket(upstream->rpfNeighbor(), source, group, pruneInterval, upstream->getInterfaceId());
                upstream->startPruneLimitTimer();
                upstream->graftPruneState = UpstreamInterface::PRUNED;
                break;

            case UpstreamInterface::PRUNED:
                // Either another router on the LAN desires traffic from S addressed
                // to G or a previous Prune was lost.  To prevent generating a
                // Prune(S,G) in response to every data packet, the PruneLimit Timer
                // (PLT(S,G)) is used.  Once the PLT(S,G) expires, the router needs
                // to send another prune in response to a data packet not received
                // directly from the source.  A Prune(S,G) MUST be sent to RPF'(S),
                // and the PLT(S,G) MUST be set to t_limit.
                //
                // if GRT is running now, do not send Prune msg
                if (!upstream->isPruneLimitTimerRunning()) {
                    sendPrunePacket(upstream->rpfNeighbor(), source, group, pruneInterval, upstream->getInterfaceId());
                    upstream->startPruneLimitTimer();
                }
                break;

            case UpstreamInterface::ACK_PENDING:
                break;
        }
    }
}

Referenced by receiveSignal().

multicastReceiverAdded()

void inet::PimDm::multicastReceiverAdded ( NetworkInterface *  ie, Ipv4Address  newAddr  )

private

{
    EV_DETAIL << "Multicast receiver added for group " << group << ".\n";

    for (int i = 0; i < rt->getNumMulticastRoutes(); i++) {
        Ipv4MulticastRoute *ipv4Route = rt->getMulticastRoute(i);

        // check group
        if (ipv4Route->getSource() != this || ipv4Route->getMulticastGroup() != group)
            continue;

        Route *route = findRoute(ipv4Route->getOrigin(), group);
        ASSERT(route);

        // check on RPF interface
        UpstreamInterface *upstream = route->upstreamInterface;
        if (upstream->ie == ie)
            continue;

        // is interface in list of outgoing interfaces?
        DownstreamInterface *downstream = route->findDownstreamInterfaceByInterfaceId(ie->getInterfaceId());
        if (downstream) {
            EV << "Interface is already on list of outgoing interfaces" << endl;
            if (downstream->pruneState == DownstreamInterface::PRUNED)
                downstream->pruneState = DownstreamInterface::NO_INFO;
        }
        else {
            // create new downstream data
            EV << "Interface is not on list of outgoing interfaces yet, it will be added" << endl;
            downstream = route->createDownstreamInterface(ie);
            ipv4Route->addOutInterface(new PimDmOutInterface(ie, downstream));
        }

        downstream->setHasConnectedReceivers(true);

        // fire upstream state machine event
        if (upstream->graftPruneState == UpstreamInterface::PRUNED && downstream->isInOlist())
            processOlistNonEmptyEvent(route);
    }
}

Referenced by receiveSignal().

multicastReceiverRemoved()

void inet::PimDm::multicastReceiverRemoved ( NetworkInterface *  ie, Ipv4Address  group  )

private

The method process notification about multicast groups removed from interface.

For each old address it tries to find route. If there is route, it finds interface in list of outgoing interfaces. If the interface is in the list it will be removed. If the router was not pruned and there is no outgoing interface, the router will prune from the multicast tree.

{
    EV_DETAIL << "No more receiver for group " << group << " on interface '" << ie->getInterfaceName() << "'.\n";

    // delete pimInt from outgoing interfaces of multicast routes for group
    for (int i = 0; i < rt->getNumMulticastRoutes(); i++) {
        Ipv4MulticastRoute *ipv4Route = rt->getMulticastRoute(i);
        if (ipv4Route->getSource() == this && ipv4Route->getMulticastGroup() == group) {
            Route *route = findRoute(ipv4Route->getOrigin(), group);
            ASSERT(route);

            // remove pimInt from the list of outgoing interfaces
            DownstreamInterface *downstream = route->findDownstreamInterfaceByInterfaceId(ie->getInterfaceId());
            if (downstream) {
                bool wasInOlist = downstream->isInOlist();
                downstream->setHasConnectedReceivers(false);
                if (wasInOlist && !downstream->isInOlist()) {
                    EV_DEBUG << "Removed interface '" << ie->getInterfaceName() << "' from the outgoing interface list of route " << route << ".\n";

                    // fire upstream state machine event
                    if (route->isOilistNull())
                        processOlistEmptyEvent(route);
                }
            }
        }
    }
}

Referenced by receiveSignal().

numInitStages()

virtual int inet::PimDm::numInitStages ( ) const

inlineoverrideprotectedvirtual

Reimplemented from inet::PimBase.

{ return NUM_INIT_STAGES; }

originatorStateString()

const std::string inet::PimDm::originatorStateString ( UpstreamInterface::OriginatorState  os )

static

{
    if (os == UpstreamInterface::NOT_ORIGINATOR)
        return "NOT_ORIGINATOR";
    else if (os == UpstreamInterface::ORIGINATOR)
        return "ORIGINATOR";

    return "UNKNOWN";
}

Referenced by inet::operator<<().

processAssert()

void inet::PimDm::processAssert ( Interface *  downstream, AssertMetric  receivedMetric, int  stateRefreshInterval  )

private

{
    Route *route = check_and_cast<Route *>(incomingInterface->owner);
    UpstreamInterface *upstream = route->upstreamInterface;

    //
    // Assert State Machine
    //
    AssertMetric currentMetric = incomingInterface->assertState == Interface::NO_ASSERT_INFO ?
        route->metric.setAddress(incomingInterface->ie->getProtocolData<Ipv4InterfaceData>()->getIPAddress()) :
        incomingInterface->winnerMetric;
    bool isEqual = receivedMetric == currentMetric;
    bool isBetter = receivedMetric < currentMetric;
    bool couldAssert = incomingInterface != upstream;

    // event: Received Preferred Assert
    if (isBetter || isEqual) {
        if (incomingInterface->assertState == Interface::NO_ASSERT_INFO) {
            // The received Assert or State Refresh has a better metric than
            // this router's, and therefore the Assert state machine MUST
            // transition to the "I am Assert Loser" state and store the Assert
            // Winner's address and metric.  If the metric was received in an
            // Assert, the router MUST set the Assert Timer (AT(S,G,I)) to
            // Assert_Time.  If the metric was received in a State Refresh, the
            // router MUST set the Assert Timer (AT(S,G,I)) to three times the
            // received State Refresh Interval.  If CouldAssert(S,G,I) == TRUE,
            // the router MUST also multicast a Prune(S,G) to the Assert winner
            // with a Prune Hold Time equal to the Assert Timer and evaluate any
            // changes in its Upstream(S,G) state machine.
            ASSERT(isBetter);
            EV_DEBUG << "Received better metrics, going to I_LOST_ASSERT state.\n";
            incomingInterface->assertState = Interface::I_LOST_ASSERT;
            incomingInterface->winnerMetric = receivedMetric;
            double assertTime = stateRefreshInterval > 0 ? 3 * stateRefreshInterval : this->assertTime;
            incomingInterface->startAssertTimer(assertTime);
            if (couldAssert)
                sendPrunePacket(incomingInterface->winnerMetric.address, route->source, route->group, assertTime, incomingInterface->ie->getInterfaceId());

            // upstream state machine
            if (upstream->graftPruneState != UpstreamInterface::PRUNED && route->isOilistNull())
                processOlistEmptyEvent(route);
        }
        else if (incomingInterface->assertState == Interface::I_WON_ASSERT) {
            // An (S,G) Assert is received that has a better
            // metric than this router's metric for S on interface I. The
            // Assert state machine MUST transition to "I am Assert Loser" state
            // and store the new Assert Winner's address and metric. The router MUST set the Assert
            // Timer (AT(S,G,I)) to Assert_Time. The router MUST also
            // multicast a Prune(S,G) to the Assert winner, with a Prune Hold
            // Time equal to the Assert Timer, and evaluate any changes in its
            // Upstream(S,G) state machine.
            ASSERT(isBetter);
            EV_DEBUG << "Received better metrics, going to I_LOST_ASSERT state.\n";
            incomingInterface->assertState = DownstreamInterface::I_LOST_ASSERT;
            incomingInterface->winnerMetric = receivedMetric;
            restartTimer(incomingInterface->assertTimer, assertTime);
            sendPrunePacket(incomingInterface->winnerMetric.address, route->source, route->group, assertTime, incomingInterface->ie->getInterfaceId());

            // upstream state machine
            if (upstream->graftPruneState != UpstreamInterface::PRUNED && route->isOilistNull())
                processOlistEmptyEvent(route);
        }
        else if (incomingInterface->assertState == Interface::I_LOST_ASSERT) {
            // An Assert is received that has a metric better
            // than or equal to that of the current Assert winner.  The Assert
            // state machine remains in Loser (L) state.  If the metric was
            // received in an Assert, the router MUST set the Assert Timer
            // (AT(S,G,I)) to Assert_Time.  The router MUST set the Assert Timer (AT(S,G,I))
            // to three times the received State Refresh Interval.  If the
            // metric is better than the current Assert Winner, the router MUST
            // store the address and metric of the new Assert Winner, and if
            // CouldAssert(S,G,I) == TRUE, the router MUST multicast a
            // Prune(S,G) to the new Assert winner.
            EV_DEBUG << "Received better metrics, stay in I_LOST_ASSERT state.\n";
            restartTimer(incomingInterface->assertTimer, stateRefreshInterval > 0 ? 3 * stateRefreshInterval : assertTime);
            if (isBetter) {
                incomingInterface->winnerMetric = receivedMetric;
                if (couldAssert)
                    sendPrunePacket(incomingInterface->winnerMetric.address, route->source, route->group, assertTime, incomingInterface->ie->getInterfaceId());
            }
        }
    }
    // event: Receive Inferior Assert from Assert Winner
    else if (receivedMetric.address == incomingInterface->winnerMetric.address) {
        if (incomingInterface->assertState == Interface::I_LOST_ASSERT) {
            // An Assert is received from the current Assert
            // winner that is worse than this router's metric for S (typically,
            // the winner's metric became worse).  The Assert state machine MUST
            // transition to NoInfo (NI) state and cancel AT(S,G,I).  The router
            // MUST delete the previous Assert Winner's address and metric and
            // evaluate any possible transitions to its Upstream(S,G) state
            // machine.  Usually this router will eventually re-assert and win
            // when data packets from S have started flowing again.
            EV_DEBUG << "Assert winner lost best route, going to NO_ASSERT_INFO state.\n";
            incomingInterface->deleteAssertInfo();
            // upstream state machine
            if (upstream->graftPruneState == UpstreamInterface::PRUNED && !route->isOilistNull())
                processOlistNonEmptyEvent(route);
        }
    }
    // event: Receive Inferior Assert from non-Assert Winner AND CouldAssert==TRUE
    else if (couldAssert) {
        if (incomingInterface->assertState == Interface::NO_ASSERT_INFO) {
            // An Assert or State Refresh is received for (S,G) that is inferior
            // to our own assert metric on interface I. The Assert state machine
            // MUST transition to the "I am Assert Winner" state, send an
            // Assert(S,G) to interface I, store its own address and metric as
            // the Assert Winner, and set the Assert Timer (AT(S,G,I)) to
            // Assert_Time.
            EV_DEBUG << "Received inferior assert metrics, going to I_WON_ASSERT state.\n";
            incomingInterface->assertState = DownstreamInterface::I_WON_ASSERT;
            sendAssertPacket(route->source, route->group, route->metric, incomingInterface->ie);
            incomingInterface->startAssertTimer(assertTime);
        }
        else if (incomingInterface->assertState == DownstreamInterface::I_WON_ASSERT) {
            // An (S,G) Assert is received containing a metric for S that is
            // worse than this router's metric for S.  Whoever sent the Assert
            // is in error.  The router MUST send an Assert(S,G) to interface I
            // and reset the Assert Timer (AT(S,G,I)) to Assert_Time.
            EV_DEBUG << "Received inferior assert metrics, stay in I_WON_ASSERT state.\n";
            sendAssertPacket(route->source, route->group, route->metric, incomingInterface->ie);
            restartTimer(incomingInterface->assertTimer, assertTime);
        }
    }
}

Referenced by processAssertPacket(), and processStateRefreshPacket().

processAssertPacket()

void inet::PimDm::processAssertPacket ( Packet *  pk )

private

{
    const auto& pkt = pk->peekAtFront<PimAssert>();
    int incomingInterfaceId = pk->getTag<InterfaceInd>()->getInterfaceId();
    Ipv4Address srcAddrFromTag = pk->getTag<L3AddressInd>()->getSrcAddress().toIpv4();
    Ipv4Address source = pkt->getSourceAddress().unicastAddress.toIpv4();
    Ipv4Address group = pkt->getGroupAddress().groupAddress.toIpv4();
    AssertMetric receivedMetric = AssertMetric(pkt->getMetricPreference(), pkt->getMetric(), srcAddrFromTag);
    Route *route = findRoute(source, group);
    ASSERT(route); // TODO create S,G state?
    Interface *incomingInterface = route->upstreamInterface->getInterfaceId() == incomingInterfaceId ?
        static_cast<Interface *>(route->upstreamInterface) :
        static_cast<Interface *>(route->findDownstreamInterfaceByInterfaceId(incomingInterfaceId));
    ASSERT(incomingInterface);

    EV_INFO << "Received Assert(S=" << source << ", G=" << group
            << ") packet on interface '" << incomingInterface->ie->getInterfaceName() << "'.\n";

    emit(rcvdAssertPkSignal, pk);

    processAssert(incomingInterface, receivedMetric, 0);

    delete pk;
}

Referenced by handleMessageWhenUp().

processAssertTimer()

void inet::PimDm::processAssertTimer ( cMessage *  timer )

private

{
    Interface *interfaceData = static_cast<Interface *>(timer->getContextPointer());
    ASSERT(timer == interfaceData->assertTimer);
    ASSERT(interfaceData->assertState != DownstreamInterface::NO_ASSERT_INFO);

    Route *route = check_and_cast<Route *>(interfaceData->owner);
    UpstreamInterface *upstream = route->upstreamInterface;
    EV_DETAIL << "AssertTimer" << route << " interface=" << interfaceData->ie->getInterfaceName() << " has expired.\n";

    //
    // Assert State Machine; event: AT(S,G,I) expires
    //

    // The Assert state machine MUST transition to NoInfo (NI) state.
    // The router MUST delete the Assert Winner's address and metric.
    // If CouldAssert == TRUE, the router MUST evaluate any possible
    // transitions to its Upstream(S,G) state machine.
    EV_DEBUG << "Going into NO_ASSERT_INFO state.\n";
    interfaceData->deleteAssertInfo(); // deletes timer

    // upstream state machine transition
    if (interfaceData != upstream) {
        bool isOlistNull = route->isOilistNull();
        if (upstream->graftPruneState == UpstreamInterface::PRUNED && !isOlistNull)
            processOlistNonEmptyEvent(route);
        else if (upstream->graftPruneState != UpstreamInterface::PRUNED && isOlistNull)
            processOlistEmptyEvent(route);
    }
}

Referenced by handleMessageWhenUp().

processGraft()

void inet::PimDm::processGraft ( Ipv4Address  source, Ipv4Address  group, Ipv4Address  sender, int  incomingInterfaceId  )

private

The method is used to process PimGraft packet.

Packet means that downstream router wants to join to multicast tree, so the packet cannot come to RPF interface. Router finds correct outgoig interface towards downstream router. Change its state to forward if it was not before and cancel Prune Timer. If route was in pruned state, router will send also Graft message to join multicast tree.

{
    EV_DEBUG << "Processing Graft(S=" << source << ", G=" << group << "), sender=" << sender << "incoming if=" << incomingInterfaceId << endl;

    Route *route = findRoute(source, group);
    ASSERT(route);

    UpstreamInterface *upstream = route->upstreamInterface;

    // check if message come to non-RPF interface
    if (upstream->ie->getInterfaceId() == incomingInterfaceId) {
        EV << "ERROR: Graft message came to RPF interface." << endl;
        return;
    }

    DownstreamInterface *downstream = route->findDownstreamInterfaceByInterfaceId(incomingInterfaceId);
    if (!downstream)
        return;

    //
    // Downstream Interface State Machine
    //
    // Note: GraftAck is sent in processGraftPacket()
    bool olistChanged = false;
    switch (downstream->pruneState) {
        case DownstreamInterface::NO_INFO:
            // do nothing
            break;

        case DownstreamInterface::PRUNE_PENDING:
            downstream->stopPrunePendingTimer();
            downstream->pruneState = DownstreamInterface::NO_INFO;
            break;

        case DownstreamInterface::PRUNED:
            EV << "Interface " << downstream->ie->getInterfaceId() << " transit to forwarding state (Graft)." << endl;
            downstream->stopPruneTimer();
            downstream->pruneState = DownstreamInterface::NO_INFO;
            olistChanged = downstream->isInOlist();
            break;
    }

    if (olistChanged)
        processOlistNonEmptyEvent(route);

    //
    // Assert State Machine; event: Receive Graft(S,G)
    //
    if (downstream->assertState == DownstreamInterface::I_LOST_ASSERT) {
        // A Graft(S,G) message was received on
        // interface I with its upstream neighbor address set to the
        // router's address on I.  The router MUST send an Assert(S,G) on
        // the receiving interface I to initiate an Assert negotiation. The
        // Assert state machine remains in the Assert Loser(L) state.
        // The router MUST respond with a GraftAck(S,G).
        sendAssertPacket(route->source, route->group, route->metric, downstream->ie);
    }
}

Referenced by processGraftPacket().

processGraftAckPacket()

void inet::PimDm::processGraftAckPacket ( Packet *  pk )

private

{
    const auto& pkt = pk->peekAtFront<PimGraft>();
    EV_INFO << "Received GraftAck packet.\n";

    emit(rcvdGraftAckPkSignal, pk);

    Ipv4Address destAddress = pk->getTag<L3AddressInd>()->getDestAddress().toIpv4();

    for (unsigned int i = 0; i < pkt->getJoinPruneGroupsArraySize(); i++) {
        const JoinPruneGroup& group = pkt->getJoinPruneGroups(i);
        Ipv4Address groupAddr = group.getGroupAddress().groupAddress.toIpv4();

        for (unsigned int j = 0; j < group.getJoinedSourceAddressArraySize(); j++) {
            const auto& source = group.getJoinedSourceAddress(j);
            Route *route = findRoute(source.sourceAddress.toIpv4(), groupAddr);
            ASSERT(route);
            UpstreamInterface *upstream = route->upstreamInterface;

            // If the destination address of the GraftAck packet is not
            // the address of the upstream interface, then no state transition occur.
            if (destAddress != upstream->ie->getProtocolData<Ipv4InterfaceData>()->getIPAddress())
                continue;

            // upstream state transition
            // event: Receive GraftAck(S,G) from RPF'(S)
            if (upstream->graftPruneState == UpstreamInterface::ACK_PENDING) {
                // A GraftAck is received from  RPF'(S).  The GraftRetry Timer MUST
                // be cancelled, and the Upstream(S,G) state machine MUST transition
                // to the Forwarding(F) state.
                ASSERT(upstream->graftRetryTimer);
                cancelAndDelete(upstream->graftRetryTimer);
                upstream->graftRetryTimer = nullptr;
                upstream->graftPruneState = UpstreamInterface::FORWARDING;
            }
        }
    }

    delete pk;
}

Referenced by handleMessageWhenUp().

processGraftPacket()

void inet::PimDm::processGraftPacket ( Packet *  pk )

private

{
    const auto& pkt = pk->peekAtFront<PimGraft>();
    EV_INFO << "Received Graft packet.\n";

    emit(rcvdGraftPkSignal, pk);

    Ipv4Address sender = pk->getTag<L3AddressInd>()->getSrcAddress().toIpv4();
    NetworkInterface *incomingInterface = ift->getInterfaceById(pk->getTag<InterfaceInd>()->getInterfaceId());

    // does packet belong to this router?
    if (pkt->getUpstreamNeighborAddress().unicastAddress != incomingInterface->getProtocolData<Ipv4InterfaceData>()->getIPAddress()) {
        delete pk;
        return;
    }

    for (unsigned int i = 0; i < pkt->getJoinPruneGroupsArraySize(); i++) {
        const JoinPruneGroup& group = pkt->getJoinPruneGroups(i);
        Ipv4Address groupAddr = group.getGroupAddress().groupAddress.toIpv4();

        for (unsigned int j = 0; j < group.getJoinedSourceAddressArraySize(); j++) {
            const auto& source = group.getJoinedSourceAddress(j);
            processGraft(source.sourceAddress.toIpv4(), groupAddr, sender, incomingInterface->getInterfaceId());
        }
    }

    // Send GraftAck for this Graft message
    sendGraftAckPacket(pk, pkt);

    delete pk;
}

Referenced by handleMessageWhenUp().

processGraftRetryTimer()

void inet::PimDm::processGraftRetryTimer ( cMessage *  timer )

private

{
    EV_INFO << "GraftRetryTimer expired.\n";
    UpstreamInterface *upstream = static_cast<UpstreamInterface *>(timer->getContextPointer());
    ASSERT(upstream->graftPruneState == UpstreamInterface::ACK_PENDING);
    ASSERT(timer == upstream->graftRetryTimer);

    Route *route = upstream->route();
    EV_INFO << "GraftRetryTimer" << route << " expired.\n";

    // The Upstream(S,G) state machine stays in the AckPending (AP)
    // state.  Another Graft message for (S,G) SHOULD be unicast to
    // RPF'(S) and the GraftRetry Timer (GRT(S,G)) reset to
    // Graft_Retry_Period.  It is RECOMMENDED that the router retry a
    // configured number of times before ceasing retries.
    sendGraftPacket(upstream->rpfNeighbor(), route->source, route->group, upstream->getInterfaceId());
    scheduleAfter(graftRetryInterval, timer);
}

Referenced by handleMessageWhenUp().

processJoin()

void inet::PimDm::processJoin ( Route *  route, int  intId, int  numRpfNeighbors, Ipv4Address  upstreamNeighborField  )

private

{
    UpstreamInterface *upstream = route->upstreamInterface;

    // See join to RPF'(S,G) ?
    if (upstream->ie->getInterfaceId() == intId && numRpfNeighbors > 1) {
        // TODO check that destAddress == upstream->nextHop
        if (upstream->graftPruneState == UpstreamInterface::FORWARDING || upstream->graftPruneState == UpstreamInterface::ACK_PENDING) {
            // If the OT(S,G) is running, then it
            // means that the router had scheduled a Join to override a
            // previously received Prune.  Another router has responded more
            // quickly with a Join, so the local router SHOULD cancel its
            // OT(S,G), if it is running.
            cancelAndDelete(upstream->overrideTimer);
            upstream->overrideTimer = nullptr;
        }
    }

    //
    // Downstream Interface State Machine
    //
    DownstreamInterface *downstream = route->findDownstreamInterfaceByInterfaceId(intId);
    if (!downstream)
        return;

    // does packet belong to this router?
    if (upstreamNeighborField != downstream->ie->getProtocolData<Ipv4InterfaceData>()->getIPAddress())
        return;

    if (downstream->pruneState == DownstreamInterface::PRUNE_PENDING)
        downstream->stopPrunePendingTimer();
    else if (downstream->pruneState == DownstreamInterface::PRUNED)
        downstream->stopPruneTimer();

    downstream->pruneState = DownstreamInterface::NO_INFO;

    if (upstream->graftPruneState == UpstreamInterface::PRUNED && !route->isOilistNull())
        processOlistNonEmptyEvent(route); // will send Graft upstream

    //
    // Assert State Machine; event: Receive Join(S,G)
    //
    if (downstream->assertState == DownstreamInterface::I_LOST_ASSERT) {
        // A Join(S,G) message was received on
        // interface I with its upstream neighbor address set to the
        // router's address on I.  The router MUST send an Assert(S,G) on
        // the receiving interface I to initiate an Assert negotiation.  The
        // Assert state machine remains in the Assert Loser(L) state.
        sendAssertPacket(route->source, route->group, route->metric, downstream->ie);
    }
}

Referenced by processJoinPrunePacket().

processJoinPrunePacket()

void inet::PimDm::processJoinPrunePacket ( Packet *  pk )

private

{
    const auto& pkt = pk->peekAtFront<PimJoinPrune>();
    EV_INFO << "Received JoinPrune packet.\n";

    emit(rcvdJoinPrunePkSignal, pk);

    auto ifTag = pk->getTag<InterfaceInd>();
    NetworkInterface *incomingInterface = ift->getInterfaceById(ifTag->getInterfaceId());

    if (!incomingInterface) {
        delete pk;
        return;
    }

    Ipv4Address upstreamNeighborAddress = pkt->getUpstreamNeighborAddress().unicastAddress.toIpv4();
    int numRpfNeighbors = pimNbt->getNumNeighbors(incomingInterface->getInterfaceId());

    for (unsigned int i = 0; i < pkt->getJoinPruneGroupsArraySize(); i++) {
        JoinPruneGroup group = pkt->getJoinPruneGroups(i);
        Ipv4Address groupAddr = group.getGroupAddress().groupAddress.toIpv4();

        // go through list of joined sources
        for (unsigned int j = 0; j < group.getJoinedSourceAddressArraySize(); j++) {
            const auto& source = group.getJoinedSourceAddress(j);
            Route *route = findRoute(source.sourceAddress.toIpv4(), groupAddr);
            ASSERT(route);
            processJoin(route, incomingInterface->getInterfaceId(), numRpfNeighbors, upstreamNeighborAddress);
        }

        // go through list of pruned sources
        for (unsigned int j = 0; j < group.getPrunedSourceAddressArraySize(); j++) {
            const auto& source = group.getPrunedSourceAddress(j);
            Route *route = findRoute(source.sourceAddress.toIpv4(), groupAddr);
            ASSERT(route);
            processPrune(route, incomingInterface->getInterfaceId(), pkt->getHoldTime(), numRpfNeighbors, upstreamNeighborAddress);
        }
    }

    delete pk;
}

Referenced by handleMessageWhenUp().

processOlistEmptyEvent()

void inet::PimDm::processOlistEmptyEvent ( Route *  route )

private

{
    UpstreamInterface *upstream = route->upstreamInterface;

    // upstream state transitions

    // olist(S,G) -> nullptr AND S NOT directly connected?
    if (!upstream->isSourceDirectlyConnected()) {
        if (upstream->graftPruneState == UpstreamInterface::FORWARDING || upstream->graftPruneState == UpstreamInterface::ACK_PENDING) {
            // The Upstream(S,G) state machine MUST
            // transition to the Pruned (P) state.  A Prune(S,G) MUST be
            // multicast to the RPF_interface(S), with RPF'(S) named in the
            // upstream neighbor field.  The GraftRetry Timer (GRT(S,G)) MUST be
            // cancelled, and PLT(S,G) MUST be set to t_limit seconds.
            sendPrunePacket(upstream->rpfNeighbor(), route->source, route->group, pruneInterval, upstream->getInterfaceId());
            upstream->startPruneLimitTimer();
            if (upstream->graftPruneState == UpstreamInterface::ACK_PENDING) {
                cancelAndDelete(upstream->graftRetryTimer);
                upstream->graftRetryTimer = nullptr;
            }
        }
    }

    upstream->graftPruneState = UpstreamInterface::PRUNED;
}

Referenced by multicastReceiverRemoved(), processAssert(), processAssertTimer(), and processPrunePendingTimer().

processOlistNonEmptyEvent()

void inet::PimDm::processOlistNonEmptyEvent ( Route *  route )

private

{
    // upstream state transition: Pruned->AckPending if olist is not empty
    // if all route was pruned, remove prune flag
    // if upstrem is not source, send Graft message
    UpstreamInterface *upstream = route->upstreamInterface;
    if (upstream->graftPruneState == UpstreamInterface::PRUNED) {
        // olist(S,G)->non-nullptr AND S NOT directly connected
        //
        // The set of interfaces defined by the olist(S,G) macro becomes
        // non-empty, indicating that traffic from S addressed to group G
        // must be forwarded.  The Upstream(S,G) state machine MUST cancel
        // PLT(S,G), transition to the AckPending (AP) state and unicast a
        // Graft message to RPF'(S).  The Graft Retry Timer (GRT(S,G)) MUST
        // be set to Graft_Retry_Period.

        if (!upstream->isSourceDirectlyConnected()) {
            EV << "Route is not pruned any more, send Graft to upstream" << endl;
            sendGraftPacket(upstream->rpfNeighbor(), route->source, route->group, upstream->getInterfaceId());
            upstream->stopPruneLimitTimer();
            upstream->startGraftRetryTimer();
            upstream->graftPruneState = UpstreamInterface::ACK_PENDING;
        }
        else {
            upstream->graftPruneState = UpstreamInterface::FORWARDING;
        }
    }
}

Referenced by multicastReceiverAdded(), processAssert(), processAssertTimer(), processGraft(), processJoin(), and processPruneTimer().

processOverrideTimer()

void inet::PimDm::processOverrideTimer ( cMessage *  timer )

private

{
    UpstreamInterface *upstream = static_cast<UpstreamInterface *>(timer->getContextPointer());
    ASSERT(timer == upstream->overrideTimer);
    ASSERT(upstream->graftPruneState != UpstreamInterface::PRUNED);

    Route *route = upstream->route();
    EV_INFO << "OverrideTimer" << route << " expired.\n";

    // send a Join(S,G) to RPF'(S)
    sendJoinPacket(upstream->rpfNeighbor(), route->source, route->group, upstream->getInterfaceId());

    upstream->overrideTimer = nullptr;
    delete timer;
}

Referenced by handleMessageWhenUp().

processPrune()

void inet::PimDm::processPrune ( Route *  route, int  intId, int  holdTime, int  numRpfNeighbors, Ipv4Address  upstreamNeighborField  )

private

The method process PIM Prune packet.

First the method has to find correct outgoing interface where PIM Prune packet came to. The method also checks if there is still any forwarding outgoing interface. Forwarding interfaces, where Prune packet come to, goes to prune state. If all outgoing interfaces are pruned, the router will prune from multicast tree.

{
    EV_INFO << "Processing Prune" << route << ".\n";

    //
    // Upstream Interface State Machine; event: See Prune(S,G)
    //

    // See Prune(S,G) AND S is NOT directly connected ?
    UpstreamInterface *upstream = route->upstreamInterface;
    if (upstream->ie->getInterfaceId() == intId && !upstream->isSourceDirectlyConnected()) {
        // This event is only relevant if RPF_interface(S) is a shared
        // medium.  This router sees another router on RPF_interface(S) send
        // a Prune(S,G).  When this router is in Forwarding/AckPending state, it must
        // override the Prune after a short random interval.  If OT(S,G) is
        // not running, the router MUST set OT(S,G) to t_override seconds.
        // The Upstream(S,G) state machine remains in Forwarding/AckPending state.
        if (upstream->graftPruneState == UpstreamInterface::FORWARDING || upstream->graftPruneState == UpstreamInterface::ACK_PENDING) {
            if (!upstream->overrideTimer)
                upstream->startOverrideTimer();
        }
    }

    // we find correct outgoing interface
    DownstreamInterface *downstream = route->findDownstreamInterfaceByInterfaceId(intId);
    if (!downstream)
        return;

    // does packet belong to this router?
    if (upstreamNeighborField != downstream->ie->getProtocolData<Ipv4InterfaceData>()->getIPAddress())
        return;

    //
    // Downstream Interface State Machine; event: Receive Prune(S,G)
    //

    // A Prune(S,G) is received on interface I with the upstream
    // neighbor field set to the router's address on I.
    if (downstream->pruneState == DownstreamInterface::NO_INFO) {
        // The Prune(S,G) Downstream state machine on interface I MUST transition to the
        // PrunePending (PP) state.  The PrunePending Timer (PPT(S,G,I))
        // MUST be set to J/P_Override_Interval if the router has more than
        // one neighbor on I.  If the router has only one neighbor on
        // interface I, then it SHOULD set the PPT(S,G,I) to zero,
        // effectively transitioning immediately to the Pruned (P) state.
        double prunePendingInterval = numRpfNeighbors > 1 ? overrideInterval + propagationDelay : 0;
        downstream->startPrunePendingTimer(prunePendingInterval);
        downstream->pruneState = DownstreamInterface::PRUNE_PENDING;
    }
    else if (downstream->pruneState == DownstreamInterface::PRUNED) {
        // The Prune(S,G) Downstream state machine on interface I remains in the Pruned (P)
        // state.  The Prune Timer (PT(S,G,I)) SHOULD be reset to the
        // holdtime contained in the Prune(S,G) message if it is greater
        // than the current value.
        EV << "Outgoing interface is already pruned, restart Prune Timer." << endl;
        if (downstream->pruneTimer->getArrivalTime() < simTime() + holdTime)
            restartTimer(downstream->pruneTimer, holdTime);
    }

    //
    // Assert state machine; event: Receive Prune(S,G)
    //
    if (downstream->assertState == DownstreamInterface::I_LOST_ASSERT) {
        // Receive Prune(S,G)
        //     A Prune(S,G) message was received on
        //     interface I with its upstream neighbor address set to the
        //     router's address on I.  The router MUST send an Assert(S,G) on
        //     the receiving interface I to initiate an Assert negotiation.  The
        //     Assert state machine remains in the Assert Loser(L) state.
        sendAssertPacket(route->source, route->group, route->metric, downstream->ie);
    }
}

Referenced by processJoinPrunePacket().

processPrunePendingTimer()

void inet::PimDm::processPrunePendingTimer ( cMessage *  timer )

private

{
    DownstreamInterface *downstream = static_cast<DownstreamInterface *>(timer->getContextPointer());
    ASSERT(timer == downstream->prunePendingTimer);
    ASSERT(downstream->pruneState == DownstreamInterface::PRUNE_PENDING);

    delete timer;
    downstream->prunePendingTimer = nullptr;

    Route *route = downstream->route();
    EV_INFO << "PrunePendingTimer" << route << " has expired.\n";

    //
    // go to pruned state
    downstream->pruneState = DownstreamInterface::PRUNED;
    double holdTime = pruneInterval - overrideInterval - propagationDelay; // TODO should be received HoldTime - computed override interval;
    downstream->startPruneTimer(holdTime);

    // TODO optionally send PruneEcho

    // upstream state change if olist become nullptr
    if (route->isOilistNull())
        processOlistEmptyEvent(route);
}

Referenced by handleMessageWhenUp().

processPruneTimer()

void inet::PimDm::processPruneTimer ( cMessage *  timer )

private

{
    DownstreamInterface *downstream = static_cast<DownstreamInterface *>(timer->getContextPointer());
    ASSERT(timer == downstream->pruneTimer);
    ASSERT(downstream->pruneState == DownstreamInterface::PRUNED);

    Route *route = downstream->route();
    EV_INFO << "PruneTimer" << route << " expired.\n";

    // state of interface is changed to forwarding
    downstream->stopPruneTimer();
    downstream->pruneState = DownstreamInterface::NO_INFO;

    // upstream state change if olist become non nullptr
    if (!route->isOilistNull())
        processOlistNonEmptyEvent(route);
}

Referenced by handleMessageWhenUp().

processSourceActiveTimer()

void inet::PimDm::processSourceActiveTimer ( cMessage *  timer )

private

{
    UpstreamInterface *upstream = static_cast<UpstreamInterface *>(timer->getContextPointer());
    ASSERT(timer == upstream->sourceActiveTimer);
    ASSERT(upstream->originatorState == UpstreamInterface::ORIGINATOR);

    Route *route = upstream->route();
    EV_INFO << "SourceActiveTimer" << route << " expired.\n";

    upstream->originatorState = UpstreamInterface::NOT_ORIGINATOR;
    cancelAndDelete(upstream->stateRefreshTimer);
    upstream->stateRefreshTimer = nullptr;

    // delete the route, because there are no more packets
    Ipv4Address routeSource = route->source;
    Ipv4Address routeGroup = route->group;
    deleteRoute(routeSource, routeGroup);
    Ipv4MulticastRoute *ipv4Route = findIpv4MulticastRoute(routeGroup, routeSource);
    if (ipv4Route)
        rt->deleteMulticastRoute(ipv4Route);
}

Referenced by handleMessageWhenUp().

processStateRefreshPacket()

void inet::PimDm::processStateRefreshPacket ( Packet *  pk )

private

The method is used to process PimStateRefresh packet.

The method checks if there is route in mroute and that packet has came to RPF interface. Then it goes through all outgoing interfaces. If the interface is pruned, it resets Prune Timer. For each interface State Refresh message is copied and correct prune indicator is set according to state of outgoing interface (pruned/forwarding).

State Refresh message is used to stop flooding of network each 3 minutes.

{
    const auto& pkt = pk->peekAtFront<PimStateRefresh>();
    EV << "pimDM::processStateRefreshPacket" << endl;

    emit(rcvdStateRefreshPkSignal, pk);

    // first check if there is route for given group address and source
    Route *route = findRoute(pkt->getSourceAddress().unicastAddress.toIpv4(), pkt->getGroupAddress().groupAddress.toIpv4());
    if (route == nullptr) {
        delete pk;
        return;
    }

    // check if State Refresh msg has came from RPF neighbor
    auto ifTag = pk->getTag<InterfaceInd>();
    Ipv4Address srcAddr = pk->getTag<L3AddressInd>()->getSrcAddress().toIpv4();
    UpstreamInterface *upstream = route->upstreamInterface;
    if (ifTag->getInterfaceId() != upstream->getInterfaceId() || upstream->rpfNeighbor() != srcAddr) {
        delete pk;
        return;
    }

    // upstream state transitions
    bool pruneIndicator = pkt->getP();
    switch (upstream->graftPruneState) {
        case UpstreamInterface::FORWARDING:
            if (pruneIndicator) {
                upstream->startOverrideTimer();
            }
            break;

        case UpstreamInterface::PRUNED:
            if (!pruneIndicator) {
                if (!upstream->isPruneLimitTimerRunning()) {
                    sendPrunePacket(upstream->rpfNeighbor(), route->source, route->group, pruneInterval, upstream->getInterfaceId());
                    upstream->startPruneLimitTimer();
                }
            }
            else
                upstream->startPruneLimitTimer();
            break;

        case UpstreamInterface::ACK_PENDING:
            if (pruneIndicator) {
                if (!upstream->overrideTimer)
                    upstream->startOverrideTimer();
            }
            else {
                cancelAndDelete(upstream->graftRetryTimer);
                upstream->graftRetryTimer = nullptr;
                upstream->graftPruneState = UpstreamInterface::FORWARDING;
            }
            break;
    }

    //
    // Forward StateRefresh message downstream
    //

    // TODO check StateRefreshRateLimit(S,G)

    if (pkt->getTtl() == 0) {
        delete pk;
        return;
    }

    // go through all outgoing interfaces, reser Prune Timer and send out State Refresh msg
    for (unsigned int i = 0; i < route->downstreamInterfaces.size(); i++) {
        DownstreamInterface *downstream = route->downstreamInterfaces[i];
        // TODO check ttl threshold and boundary
        if (downstream->assertState == DownstreamInterface::I_LOST_ASSERT)
            continue;

        if (downstream->pruneState == DownstreamInterface::PRUNED) {
            // reset PT
            restartTimer(downstream->pruneTimer, pruneInterval);
        }
        sendStateRefreshPacket(pkt->getOriginatorAddress().unicastAddress.toIpv4(), route, downstream, pkt->getTtl() - 1);

        //
        // Assert State Machine; event: Send State Refresh
        //
        if (downstream->assertState == DownstreamInterface::I_WON_ASSERT) {
            // The router is sending a State Refresh(S,G) message on interface I.
            // The router MUST set the Assert Timer (AT(S,G,I)) to three
            // times the State Refresh Interval contained in the State Refresh(S,G) message.
            restartTimer(downstream->assertTimer, 3 * stateRefreshInterval);
        }
    }

    //
    // Assert State Machine; event: Receive State Refresh
    //
    AssertMetric receivedMetric(pkt->getMetricPreference(), pkt->getMetric(), srcAddr);
    processAssert(upstream, receivedMetric, pkt->getInterval());

    delete pk;
}

Referenced by handleMessageWhenUp().

processStateRefreshTimer()

void inet::PimDm::processStateRefreshTimer ( cMessage *  timer )

private

{
    UpstreamInterface *upstream = static_cast<UpstreamInterface *>(timer->getContextPointer());
    ASSERT(timer == upstream->stateRefreshTimer);
    ASSERT(upstream->originatorState == UpstreamInterface::ORIGINATOR);

    Route *route = upstream->route();

    EV_INFO << "StateRefreshTimer" << route << " expired.\n";

    EV_DETAIL << "Sending StateRefresh packets on downstream interfaces.\n";
    for (unsigned int i = 0; i < route->downstreamInterfaces.size(); i++) {
        DownstreamInterface *downstream = route->downstreamInterfaces[i];
        // TODO check ttl threshold and boundary
        if (downstream->assertState == DownstreamInterface::I_LOST_ASSERT)
            continue;

        // when sending StateRefresh in Pruned state, then restart PruneTimer
        bool isPruned = downstream->pruneState == DownstreamInterface::PRUNED;
        if (isPruned)
            restartTimer(downstream->pruneTimer, pruneInterval);

        // Send StateRefresh message downstream
        Ipv4Address originator = downstream->ie->getProtocolData<Ipv4InterfaceData>()->getIPAddress();
        sendStateRefreshPacket(originator, route, downstream, upstream->maxTtlSeen);
    }

    scheduleAfter(stateRefreshInterval, timer);
}

Referenced by handleMessageWhenUp().

pruneStateString()

const std::string inet::PimDm::pruneStateString ( DownstreamInterface::PruneState  ps )

static

{
    if (ps == DownstreamInterface::NO_INFO)
        return "NO_INFO";
    else if (ps == DownstreamInterface::PRUNE_PENDING)
        return "PRUNE_PENDING";
    else if (ps == DownstreamInterface::PRUNED)
        return "PRUNED";

    return "UNKNOWN";
}

Referenced by inet::operator<<().

receiveSignal()

void inet::PimDm::receiveSignal ( cComponent *  source, simsignal_t  signalID, cObject *  obj, cObject *  details  )

overrideprivate

{
    Enter_Method("%s", cComponent::getSignalName(signalID));

    printSignalBanner(signalID, obj, details);
    const Ipv4Header *ipv4Header;
    PimInterface *pimInterface;

    // new multicast data appears in router
    // note: this signal is often emitted from Ipv4::forwardMulticastPacket method
    if (signalID == ipv4NewMulticastSignal) {
        ipv4Header = check_and_cast<const Ipv4Header *>(obj);
        pimInterface = getIncomingInterface(check_and_cast<NetworkInterface *>(details));
        if (pimInterface && pimInterface->getMode() == PimInterface::DenseMode)
            unroutableMulticastPacketArrived(ipv4Header->getSrcAddress(), ipv4Header->getDestAddress(), ipv4Header->getTimeToLive());
    }
    // configuration of interface changed, it means some change from IGMP, address were added.
    else if (signalID == ipv4MulticastGroupRegisteredSignal) {
        const Ipv4MulticastGroupInfo *info = check_and_cast<const Ipv4MulticastGroupInfo *>(obj);
        pimInterface = pimIft->getInterfaceById(info->ie->getInterfaceId());
        if (pimInterface && pimInterface->getMode() == PimInterface::DenseMode)
            multicastReceiverAdded(pimInterface->getInterfacePtr(), info->groupAddress);
    }
    // configuration of interface changed, it means some change from IGMP, address were removed.
    else if (signalID == ipv4MulticastGroupUnregisteredSignal) {
        const Ipv4MulticastGroupInfo *info = check_and_cast<const Ipv4MulticastGroupInfo *>(obj);
        pimInterface = pimIft->getInterfaceById(info->ie->getInterfaceId());
        if (pimInterface && pimInterface->getMode() == PimInterface::DenseMode)
            multicastReceiverRemoved(pimInterface->getInterfacePtr(), info->groupAddress);
    }
    // data come to non-RPF interface
    else if (signalID == ipv4DataOnNonrpfSignal) {
        ipv4Header = check_and_cast<const Ipv4Header *>(obj);
        pimInterface = getIncomingInterface(check_and_cast<NetworkInterface *>(details));
        if (pimInterface && pimInterface->getMode() == PimInterface::DenseMode)
            multicastPacketArrivedOnNonRpfInterface(ipv4Header->getDestAddress(), ipv4Header->getSrcAddress(), pimInterface->getInterfaceId());
    }
    // data come to RPF interface
    else if (signalID == ipv4DataOnRpfSignal) {
        ipv4Header = check_and_cast<const Ipv4Header *>(obj);
        pimInterface = getIncomingInterface(check_and_cast<NetworkInterface *>(details));
        if (pimInterface && pimInterface->getMode() == PimInterface::DenseMode)
            multicastPacketArrivedOnRpfInterface(pimInterface->getInterfaceId(), ipv4Header->getDestAddress(), ipv4Header->getSrcAddress(), ipv4Header->getTimeToLive());
    }
    // RPF interface has changed
    else if (signalID == routeAddedSignal) {
        const Ipv4Route *entry = check_and_cast<const Ipv4Route *>(obj);
        for (int i = 0; i < rt->getNumMulticastRoutes(); i++) {
            // find multicast routes whose source are on the destination of the new unicast route
            Ipv4MulticastRoute *route = rt->getMulticastRoute(i);
            if (route->getSource() == this && Ipv4Address::maskedAddrAreEqual(route->getOrigin(), entry->getDestination() /*routeSource*/, entry->getNetmask() /*routeNetmask*/)) {
                Ipv4Address source = route->getOrigin();
                Ipv4Route *routeToSource = rt->findBestMatchingRoute(source);
                NetworkInterface *newRpfInterface = routeToSource->getInterface();
                NetworkInterface *oldRpfInterface = route->getInInterface()->getInterface();

                // is there any change?
                if (newRpfInterface != oldRpfInterface)
                    rpfInterfaceHasChanged(route, routeToSource);

                // TODO update metric
            }
        }
    }
}

restartTimer()

void inet::PimDm::restartTimer ( cMessage *  timer, double  interval  )

private

{
    rescheduleAfter(interval, timer);
}

Referenced by multicastPacketArrivedOnNonRpfInterface(), multicastPacketArrivedOnRpfInterface(), processAssert(), processPrune(), processStateRefreshPacket(), and processStateRefreshTimer().

rpfInterfaceHasChanged()

void inet::PimDm::rpfInterfaceHasChanged ( Ipv4MulticastRoute *  ipv4Route, Ipv4Route *  routeToSource  )

private

The method process notification about interface change.

Multicast routing table will be changed if RPF interface has changed. New RPF interface is set to route and is removed from outgoing interfaces. On the other hand, old RPF interface is added to outgoing interfaces. If route was not pruned, the router has to join to the multicast tree again (by different path).

{
    NetworkInterface *newRpf = routeToSource->getInterface();
    Ipv4Address source = ipv4Route->getOrigin();
    Ipv4Address group = ipv4Route->getMulticastGroup();
    int rpfId = newRpf->getInterfaceId();

    EV_DETAIL << "New RPF interface for group=" << group << " source=" << source << " is " << newRpf->getInterfaceName() << endl;

    Route *route = findRoute(source, group);
    ASSERT(route);

    // delete old upstream interface data
    UpstreamInterface *oldUpstreamInterface = route->upstreamInterface;
    NetworkInterface *oldRpfInterface = oldUpstreamInterface ? oldUpstreamInterface->ie : nullptr;
    delete oldUpstreamInterface;
    delete ipv4Route->getInInterface();
    ipv4Route->setInInterface(nullptr);

    // set new upstream interface data
    bool isSourceDirectlyConnected = routeToSource->getSourceType() == Ipv4Route::IFACENETMASK;
    Ipv4Address newRpfNeighbor = pimNbt->getNeighbor(rpfId, 0)->getAddress(); // TODO what happens if no neighbors?
    UpstreamInterface *upstream = route->upstreamInterface = new UpstreamInterface(route, newRpf, newRpfNeighbor, isSourceDirectlyConnected);
    ipv4Route->setInInterface(new IMulticastRoute::InInterface(newRpf));

    // delete rpf interface from the downstream interfaces
    DownstreamInterface *oldDownstreamInterface = route->removeDownstreamInterface(newRpf->getInterfaceId());
    if (oldDownstreamInterface) {
        ipv4Route->removeOutInterface(newRpf); // will delete downstream data, TODO method should be called deleteOutInterface()
        delete oldDownstreamInterface;
    }

    // old RPF interface should be now a downstream interface if it is not down
    if (oldRpfInterface && oldRpfInterface->isUp()) {
        DownstreamInterface *downstream = route->createDownstreamInterface(oldRpfInterface);
        ipv4Route->addOutInterface(new PimDmOutInterface(oldRpfInterface, downstream));
    }

    bool isOlistNull = route->isOilistNull();

    // upstream state transitions

    // RPF'(S) Changes AND olist(S,G) != nullptr AND S is NOT directly connected?
    if (!isOlistNull && !upstream->isSourceDirectlyConnected()) {
        // The Upstream(S,G) state
        // machine MUST transition to the AckPending (AP) state, unicast a
        // Graft to the new RPF'(S), and set the GraftRetry Timer (GRT(S,G))
        // to Graft_Retry_Period.

        if (upstream->graftPruneState == UpstreamInterface::PRUNED)
            upstream->stopPruneLimitTimer();

        // route was not pruned, join to the multicast tree again
        sendGraftPacket(upstream->rpfNeighbor(), source, group, rpfId);
        upstream->startGraftRetryTimer();
        upstream->graftPruneState = UpstreamInterface::ACK_PENDING;
    }
    // RPF'(S) Changes AND olist(S,G) == nullptr
    else if (isOlistNull) {
        if (upstream->graftPruneState == UpstreamInterface::PRUNED) {
            upstream->stopPruneLimitTimer();
        }
        else if (upstream->graftPruneState == UpstreamInterface::ACK_PENDING) {
            cancelAndDelete(upstream->graftRetryTimer);
            upstream->graftRetryTimer = nullptr;
        }

        upstream->graftPruneState = UpstreamInterface::PRUNED;
    }
}

Referenced by receiveSignal().

sendAssertPacket()

void inet::PimDm::sendAssertPacket ( Ipv4Address  source, Ipv4Address  group, AssertMetric  metric, NetworkInterface *  ie  )

private

{
    EV_INFO << "Sending Assert(S= " << source << ", G= " << group << ") message on interface '" << ie->getInterfaceName() << "'\n";

    Packet *packet = new Packet("PimAssert");
    const auto& pkt = makeShared<PimAssert>();
    pkt->getGroupAddressForUpdate().groupAddress = group;
    pkt->getSourceAddressForUpdate().unicastAddress = source;
    pkt->setR(false);
    pkt->setMetricPreference(metric.preference);
    pkt->setMetric(metric.metric);

    pkt->setChunkLength(PIM_HEADER_LENGTH
            + ENCODED_GROUP_ADDRESS_LENGTH
            + ENCODED_UNICODE_ADDRESS_LENGTH
            + B(8));
    pkt->setCrcMode(pimModule->getCrcMode());
    Pim::insertCrc(pkt);
    packet->insertAtFront(pkt);

    emit(sentAssertPkSignal, packet);

    sendToIP(packet, Ipv4Address::UNSPECIFIED_ADDRESS, ALL_PIM_ROUTERS_MCAST, ie->getInterfaceId());
}

Referenced by multicastPacketArrivedOnNonRpfInterface(), processAssert(), processGraft(), processJoin(), and processPrune().

sendGraftAckPacket()

void inet::PimDm::sendGraftAckPacket ( Packet *  pk, const Ptr< const PimGraft > &  graftPacket  )

private

{
    EV_INFO << "Sending GraftAck message.\n";

    auto ifTag = pk->getTag<InterfaceInd>();
    auto addressInd = pk->getTag<L3AddressInd>();
    Ipv4Address destAddr = addressInd->getSrcAddress().toIpv4();
    Ipv4Address srcAddr = addressInd->getDestAddress().toIpv4();
    int outInterfaceId = ifTag->getInterfaceId();

    Packet *packet = new Packet("PIMGraftAck");
    auto msg = dynamicPtrCast<PimGraft>(graftPacket->dupShared());
    msg->setType(GraftAck);
    msg->setCrcMode(pimModule->getCrcMode());
    Pim::insertCrc(msg);
    packet->insertAtFront(msg);

    emit(sentGraftAckPkSignal, packet);

    sendToIP(packet, srcAddr, destAddr, outInterfaceId);
}

Referenced by processGraftPacket().

sendGraftPacket()

void inet::PimDm::sendGraftPacket ( Ipv4Address  nextHop, Ipv4Address  src, Ipv4Address  grp, int  intId  )

private

{
    EV_INFO << "Sending Graft(S=" << src << ", G=" << grp << ") message to neighbor '" << nextHop << "' on interface '" << intId << "'\n";

    Packet *packet = new Packet("PimGraft");
    const auto& msg = makeShared<PimGraft>();
    msg->setHoldTime(0);
    msg->getUpstreamNeighborAddressForUpdate().unicastAddress = nextHop;

    msg->setJoinPruneGroupsArraySize(1);
    JoinPruneGroup& group = msg->getJoinPruneGroupsForUpdate(0);
    group.getGroupAddressForUpdate().groupAddress = grp;
    group.setJoinedSourceAddressArraySize(1);
    auto& address = group.getJoinedSourceAddressForUpdate(0);
    address.sourceAddress = src;

    msg->setChunkLength(PIM_HEADER_LENGTH + ENCODED_UNICODE_ADDRESS_LENGTH + B(4) + ENCODED_GROUP_ADDRESS_LENGTH + B(4) + ENCODED_SOURCE_ADDRESS_LENGTH);
    msg->setCrcMode(pimModule->getCrcMode());
    Pim::insertCrc(msg);
    packet->insertAtFront(msg);

    emit(sentGraftPkSignal, packet);

    sendToIP(packet, Ipv4Address::UNSPECIFIED_ADDRESS, nextHop, intId);
}

Referenced by processGraftRetryTimer(), processOlistNonEmptyEvent(), and rpfInterfaceHasChanged().

sendJoinPacket()

void inet::PimDm::sendJoinPacket ( Ipv4Address  nextHop, Ipv4Address  source, Ipv4Address  group, int  interfaceId  )

private

{
    ASSERT(!src.isUnspecified());
    ASSERT(grp.isMulticast());

    EV_INFO << "Sending Join(S=" << src << ", G=" << grp << ") message to neighbor '" << nextHop << "' on interface '" << intId << "'\n";

    Packet *packet = new Packet("PIMJoin");
    const auto& msg = makeShared<PimJoinPrune>();
    msg->getUpstreamNeighborAddressForUpdate().unicastAddress = nextHop;
    msg->setHoldTime(0); // ignored by the receiver

    // set multicast groups
    msg->setJoinPruneGroupsArraySize(1);
    JoinPruneGroup& group = msg->getJoinPruneGroupsForUpdate(0);
    group.getGroupAddressForUpdate().groupAddress = grp;
    group.setJoinedSourceAddressArraySize(1);
    auto& address = group.getJoinedSourceAddressForUpdate(0);
    address.sourceAddress = src;

    msg->setChunkLength(PIM_HEADER_LENGTH + ENCODED_UNICODE_ADDRESS_LENGTH + B(4) + ENCODED_GROUP_ADDRESS_LENGTH + B(4) + ENCODED_SOURCE_ADDRESS_LENGTH);
    msg->setCrcMode(pimModule->getCrcMode());
    Pim::insertCrc(msg);
    packet->insertAtFront(msg);

    emit(sentJoinPrunePkSignal, packet);

    sendToIP(packet, Ipv4Address::UNSPECIFIED_ADDRESS, ALL_PIM_ROUTERS_MCAST, intId);
}

Referenced by processOverrideTimer().

sendPrunePacket()

void inet::PimDm::sendPrunePacket ( Ipv4Address  nextHop, Ipv4Address  src, Ipv4Address  grp, int  holdTime, int  intId  )

private

{
    ASSERT(!src.isUnspecified());
    ASSERT(grp.isMulticast());

    EV_INFO << "Sending Prune(S=" << src << ", G=" << grp << ") message to neighbor '" << nextHop << "' on interface '" << intId << "'\n";

    Packet *packet = new Packet("PIMPrune");
    const auto& msg = makeShared<PimJoinPrune>();
    msg->getUpstreamNeighborAddressForUpdate().unicastAddress = nextHop;
    msg->setHoldTime(holdTime);

    // set multicast groups
    msg->setJoinPruneGroupsArraySize(1);
    JoinPruneGroup& group = msg->getJoinPruneGroupsForUpdate(0);
    group.getGroupAddressForUpdate().groupAddress = grp;
    group.setPrunedSourceAddressArraySize(1);
    auto& address = group.getPrunedSourceAddressForUpdate(0);
    address.sourceAddress = src;

    msg->setChunkLength(PIM_HEADER_LENGTH + ENCODED_UNICODE_ADDRESS_LENGTH + B(4) + ENCODED_GROUP_ADDRESS_LENGTH + B(4) + ENCODED_SOURCE_ADDRESS_LENGTH);
    msg->setCrcMode(pimModule->getCrcMode());
    Pim::insertCrc(msg);
    packet->insertAtFront(msg);

    emit(sentJoinPrunePkSignal, packet);

    sendToIP(packet, Ipv4Address::UNSPECIFIED_ADDRESS, ALL_PIM_ROUTERS_MCAST, intId);
}

Referenced by multicastPacketArrivedOnNonRpfInterface(), multicastPacketArrivedOnRpfInterface(), processAssert(), processOlistEmptyEvent(), and processStateRefreshPacket().

sendStateRefreshPacket()

void inet::PimDm::sendStateRefreshPacket ( Ipv4Address  originator, Route *  route, DownstreamInterface *  downstream, unsigned short  ttl  )

private

{
    EV_INFO << "Sending StateRefresh(S=" << route->source << ", G=" << route->group
            << ") message on interface '" << downstream->ie->getInterfaceName() << "'\n";

    Packet *packet = new Packet("PimStateRefresh");
    const auto& msg = makeShared<PimStateRefresh>();
    msg->getGroupAddressForUpdate().groupAddress = route->group;
    msg->getSourceAddressForUpdate().unicastAddress = route->source;
    msg->getOriginatorAddressForUpdate().unicastAddress = originator;
    msg->setInterval(stateRefreshInterval);
    msg->setTtl(ttl);
    msg->setP(downstream->pruneState == DownstreamInterface::PRUNED);
    // TODO set metric

    msg->setChunkLength(PIM_HEADER_LENGTH
            + ENCODED_GROUP_ADDRESS_LENGTH
            + ENCODED_UNICODE_ADDRESS_LENGTH
            + ENCODED_UNICODE_ADDRESS_LENGTH
            + B(12));
    msg->setCrcMode(pimModule->getCrcMode());
    Pim::insertCrc(msg);
    packet->insertAtFront(msg);

    emit(sentStateRefreshPkSignal, packet);

    sendToIP(packet, Ipv4Address::UNSPECIFIED_ADDRESS, ALL_PIM_ROUTERS_MCAST, downstream->ie->getInterfaceId());
}

Referenced by processStateRefreshPacket(), and processStateRefreshTimer().

sendToIP()

void inet::PimDm::sendToIP ( Packet *  packet, Ipv4Address  source, Ipv4Address  dest, int  outInterfaceId  )

private

{
    packet->addTagIfAbsent<PacketProtocolTag>()->setProtocol(&Protocol::pim);
    packet->addTagIfAbsent<DispatchProtocolInd>()->setProtocol(&Protocol::pim);
    packet->addTagIfAbsent<DispatchProtocolReq>()->setProtocol(&Protocol::ipv4);
    packet->addTagIfAbsent<InterfaceReq>()->setInterfaceId(outInterfaceId);
    auto addresses = packet->addTagIfAbsent<L3AddressReq>();
    addresses->setSrcAddress(srcAddr);
    addresses->setDestAddress(destAddr);
    packet->addTagIfAbsent<HopLimitReq>()->setHopLimit(1);
    send(packet, "ipOut");
}

Referenced by sendAssertPacket(), sendGraftAckPacket(), sendGraftPacket(), sendJoinPacket(), sendPrunePacket(), and sendStateRefreshPacket().

stopPIMRouting()

void inet::PimDm::stopPIMRouting ( )

protectedvirtual

{
    if (isEnabled) {
        cModule *host = findContainingNode(this);
        if (!host)
            throw cRuntimeError("PimDm: containing node not found.");
        host->unsubscribe(ipv4NewMulticastSignal, this);
        host->unsubscribe(ipv4MulticastGroupRegisteredSignal, this);
        host->unsubscribe(ipv4MulticastGroupUnregisteredSignal, this);
        host->unsubscribe(ipv4DataOnNonrpfSignal, this);
        host->unsubscribe(ipv4DataOnRpfSignal, this);
        host->unsubscribe(routeAddedSignal, this);
        host->unsubscribe(interfaceStateChangedSignal, this);
    }

    clearRoutes();
}

Referenced by handleCrashOperation(), and handleStopOperation().

unroutableMulticastPacketArrived()

void inet::PimDm::unroutableMulticastPacketArrived ( Ipv4Address  source, Ipv4Address  group, unsigned short  ttl  )

private

The method process notification about new multicast data stream.

It goes through all PIM interfaces and tests them if they can be added to the list of outgoing interfaces. If there is no interface on the list at the end, the router will prune from the multicast tree.

{
    ASSERT(!source.isUnspecified());
    ASSERT(group.isMulticast());

    EV_DETAIL << "New multicast source observed: source=" << source << ", group=" << group << ".\n";

    Ipv4Route *routeToSrc = rt->findBestMatchingRoute(source);
    if (!routeToSrc || !routeToSrc->getInterface()) {
        EV << "ERROR: PimDm::newMulticast(): cannot find RPF interface, routing information is missing.";
        return;
    }

    PimInterface *rpfInterface = pimIft->getInterfaceById(routeToSrc->getInterface()->getInterfaceId());
    if (!rpfInterface || rpfInterface->getMode() != PimInterface::DenseMode)
        return;

    // gateway is unspecified for directly connected destinations
    bool isSourceDirectlyConnected = routeToSrc->getSourceType() == Ipv4Route::IFACENETMASK;
    Ipv4Address rpfNeighbor = routeToSrc->getGateway().isUnspecified() ? source : routeToSrc->getGateway();

    Route *route = new Route(this, source, group);
    routes[SourceAndGroup(source, group)] = route;
    route->metric = AssertMetric(routeToSrc->getAdminDist(), routeToSrc->getMetric(), Ipv4Address::UNSPECIFIED_ADDRESS);
    route->upstreamInterface = new UpstreamInterface(route, rpfInterface->getInterfacePtr(), rpfNeighbor, isSourceDirectlyConnected);

    // if the source is directly connected, then go to the Originator state
    if (isSourceDirectlyConnected) {
        route->upstreamInterface->originatorState = UpstreamInterface::ORIGINATOR;
        if (rpfInterface->getSR())
            route->upstreamInterface->startStateRefreshTimer();
        route->upstreamInterface->startSourceActiveTimer();
        route->upstreamInterface->maxTtlSeen = ttl;
    }

    bool allDownstreamInterfacesArePruned = true;

    // insert all PIM interfaces except rpf int
    for (int i = 0; i < pimIft->getNumInterfaces(); i++) {
        PimInterface *pimInterface = pimIft->getInterface(i);

        // check if PIM-DM interface and it is not RPF interface
        if (pimInterface == rpfInterface || pimInterface->getMode() != PimInterface::DenseMode) // TODO original code added downstream if data for PIM-SM interfaces too
            continue;

        bool hasPIMNeighbors = pimNbt->getNumNeighbors(pimInterface->getInterfaceId()) > 0;
        bool hasConnectedReceivers = pimInterface->getInterfacePtr()->getProtocolData<Ipv4InterfaceData>()->hasMulticastListener(group);

        // if there are neighbors on interface, we will forward
        if (hasPIMNeighbors || hasConnectedReceivers) {
            // create new outgoing interface
            DownstreamInterface *downstream = route->createDownstreamInterface(pimInterface->getInterfacePtr());
            downstream->setHasConnectedReceivers(hasConnectedReceivers);
            allDownstreamInterfacesArePruned = false;
        }
    }

    // if there is no outgoing interface, prune from multicast tree
    if (allDownstreamInterfacesArePruned) {
        EV_DETAIL << "There is no outgoing interface for multicast, will send Prune message to upstream.\n";
        route->upstreamInterface->graftPruneState = UpstreamInterface::PRUNED;

        // Prune message is sent from the forwarding hook (ipv4DataOnRpfSignal), see multicastPacketArrivedOnRpfInterface()
    }

    // create new multicast route
    Ipv4MulticastRoute *newRoute = new Ipv4MulticastRoute();
    newRoute->setOrigin(source);
    newRoute->setOriginNetmask(Ipv4Address::ALLONES_ADDRESS);
    newRoute->setMulticastGroup(group);
    newRoute->setSourceType(IMulticastRoute::PIM_DM);
    newRoute->setSource(this);
    newRoute->setInInterface(new IMulticastRoute::InInterface(route->upstreamInterface->ie));
    for (auto& elem : route->downstreamInterfaces) {
        DownstreamInterface *downstream = elem;
        newRoute->addOutInterface(new PimDmOutInterface(downstream->ie, downstream));
    }

    rt->addMulticastRoute(newRoute);
    EV_DETAIL << "New route was added to the multicast routing table.\n";
}

Referenced by receiveSignal().

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  out, const PimDm::Route &  sourceGroup  )

friend

{
    out << "Upstream interface ";
    if (!route.upstreamInterface)
        out << "(empty) ";
    else {
        out << "(name: " << route.upstreamInterface->ie->getInterfaceName() << " ";
        out << "RpfNeighbor: " << route.upstreamInterface->rpfNeighbor() << " ";
        out << "graftPruneState: " << PimDm::graftPruneStateString(route.upstreamInterface->getGraftPruneState()) << " ";
        auto t1 = route.upstreamInterface->getGraftRetryTimer();
        out << "graftRetryTimer: " << (t1 ? t1->getArrivalTime() : 0) << " ";
        auto t2 = route.upstreamInterface->getOverrideTimer();
        out << "overrideTimer: " << (t2 ? t2->getArrivalTime() : 0) << " ";
        out << "lastPruneSentTime: " << route.upstreamInterface->getLastPruneSentTime() << " ";
        out << "originatorState: " << PimDm::originatorStateString(route.upstreamInterface->getOriginatorState()) << " ";
        auto t3 = route.upstreamInterface->getSourceActiveTimer();
        out << "sourceActiveTimer: " << (t3 ? t3->getArrivalTime() : 0) << " ";
        auto t4 = route.upstreamInterface->getStateRefreshTimer();
        out << "stateRefreshTimer: " << (t4 ? t4->getArrivalTime() : 0) << " ";
        out << "maxTtlSeen: " << route.upstreamInterface->getMaxTtlSeen() << ") ";
    }

    out << "Downstream interfaces ";
    if (route.downstreamInterfaces.empty())
        out << "(empty) ";
    for (unsigned int i = 0; i < route.downstreamInterfaces.size(); ++i) {
        out << "(name: " << route.downstreamInterfaces[i]->ie->getInterfaceName() << " ";
        out << "pruneState: " << PimDm::pruneStateString(route.downstreamInterfaces[i]->getPruneState()) << " ";
        auto t1 = route.downstreamInterfaces[i]->getPruneTimer();
        out << "pruneTimer: " << (t1 ? t1->getArrivalTime() : 0) << " ";
        auto t2 = route.downstreamInterfaces[i]->getPrunePendingTimer();
        out << "prunePendingTimer: " << (t2 ? t2->getArrivalTime() : 0) << ") ";
    }

    return out;

}

Member Data Documentation

assertTime

double inet::PimDm::assertTime = 0

private

Referenced by initialize(), multicastPacketArrivedOnNonRpfInterface(), and processAssert().

graftRetryInterval

double inet::PimDm::graftRetryInterval = 0

private

Referenced by initialize(), processGraftRetryTimer(), and inet::PimDm::UpstreamInterface::startGraftRetryTimer().

overrideInterval

double inet::PimDm::overrideInterval = 0

private

Referenced by initialize(), processPrune(), processPrunePendingTimer(), inet::PimDm::UpstreamInterface::startOverrideTimer(), and inet::PimDm::DownstreamInterface::startPrunePendingTimer().

propagationDelay

double inet::PimDm::propagationDelay = 0

private

Referenced by initialize(), processPrune(), and processPrunePendingTimer().

pruneInterval

double inet::PimDm::pruneInterval = 0

private

Referenced by initialize(), multicastPacketArrivedOnNonRpfInterface(), multicastPacketArrivedOnRpfInterface(), processOlistEmptyEvent(), processPrunePendingTimer(), processStateRefreshPacket(), and processStateRefreshTimer().

pruneLimitInterval

double inet::PimDm::pruneLimitInterval = 0

private

Referenced by initialize().

rcvdAssertPkSignal

simsignal_t inet::PimDm::rcvdAssertPkSignal = registerSignal("rcvdAssertPk")

staticprivate

Referenced by processAssertPacket().

rcvdGraftAckPkSignal

simsignal_t inet::PimDm::rcvdGraftAckPkSignal = registerSignal("rcvdGraftAckPk")

staticprivate

Referenced by processGraftAckPacket().

rcvdGraftPkSignal

simsignal_t inet::PimDm::rcvdGraftPkSignal = registerSignal("rcvdGraftPk")

staticprivate

Referenced by processGraftPacket().

rcvdJoinPrunePkSignal

simsignal_t inet::PimDm::rcvdJoinPrunePkSignal = registerSignal("rcvdJoinPrunePk")

staticprivate

Referenced by processJoinPrunePacket().

rcvdStateRefreshPkSignal

simsignal_t inet::PimDm::rcvdStateRefreshPkSignal = registerSignal("rcvdStateRefreshPk")

staticprivate

Referenced by processStateRefreshPacket().

routes

RoutingTable inet::PimDm::routes

private

Referenced by clearRoutes(), deleteRoute(), findRoute(), handleStartOperation(), unroutableMulticastPacketArrived(), and ~PimDm().

sentAssertPkSignal

simsignal_t inet::PimDm::sentAssertPkSignal = registerSignal("sentAssertPk")

staticprivate

Referenced by sendAssertPacket().

sentGraftAckPkSignal

simsignal_t inet::PimDm::sentGraftAckPkSignal = registerSignal("sentGraftAckPk")

staticprivate

Referenced by sendGraftAckPacket().

sentGraftPkSignal

simsignal_t inet::PimDm::sentGraftPkSignal = registerSignal("sentGraftPk")

staticprivate

Referenced by sendGraftPacket().

sentJoinPrunePkSignal

simsignal_t inet::PimDm::sentJoinPrunePkSignal = registerSignal("sentJoinPrunePk")

staticprivate

Referenced by sendJoinPacket(), and sendPrunePacket().

sentStateRefreshPkSignal

simsignal_t inet::PimDm::sentStateRefreshPkSignal = registerSignal("sentStateRefreshPk")

staticprivate

Referenced by sendStateRefreshPacket().

sourceActiveInterval

double inet::PimDm::sourceActiveInterval = 0

private

Referenced by initialize(), multicastPacketArrivedOnRpfInterface(), and inet::PimDm::UpstreamInterface::startSourceActiveTimer().

stateRefreshInterval

double inet::PimDm::stateRefreshInterval = 0

private

Referenced by initialize(), processAssert(), processStateRefreshPacket(), processStateRefreshTimer(), sendStateRefreshPacket(), and inet::PimDm::UpstreamInterface::startStateRefreshTimer().

---

The documentation for this class was generated from the following files:

• PimDm.h
• PimDm.cc
