inet::Pim Class Reference

Compound module for PIM protocol (RFC 4601). More...

#include <Pim.h>

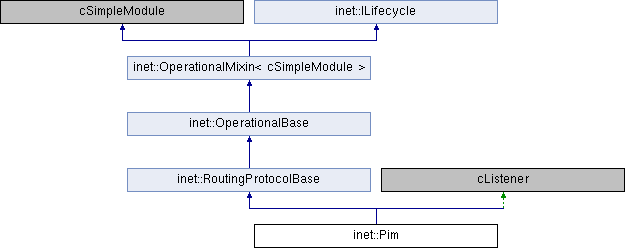

Inheritance diagram for inet::Pim:

Public Member Functions
	Pim ()
virtual	~Pim ()
CrcMode	getCrcMode ()
Public Member Functions inherited from inet::RoutingProtocolBase
	RoutingProtocolBase ()
Public Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual	~OperationalMixin ()
	}@ More...
Public Member Functions inherited from inet::ILifecycle
virtual	~ILifecycle ()

Static Public Member Functions
static void	insertCrc (const Ptr< PimPacket > &pimPacket)
static void	insertCrc (const Protocol *networkProtocol, const L3Address &srcAddress, const L3Address &destAddress, const Ptr< PimPacket > &pimPacket)
static bool	verifyCrc (const Protocol *networkProtocol, const Ptr< const PimPacket > &pimPacket, Packet *packet)
static uint16_t	computeCrc (const Protocol *networkProtocol, const L3Address &srcAddress, const L3Address &destAddress, const Ptr< const PimPacket > &pimPacket)

Protected Member Functions
virtual int	numInitStages () const override
virtual void	initialize (int stage) override
virtual void	handleMessageWhenUp (cMessage *msg) override
virtual void	handleStartOperation (LifecycleOperation *operation) override
virtual void	handleStopOperation (LifecycleOperation *operation) override
virtual void	handleCrashOperation (LifecycleOperation *operation) override
Protected Member Functions inherited from inet::RoutingProtocolBase
virtual bool	isInitializeStage (int stage) const override
virtual bool	isModuleStartStage (int stage) const override
virtual bool	isModuleStopStage (int stage) const override
Protected Member Functions inherited from inet::OperationalMixin< cSimpleModule >
virtual int	numInitStages () const override
virtual void	refreshDisplay () const override
virtual void	handleMessage (cMessage *msg) override
virtual void	handleMessageWhenDown (cMessage *msg)
virtual bool	handleOperationStage (LifecycleOperation *operation, IDoneCallback *doneCallback) override
	Perform one stage of a lifecycle operation. More...
virtual State	getInitialOperationalState () const
	Returns initial operational state: OPERATING or NOT_OPERATING. More...
virtual void	handleActiveOperationTimeout (cMessage *message)
virtual bool	isUp () const
	utility functions More...
virtual bool	isDown () const
virtual void	setOperationalState (State newState)
virtual void	scheduleOperationTimeout (simtime_t timeout)
virtual void	setupActiveOperation (LifecycleOperation *operation, IDoneCallback *doneCallback, State)
virtual void	delayActiveOperationFinish (simtime_t timeout)
virtual void	startActiveOperationExtraTime (simtime_t delay=SIMTIME_ZERO)
virtual void	startActiveOperationExtraTimeOrFinish (simtime_t extraTime)
virtual void	finishActiveOperation ()

Protected Attributes
CrcMode	crcMode = CRC_MODE_UNDEFINED
Protected Attributes inherited from inet::OperationalMixin< cSimpleModule >
State	operationalState
simtime_t	lastChange
Operation	activeOperation
cMessage *	activeOperationTimeout
cMessage *	activeOperationExtraTimer

Additional Inherited Members
Protected Types inherited from inet::OperationalMixin< cSimpleModule >
enum	State

Detailed Description

Compound module for PIM protocol (RFC 4601).

Constructor & Destructor Documentation

Pim()

inet::Pim::Pim ( )

inline

{}

~Pim()

inet::Pim::~Pim ( )

virtual

{
}

Member Function Documentation

computeCrc()

uint16_t inet::Pim::computeCrc ( const Protocol *  networkProtocol, const L3Address &  srcAddress, const L3Address &  destAddress, const Ptr< const PimPacket > &  pimPacket  )

static

{
    MemoryOutputStream stream;
    if (networkProtocol == &Protocol::ipv6) {
        auto pseudoHeader = makeShared<TransportPseudoHeader>();
        pseudoHeader->setSrcAddress(srcAddress);
        pseudoHeader->setDestAddress(destAddress);
        pseudoHeader->setNetworkProtocolId(networkProtocol->getId());
        pseudoHeader->setProtocolId(IP_PROT_PIM);
        pseudoHeader->setPacketLength(pimPacket->getChunkLength());
        pseudoHeader->setChunkLength(B(40));
        Chunk::serialize(stream, pseudoHeader);
    }
    Chunk::serialize(stream, pimPacket);
    uint16_t crc = TcpIpChecksum::checksum(stream.getData());
    return crc;
}

Referenced by insertCrc(), and verifyCrc().

getCrcMode()

CrcMode inet::Pim::getCrcMode ( )

inline

{ return crcMode; }

handleCrashOperation()

void inet::Pim::handleCrashOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
}

handleMessageWhenUp()

void inet::Pim::handleMessageWhenUp ( cMessage *  msg )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
    throw cRuntimeError("this module doesn't allow incoming packets");
}

handleStartOperation()

void inet::Pim::handleStartOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
}

handleStopOperation()

void inet::Pim::handleStopOperation ( LifecycleOperation *  operation )

overrideprotectedvirtual

Implements inet::OperationalMixin< cSimpleModule >.

{
}

initialize()

void inet::Pim::initialize ( int  stage )

overrideprotectedvirtual

Reimplemented from inet::OperationalMixin< cSimpleModule >.

{
    RoutingProtocolBase::initialize(stage);

    if (stage == INITSTAGE_LOCAL) {
        const char *crcModeString = par("crcMode");
        crcMode = parseCrcMode(crcModeString, false);
    }
    else if (stage == INITSTAGE_TRANSPORT_LAYER) {
        if (crcMode == CRC_COMPUTED) {
            cModuleType *moduleType = cModuleType::get("inet.routing.pim.PimCrcInsertionHook");
            auto crcInsertion = check_and_cast<PimCrcInsertionHook *>(moduleType->create("crcInsertion", this));
            crcInsertion->finalizeParameters();
            crcInsertion->callInitialize();

            // For IPv6, the checksum also includes the IPv6 "pseudo-header",
            // as specified in RFC 2460, Section 8.1 [5].  This
            // "pseudo-header" is prepended to the PIM header for the purposes
            // of calculating the checksum.  The "Upper-Layer Packet Length"
            // in the pseudo-header is set to the length of the PIM message,
            // except in Register messages where it is set to the length of
            // the PIM register header (8).  The Next Header value used in the
            // pseudo-header is 103.
#ifdef INET_WITH_IPv6
            auto ipv6 = dynamic_cast<INetfilter *>(findModuleByPath("^.ipv6.ipv6"));
            if (ipv6 != nullptr)
                ipv6->registerHook(0, crcInsertion);
#endif
        }
    }
    else if (stage == INITSTAGE_ROUTING_PROTOCOLS) {
        registerProtocol(Protocol::pim, gate("networkLayerOut"), gate("networkLayerIn"));
    }
}

insertCrc() [1/2]

void inet::Pim::insertCrc ( const Protocol *  networkProtocol, const L3Address &  srcAddress, const L3Address &  destAddress, const Ptr< PimPacket > &  pimPacket  )

static

{
    CrcMode crcMode = pimPacket->getCrcMode();
    switch (crcMode) {
        case CRC_DISABLED:
            // if the CRC mode is disabled, then the CRC is 0
            pimPacket->setCrc(0x0000);
            break;
        case CRC_DECLARED_CORRECT:
            // if the CRC mode is declared to be correct, then set the CRC to an easily recognizable value
            pimPacket->setCrc(0xC00D);
            break;
        case CRC_DECLARED_INCORRECT:
            // if the CRC mode is declared to be incorrect, then set the CRC to an easily recognizable value
            pimPacket->setCrc(0xBAAD);
            break;
        case CRC_COMPUTED: {
            // if the CRC mode is computed, then compute the CRC and set it
            // this computation is delayed after the routing decision, see INetfilter hook
            pimPacket->setCrc(0x0000); // make sure that the CRC is 0 in the Udp header before computing the CRC
            auto crc = computeCrc(networkProtocol, srcAddress, destAddress, pimPacket);
            pimPacket->setCrc(crc);
            break;
        }
        default:
            throw cRuntimeError("Unknown CRC mode: %d", (int)crcMode);
    }
}

insertCrc() [2/2]

void inet::Pim::insertCrc ( const Ptr< PimPacket > &  pimPacket )

static

{
    insertCrc(&Protocol::ipv4, L3Address(), L3Address(), pimPacket);
}

Referenced by inet::PimCrcInsertionHook::datagramPostRoutingHook(), inet::PimDm::sendAssertPacket(), inet::PimDm::sendGraftAckPacket(), inet::PimDm::sendGraftPacket(), inet::PimBase::sendHelloPacket(), inet::PimDm::sendJoinPacket(), inet::PimSm::sendPIMAssert(), inet::PimSm::sendPIMJoin(), inet::PimSm::sendPIMPrune(), inet::PimSm::sendPIMRegister(), inet::PimSm::sendPIMRegisterNull(), inet::PimSm::sendPIMRegisterStop(), inet::PimDm::sendPrunePacket(), and inet::PimDm::sendStateRefreshPacket().

numInitStages()

virtual int inet::Pim::numInitStages ( ) const

inlineoverrideprotectedvirtual

{ return NUM_INIT_STAGES; }

verifyCrc()

bool inet::Pim::verifyCrc ( const Protocol *  networkProtocol, const Ptr< const PimPacket > &  pimPacket, Packet *  packet  )

static

{
    switch (pimPacket->getCrcMode()) {
        case CRC_DISABLED:
            // if the CRC mode is disabled, then the check passes if the CRC is 0
            return pimPacket->getCrc() == 0x0000;
        case CRC_DECLARED_CORRECT: {
            // if the CRC mode is declared to be correct, then the check passes if and only if the chunks are correct
            auto totalLength = pimPacket->getChunkLength();
            auto udpDataBytes = packet->peekDataAt(B(0), totalLength - pimPacket->getChunkLength(), Chunk::PF_ALLOW_INCORRECT);
            return pimPacket->isCorrect() && udpDataBytes->isCorrect();
        }
        case CRC_DECLARED_INCORRECT:
            // if the CRC mode is declared to be incorrect, then the check fails
            return false;
        case CRC_COMPUTED: {
            auto l3AddressInd = packet->getTag<L3AddressInd>();
            auto srcAddress = l3AddressInd->getSrcAddress();
            auto destAddress = l3AddressInd->getDestAddress();
            auto computedCrc = computeCrc(networkProtocol, srcAddress, destAddress, pimPacket);
            return computedCrc == 0xFFFF;
        }
        default:
            throw cRuntimeError("Unknown CRC mode");
    }
}

Member Data Documentation

crcMode

CrcMode inet::Pim::crcMode = CRC_MODE_UNDEFINED

protected

Referenced by initialize(), and insertCrc().

---

The documentation for this class was generated from the following files:

• Pim.h
• Pim.cc
